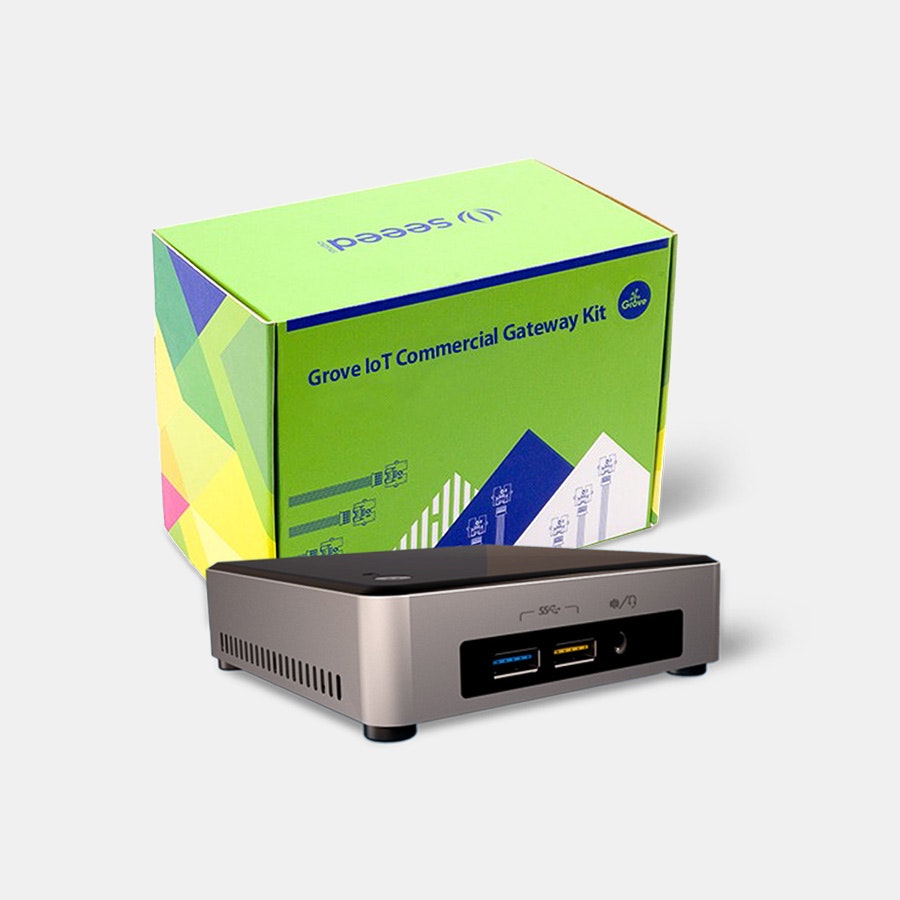

SEEED Grove IoT Commercial Gateway Kit
SEEED Grove IoT Commercial Gateway Kit
bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
Product Description
A partnership between Intel and Microsoft, this kit allows for rapid prototyping for commercial gateway scenarios. Using the Intel NUC DE3815TYKE as a gateway, the kit has all the power needed to connect new devices and legacy devices, as well as the ability to perform edge analytics, translate protocols, and filter data Read More
Powerful Prototyping

A partnership between Intel and Microsoft, this kit allows for rapid prototyping for commercial gateway scenarios. Using the Intel NUC DE3815TYKE as a gateway, the kit has all the power needed to connect new devices and legacy devices, as well as the ability to perform edge analytics, translate protocols, and filter data. Once it’s been processed on the gateway, you can use the Microsoft Azure IoT Gateway SDK to ingest data into the Microsoft Azure cloud with ease. Plus, it’s all based on the industry-trusted Wind River IoT operating system.

Note: This drop does not include the Texas Instrument Sensor Tag or the Arduino / Genuino 101.

Specs
  • Azure IoT Gateway & Azure IoT device SDK supported
  • Intel NUC Kit DE3815TYKE
  • Bluetooth-enabled
  • Plug-N-play Grove system
  • Runs on Wind River Linux

Intel NUC Kit DE3815TYKE

  • Processor: Intel Atom processor E3815 (512KB Cache, 1.46 GHz)
  • Graphics: Intel HD Graphics (up to 400 MHz)
  • Storage: Internal support for 2.5-inch HDD or SSD·Built-in 4 GB eMMC device
  • Expansion: Up to 8 GB of 1333/1600 MHz DDR3L memory via SO-DIMM slot·Half-length mini PCIe slot
  • Wireless: Intel Dual Band Wireless-AC 7260 Plus Bluetooth, 802.11ac, 2x2, Bluetooth 4.0, PCIe, USB, HMC, Model: 7260HMW
  • I/O: USB 3.0 port·Five USB 2.0 ports (2 back,3 internal)·HDMI port·VGA port·Embedded DisplayPort·Headphone/microphone jack·Intel Gigabit LAN
  • Suggested Use Models: Thin client·Digital signage·Attach to back of monitor (All-in-One)
  • Dimensions: 7.5 x 4.6 x 1.6 in
Included
  • Intel NUC Kit DE3815TYKE with 4G Memory and Bluetooth expansion card
  • Sensors:
  • Grove- Button
  • Grove – Sound Sensor v1.2
  • Grove – Touch Sensor
  • Grove – Light Sensor v1.2
  • Grove – Temperature Sensor v1.1
  • Grove – Rotary Angle Sensor(P)
  • Grove – Piezo Vibration Sensor
  • Actuators:
  • Grove – LCD RGB Backlight
  • Grove – Buzzer
  • Grove – Red LED
  • Grove – Green LED
  • Grove – Blue LED
  • Gear Stepper Motor with Driver
  • Others:
  • Grove Base Shield v2
  • (14) 26AWG Grove Cables
  • B to A Type USB Cable – 0.5m
Shipping

All orders will be shipped by Drop.

Estimated ship date is May 22, 2017 PT.

After this product run ends, payment will be collected and orders will be submitted to the vendor up front, making all orders final. Check the discussion for updates on your order.
