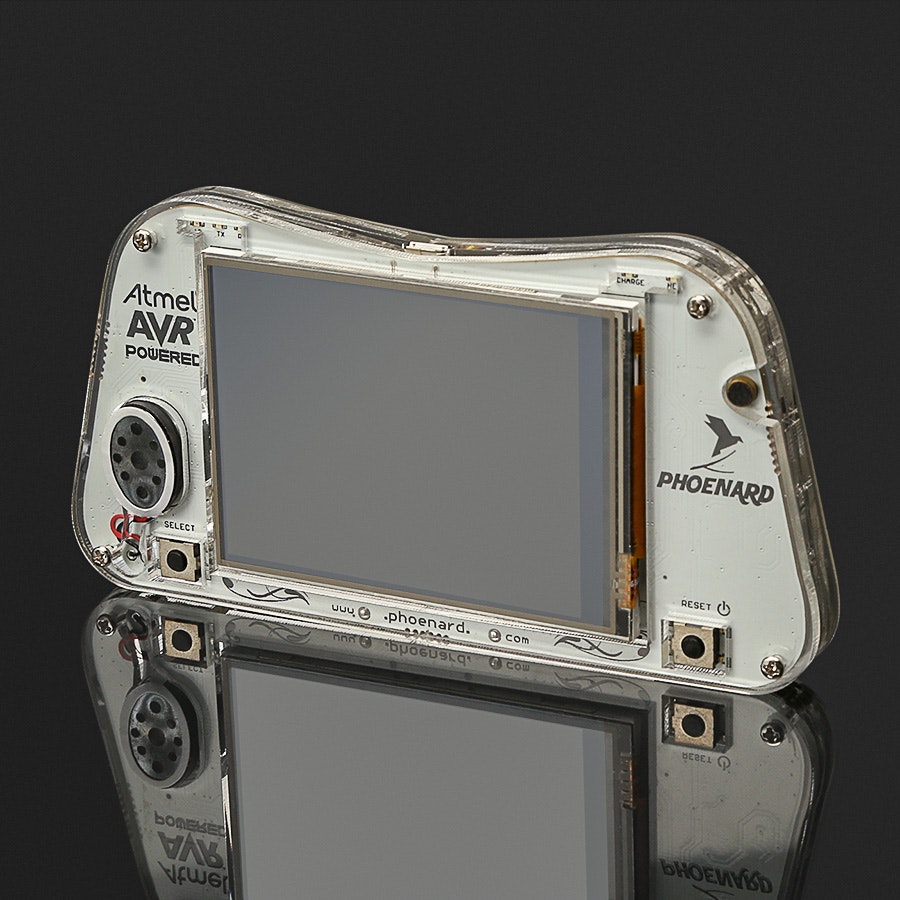

SEEED Phoenard Prototyping Gadget

SEEED Phoenard Prototyping Gadget

bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
103 requests
Product Description
With full Arduino support, this programmable controller and development board allows users to control robots, machines, lights, wearables, and more. With onboard wireless communication, motion sensors, GPS positioning, an audio player, and a 16-bit color LCD touchscreen, it's great for tinkerers, hackers, and those who want to start experimenting Read More

Fully Programmable Board, Beginners Welcome

With full Arduino support, this programmable controller and development board allows users to control robots, machines, lights, wearables, and more. With onboard wireless communication, motion sensors, GPS positioning, an audio player, and a 16-bit color LCD touchscreen, it's great for tinkerers, hackers, and those who want to start experimenting. Use the screen to display interfaces from an expansive Arduino library, and store sketches on the Micro SD card. Dock your projects with the 30 pin connector, which offers digital pins, analog input pins, 3v3 power and a variety of digital interfaces.

SEEED Phoenard Prototyping Gadget
SEEED Phoenard Prototyping Gadget
SEEED Phoenard Prototyping Gadget
SEEED Phoenard Prototyping Gadget
SEEED Phoenard Prototyping Gadget
SEEED Phoenard Prototyping Gadget

Specs

  • Arduino programming support with provided libraries
  • Battery-powered with on-board usb charging
  • Micro-SD for local storage, audio, images and programs
  • GSM and GPRS mobile networking with sim-card
  • GPS position tracking support
  • Accelerometer, gyrometer, barometer and temperature sensors
  • Audio player for playing audio (from Micro-SD) and MIDI
  • 30-pin connector for connecting external electronics
  • Battery: 1050 mAh Li-Ion
  • Charging: 5V 0.5A USB
  • Main board voltage: 3v3
  • Processor: AVR Atmega2560
  • Firmware: Custom firmware phoenboot
  • Type: Single-core 8-bit RISC
  • Speed: 16 Mhz
  • Flash memory: 256Kb
  • RAM: 8Kb
  • EEPROM: 4Kb
  • Interfaces: Serial UART, I2C, SPI
  • External SPI-RAM: 32Kb
  • Micro-SD: FAT16 and FAT32 ready
  • Screen size: 2.8 in
  • Resolution: 320 x 240 pixels
  • Color: 16-bit color
  • Interface: 8-bit parallel bus interface
  • Touchscreen: resistive
  • WiFi: ESP8266 module
  • Bluetooth: HM-11 module
  • SIM908 module: GSM, GPRS and GPS in one package
  • Sim card: standard size
  • MPU6050: 3-axis accelerometer and gyro
  • HMC5883l: 3-axis magnetometer
  • BMP180: barometer and temperature
  • Edia: MP3/ACC/AAC+/WAV/AMR/MIDI
  • Control: SPI (Audio) and Serial (MIDI only)
  • Output: 3.5mm Audio jack and bottom connector
  • Safe operating temperature: -10 ~ 60 degrees Celsius (humidity 20 - 90%)
  • Dimensions: 4.4 x 2.4 x 0.4 in (11.8 x 6.1 x 1.1 cm)

Included

  • Extension boards
  • Antennae for the SIM
  • Li-Ion battery
  • 4GB Micro SD card
  • Plexiglass transparent casing
  • Massdrop 1-Year Limited Warranty
