Seeed Raspberry Pi Compute Module 3 Dev Kit
Expand the Capability of Your Raspberry Pi
Designed for developing in CM3, CM3L, and CM1, the Compute Module 3 allows you to work with the Raspberry Pi in a more flexible form factor. The Compute Module has the guts of a Raspberry Pi 3—including the BCM2837 processor and 1GB of RAM—and an accompanying open-source breakout board that you can plug it into. The board is outfitted with 120 GPIO pins, an HDMI port, a USB port, two camera ports, and two display ports. With it, you have the freedom to add extra components to expand the device’s capabilities, too.
Note: At checkout, you can add the optional Raspberry Pi 3 Model B (+ $35).
Optional Raspberry Pi 3
Following the success of the first two versions, and in celebration of the 4th anniversary of the credit-card sized computer, Seeed has released the third generation of the Raspberry Pi. This updated version features an improved 1.2 GHz 6-bit quad-core processor, Wi-Fi, and Bluetooth. With a host of plugins, connectors, pins, and ports, the Raspberry Pi 3 B is fully equipped to help you start prototyping and exploring the internet of things.
Specs
- Multiple GPIO interfaces on (2) 60-way 0.1-inch headers
- Micro USB connector type B - USB slave
- USB connector type A - USB host
- 2 CSI ports for camera boards
- 2 DSI ports for display boards
- Full-size HDMI port
- Micro USB power connector
- Micro SD connector

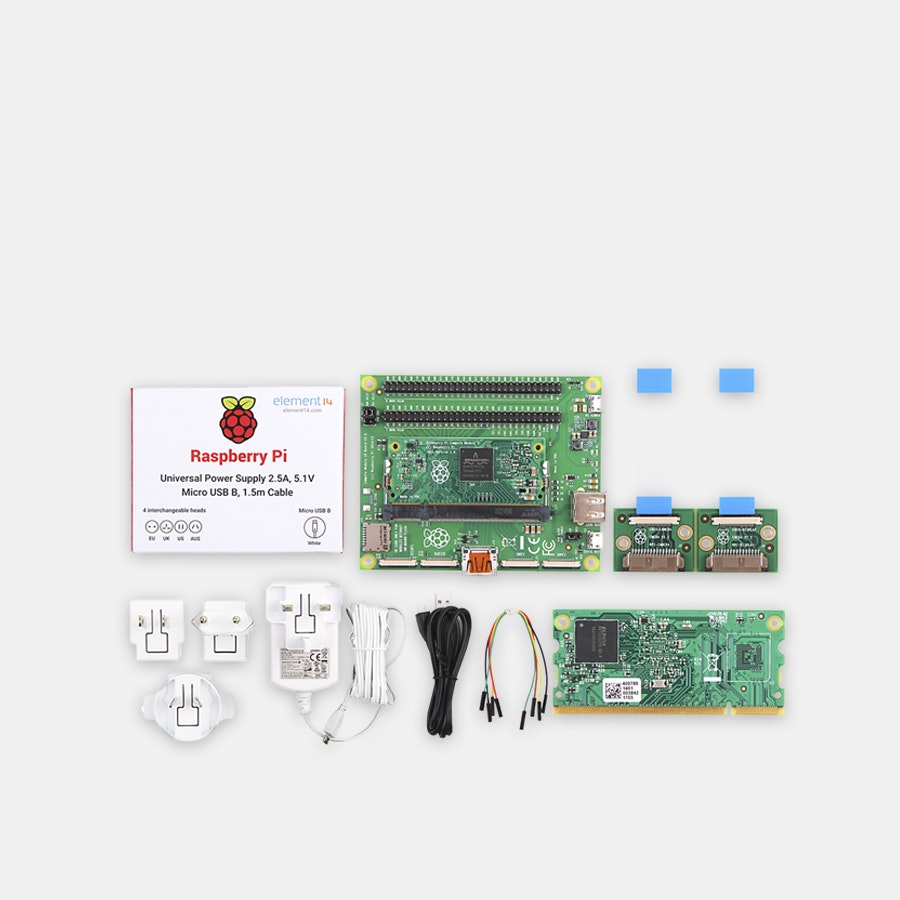

Included
- Raspberry Pi Compute Module I/O Board
- Raspberry Pi Compute Module 3
- Raspberry Pi Compute Module 3 Lite
- Raspberry Pi Compute Module I/O Board Camera Display Adaptor
- 5v 2.5A power supply
- USB A to micro B cable
- Jumper wires
Optional Raspberry Pi 3 Model B
RAM: 1 GB
1.2GHz 64-bit quad-core ARMv8 CPU
802.11n wireless LAN
Bluetooth 4.0
Bluetooth low energy (BLE)
4 USB 2.0 ports
40 GPIO pins
Full HDMI port
Ethernet port
Combined 3.5 mm audio jack and composite video
Camera interface (CSI)
Display interface (DSI)
Micro SD card slot (now push-pull rather than push-push)
VideoCore IV 3D graphics core
Complete compatibility with Raspberry Pi 1 and 2
Dimensions: 3.3 x 2.2 in (8.5 x 5.6 cm)
Weight: 1.49 oz (42.2 g)
Shipping
Estimated ship date is Jan 25, 2018 PT.
Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.
