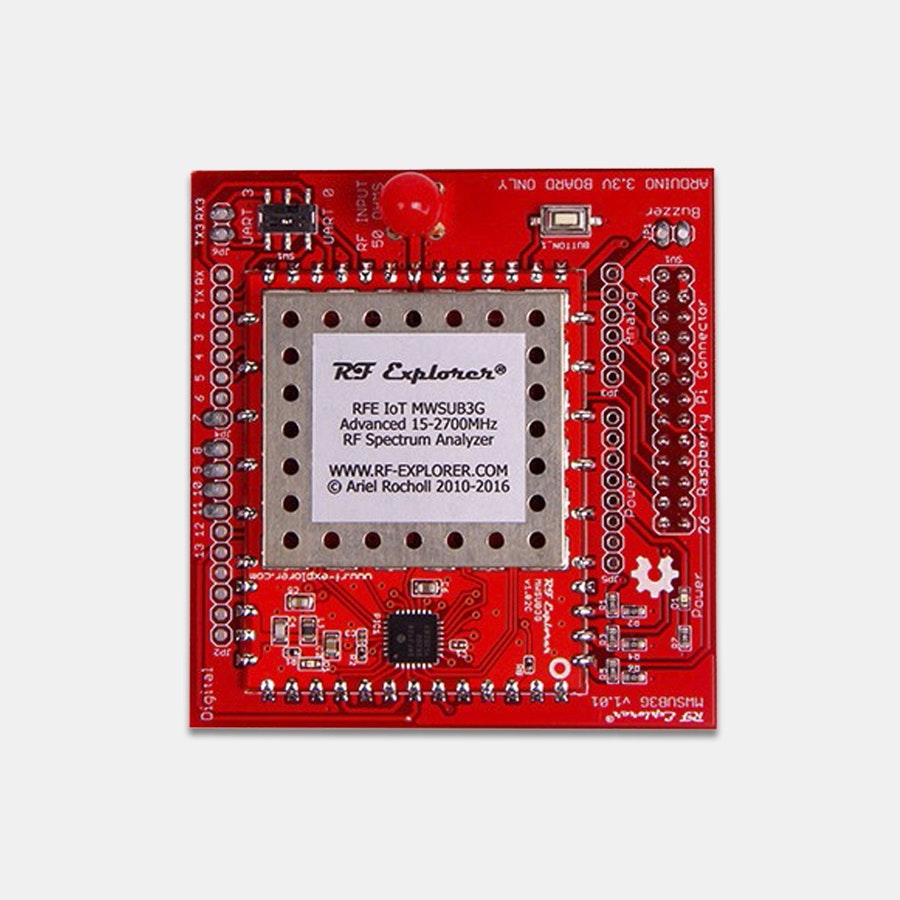

Seeed RF Explorer 3G+ IoT for Raspberry Pi
Design & Customize Your Devices
The Seeed RF Explorer 3G+ is a cost-effective platform to help develop your own spectrum analyzer, RF detector, RF sniffer, power detector, RF QA test bench, and more. Compatible with all types of Raspberry Pi boards, it gives you plenty of options to start experimenting. Its programmability and network capabilities allow for remote control and diagnosis scenarios, fully automated RF alarm systems, and advanced assistance for radio operators, cell towers, and HAM stations. Thanks to the open-source design, the possibilities are virtually endless. You can even update the IoT firmware directly from the Raspberry Pi.
Specs
- Design and customize your own spectrum analyzer, RF detector, RF sniffer
- Open-source design
- Supported by all Raspberry Pi boards
- Can update IoT firmware directly from Raspberry Pi
- Can be connected to a Raspberry Pi by soldering a compatible female header
- Recommend to select SMA antennas for specific application
- In Raspberry Pi 3, Wi-Fi should be shutdown to avoid interference with the analyzer
3G+ MWSUB3G RF Explorer Module
- Frequency band coverage: 15-2700 MHz
- Antenna connector: Standard SMA 50 ohms
- Advanced selectable internal input stage: Normal, LNA, 30dB attenuator
- Amplitude resolution: 0.5dBm
- Dynamic range: -130dBm - 10dBm
- Absolute max input power: 30 dBm
- Average noise floor level: -120 dBm
- Frequency stability and accuracy (typical): +-10ppm
- Amplitude stability and accuracy (typical): +-3dBm
- Frequency resolution: 1Khz
- Resolution bandwidth (RBW): automatic 3KHz - 600 KHz
- Power consumption: 100 - 500mW
- All modules are factory calibrated
Shipping
Estimated ship date is July 12, 2017 PT.
Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.
