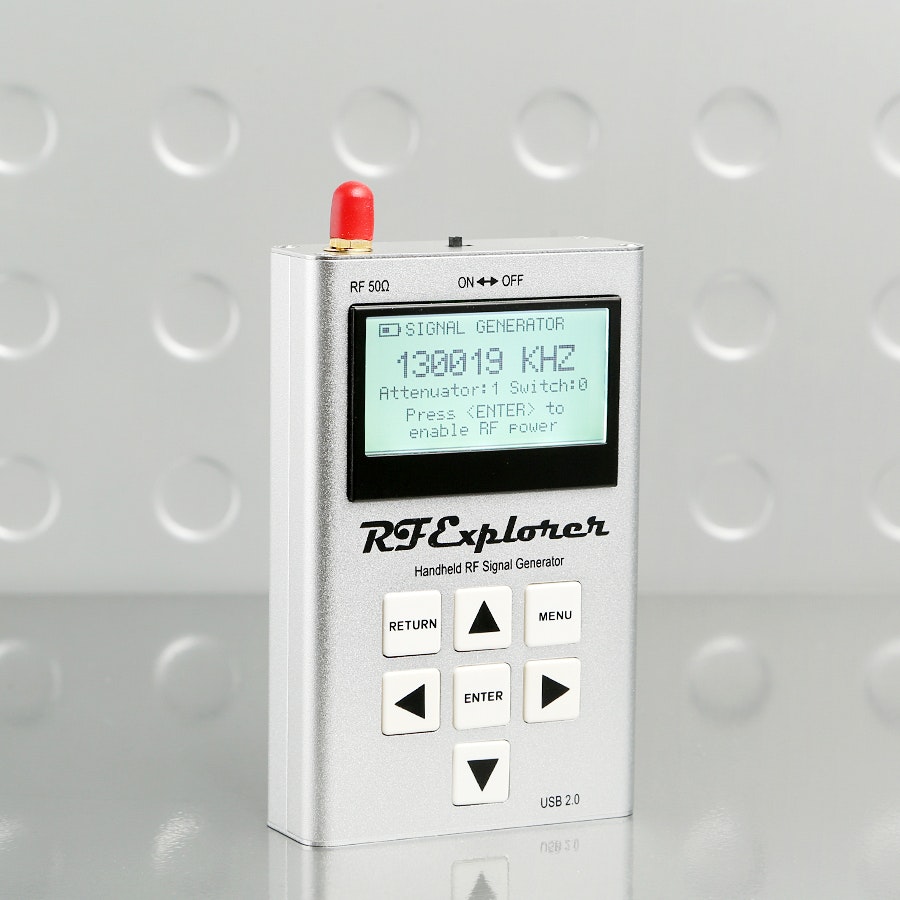

SEEED RF Explorer Signal Generator
Compact & Convenient Signal Generator
The perfect companion for the SEEED RF Explorer Spectrum Analyzer, this RF Explorer model #RFE6GEN is a fully programmable RF signal generator for designing, testing, tinkering, and troubleshooting electronics. On its own, it can generate CW and Sweep signals. When plugged into a PC, it can be programmed for Windows software tools. When used in tandem with the RF Explorer Spectrum Analyzer, it can work as a powerful tracking generator offering full Scalar Network Analyzer capabilities. Also, the SNA feature allows full characterization of filters, amplifiers, and 2-port RF devices.
Specs
- SEEED
- Model #RFE6GEN
- Material: Solid aluminum metal case
- Display: 128 x 64p LCD with backlight
- Battery life: 16+ hrs
- Frequency range supported: 24 to 6000 MHz
- Frequency step/resolution: 1KHz
- Frequency stability: 0.5ppm
- Temperature compensated (0-45C)
- Programmable amplitude with included internal programmable attenuator: -40dBm to -30dBm in 3dB steps, -10dBm to 0dBm in 3dB steps
- Amplitude accuracy: +-0.5dB (normalized) or +-3dB (absolute)
- Switch measurement point speed: < 10ms
- PC Windows client supports Windows XP/Vista/Win7 both 32 and 64bits
- Standard SMA 50 ohms connector
- CW programmable amplitude
- Frequency and Amplitude Sweep capable
- Tracking generator enabled for RF Explorer Spectrum Analyzer
- CW signal generator at any frequency in the range
- Dimensions: 4.4 x 2.8 x 1 in (11.3 x 7 x 2.5 cm)
- Weight: 6.8 oz (193 g)
Included
- Lifetime free firmware upgrades
