Product Description
Create a low-power, wide-area wireless network for your IoT devices with the Seeeduino LoRaWAN. Based on the RHF76-052AM communication module, the device is compatible with LoRaWAN class A/C and supports a variety of different communication frequencies Read More

Build Your Own Wireless Network

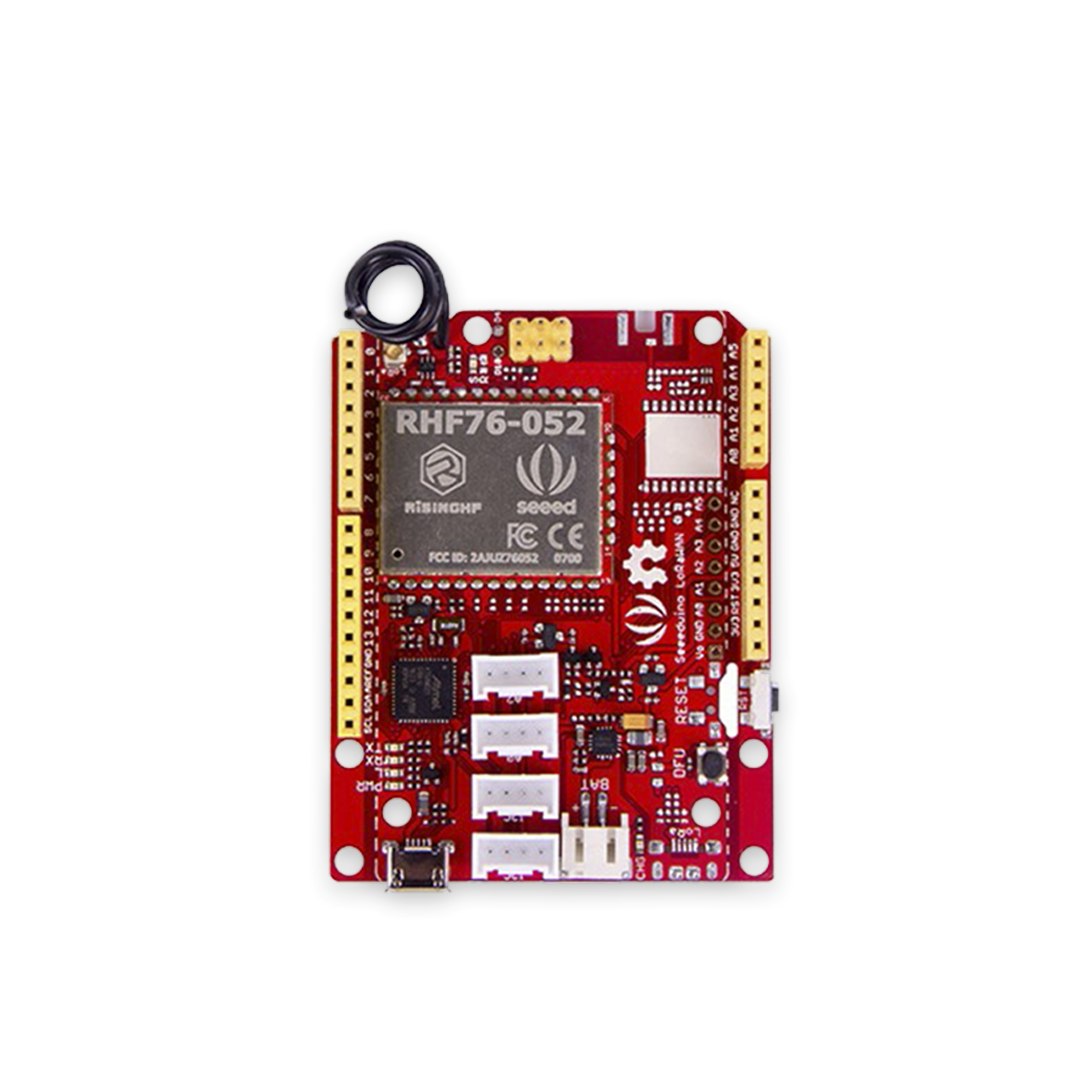

Create a low-power, wide-area wireless network for your IoT devices with the Seeeduino LoRaWAN. Based on the RHF76-052AM communication module, the device is compatible with LoRaWAN class A/C and supports a variety of different communication frequencies. There four onboard grove connectors that allow you to attach hundreds of compatible sensors and actuators. The integrated lithium-ion battery lasts up to seven months on a single charge.

Seeeduino LoRaWAN
Seeeduino LoRaWAN
Seeeduino LoRaWAN
Seeeduino LoRaWAN
Seeeduino LoRaWAN

Specs

Features

  • LoRaWAN Class A/C
  • Ultra long-range communication
  • Ultra low-power consumption
  • Minimum current (3.7V lipo battery): 2mA

Arduino/Processor

  • Type: ATSAMD21G18 at 48MHz with 3.3V logic/power
  • Arduino-compatible
  • Lithium-ion battery
  • Battery management chip.status indicator LED
  • 20 GPIOs
  • 4 on-board Grove connectors
  • 18 PWM pins
  • 6 analog inputs
  • 1 analog output (A0)
  • 3.3V regulator at 200mA output
  • Reset button

LoRaWAN/RHF76-052

  • 1.45uA sleep current in WOR mode (Spec of the modules, not the board)
  • Highlink budget: 160dB
  • Sensitivity: -140dBm
  • Output power: 19dBm
  • Connection: Dual band, 434/470MHz, 868/915MHz
  • 19dBm at 434MHz/470MHz
  • 14dBm at 868MHz/915MHz
  • Supports LoRaWAN protocol, Class A/C
  • Ultra long-range communication
  • Ultra low-power consumption

Technical Specs

  • Microcontroller: ATSAMD21G18, 32-Bit ARM Cortex M0+
  • Operating voltage: 3.3V
  • Digital I/O pins : 20
  • PWM pins
  • UART: 2 (native and programming)
  • Analog input pins: 6, 12-bit ADC channels
  • Analog output pins: 1, 10-bit DAC
  • External interrupts: All pins except pin 4
  • DC current per I/O pin: 7 mA
  • Flash memory: 256 KB
  • SRAM: 32 KB
  • Clock speed: 48 MHz
  • Dimensions: 5.5 x 2.9 x 1.1 in (14 x 7.5 x 2.9 cm)
  • Weight: 1.4 oz (41 g)

Included

  • Antenna
