Product Description
A tiny digital audio player that’s getting a lot of attention on Head-Fi, the Shanling M1 offers commuter-friendly portability without sacrificing sound quality. It can play 192kHz/32-bit audio, supports DSD64 and DSD128 decoding, and comes equipped with Bluetooth 4.0 and aptX protocol Read More

Palm-Sized DAP With Bluetooth & DSD

A tiny digital audio player that’s getting a lot of attention on Head-Fi, the Shanling M1 offers commuter-friendly portability without sacrificing sound quality. It can play 192kHz/32-bit audio, supports DSD64 and DSD128 decoding, and comes equipped with Bluetooth 4.0 and aptX protocol. The housing, which measures just 2.4 by 2 inches, features an ALPS knob and a 2.35-inch TFT HD screen with clock functionality. Use the M1 as a DAP, a USB DAC, or a USB transport with a higher-end portable DAC/amp—it can even serve as a Bluetooth receiver. It weighs just over 2 ounces, delivers up to 10 hours of music between charges, and is available here in an eye-catching royal blue.

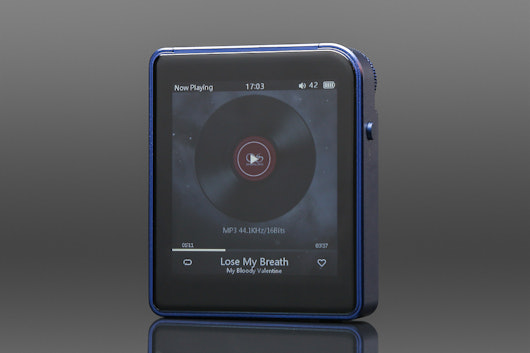

Shanling M1

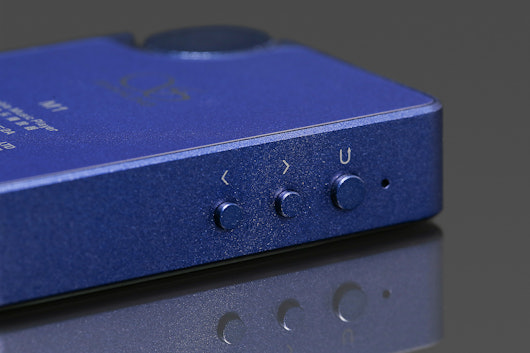

Shanling M1

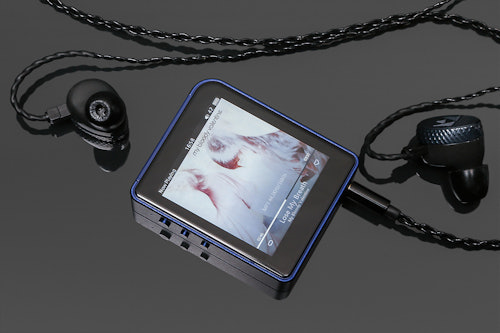

Shanling M1

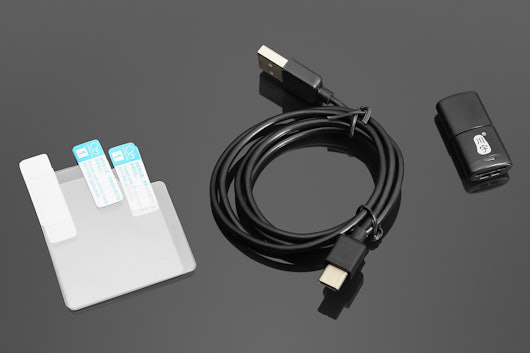

Shanling M1

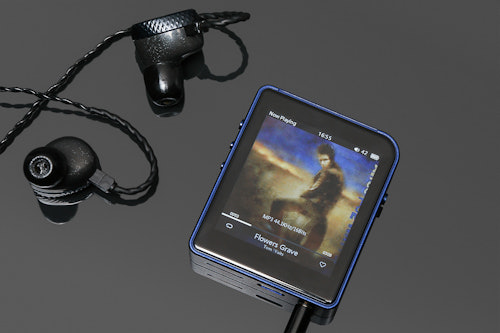

Shanling M1

Specs

  • Shanling
  • Blue colorway
  • 2.35 in (6 cm) TFT HD screen, 360 x 400
  • Supports up to 192 kHz/24 bit, plus DSD64, DSD128
  • Bluetooth 4.0 with aptX protocol
  • ALPS knob
  • Clock function
  • DAC chip: AK 4452
  • Amplifier chip: MAX 97220
  • Gain settings: Low gain, high gain
  • Supported formats: APE, FLAC, ALAC, WMA, AAC, OGG, MP3, WAV, AIFF, DSF, DIFF
  • Sampling rate: 44.1 – 192 kHz
  • Output power: 35 mW at 32 ohm
  • Frequency response: 20 Hz – 20 kHz (-0.5 dB)
  • THD+N: 0.006% (A-weighting, 500 mV output)
  • SNR: >105 dB (A-weighting)
  • Dynamic range: >105 dB
  • Output impedance: 0.1 ohm
  • Channel separation: >70 dB (32 ohm, 1 kHz)
  • Clock jitter: 30 ps (typ)
  • Referenced clock jitter: 200 femtosecond
  • External memory: MicroSD card (maximum 256 G)
  • USB interface: Type-C (USB 2.0)
  • Capacity: 950mAh lithium battery
  • Playing time: 9 – 10 hrs
  • Charging time: 3 – 4 hrs
  • Standby time: 8 days
  • Dimensions: 2.4 x 2 x 0.5 in (6 x 5 x 1.3 cm)
  • Weight: 2.1 oz (60 g)
