SMSL IDOL+ DAC/Amp

SMSL IDOL+ DAC/Amp

bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
490 requests
·
65 Sold
Product Description
Measuring 2.2 inches long and weighing less than half an ounce, the SMSL IDOL+ is one of the smallest DAC/amps around. But don’t be fooled by its slim profile—it has what it takes to power high-impedance headphones with ease, and supports sampling rates up to 192 kHz Read More

Tiny But Mighty

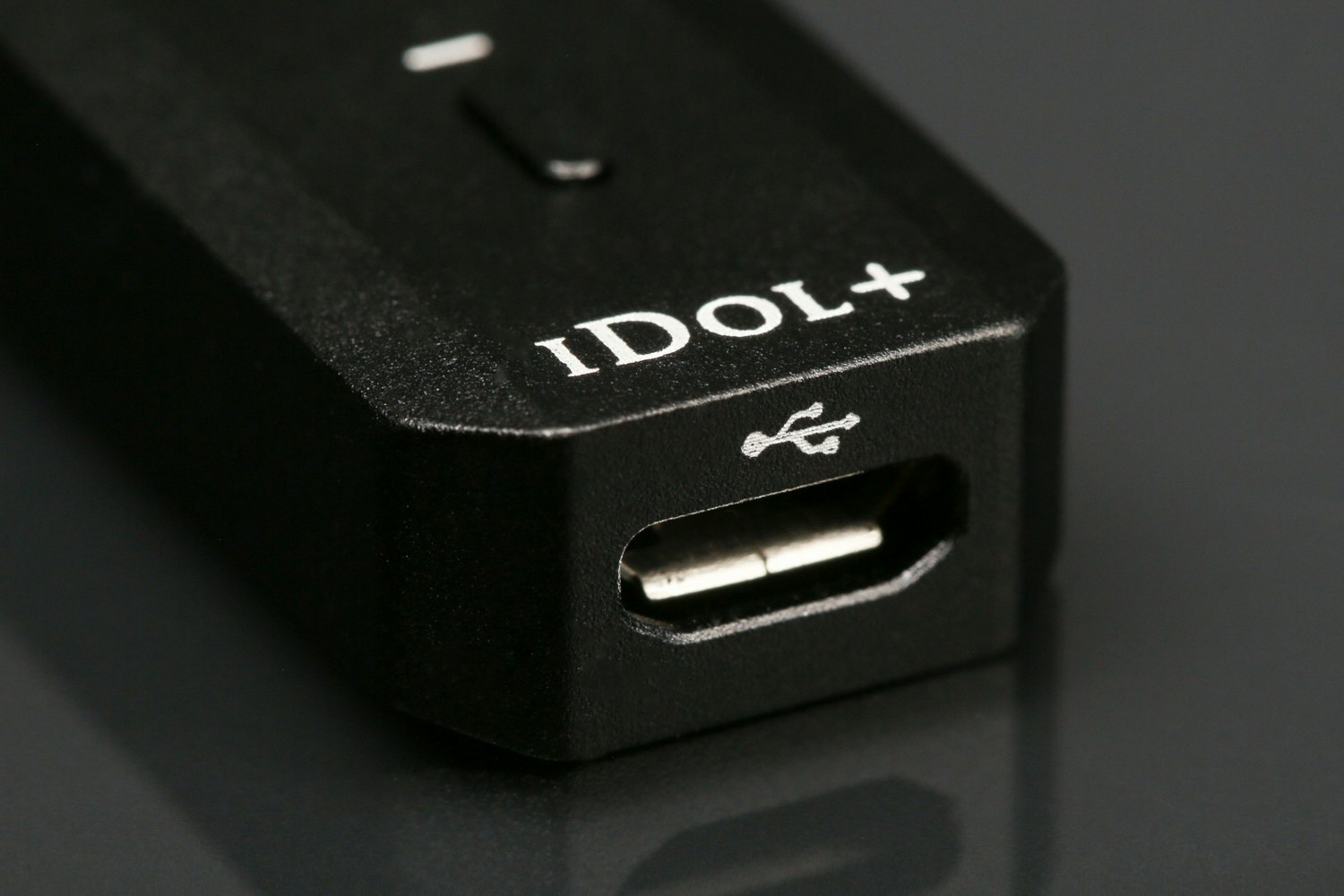

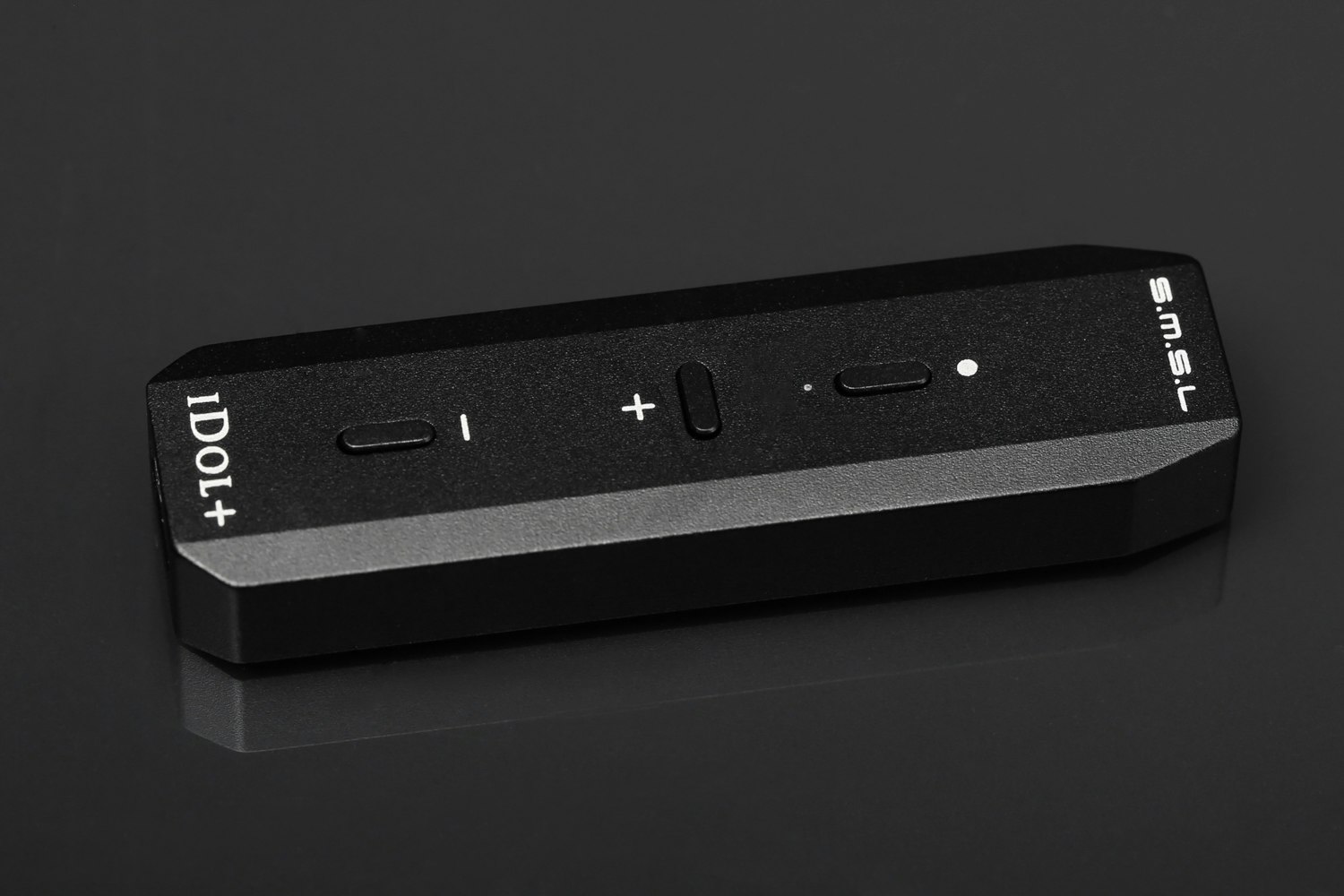

Measuring 2.2 inches long and weighing less than half an ounce, the SMSL IDOL+ is one of the smallest DAC/amps around. But don’t be fooled by its slim profile—it has what it takes to power high-impedance headphones with ease, and supports sampling rates up to 192 kHz. Inside, the IDOL+ is equipped with a VT1620A DAC chip and a MAX97220A headphone amp chip. The exterior is intentionally simple, with a sleek black finish new to this model, and improved controls that are discreet and easy to use. Along with two-button volume control and an on/off button on the top panel, you’ll find a 3.5-millimeter headphone out on one end, and on the other, a USB port for connecting to your laptop or mobile device.

SMSL IDOL+ DAC/Amp
SMSL IDOL+ DAC/Amp
SMSL IDOL+ DAC/Amp
SMSL IDOL+ DAC/Amp
SMSL IDOL+ DAC/Amp

Specs

  • SMSL
  • DAC chip: VT1620A
  • Transmission chip: TAS1020B
  • Headphone amp chip: MAX97220A
  • Sampling rate: 16 bit/192 kHz, 24 bit/96 kHz
  • Output level: 2.5 Vrms
  • THD+N: 0.025%
  • Dynamic range: 97 dB
  • Signal-to-noise ratio: 85 dB
  • Channel separation: 85 dB
  • Amp power: 64 mW (at 1% THD)
  • Supply voltage: 5 V
  • Input: Micro USB
  • Output: ⅛ in (3.5 mm) headphone, optical
  • USB compatibility: Windows, Mac OS X, iOS, Android 4.0 or later, Linux
  • Dimensions: 2.2 x 0.8 x 0.3 in (5.5 x 2.1 x 0.8 cm)
  • Weight: 0.4 oz (11 g)

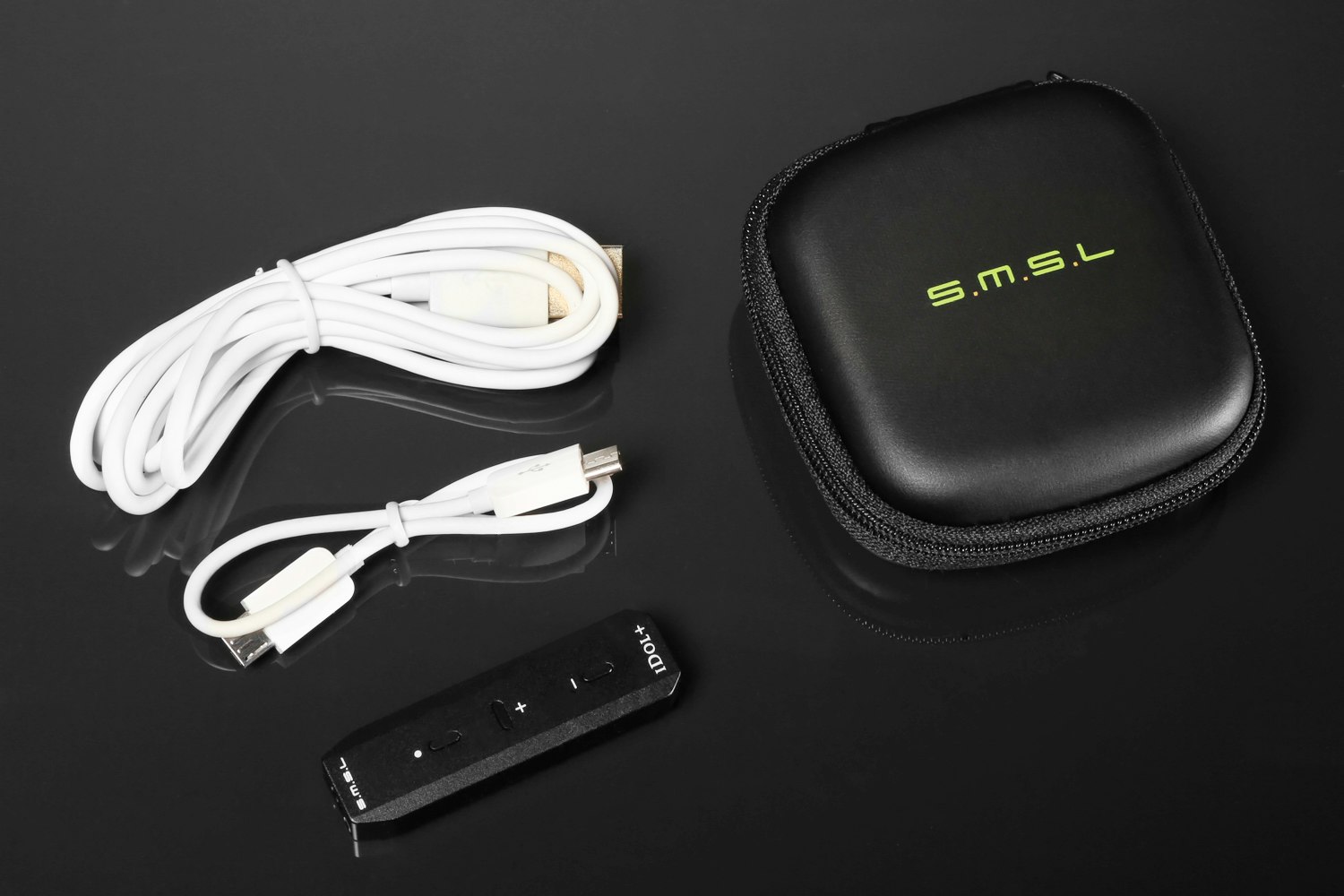

Included

  • USB cable
  • OTG cable
  • Massdrop 1-Year Limited Warranty

Shipping

Estimated ship date is Nov 21, 2016 PT.

Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.
