SMSL IQ Portable DAC/Amp
SMSL IQ Portable DAC/Amp
bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
6 Sold
Product Description
A flat, portable DAC/amp, the SMSL IQ is best paired with laptops or smartphones and high-end IEMs. To deliver an accurate, reference-quality sound, it uses the well-regarded Sabre 9012Q2C DAC and the second-generation XMOS xCORE-200 XU208 chip ... Read More
Portable DAC/Amp With Balanced & Unbalanced Outs

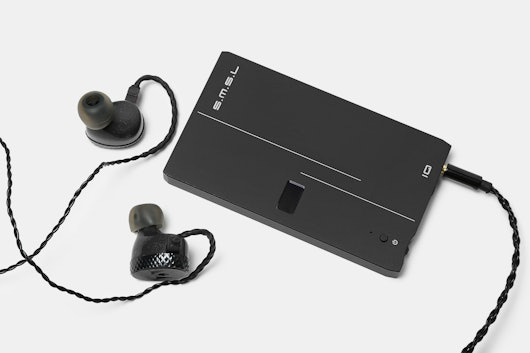

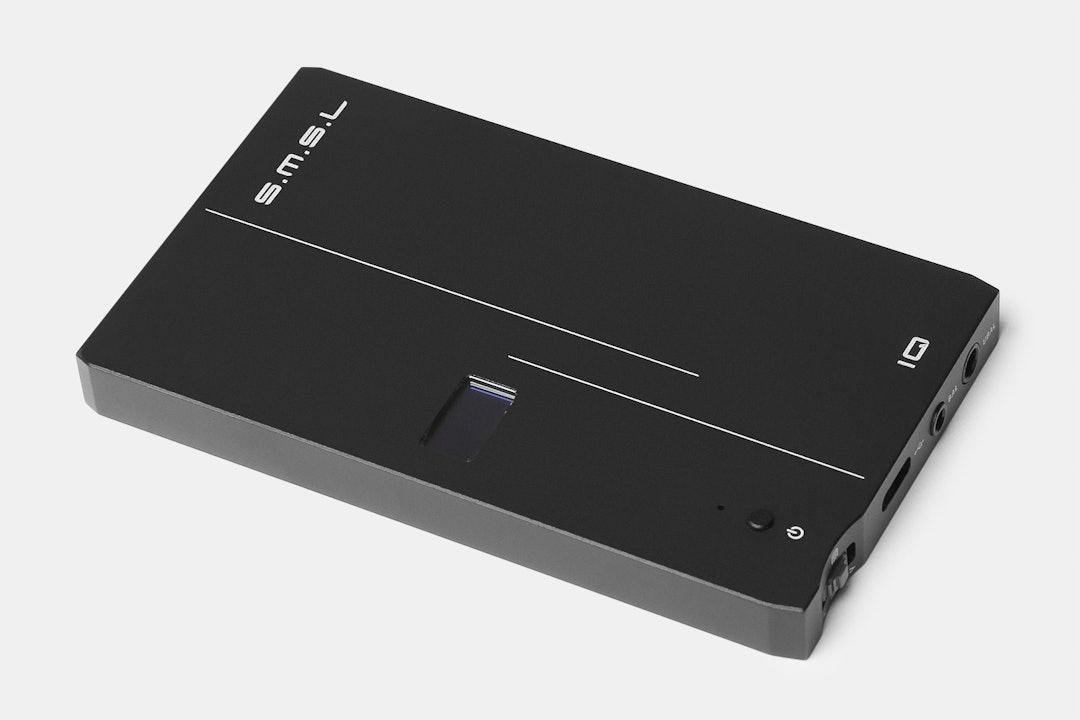

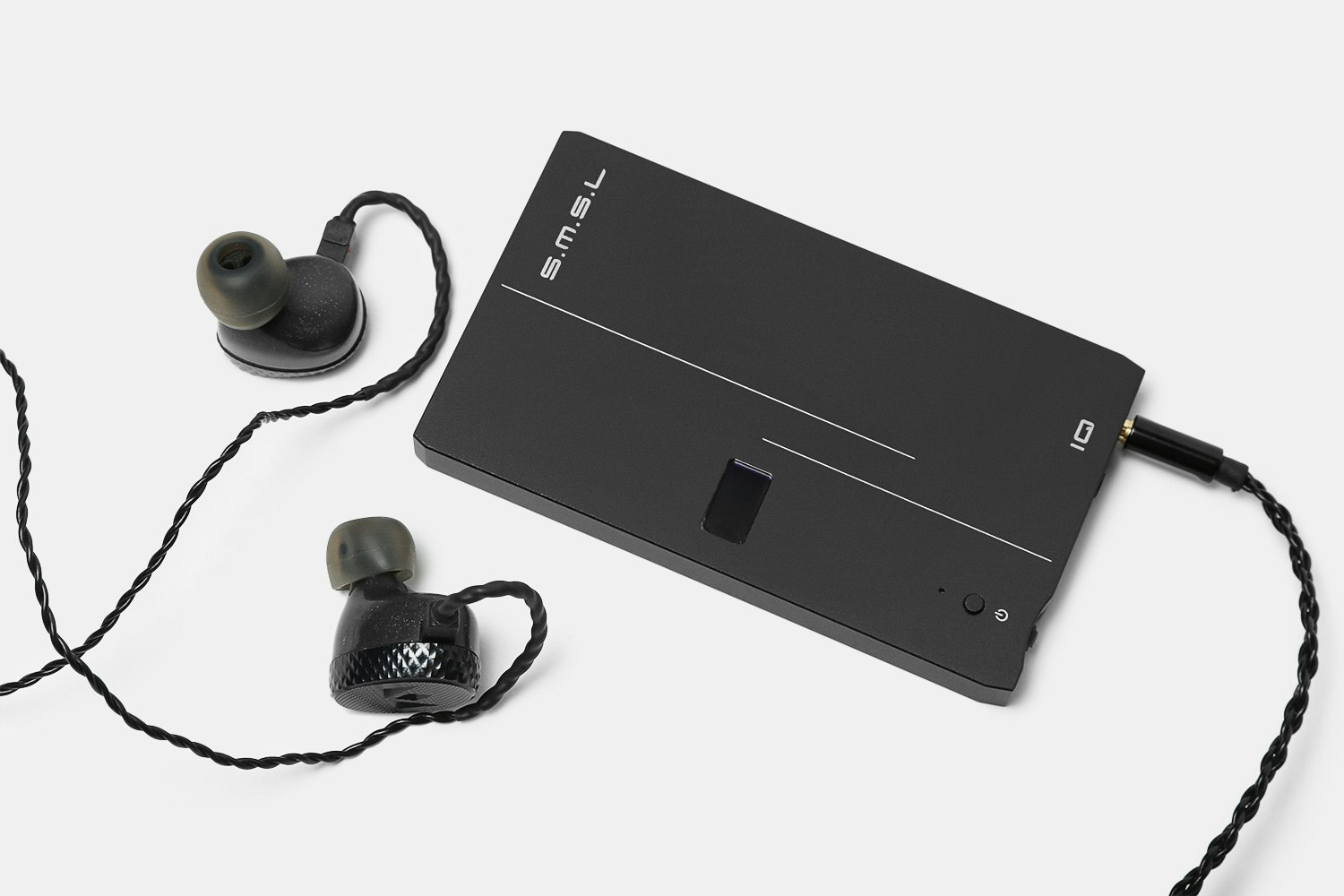

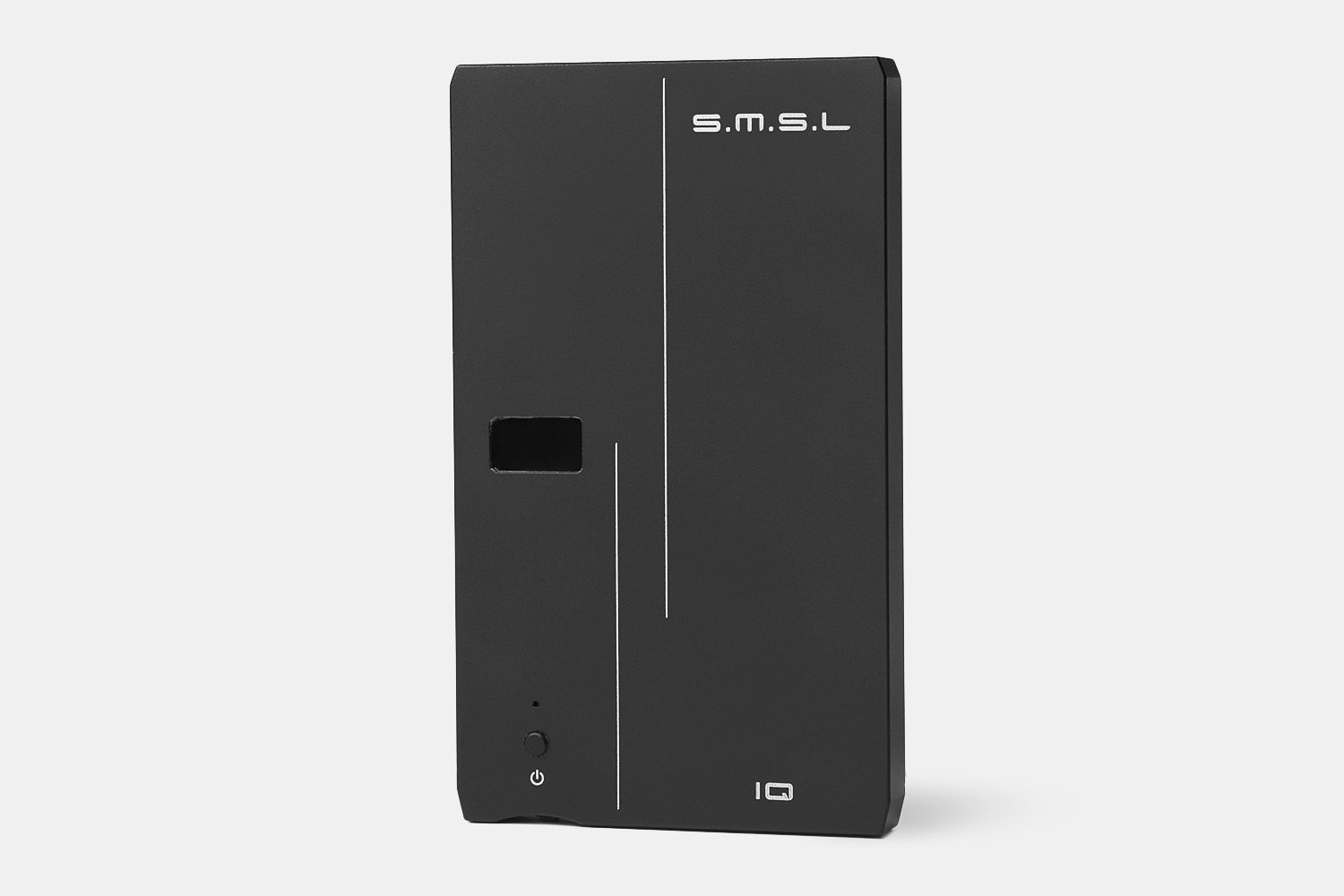

A flat, portable DAC/amp, the SMSL IQ is best paired with laptops or smartphones and high-end IEMs. To deliver an accurate, reference-quality sound, it uses the well-regarded Sabre 9012Q2C DAC and the second-generation XMOS xCORE-200 XU208 chip. The precision-machined aluminum shell comes in several metallic colors and features a small OLED display on the left side. For users with balanced IEMs, the IQ has a 2.5-millimeter balanced output in addition to the 3.5-millimeter unbalanced output—and the unit can output significantly more power through the balanced out. Finally, it comes with short microUSB and USB Type C cables, ideal for those with Android-based devices.

Note: At checkout, choose black, gold, or silver.

Color Options

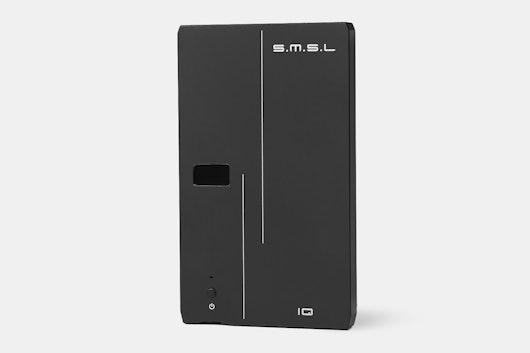

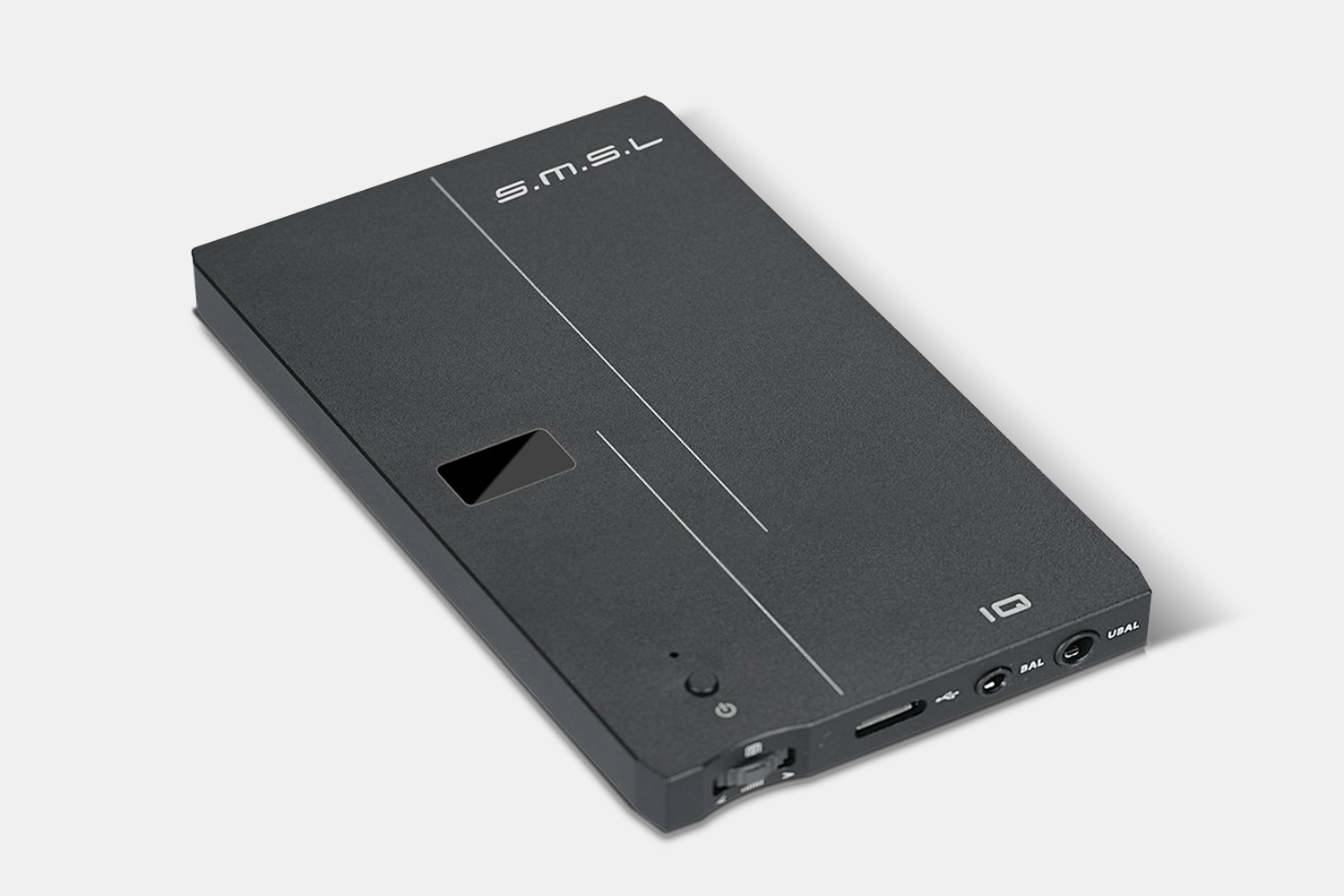

Black

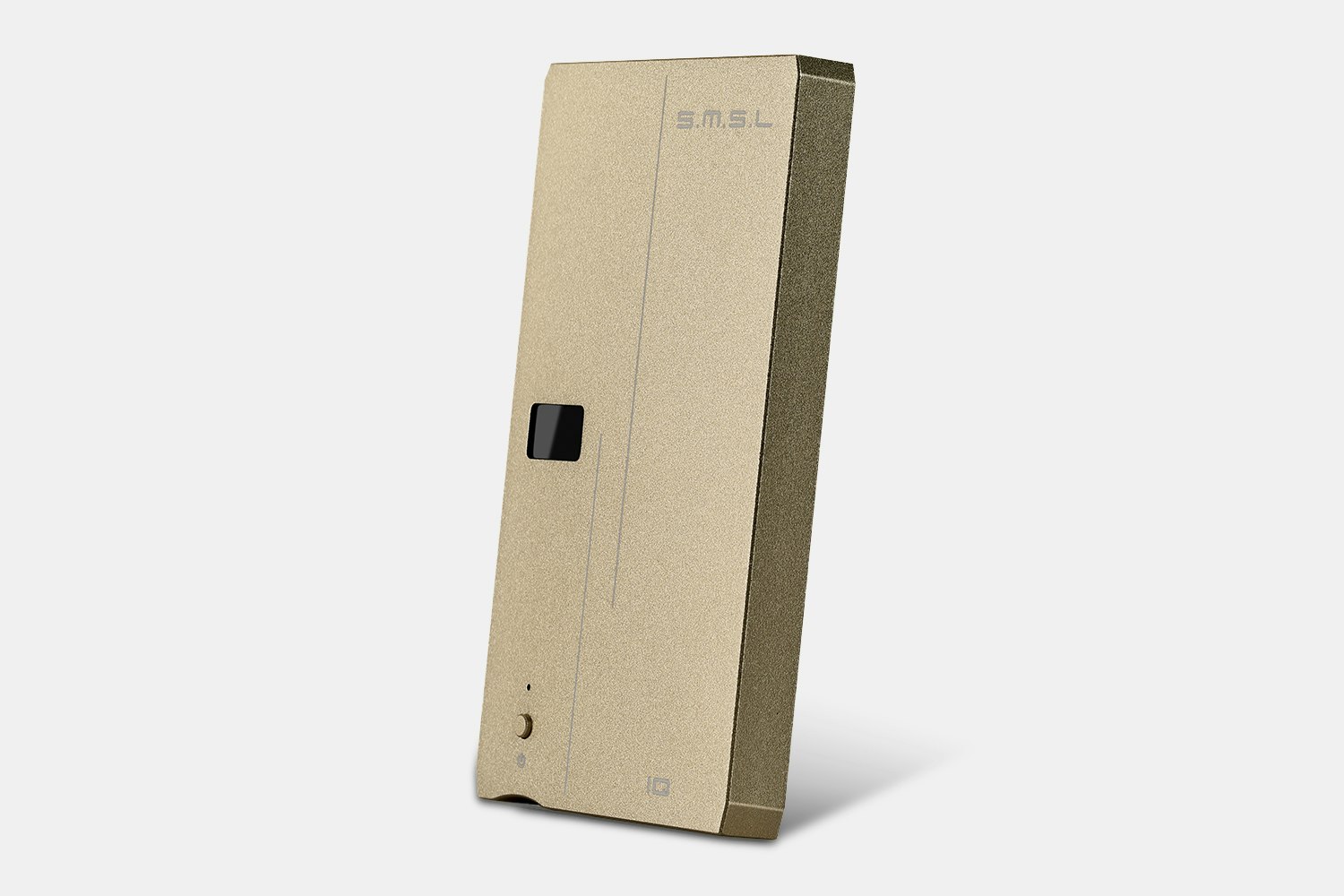

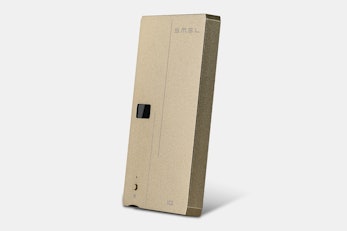

Gold

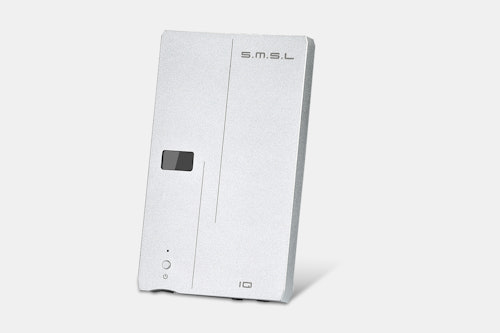

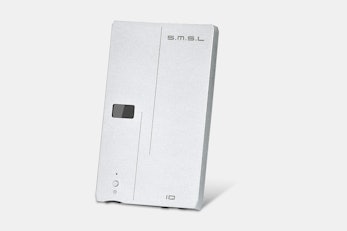

Silver
Specs
  • SMSL
  • Dynamic range: 125 dB
  • Frequency response: 10 Hz–100 kHz
  • THD + N: 0.0003%
  • SNR: 118 dB
  • Bit depth: 16, 24, 32, 1 bit
  • Sampling rate: PCM (44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 705.6, 768 kHz); DSD64, DSD128, DSD256, DSD512
  • Output power, balanced output: 91 mW (32 ohms, THD+N = 0.1%); 53 mW (150 ohms, THD+N = 0.1%); 78 mW (64 ohms, THD+N = 0.1%); 32 mW (300 ohms, THD+N = 0.1%)
  • Output power: unbalanced: 55 mW (32 ohms, THD+N = 0.1%); 21 mW (150 ohms, THD+N = 0.1%); 33 mW (64 ohms, THD+N = 0.1%); 12 mW (300 ohms, THD+N = 0.1%)
  • Charge: DC 5V
  • USB: Windows 7/8/8.1/10, Mac OS X 10.6

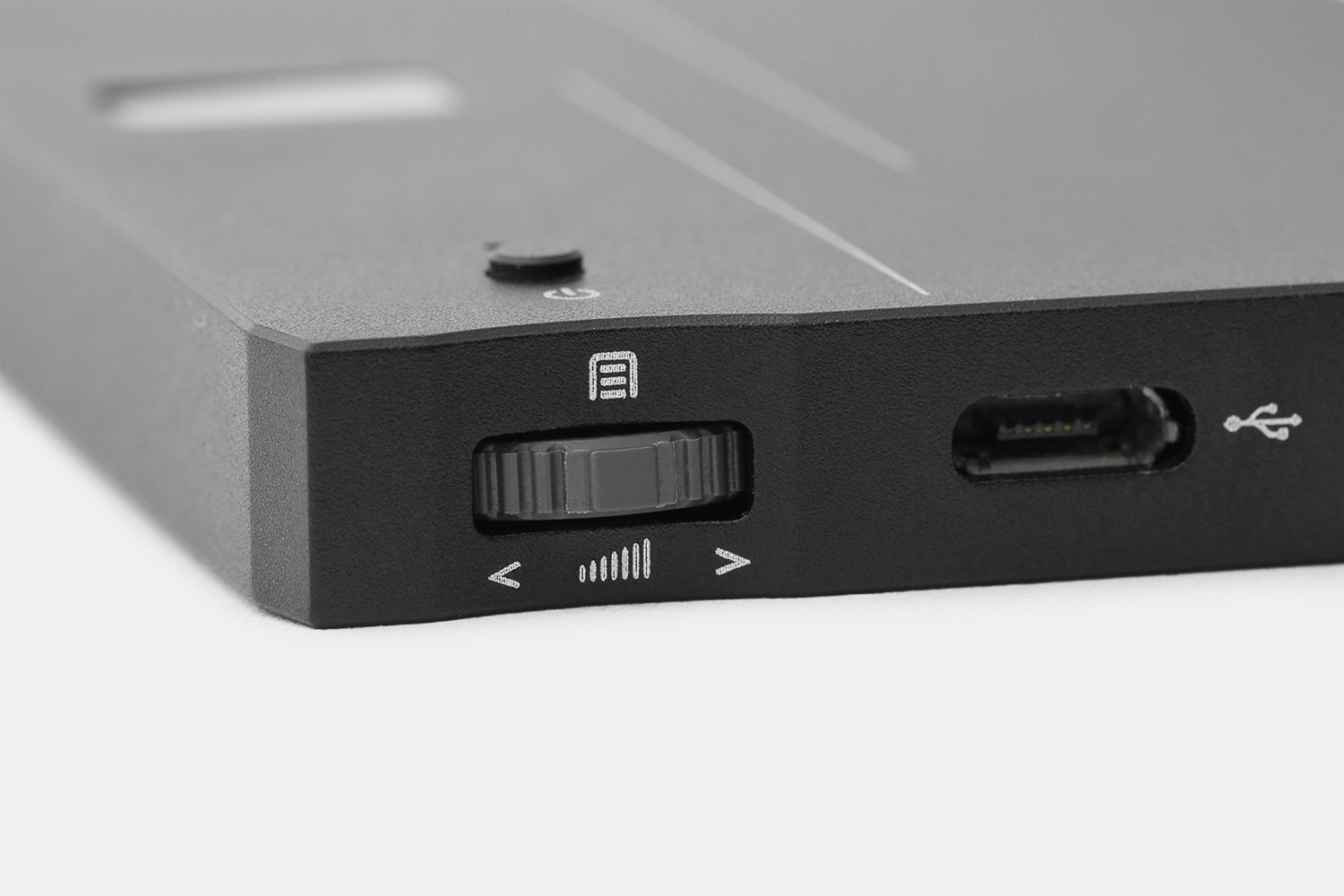

  • Input jack: MicroUSB

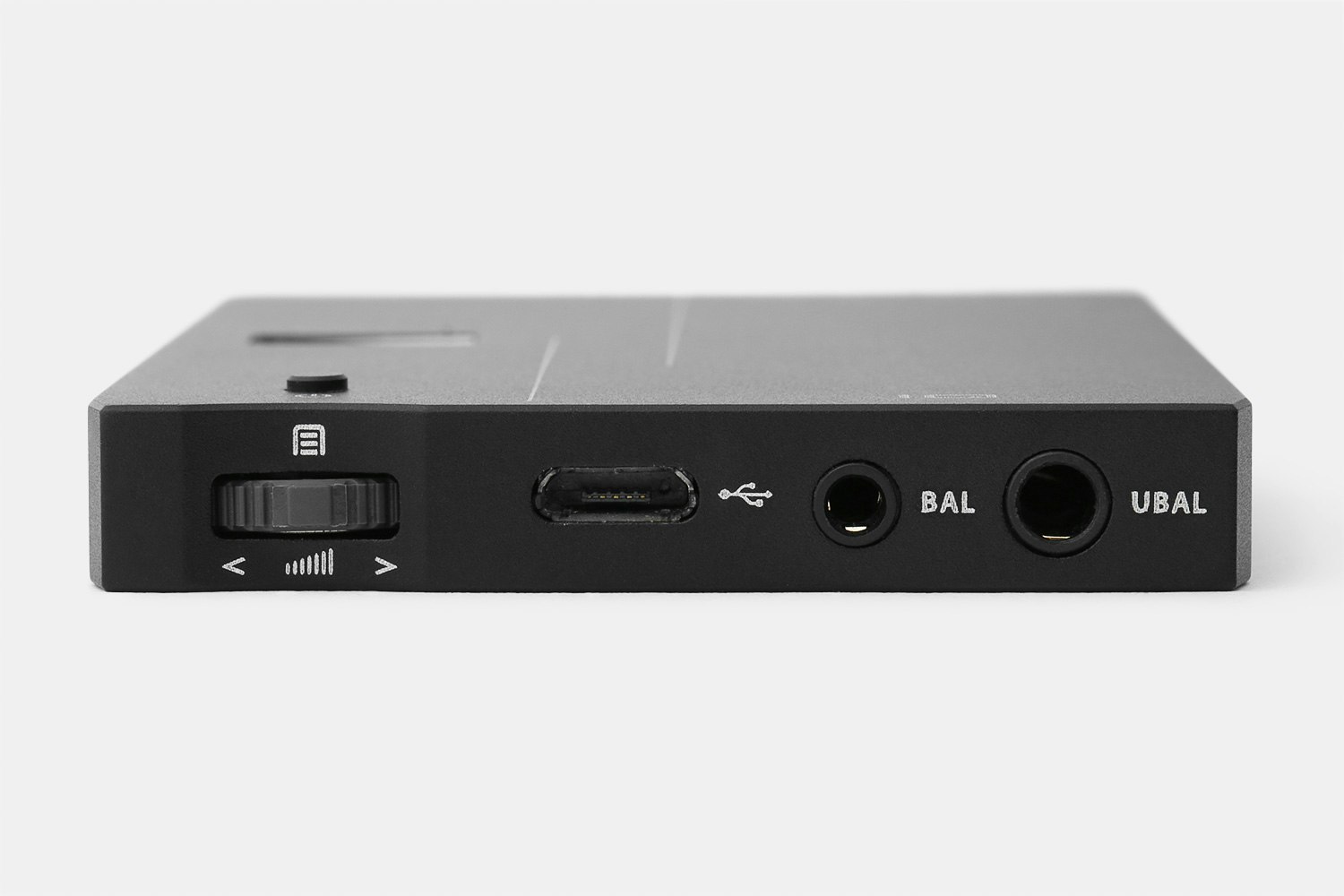

  • Output jack: 2.5mm balanced, 3.5mm unbalanced
  • Dimensions, L x W x H: 3.7 x 2.2 x 0.4 in (95 x 56 x 9 mm)
  • Weight: 7.1 oz (200 g)

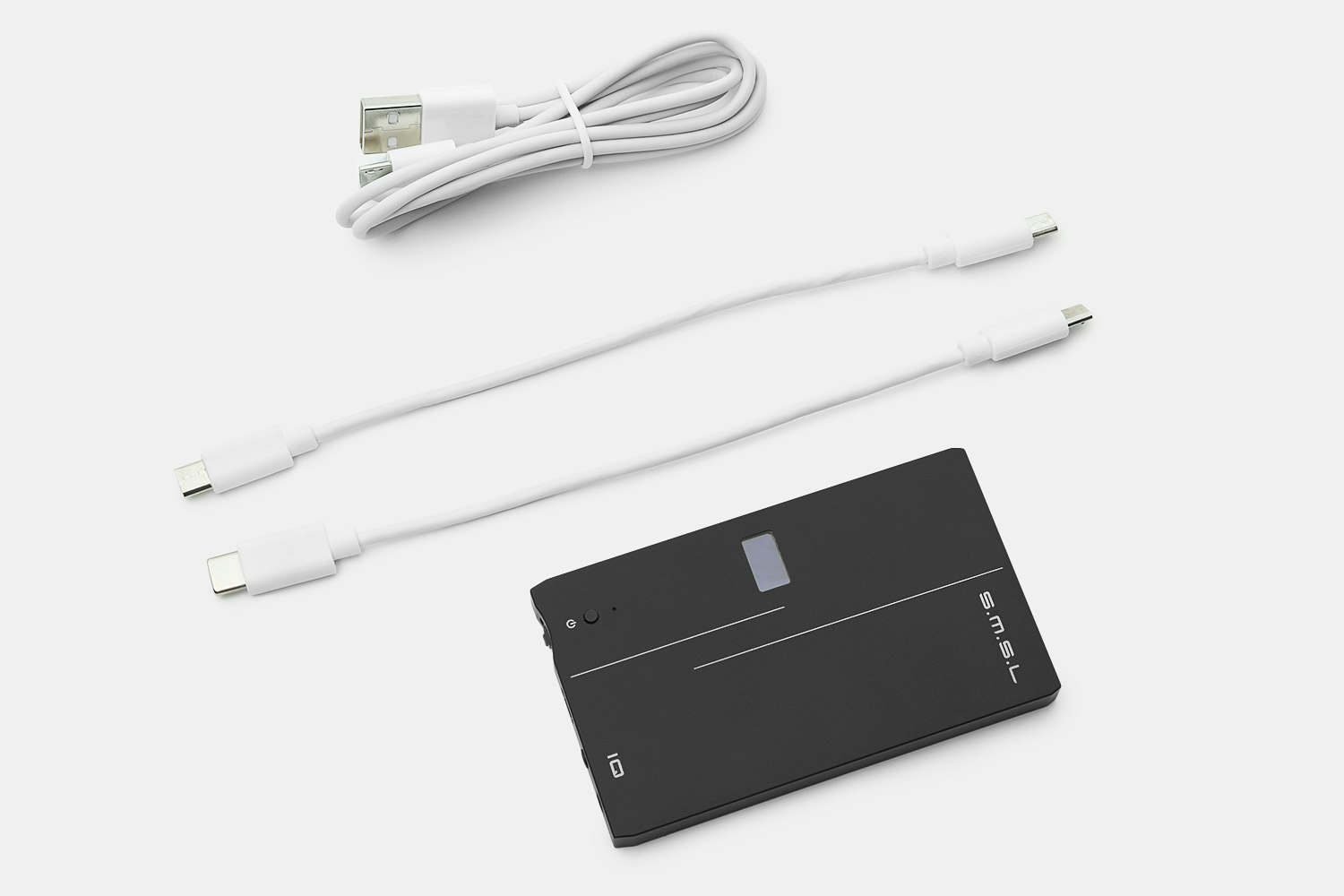

Included
  • User manual
  • MicroUSB to USB Type C cable
Shipping

All orders will be shipped by Drop.

Estimated ship date is Mar 8, 2018 PT.

After this product run ends, payment will be collected and orders will be submitted to the vendor up front, making all orders final. Check the discussion for updates on your order.
