SMSL M10 Balanced DAC/Amp

SMSL M10 Balanced DAC/Amp

bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
397 requests
·
3 Sold
Product Description
The SMSL M10 makes a great DAC with its dual XLR outputs, RCA output, and highly regarded AK4497 DAC chip for ultra-low distortion. It also has a built-in headphone amplifier, which delivers 340 mW out of the four-pin balanced port using the Texas Instruments TPA5120A2 amp chip Read More

Fully Featured Combo Unit

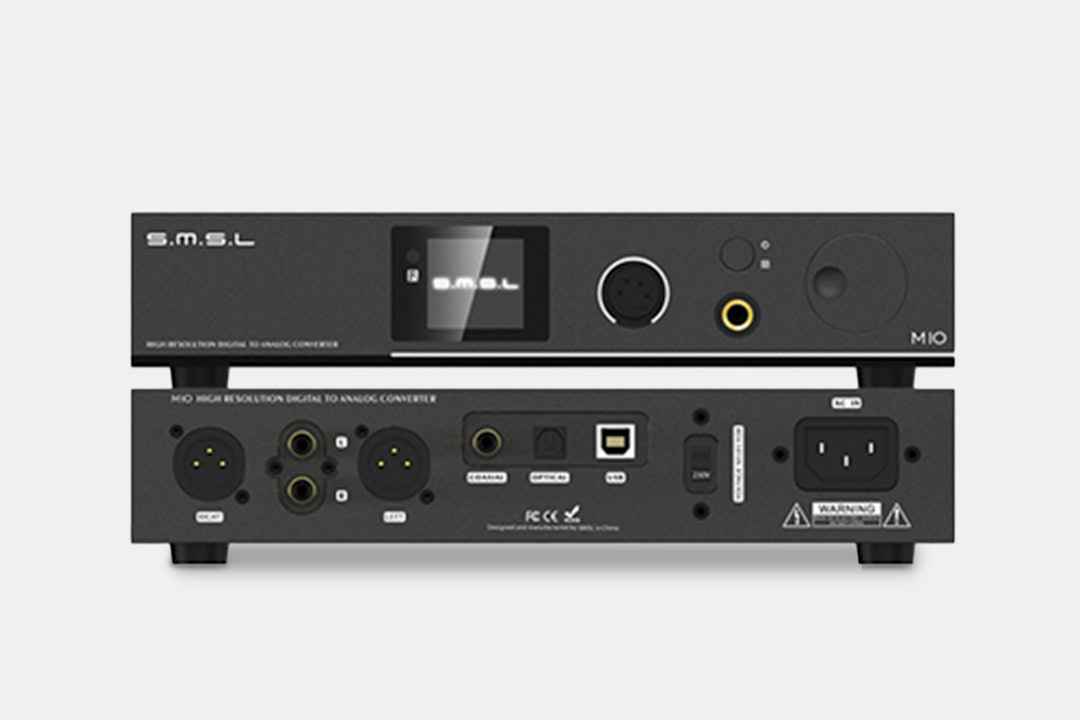

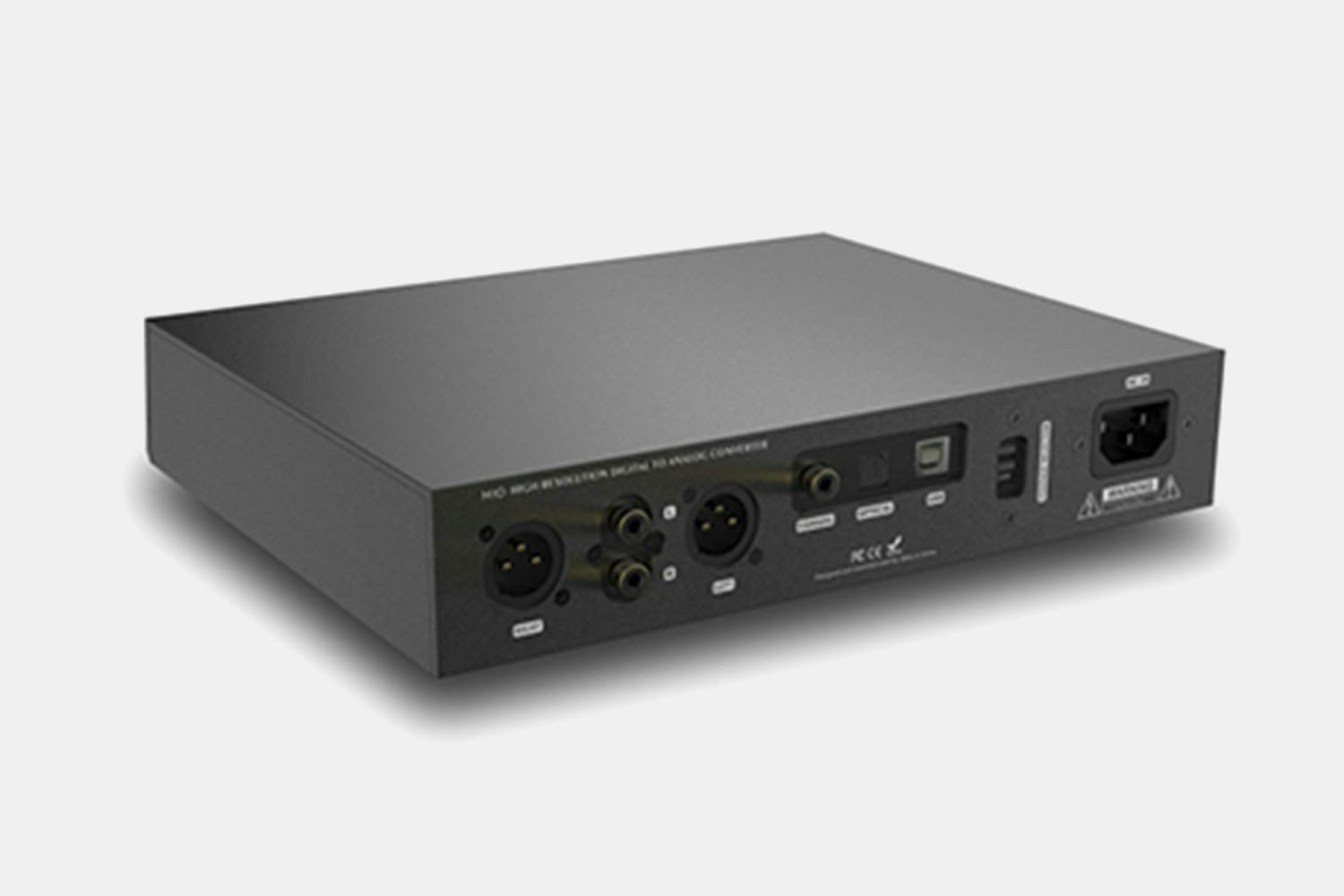

The SMSL M10 makes a great DAC with its dual XLR outputs, RCA output, and highly regarded AK4497 DAC chip for ultra-low distortion. It also has a built-in headphone amplifier, which delivers 340 mW out of the four-pin balanced port using the Texas Instruments TPA5120A2 amp chip. The M10 accepts signal from USB, optical, or coaxial. This combo unit looks great, too, with a tilted front panel that lends a sleek, modern aesthetic. Rounding out the package are a 1.54-inch front IPS display and a remote control.

SMSL M10 Balanced DAC/Amp
SMSL M10 Balanced DAC/Amp
SMSL M10 Balanced DAC/Amp

Specs

  • SMSL
  • Input interface: USB, optical, coaxial
  • Output interface: line (RCA), XLR 6.35mm headphones, balanced headphones
  • THD+N: Line output: 0.0004% Amp output: 0.001%
  • Dynamic range: 123dB
  • SNR:116dB
  • USB transmission mode: asynchronous transmission
  • USB compatibility: Windows 7/8 / 8.1/10 Mac OSX 10.6 or higher, Linux
  • Bit depth: USB: 1bit-32bit optical/coaxial: 16bit-24bit
  • Sampling rate: USB: PCM: 44.1-768KHz
  • DSD: 2.8224-22.5792MHz
  • Optical, coaxial :32-192kHz
  • RCA interface output level: 2Vms
  • XLR interface output level: 4Vms
  • Headphone output power: unbalanced: 135mW (32 ohms), 90mW (64 ohms) 40mW (150ohms), 22mW (300 ohms)
  • Balance: 340mW (32 Euro), 266mW (64 ohms) 154mW (150 ohms), 87mW (300ohms)
  • Power consumption: 9W
  • Standby power consumption: 0.8W
  • Dimensions: 9.8 x 2 x 8.1 in (250 x 50 x 205 mm)

Included

  • Remote

Shipping

Estimated ship date is Nov 6, 2018 PT.

Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.
