SMSL M3 USB DAC/Amp

SMSL M3 USB DAC/Amp

bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
1.8K requests
·
758 Sold
Product Description
Measuring 3.75 by 3 inches and weighing just 7.5 ounces, the SMSL M3 USB DAC/amp helps you achieve better sound without taking up too much space in your bag or on your desk. Equipped with the CS4398 DAC chip, it has a 24 bit/192 kHz sample rate via optical and coaxial, and a 24 bit/96 kHz sample rate via USB Read More

Small Footprint, Big Sound

Measuring 3.75 by 3 inches and weighing just 7.5 ounces, the SMSL M3 USB DAC/amp helps you achieve better sound without taking up too much space in your bag or on your desk. Equipped with the CS4398 DAC chip, it has a 24 bit/192 kHz sample rate via optical and coaxial, and a 24 bit/96 kHz sample rate via USB. Power the M3 with your computer, Android phone, or Android tablet using included Micro-USB to Micro-USB cable in the “IN 1” port, and plug into the second “IN DC” port when you’re looking for more power.

Note: This drop includes a short Micro-USB to Micro-USB cable, Micro-USB to Micro-B cable, and 3.5 mm to ¼ in gold-plated adapter. You’ll need to get additional cables if you plan to run the M3 via optical or SPDIF, or power it directly from AC power.

SMSL M3 USB DAC/Amp
SMSL M3 USB DAC/Amp
SMSL M3 USB DAC/Amp
SMSL M3 USB DAC/Amp

More Details

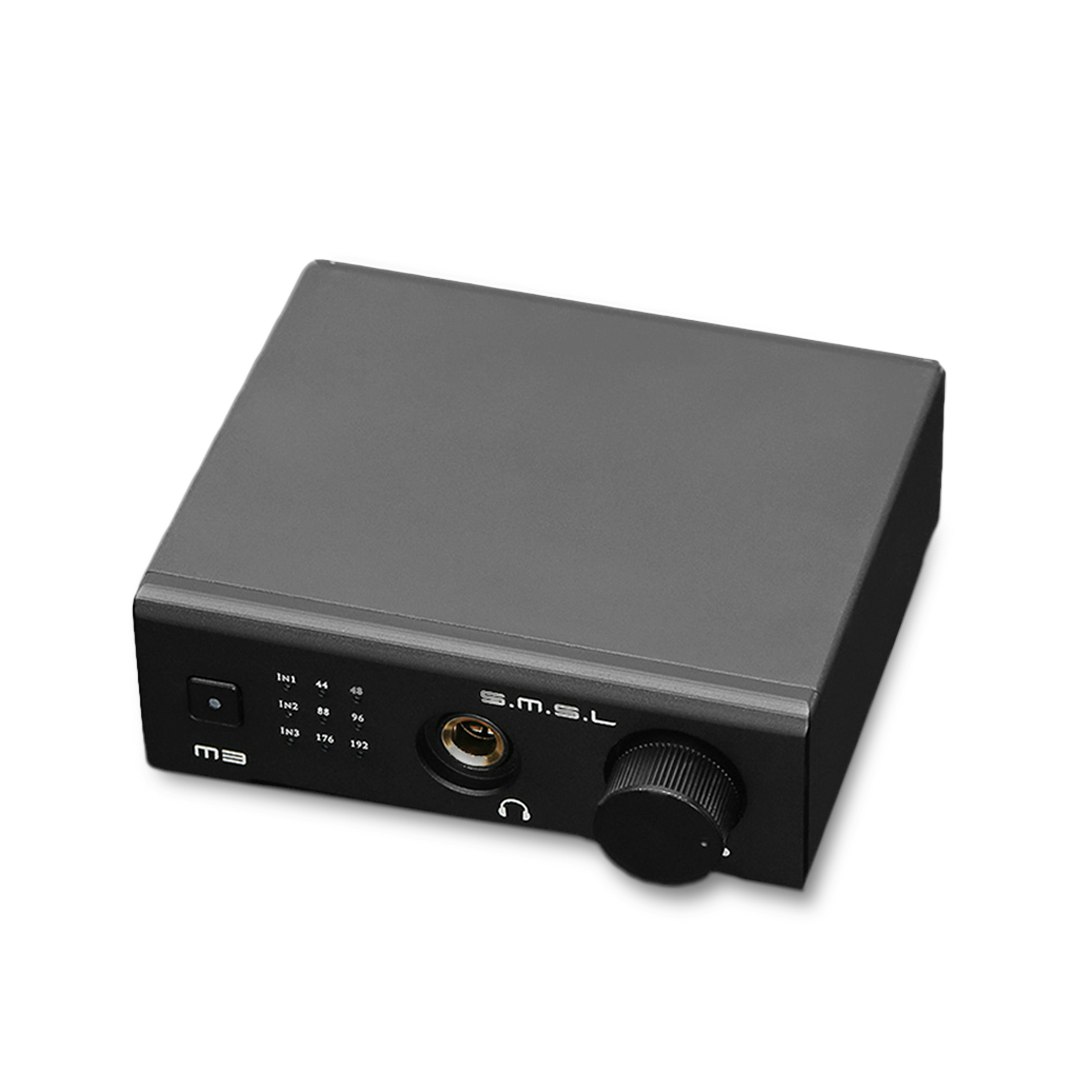

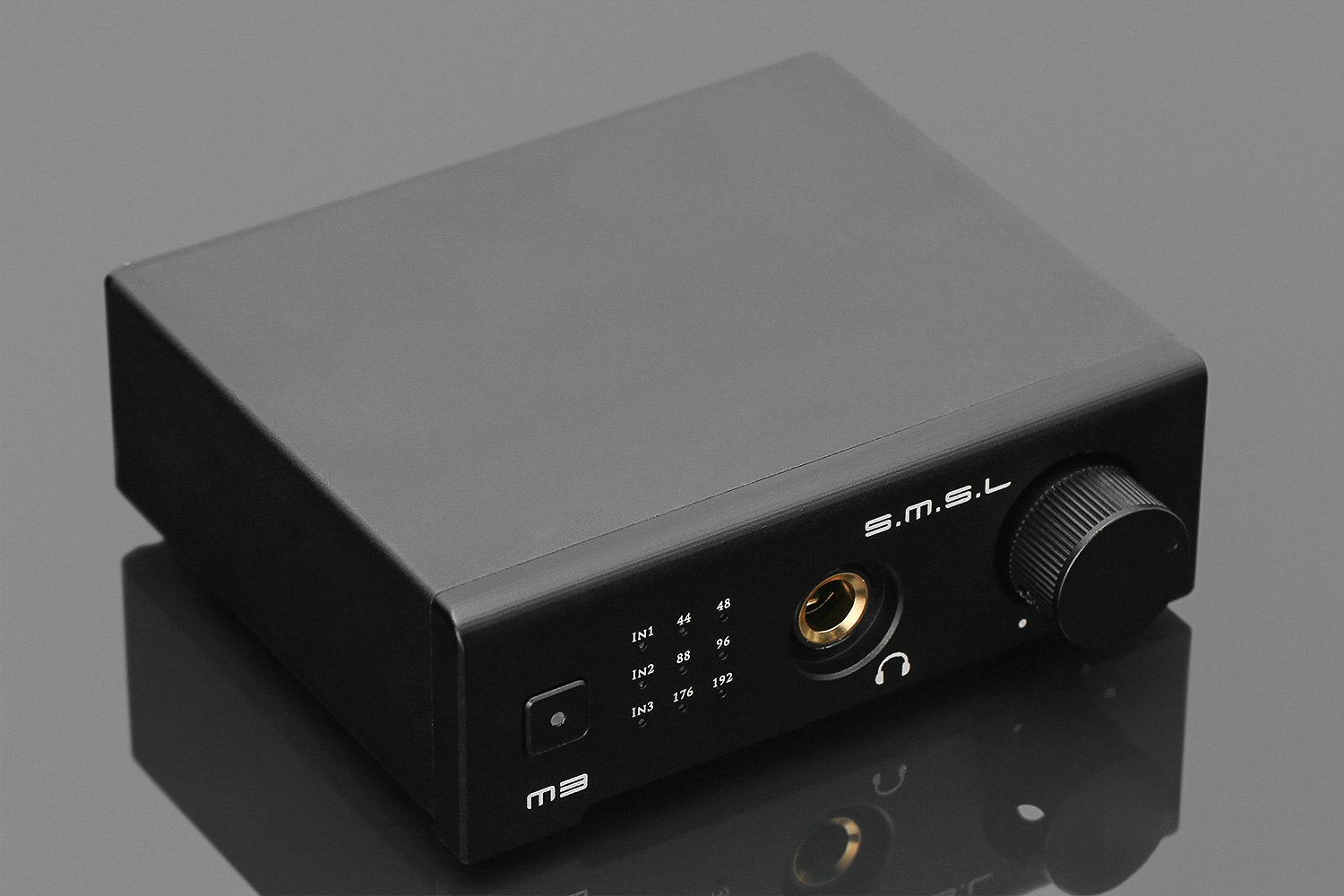

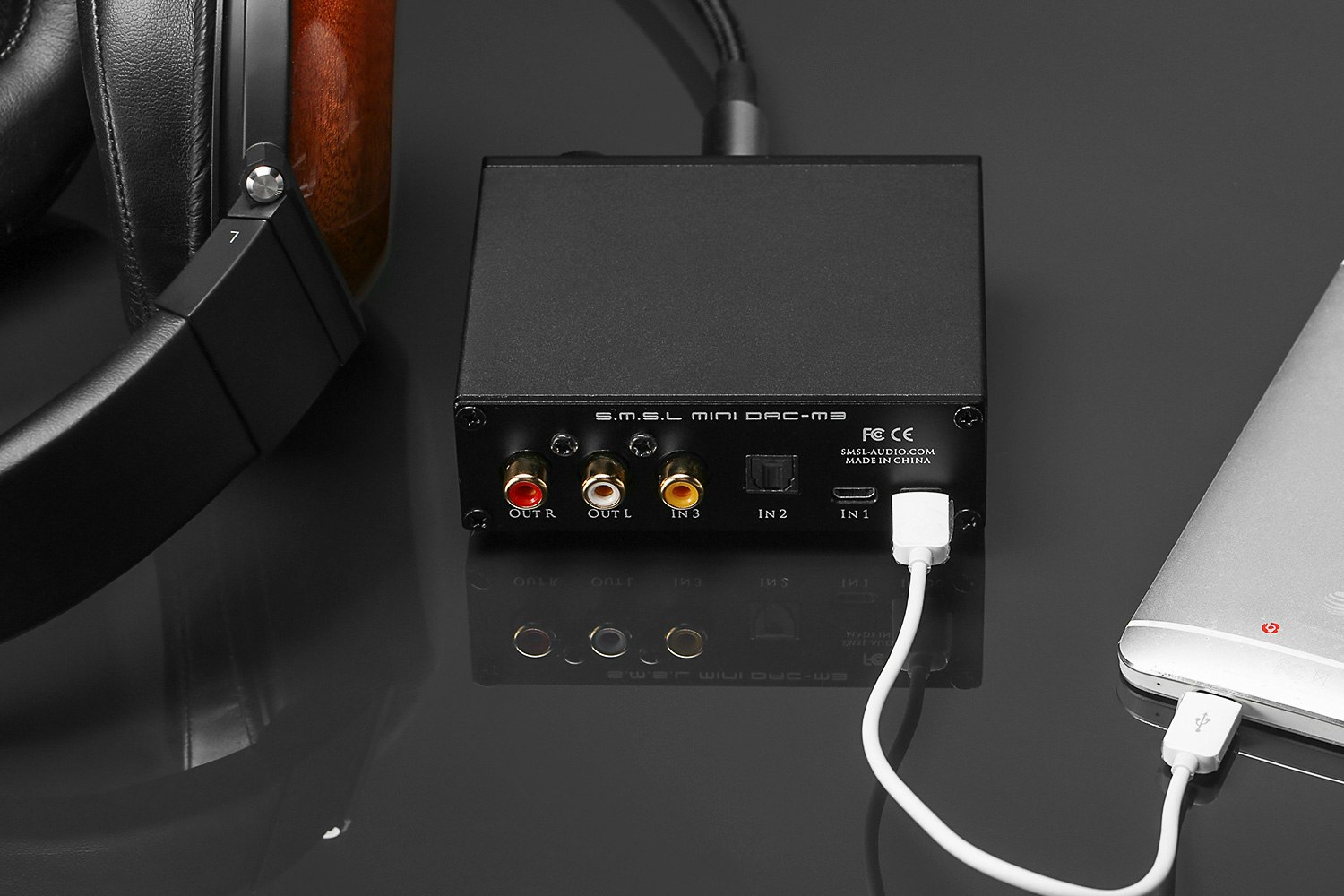

On the front panel, you’ll find a large volume knob, a quarter-inch headphone jack, LED indicators for input mode and sampling rate detection, and a function button for on/off and audio source selection. The rear panel houses RCA right- and left-channel analog outputs, along with a coaxial input, optical input, USB input, and power input.

SMSL M3 USB DAC/Amp
SMSL M3 USB DAC/Amp

Specs

  • SMSL
  • Aluminum alloy shell, solid aluminum buttons and knobs
  • DAC chip: CS4398
  • Channels: 2
  • Output power level: 1.9 Vrms
  • THD+N: < 0.006%
  • Dynamic range: > 112 dB
  • SNR: > 107 dB
  • Channel separation: > 105 dB
  • Sample rate, USB: 96 kHz (24 bit)
  • Sample rate, optical and coaxial: 192 kHz (24 bit)
  • Output power, 108 mw: 32 ohm at THD 0.1%
  • Output power, 85 mW: 64 ohm at THD 0.1%
  • Output power, 49 mW: 150 ohm at THD 0.001%
  • Output power, 24 mW: 300 ohm at THD 0.001%
  • Inputs: USB, optical, coaxial
  • Outputs: Line, headphone amp
  • Dimensions, excluding protrusions: 3.75 x 3 x 1.2 in (9.5 x 7.6 x 3 cm)
  • Weight: 7.5 oz (212 g)

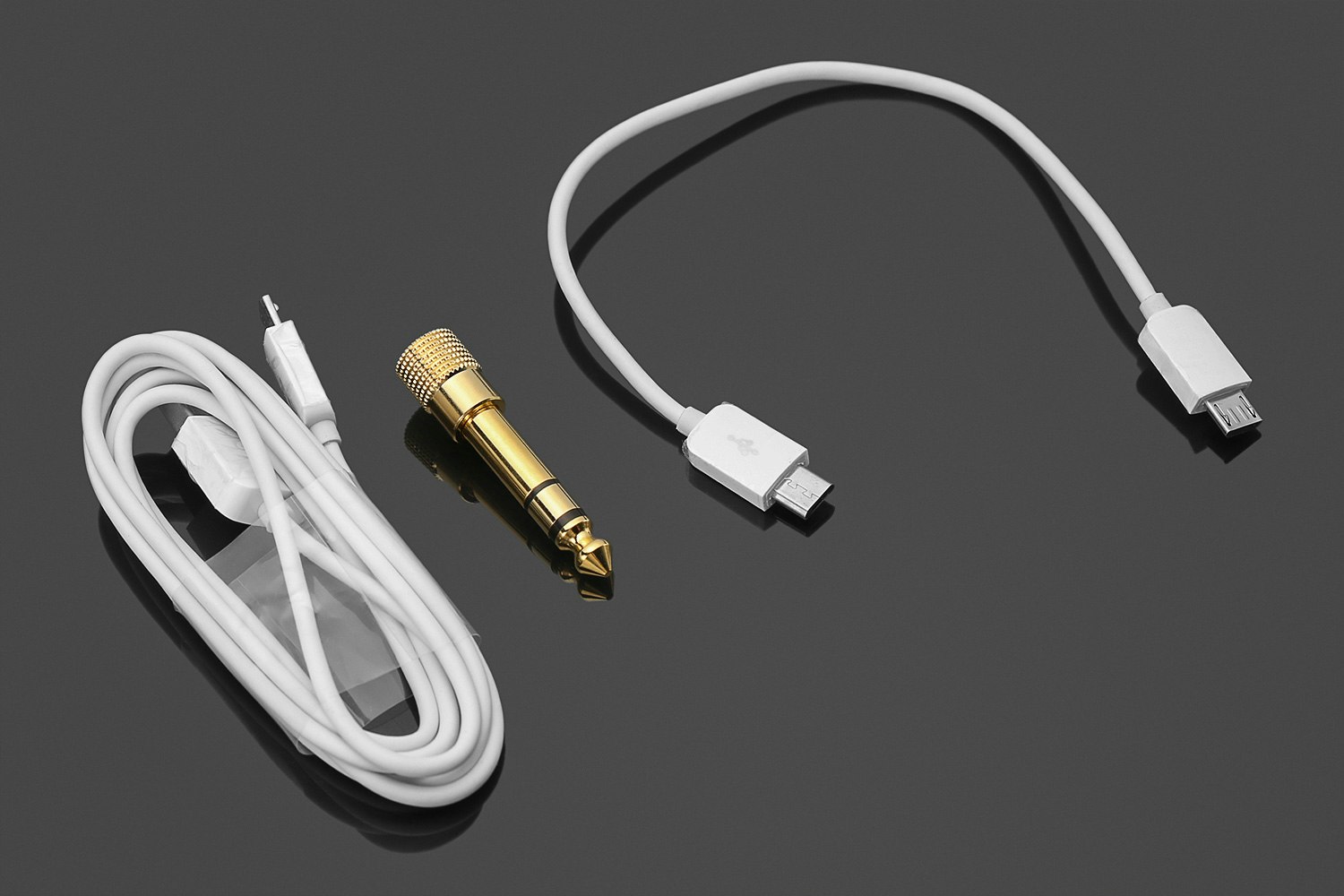

Included

  • Micro-USB to Micro-USB cable
  • Micro-USB to Micro-B cable
  • 3.5 mm to ¼ in gold-plated adapter
