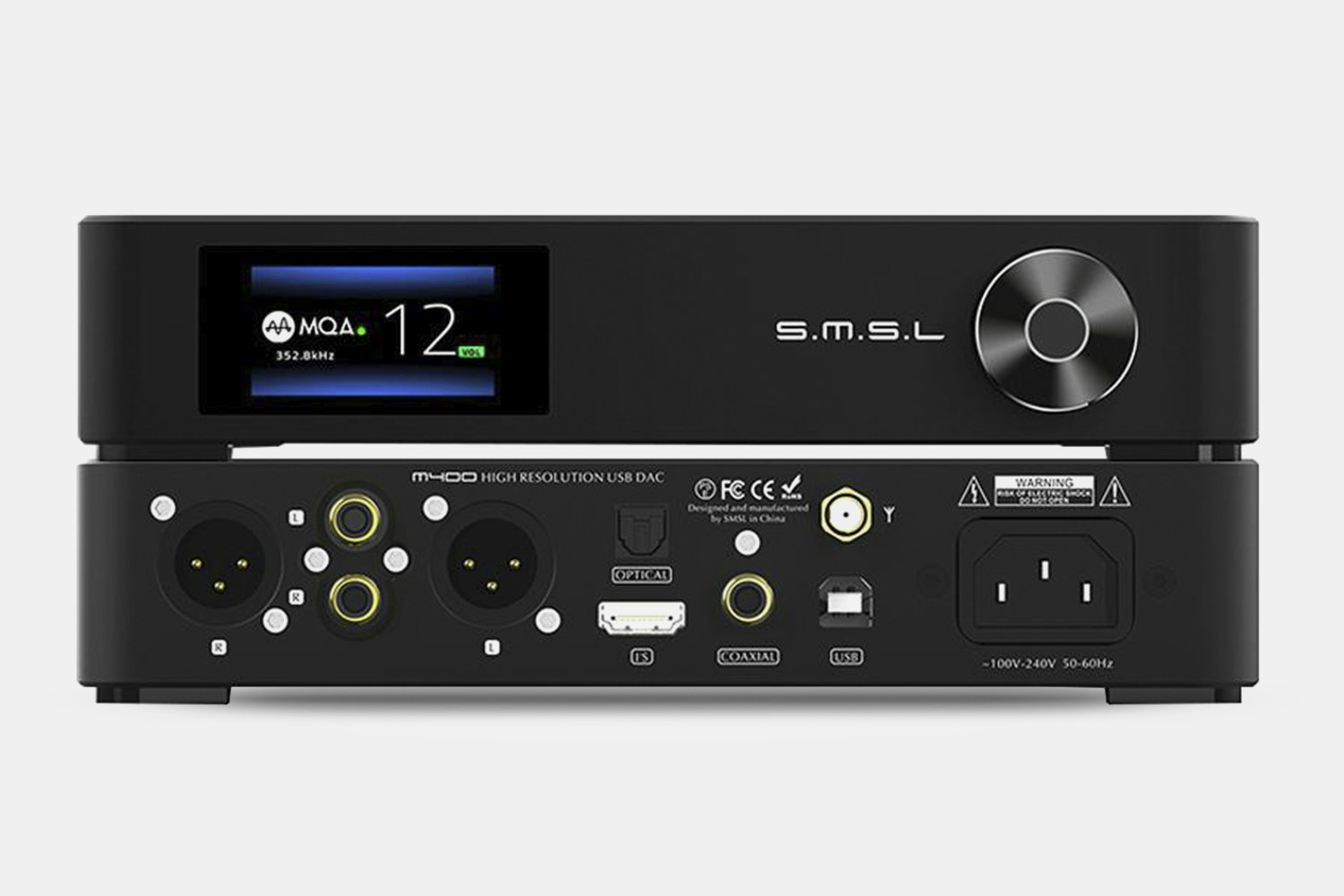

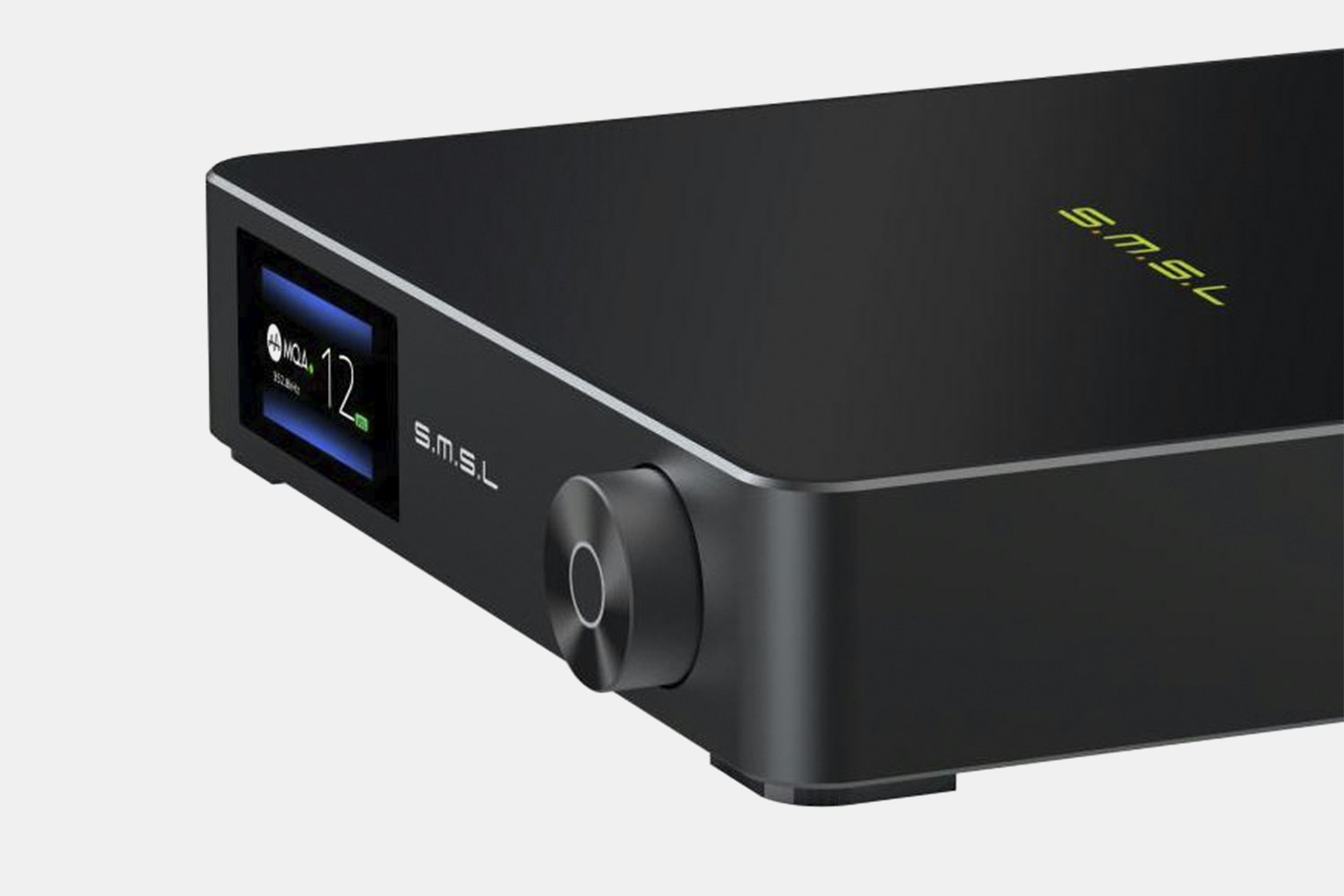

SMSL M400 Bluetooth DAC
Flexible Decoding, Flagship Audio Fidelity
SMSL’s newest line of digital-to-audio converters delivers next-generation audio decoding across a wide range of inputs. Leading the way is the flagship M400 DAC, which features AKM’s top-of-the-line AK4499EQ DAC chip for best-in-class audio quality. Also equipped with an XMOS XU216 chip and two Accusilicon crystal oscillators in a jitter-clock design, the M400 supports PCM sampling up to 768 kHz at 32 bits, as well as DSD support up to DSD512 Native. For maximum audio fidelity, it also supports MQA decoding. Plus, it features Bluetooth 5.0 with support for UAT, LDAC, aptX-HD, and AAC codecs to maximize performance during wireless listening.
Specs
- SMSL
- DAC chip: AK4499EQ
- Inputs: USB-B, optical toslink, coaxial, I2S via HDMI (LVDS), Bluetooth 5.0
- Outputs: RCA (single-ended), XLR (balanced)
- THD+N (A-weighted): 0.000058% (-124dB)
- Dynamic range: 131 dB
- SNR: 131 dB
- USB transmission: Asynchronous
- USB compatibility: Windows 7 / 8 / 8.1 / 10, Mac OSX 10.6 or later, Linux
- USB bit depth: 1-bit – 32-bit
- Optical / coaxial bit depth: 1-bit – 32-bit
- MQA decoding support
- USB sampling rate: PCM 44.1 kHz – 768 kHz / DSD 2.8224 ~ 22.5792MHz
- Optique / coaxial sampling rate: PCM 44.1 kHz – 192 kHz / DSD64 (DoP)
- Bluetooth sampling rate: 44.1 kHz – 192 kHz
- Power consumption: 5 W
- Standby power consumption: 0.5 W
- Dimensions: 8.5 x 8.7 x 1.7 in (21.5 x 22 x 4.3 cm)
- Weight: 3.4 lbs (1.53 kg)
Bluetooth Formats Supported
- Bluetooth version: Bluetooth 5.0
- UAT: 24-bit / 192 kHz
- LDAC: 24-bit / 96 kHz
- aptX HD: 24-bit / 48kHz
- AAC: 16-bit / 44.1kHz
Included
- 3.9 ft (1.2 m) USB to Micro USB cable
- Bluetooth antenna
- Remote control
- Adapter
- Owner’s Manual
