SMSL Panda DAC and Headphone Amplifier Set
Featuring three separate, dedicated devices in a well-built and relatively compact package, the SMSL Panda System has all you need to achieve an extremely high quality of sound. The set includes the Sanskrit Pro-B DAC, capable of driving high-resolution audio up to 24 bit/384 kHz, plus DSD64 and DSD128, with connection options for your PC, Mac, Android, and iOS smartphone. The Sanskrit Pha headphone amp can handle a range of IEMs and over-ear cans, and also functions as a preamplifier for your speakers. The final piece, the Sanskrit LPS linear power supply, works seamlessly with the other two elements.
Note: This drop includes the SMSL Sanskrit Pro-B DAC, Sanskrit Pha headphone amp, Sanskrit LPS linear power supply, and all necessary cables.
Features & Construction

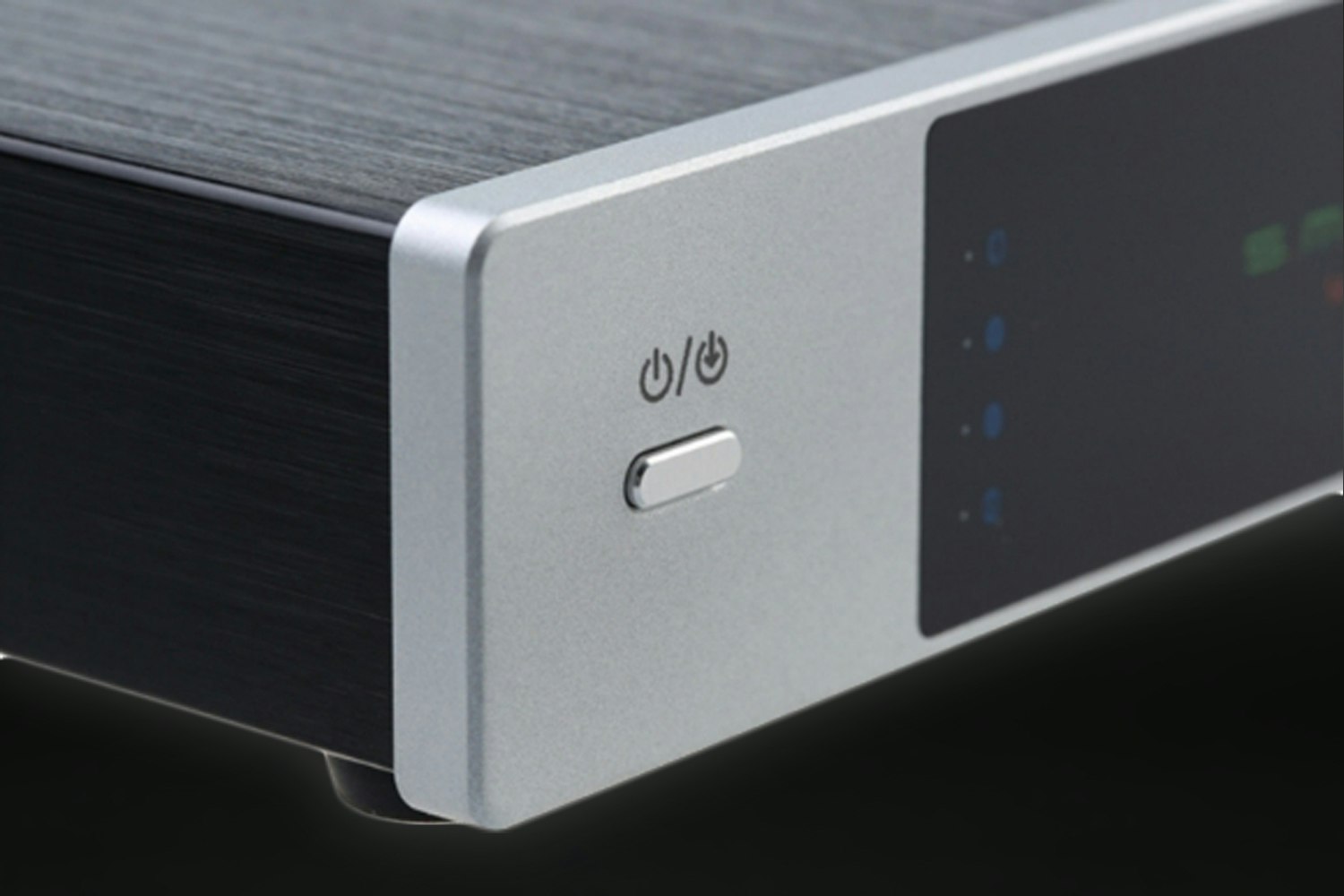

Precision-machined from a single block of black anodized aluminum, all three devices have a brushed profile and a thick, sandblasted front panel. On the left side, you’ll find the power button and the source selector, which allows you to switch between DAC, amplifier, and preamplifier functions. Two small buttons on either side of the power button can be used to adjust the volume of the headphone jack or RCA sockets. The right side of the front panel features a black plexiglass screen with LED indicators and, on the Pha amp, a 6.35-millimeter headphone jack.
Specs
SMSL Sanskrit Pro-B DAC
- Conversion: Up to 24 bit/384 kHz, DSD64 and DSD128
- Converter: Asahi Kasei AK4490 (32 bit/768 kHz; DSD 2.8 MHz, 5.6 MHz, 11.2 MHz)
- Digital inputs: USB B, S/PDIF coaxial and optic, Bluetooth aptX
- Audio outputs: Line on level fixed on cinch jacks
- USB compatibility: Windows, Mac OS, iOS, Android, Linux
- Dimensions: 5.7 x 1.4 x 3.9 in (14.4 x 3.6 x 9.8 cm)
- Weight: 10.6 oz (300 g)
SMSL Sanskrit Pha Headphone Amp
- Power: 330 mW/32 ohm, 122 mW/300 ohm
- Audio outputs: 6.35 mm jack for headphones, stereo on cinch
- Dimensions: 5.7 x 1.4 x 3.9 in (14.4 x 3.6 x 9.8 cm)
- Weight: 12 oz (340 g)
SMSL Sanskrit LPS
- Voltage: 2 x 9 V independents (management and surveillance by micro controllers)
- Dimensions: 5.7 x 1.8 x 3.9 in (14.4 x 4.6 x 9.8 cm)
- Weight: 23.3 oz (660 g)
Included
- SMSL Sanskrit Pro-B DAC
- SMSL Sanskrit Pha Headphone Amp
- SMSL Sanskrit LPS Linear Power Supply
- 2 braided cables with RCA jackets
- 2 small cables with coaxial jacks
Shipping
Estimated ship date is May 6, 2016 PT.
Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.
