Hi-Fi Headphone DAC/Amp

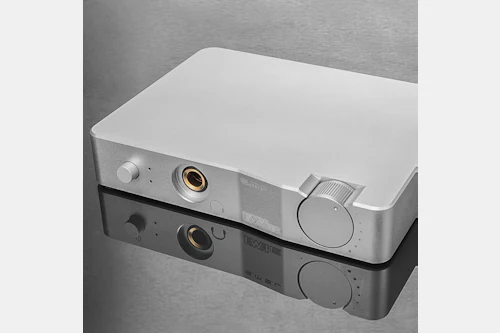

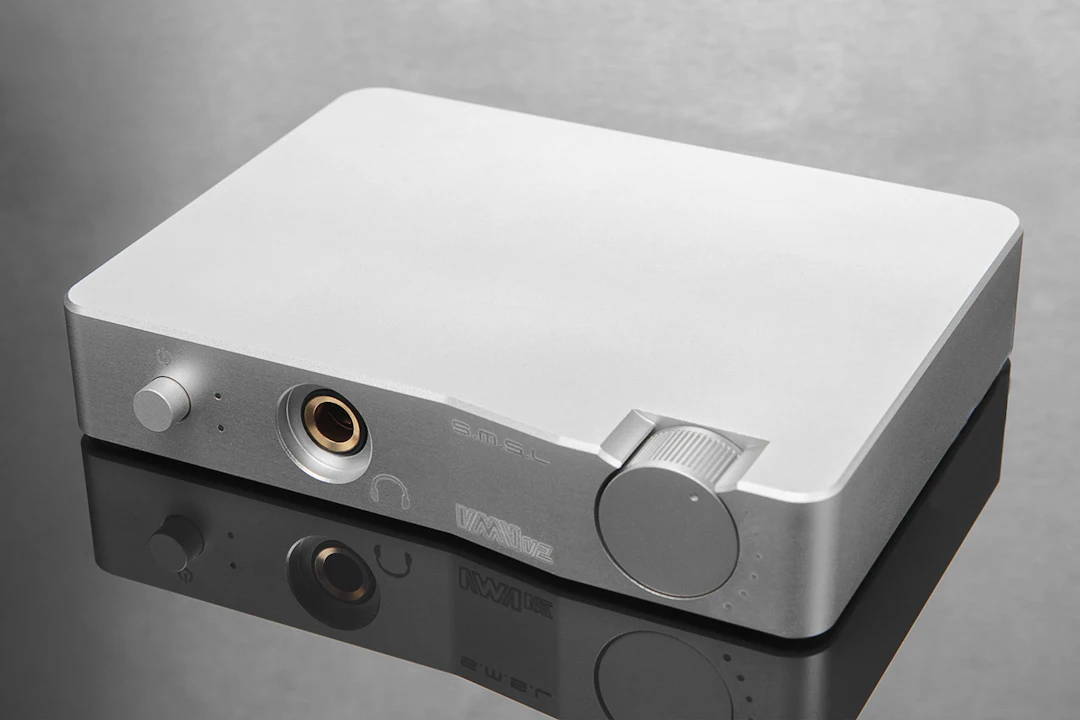

Get better sound out of your computer with the SMSL V2. Pairing a CM6621A receiving chip with a ES9023 decoding chip, this second-generation DAC/amp can handle high-resolution audio up to 32 bit/384 kHz. Precision-machined from a solid aluminum block, the chassis is sturdy and low-profile—and its compact size (4.7 inches wide and 3.7 inches deep) won’t take up too much real estate on your desk.

All-in-One Solution

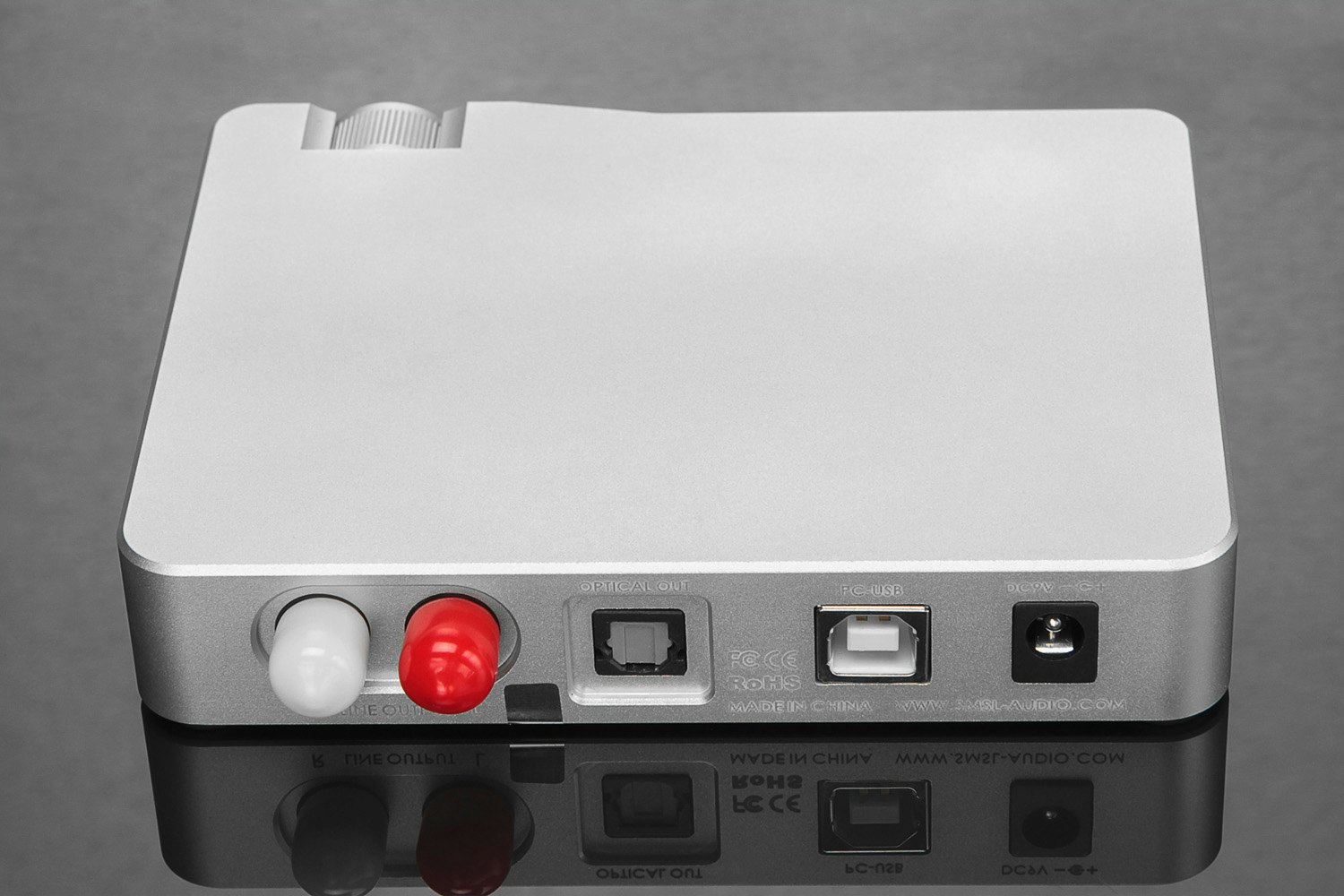

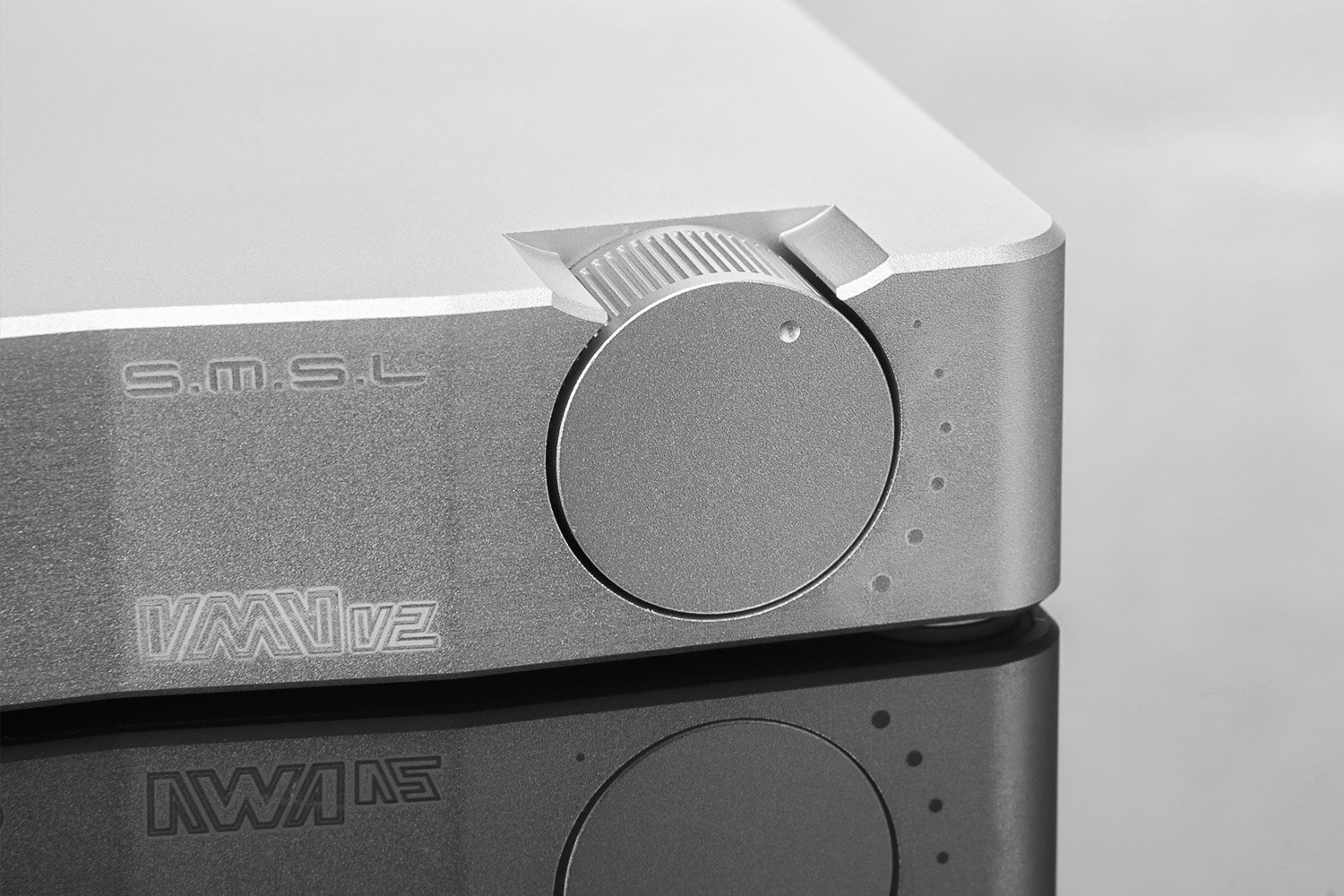

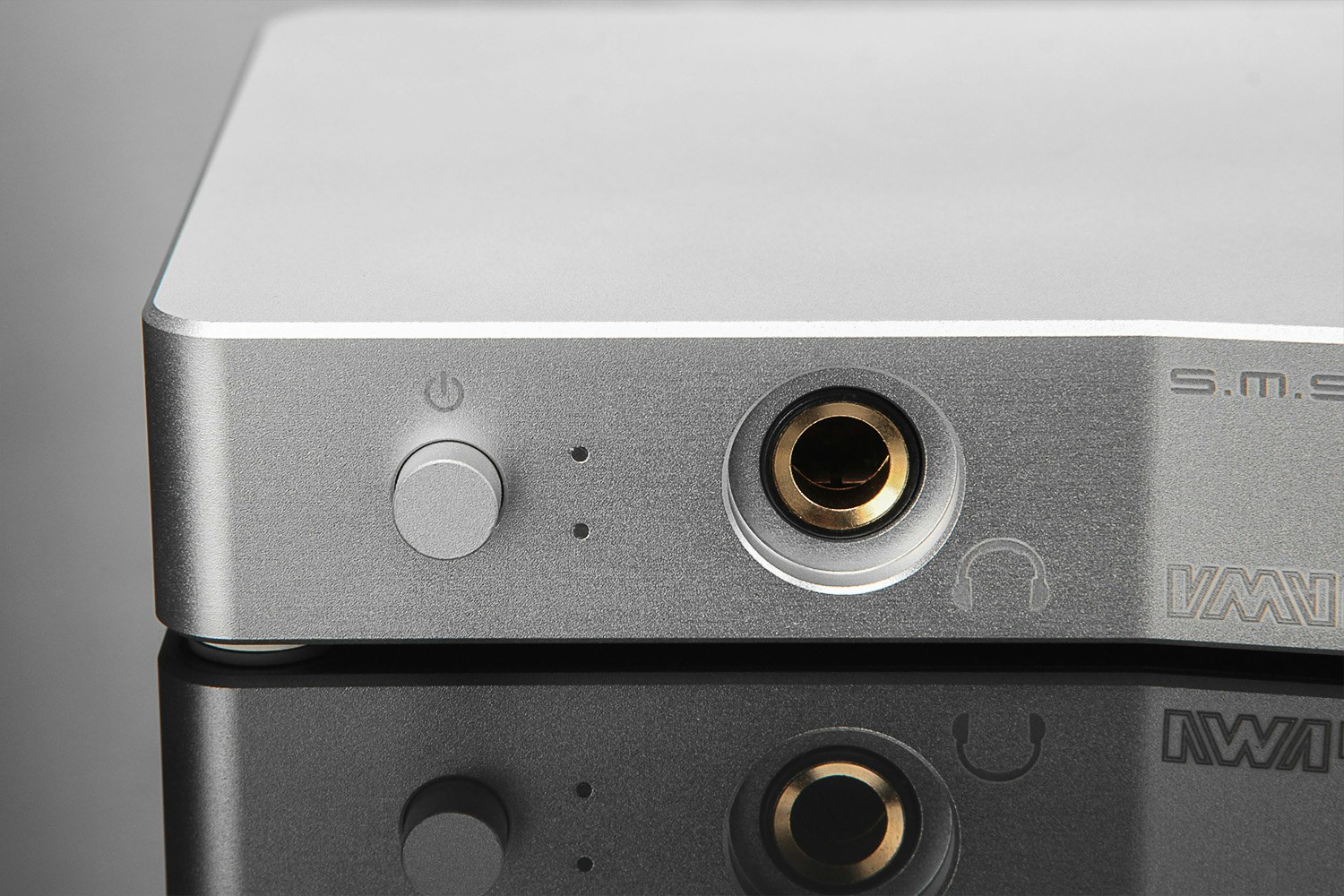

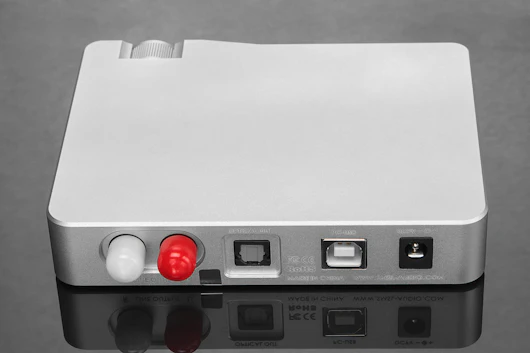

Designed to push your cans to their full potential, the V2 delivers extremely high performance for the price. The front panel features a power button, volume knob, gold-plated headphone jack, and two blue LEDs. On the rear panel, you’ll find gold-plated line outputs, an optical output, a headphone amp output, and a USB port.

Specs

SMSL
Construction: Aluminum alloy
THD + N: <0.003%
SNR: > 105 dB
Dynamic range: > 108 dB
Channel separation: > 105 dB
Line-out level: 2 Vrms
Output power: 32 ohm, 500 mW at THD 0.01%; 54 ohm, 500 mW at THD 0.006%; 150 ohm, 123 mW at THD 0.003%; 300 ohm, 133 mW at THD 0.003%
Power consumption: < 3W
Supply voltage: DC 9V 500 mA
USB support: Windows, Mac OS, iOS (requires connector), Android 4.0 and above
Dimensions: 4.7 x 3.7 x 0.9 in (12 x 9.3 x 2.3 cm)
Weight: 1.2 lb (19.4 oz)
