Sony PCM-D100 Portable Recorder
Upgraded Recorder With DSD

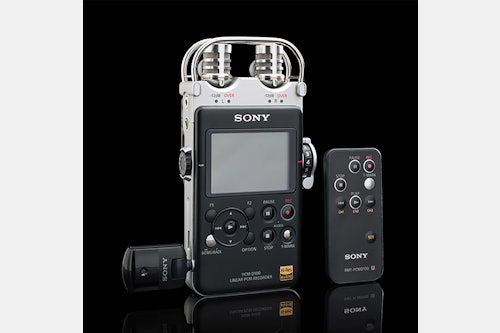

A powerful little tool for recording concerts, interviews, and other documentary elements, the Sony PCM-D100 has many of the same features as the beloved PCM-D50, plus some serious improvements in the sound department. It’s solidly made and easy to navigate, with built-in electret condenser microphones and internal audio circuitry (both upgraded from the D50), and a mini jack for external mics. It’s one of the few compact machines that supports DSD recording, as well as LPCM sampling rates up to 24 bit/192 kHz, and MP3 at 128 or 320 kbps.
This drop is limited to 6 units.
Better Sound, Longer Sessions
For LPCM and MP3 recordings, the PCM-D50 offers digital pitch control (which maintains pitch while slowing or increasing playback speed) and key control (which allows you to change the pitch while maintaining playback speed). Features include a limiter, low-cut filter, five-second pre-record buffer, cross-memory recording, Super Bit Mapping, and A-B repeat capability. In addition to its 32 gigabytes of internal memory (up from 4 gigabytes on the D50), this recorder accepts the gamut of memory sticks and SD cards up to 64 gigs. Finally, four standard AA batteries will carry you through long sessions between charges: up to 25 hours at 16 bit/44.1 kHz and 12 hours at DSD 2.8.
Specs
- Sony
- Construction: Aluminum
- Formats supported, recording: DSD, WAV, MP3
- Formats supported, playback: DSD, WAV, FLAC, MP3, WMA (non-DRM), AAC-LC (non-DRM)
- Frequency response: 20 Hz – 50 kHz (line in) at DSD 2.8; 20 Hz – 45 kHz (line in) at LPCM 192 kHz/24 bit
- Sampling frequency: DSD 2.8 MHz; LPCM 192 kHz / 176.4 kHz / 96 kHz / 88.2 kHz / 48 kHz / 44.1 kHz
- Quantization: 16-bit LPCM, 24-bit PCM, 1-bit DSD
- Signal-to-noise ratio: DSD > 98 dB; LPCM > 24 bit/96 dB
- Total harmonic distortion: DSD: < 0.0008%; LPCM: < 0.006% (1 kHz, 22 kHz LPF)
- Wow and flutter: Below measurable limit (< +/- 0.001% W.Peak)
- USB: High-speed USB, mass-storage class
- Power consumption: 0.75 W
- Power requirements: 4 AA alkaline batteries (included) or 4 AA NiMH rechargeable batteries
- DC input jack: 6V
- Battery life: 25 hrs at 44.1 kHz/16 bit; 18 hrs at 192 kHz/24 bit; 12 hrs at DSD 2.8
- Internal memory: 32 GB
- Memory slot: Accepts SD, SDHC, SDXC, Memory Stick Pro Duo, Memory Stick Pro-HG up to 64 GB
- Dimensions, excluding projections and controls: 2.9 x 6.1 x 1.25 in (5.1 x 15.5 x 3.2 cm)
- Weight, including batteries: 13.9 oz (394 g)
Built-in microphones (electret condenser)
- Maximum input level: 128 dB SPL
- Frequency response: 20 Hz – 20 kHz
Microphone input (stereo mini jack)
- Input impedance: 22 kohm
- Rated input level: 2.5 mV
- Minimum input level: 0.7 mV
Line input, analog (stereo mini jack)
- Input impedance: 22 kohm
- Rated input level: 2 V
- Minimum input level: 450 mV

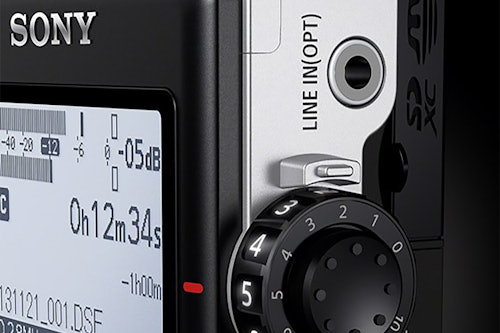

Line input, optical (optical digital input)
- Input level: -27 dBm to - 14 dBm
- Emission wavelength: 660 nm
Line outputs
- Output impedance: 220 ohm (analog)
- Output level: 1.7 V (analog)
- Load impedance: 22 kohm (analog)
- Output level: -21 dBm to -15 dBm (optical)
Headphone output (stereo mini jack)
- Maximum output: 25 mW + 25 mW
- Load impedance: 16 ohm
Included
- 4 AA batteries
Shipping
Estimated ship date is Feb 26, 2018 PT.
Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.
