Product Description

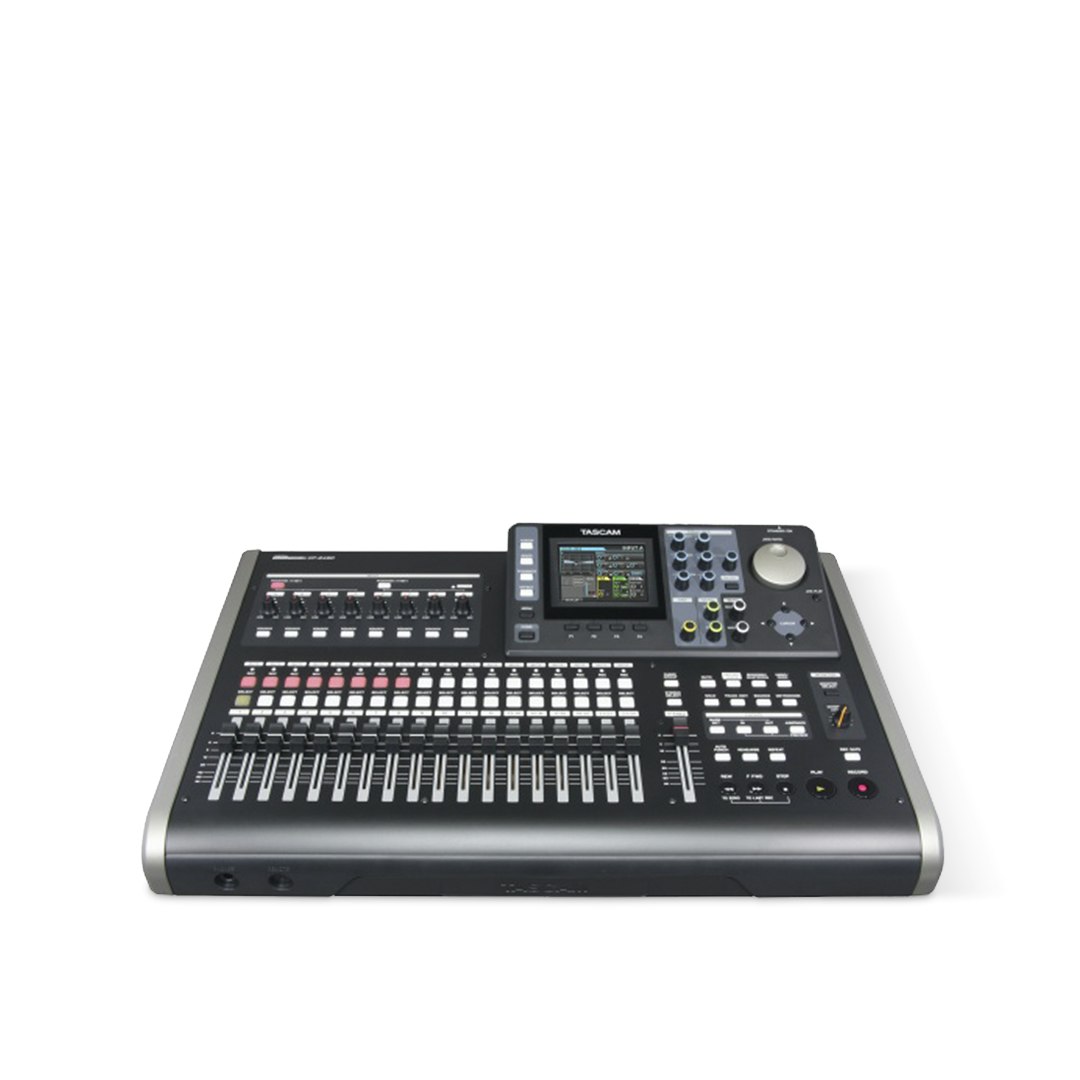

A 24-track workstation that allows eight tracks of simultaneous recording, the Tascam DP-24SD offers a complete digital studio solution. The built-in mixer has everything you need for professional sound mixing, including EQ, reverb, amp simulation, and multi-band mastering effects Read More
Efficient Desktop Music Production

A 24-track workstation that allows eight tracks of simultaneous recording, the Tascam DP-24SD offers a complete digital studio solution. The built-in mixer has everything you need for professional sound mixing, including EQ, reverb, amp simulation, and multi-band mastering effects. The full-color LCD displays tracks, meters, and effects parameters, while eight XLR mic/line inputs each provide phantom power for condenser microphones, switchable in banks of four. Sound on Sound  says, “The DP24 should prove a hit with many users, as it offers an efficient set of tools in a convenient and portable package. It should thus enable anyone to record and produce reasonably sophisticated demos very easily, and to create physical copies of their work. For anyone averse to working with a computer, there are very few options that come close to being this good until you get into full digital mixer territory.”

Specs

Input A-H, XLR

  • Connector: XLR-3-31 (1:GND, 2:HOT, 3:COLD), Balanced
  • Input impedance: 2.4k ohms
  • Nominal input level: -14dBu
  • Maximum input level:+2dBu

Input A-H, TRS

  • Connector: 6.3mm (1/4") TRS phone jack, Balanced
  • Input impedance: 22k ohms or more / 1M ohms(when INPUT H, GUITAR selected)
  • Nominal input level: +4dBu
  • Maximum input level: +20dBu

Stereo Out

  • Connector: RCA pin-jack, Unbalanced
  • Output impedance: 200 ohms
  • Nominal output level: -10dBV
  • Maximum output level: +6dBV

Effect Sends

  • Connector: 6.3mm (1/4") TS phone jack, Unbalanced
  • Output impedance: 200 ohms
  • Nominal output level: -10dBV
  • Maximum output level: +6dBV

Monitor Out

  • Connector: 6.3mm (1/4") TRS phone jack, Balanced
  • Output impedance: 200 ohms
  • Nominal output level: -2dBu
  • Maximum output level: +14dBu

Phones

  • Connector: 6.3mm (1/4") stereo phone jack
  • Maximum output level: 70mW + 70mW (THD+N 0.1% or less, 32 ohms loaded)

USB

  • Connector: USB Mini-B type 4-pin
  • Format: USB2.0 High-Speed mass-storage class

Other

  • Recording media: SD (512MB – 2GB) / SDHC card (4GB – 32GB)
  • File system: SD card: FAT16 / SDHC card: FAT32
  • Remote connector: 2.5mm TRS jack
  • Power: Dedicated AC adapter (TASCAM GPE248-120200-Z, included)
  • Power consumption: 12W (when phantom power supplying)
  • Dimensions, W x H x D: 20.2 x 4.1 x 13.4 in (514 x 100.4 x 336.9 mm)
  • Weight: 13.67 lbs (6.2 kg)
Included
  • AC adapter
  • 4GB SD card
  • Owner’s manual
