Product Description
Designed to be used in tandem with today’s top cameras, the Tascam DR-60DMKII, DR-70D, and DR-701D DSLR recorders are portable audio-recording solutions for serious filmmakers. The DR-60DMKII is four-track solid-state recorder offering HDDA mic preamps with 64dB of gain for quiet performances, phantom power, 96kHz/24-bit WAV file recording, and several other recording modes Read More
Premium Audio for Premium Video

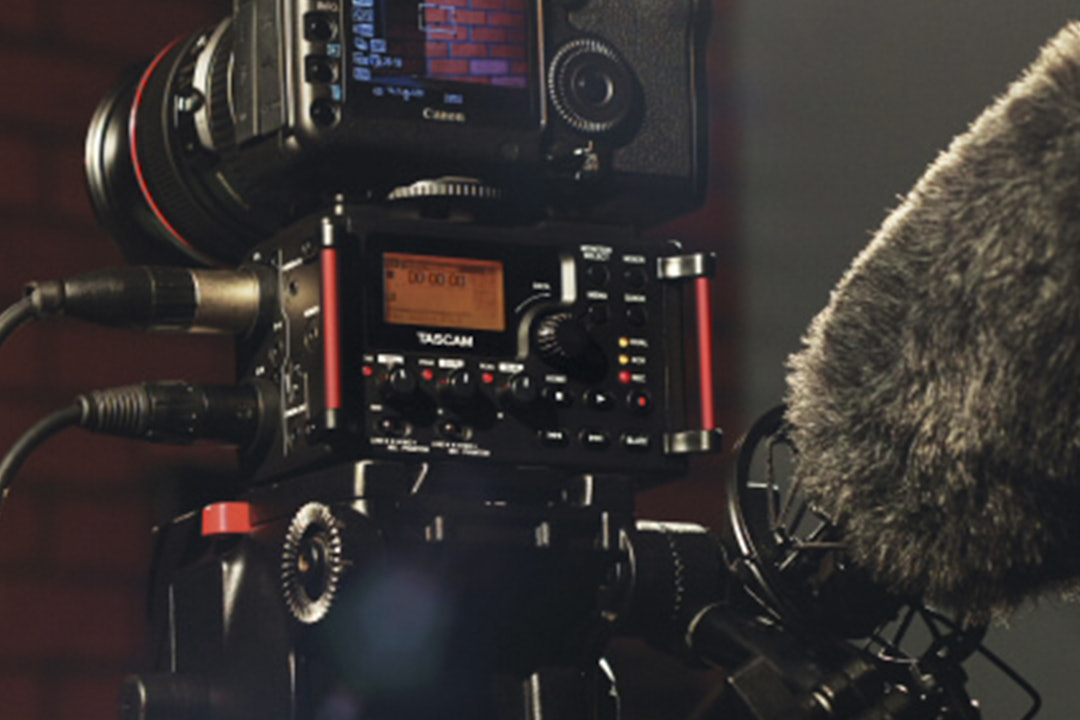

Designed to be used in tandem with today’s top cameras, the Tascam DR-60DMKII, DR-70D, and DR-701D DSLR recorders are portable audio-recording solutions for serious filmmakers. The DR-60DMKII is four-track solid-state recorder offering HDDA mic preamps with 64dB of gain for quiet performances, phantom power, 96kHz/24-bit WAV file recording, and several other recording modes. More compact, the DR-70D features four XLR mic inputs with phantom power, 5532 op amps, and Dual Recording Mode (which records a safety copy of your audio tracks). Lastly, the DR-701D is a six-track recorder equipped with HDMI in and out ports, as well as a timecode generator for location reference and jam-syncing from an SMPTE generator. All three Tascam recorders can be easily attached to any camera and/or tripod setup.

Note: At checkout, choose the DR-60MKII (base price), DR-70D (+ $80), or the DR-701D (+ $240).

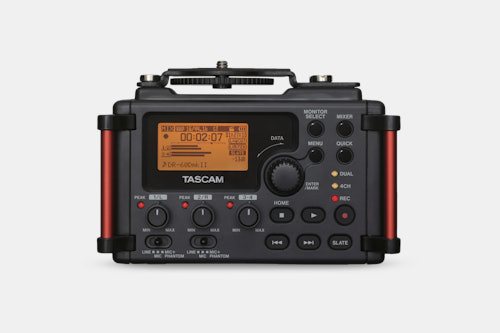

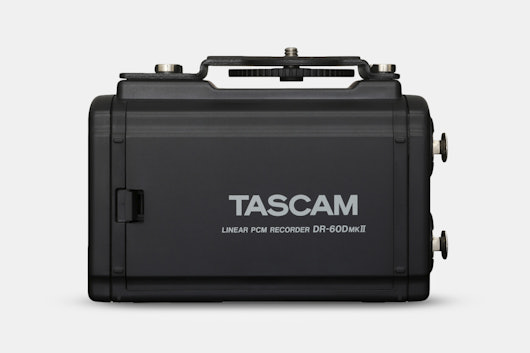

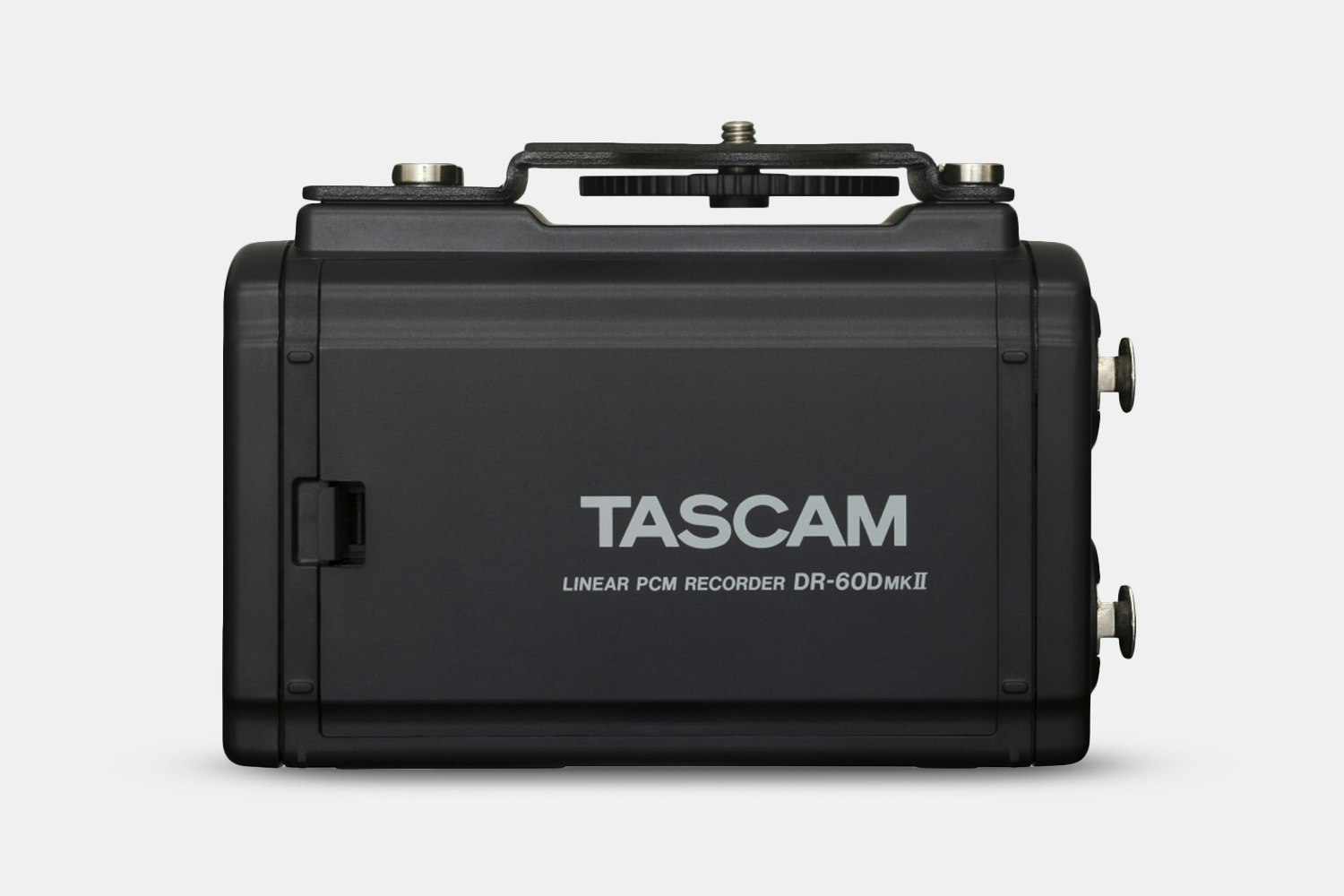

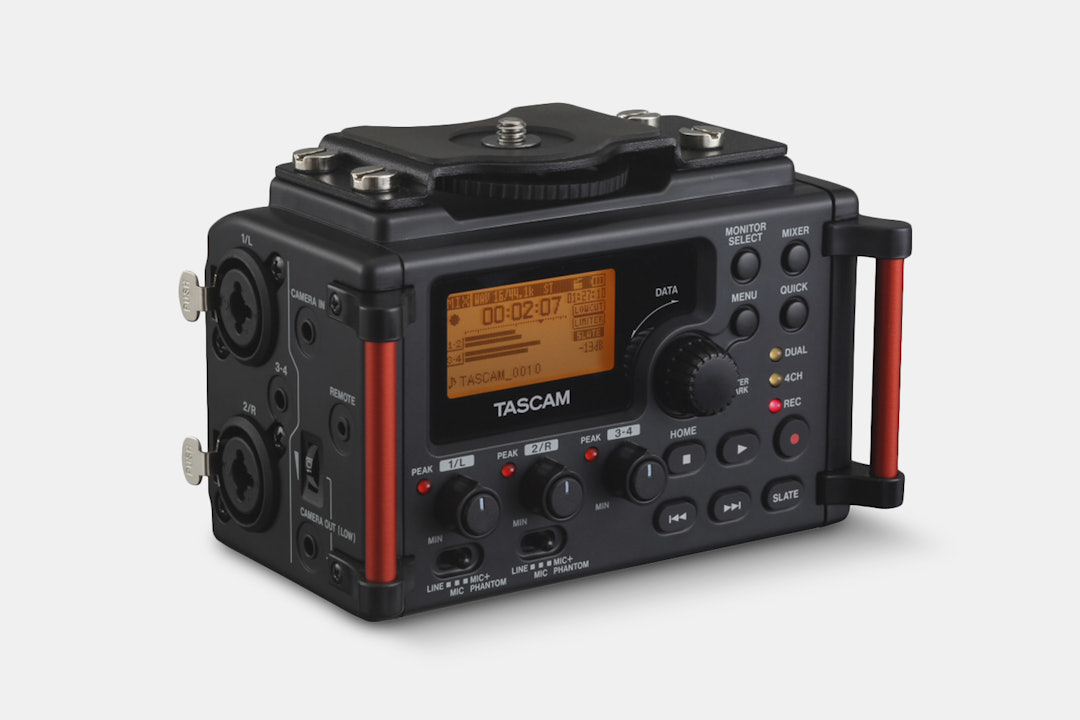

DR-60MKII (Base Price)

DR-60MKII (Base Price)

  • Records up to 96 kHz, 24-bit resolution
  • HDDA microphone preamps with 120 dB EIN and 64 dB gain
  • CIRRUS LOGIC AD converter
  • Records to SD/SDHC (up to 32 GB)
  • Record modes: Mono, Stereo, Dual Mono, Dual Stereo, 4-Channel
  • Recording levels adjusted independently for 1/L, 2/R, and 3-4 inputs
  • 2 combo XLR/TRS inputs support +4 dBu mic/line level input
  • Phantom power to channels 1/2 (24 V or 48 V DC on XLRF)
  • Plug-in power and high-output mic input supported on inputs 3-4

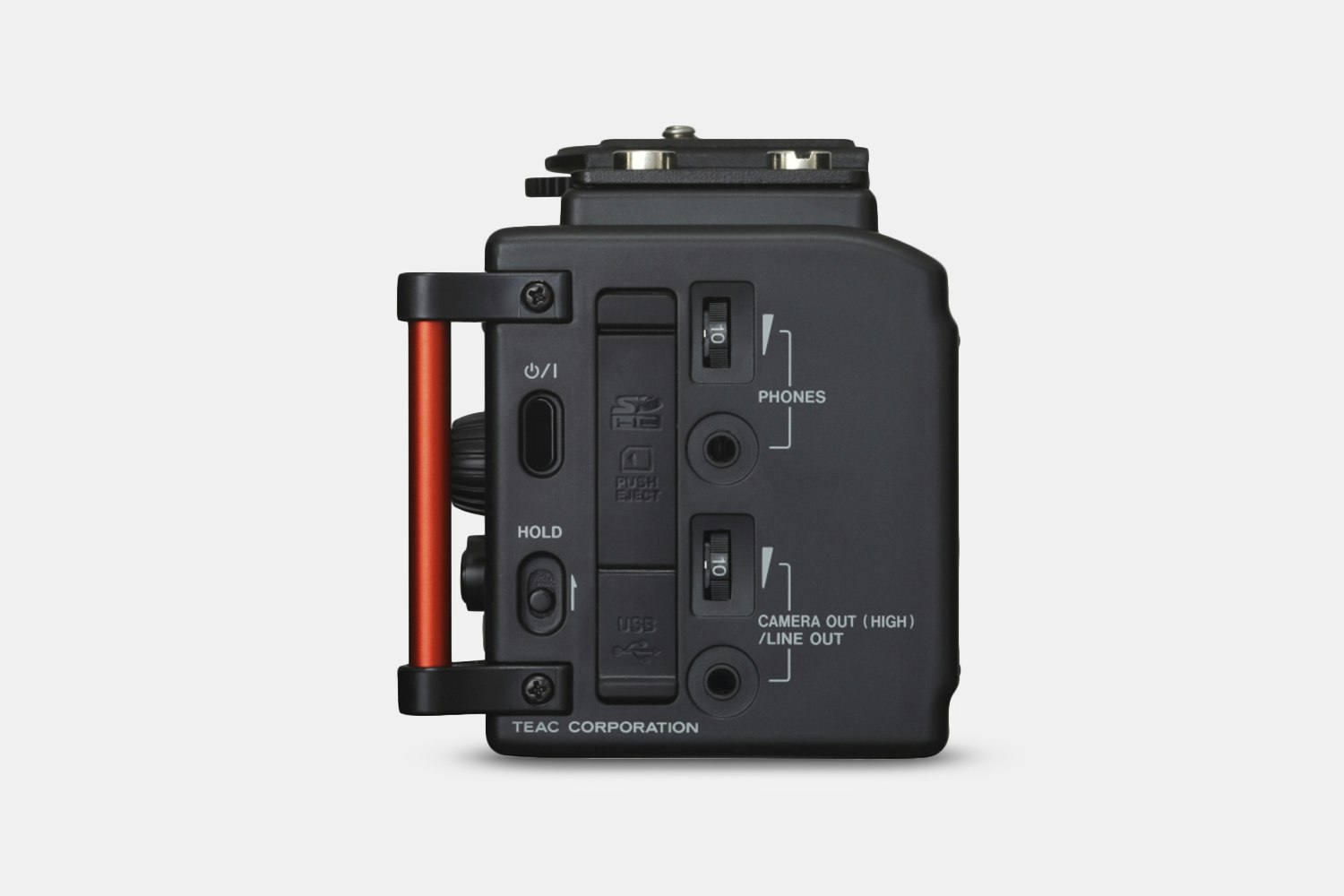

  • CAMERA OUT connector for output from the DR-60DmkII mixer
  • CAMERA IN connector for sound monitoring
  • 50 mW/ch headphone amplifier

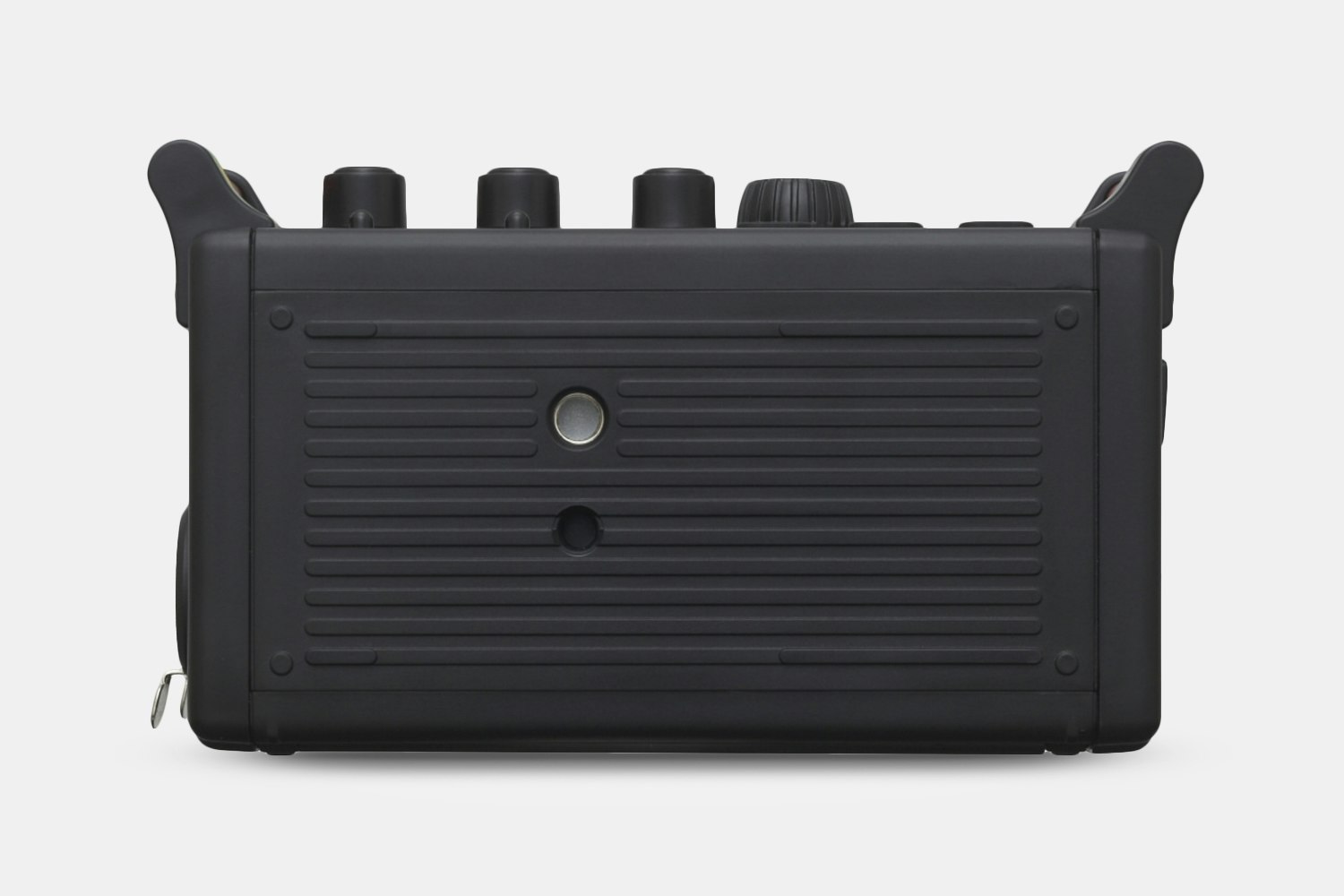

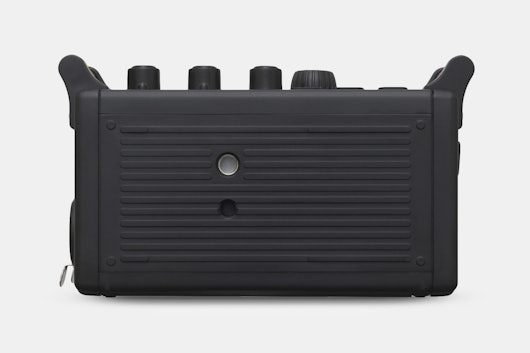

  • Tripod mounting socket and mounting screw attachment
  • Handles protect the screen and can attach to a shoulder strap
  • Soft-touch rubber keys for silent operation
  • HOLD switch to prevent accidental operation
  • QUICK button feature for easy access to functions
  • 128 x 64 pixel LCD with backlight
  • USB 2.0 connection
  • Operates on 4 AA batteries, AC adapter (not included), or USB bus power
  • Dedicated remote control jack for RC-10 remote control or RC-3F footswitch
  • Internal mixer: PAN and LEVEL controls
  • Low cut filter: 40/80/120 Hz
  • Limiter
  • Delay function for microphone distance adjustment (up to 150 ms)
  • M-S decode function
  • Selectable duration of slate tone from four positions (0.5/1/2/3 sec)
  • Selectable slate tone generation from three positions (OFF/HEAD/HEAD+TAIL)
  • File naming format set to user-defined word or date
  • Dual-recording function allows two files to be recorded at different levels
  • Auto-recording function
  • Pre-recording function to record a 2 second sound buffer before recording
  • Self-time function for solo recording
  • New file begins automatically when maximum file size is reached
  • Track incrementing function splits files when desired
  • Jump back and play function
  • Equalizer function for playback
  • Level alignment function
  • Resume function to memorize playback position
  • MARK function up to 99 points per audio track
  • DIVIDE function
  • Frequency response: 20 - 40 kHz
  • Distortion: 0.02%
  • S/N ratio: 92 dB
  • Equivalent input noise: -120 dBu
  • 5.24 x 3.67 x 3.07 in (133 x 93.2 x 78 mm)
  • 17.99 oz (510 g)

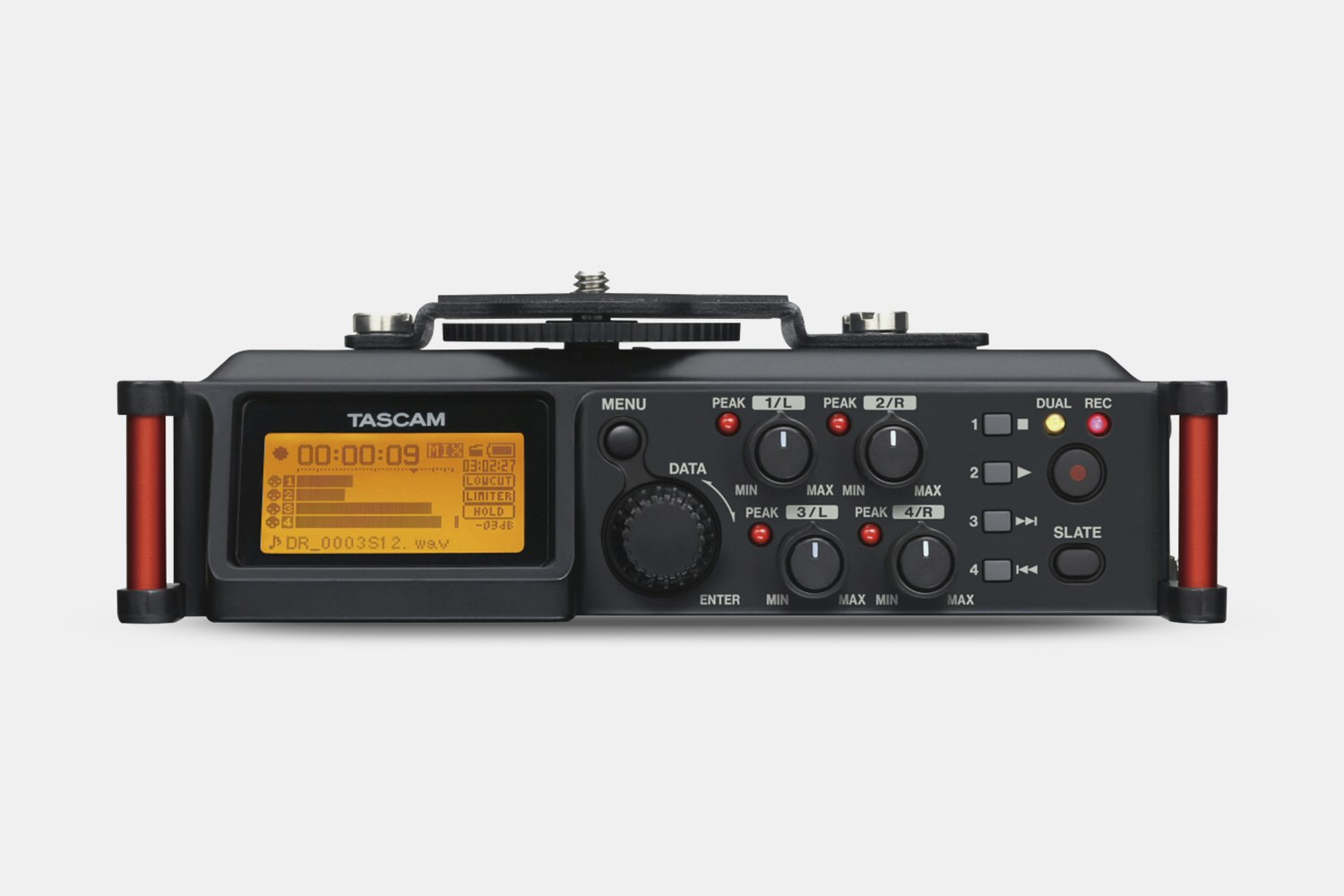

DR-70D (+ $80)

  • Recording media: SD cards (64 MB–2 GB)
  • SDHC cards (4–32 GB)
  • SDXC cards (64–128 GB)
  • Recording/playback formats: WAV: 44.1/48/96kHz, 16/24-bit
  • BWF: 44.1/48/96kHz, 16/24-bit
  • Number of channels: 4 maximum (stereo × 2)
  • 6.2 x 4.5 x 2.2 inches (169 mm × 55 mm × 107 mm)
  • Frequency response: 20 Hz – 20 kHz +0.5/−2 dB (Fs 44.1/48 kHz)
  • 20 Hz – 20 kHz +0.5/−3 dB (Fs 96 kHz)
  • Distortion: 0.02 % or less (Fs 44.1/48/96kHz)
  • S/N ratio: 92 dB or more (Fs 44.1/48/96kHz)
  • EIN: −120 dBu or less
  • Supported operating systems: Windows XP, Windows Vista, Windows 7, Windows 8 (including 8.1), Mac OS X 10.2 or newer
  • Analog I/O: 4 x Combo XLR-1/4" TRS Female Balanced Line/Mic Input (lockable), 1 x 1/8" / 3.5 mm TRS Female Unbalanced Mic Input, 1 x 1/8" / 3.5 mm TRS Female Unbalanced Camera Input, 1 x 1/8" / 3.5 mm TRS Female Unbalanced Camera/Line Output, 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output, 1 x 2.5 mm TRS Female Remote Input
  • Digital I/O: None
  • Phantom Power: +24 / 48 V ± 4 V (Selectable on Individual Inputs)
  • Phantom Power Current: 10 mA per Channel
  • Plug-In Power: Yes
  • Host Connection: 1 x Micro-USB (USB 2.0)
  • Power: 4 AA batteries (alkaline or NiMH)
  • USB bus power from a computer
  • AC adapter (TASCAM PS-P515U, sold separately)
  • External battery pack (TASCAM BP-6AA, sold separately)
  • Mounting Options: ¼ in–20 Female, Shoe Mount
  • Operating Temperature: 32 to 140°F (0 to 40°C)
  • Dimensions: 6.7 x 2.2 x 4.2 in (169.0 x 55.2 x 106.5 mm)
  • Weight 1.2 lbs (530.0 g) without batteries, 1.4 lbs (625.0 g) with batteries

DR-701D (+ $240)

  • Recording media: SD (64 MB–2 GB)
  • SDHC (4 GB–32 GB)
  • SDXC (48 GB–128 GB)
  • Audio file formats BWF, WAV
  • Sample Rates WAV: 44.1 / 48 / 96 / 192 kHz
  • Bit Depth: 16 / 24-Bit
  • Signal Processing: Delay, Limiter, Low-Cut Filter
  • Timecode: Yes
  • Clock Accuracy: 2 ppm
  • Number of Tracks: 6 (4 Inputs + Stereo Mix)
  • Max Sample Rate/Resolution:192 kHz / 24-Bit
  • Microphone Built-In Omnidirectional Electret Condenser Stereo Pair, A/B Configuration
  • Built-In Speaker: No
  • Display: Monochrome LCD (Backlit)
  • Internal Storage: None
  • Analog I/O: 4 x Combo XLR-1/4" TRS Female Balanced Line/Mic Input (Lockable), 1 x 1/8" / 3.5 mm TRS Female Unbalanced Mic Input, 1 x 1/8" / 3.5 mm TRS Female Unbalanced Camera Input, 1 x 1/8" / 3.5 mm TRS Female Unbalanced Camera Output, 1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Output, 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output, 1 x 2.5 mm TRS Female Remote Input
  • Digital I/O: 1 x HDMI Type-A Input, 1 x HDMI Type-A Cascade/Timecode/Video Output
  • Phantom Power: +24 / 48 V ± 4 V (Selectable on Individual Inputs)
  • Phantom Power Current: 10 mA per Channel
  • Plug-In Power: Yes
  • Host Connection: 1 x Micro-USB (USB 2.0)
  • Power Options: Batteries, USB Bus Power, AC/DC Power Adapter
  • Mounting Options: ¼ in–20 Female, Shoe Mount
  • Operating Temperature: 32 to 140°F (0 to 40°C)
  • Dimensions: 6.7 x 2.3 x 4.5 in (169.0 x 57.3 x 113.5 mm) with adapter attached
  • Weight: 1.2 lbs (561.0 g) without batteries, 1.4 lbs (654.0 g) with batteries
Included
  • DR-60MKII: USB cable, warranty card, Owner's manual
  • DR-70D: USB cable, Camera attachment bracket screw hole covers (6), Owner's Manual
  • DR-701D: USB cable, Camera attachment bracket screw hole covers (6), Owner's Manual
