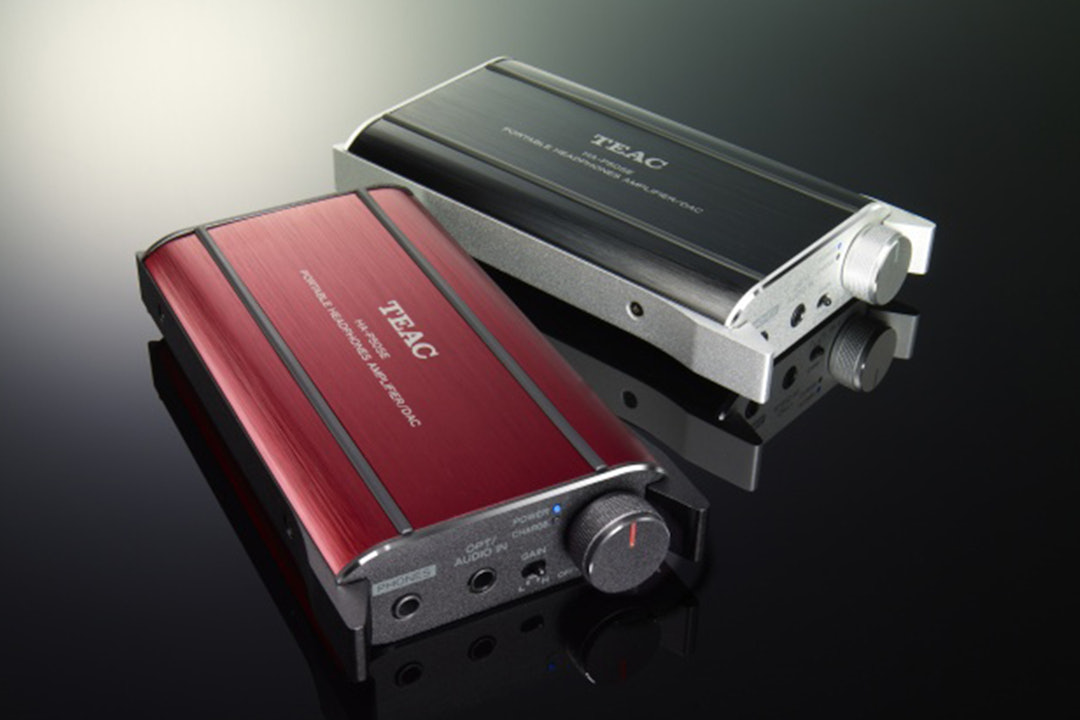

TEAC HA-P50SE Portable Headphone DAC/Amp
TEAC HA-P50SE Portable Headphone DAC/Amp
bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
142 Sold
Product Description

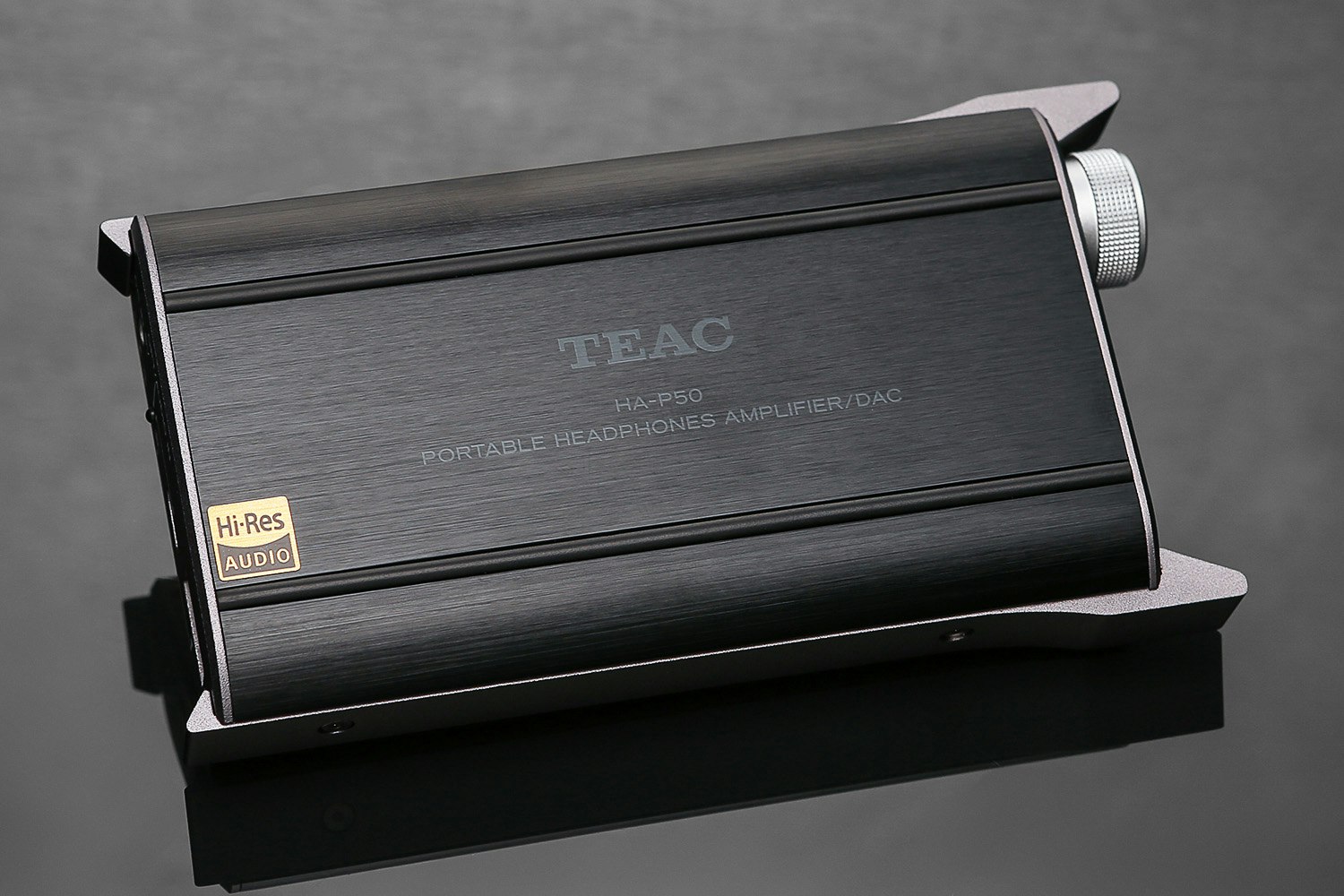

Featuring a portable, tough-as-nails aluminum body no bigger than the size of a flask, the TEAC HA-P50SE DAC/amp delivers remarkably high sound quality and versatile device compatibility for the price. An update to the HA-P50, it features a different opamp, the BurrBrown OPA1602, and slight aesthetic changes, with a lighter silver faceplate on the black colorway and a red line on the volume knob of the red version Read More
Great Sound, Anywhere You Go

Featuring a portable, tough-as-nails aluminum body no bigger than the size of a flask, the TEAC HA-P50SE DAC/amp delivers remarkably high sound quality and versatile device compatibility for the price. An update to the HA-P50, it features a different opamp, the BurrBrown OPA1602, and slight aesthetic changes, with a lighter silver faceplate on the black colorway and a red line on the volume knob of the red version. The PCM5102 DAC is capable of processing digital audio signals up to 24-bit/96kHz, while the power amp section can drive 600-ohm headphones at full power using the high gain setting. The resulting sound is clear, balanced, and spacious, with excellent vocal and instrument separation and extremely low distortion.

Note: At checkout, you’ll have your choice of color: black or red. Quantities are limited in each style.

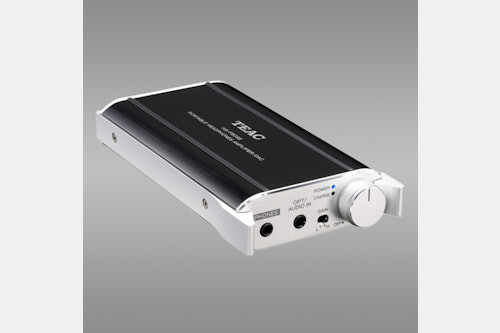

Build & Connections

Along with USB and mini-USB inputs, the TEAC HA-P50SE is equipped with a gain switch and an analog input via a 3.5-millimeter jack. The compact aluminum volume knob has just the right torque for fine volume adjustments, with raised guards on either side to prevent accidental changes while the device is being carried in a pocket or bag. The built-in 2,100-mAh lithium-ion battery provides eight hours of continuous battery life, after which you can recharge with the included USB cable or through a DC in 5V port (AC adapter sold separately).

Color Options

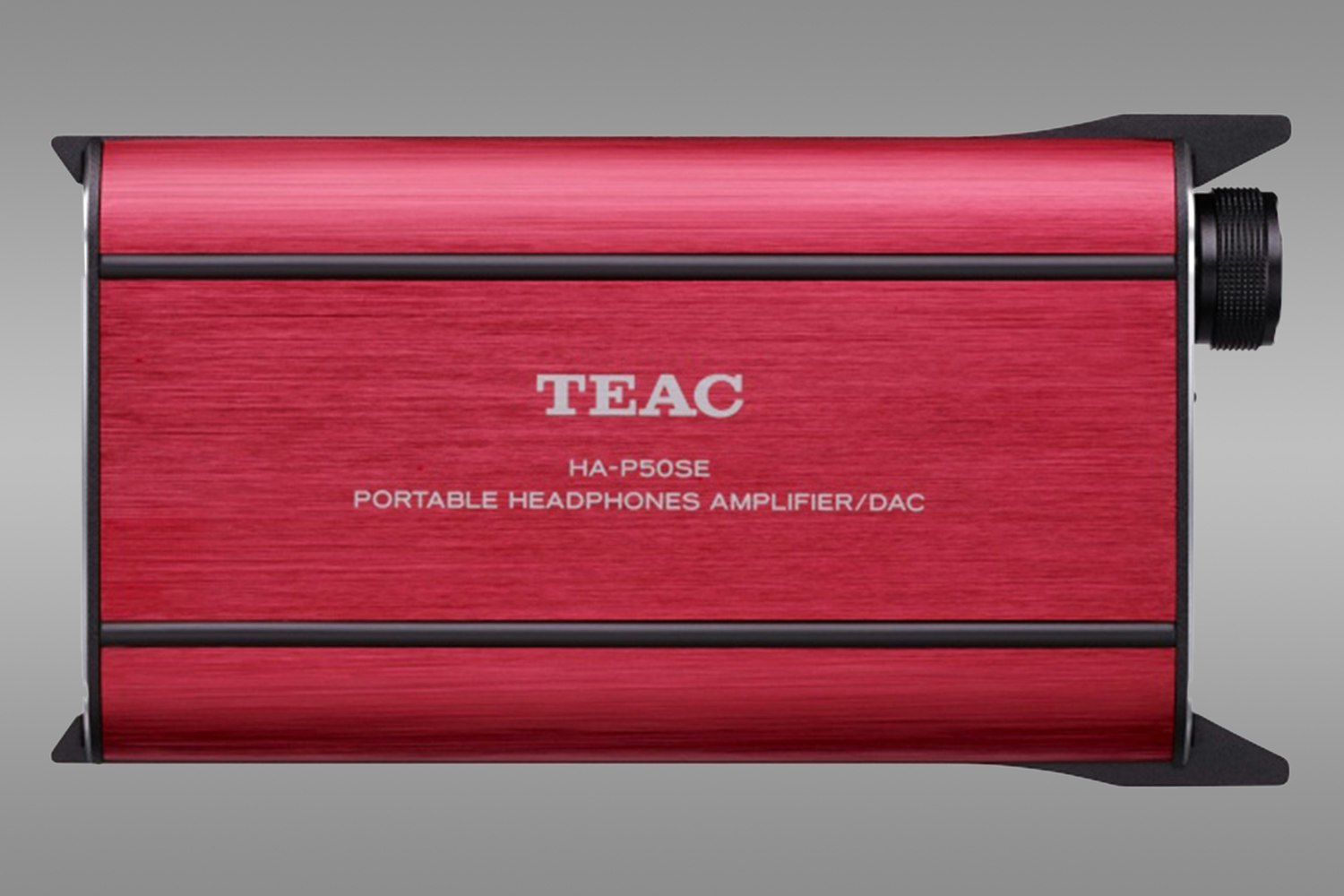

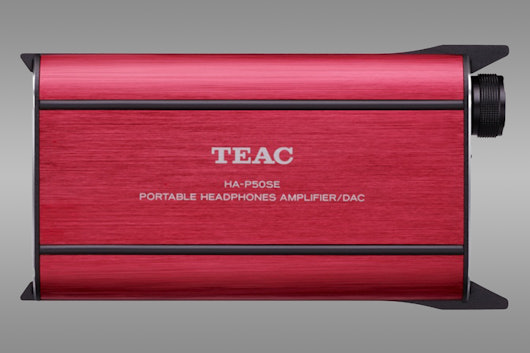

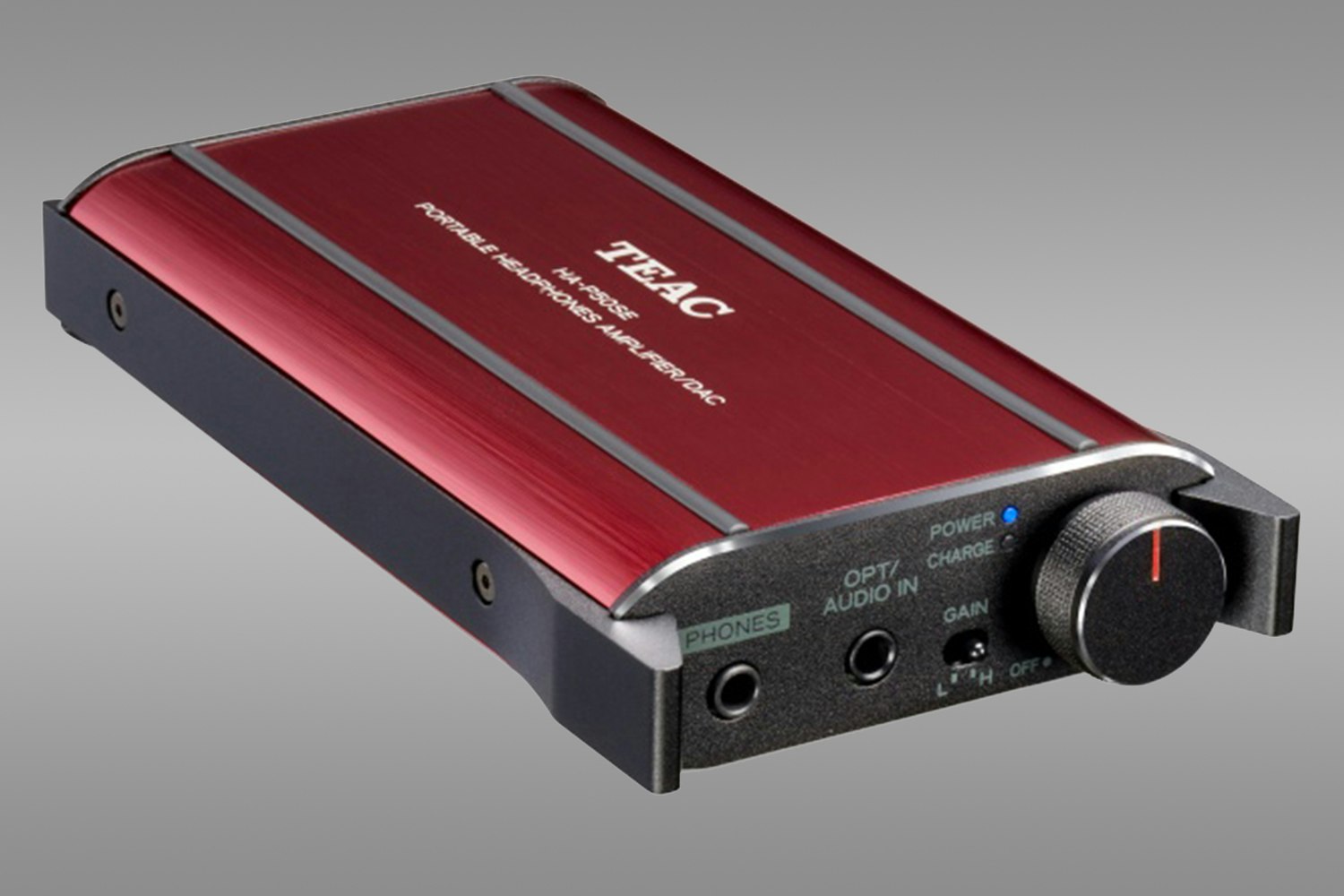

Red

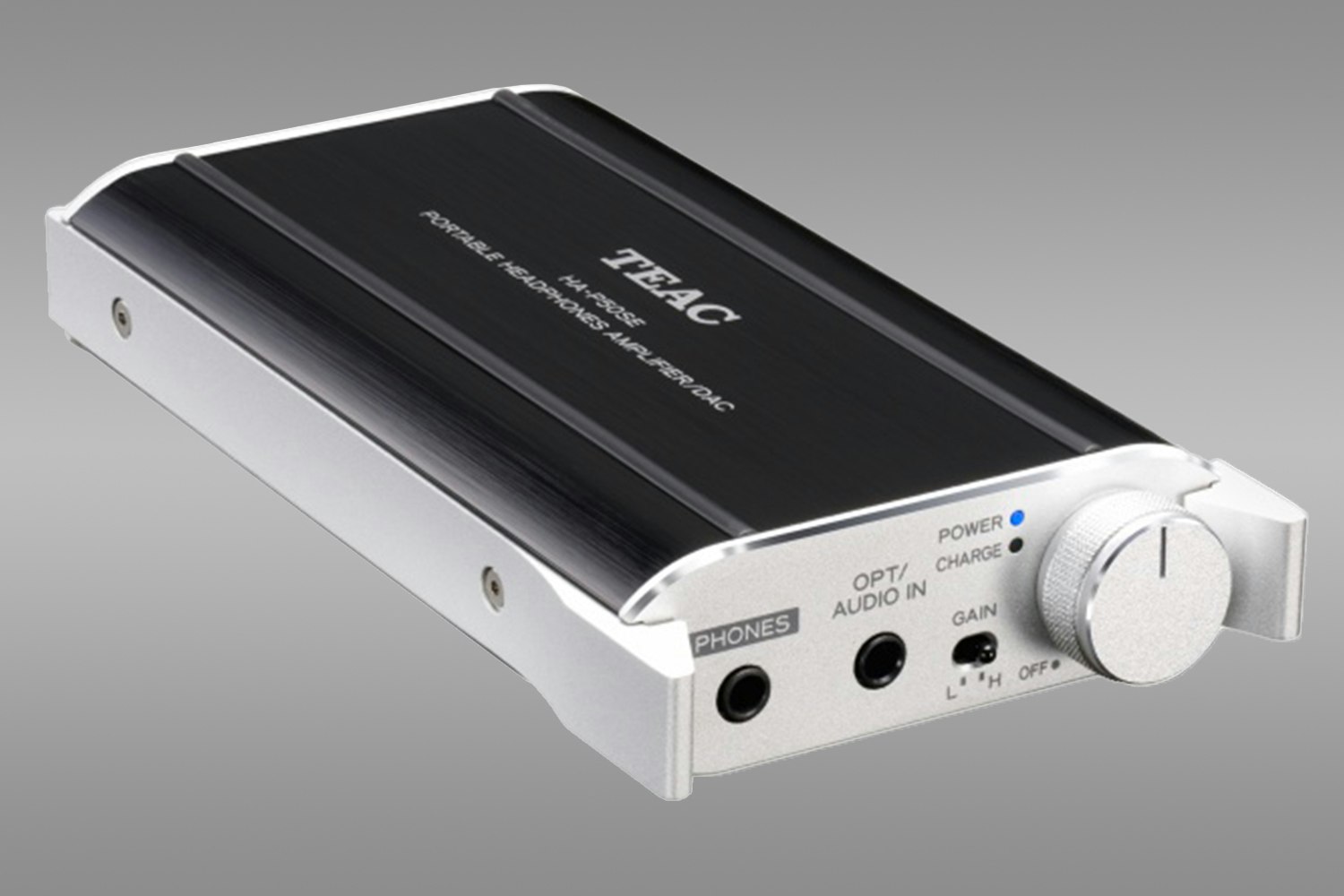

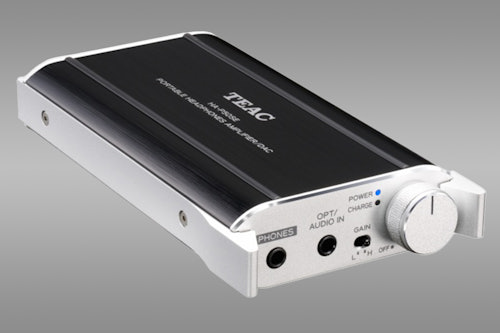

Black
Specs
  • TEAC
  • DAC: BurrBrown PCM5102
  • Opamp: BurrBrown OPA1602
  • Frequency response: 10 Hz – 100 kHz (when using audio in input)
  • Overall distortion: 0.001% (32 ohm, 1 kHz, 100 mW + 100 mW, JEITA)
  • High/low gain selector

Headphone output

  • Connector: ⅛ in (3.5 mm) stereo mini jack
  • Effective maximum output (160 mW + 160 mW): 32 ohm, 1 kHz, 10%, JEITA
  • Effective maximum output (65 mW + 65 mW): 300 ohm, 1 kHz, 10%, JEITA
  • Effective maximum output (35 mW + 35 mW): 600 ohm, 1 kHz, 10%, JEITA
  • Compatible impedance: 8 – 600 ohm

Analog audio input

  • Connector: ⅛ in (3.5 mm) stereo mini jack (combination optical digital input, automatic detection)

Digital audio input

  • USB 1 connector: USB Micro B-type (USB 2.0)
  • USB 1 compatible products: PCs with TEAC HR Audio Player installed
  • USB 1 compatible formats (PCM): 96 kHz, 24 bit
  • USB 2 connector: USB A-type, USB 2.0
  • USB 2 compatible products: iPhone 5s, 5c, 5; iPad Air, 4th gen, Mini; iPod Touch (5th gen), Nano (7th gen); Android (AOA 2.0 compatible Android phone handset)
  • USB 2 compatible formats, iOS: 96 kHz, 24 bit (when using TEAC HR Audio Player for iOS)
  • USB 2 compatible formats, Android: 44.1 kHz, 16 bit (AOA 2.0 compatible Android phone handset)
  • Digital audio input, optical
  • Connector: Optical mini jack (combination audio in port, automatic signal detection)

Battery

  • Capacity: 2,100 mAh
  • Recharging method: USB (via USB-A DC charging cable)
  • Continuous battery life: Approx. 8 hrs (when using digital input)

Physical

  • Chassis: Aluminum
  • Dimensions: 2.5 x 0.85 x 4.4 in (6.4 x 2.2 x 11.2 cm)
  • Weight: 7.4 oz (210 g)
Included

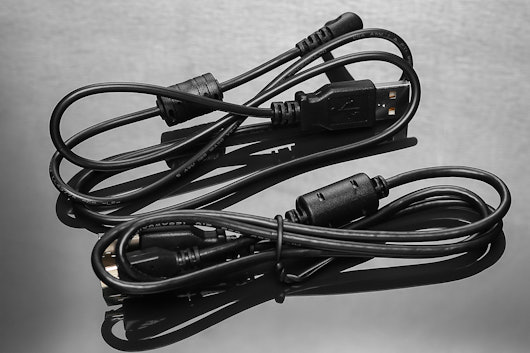

  • Charging cable
  • Computer connection cable

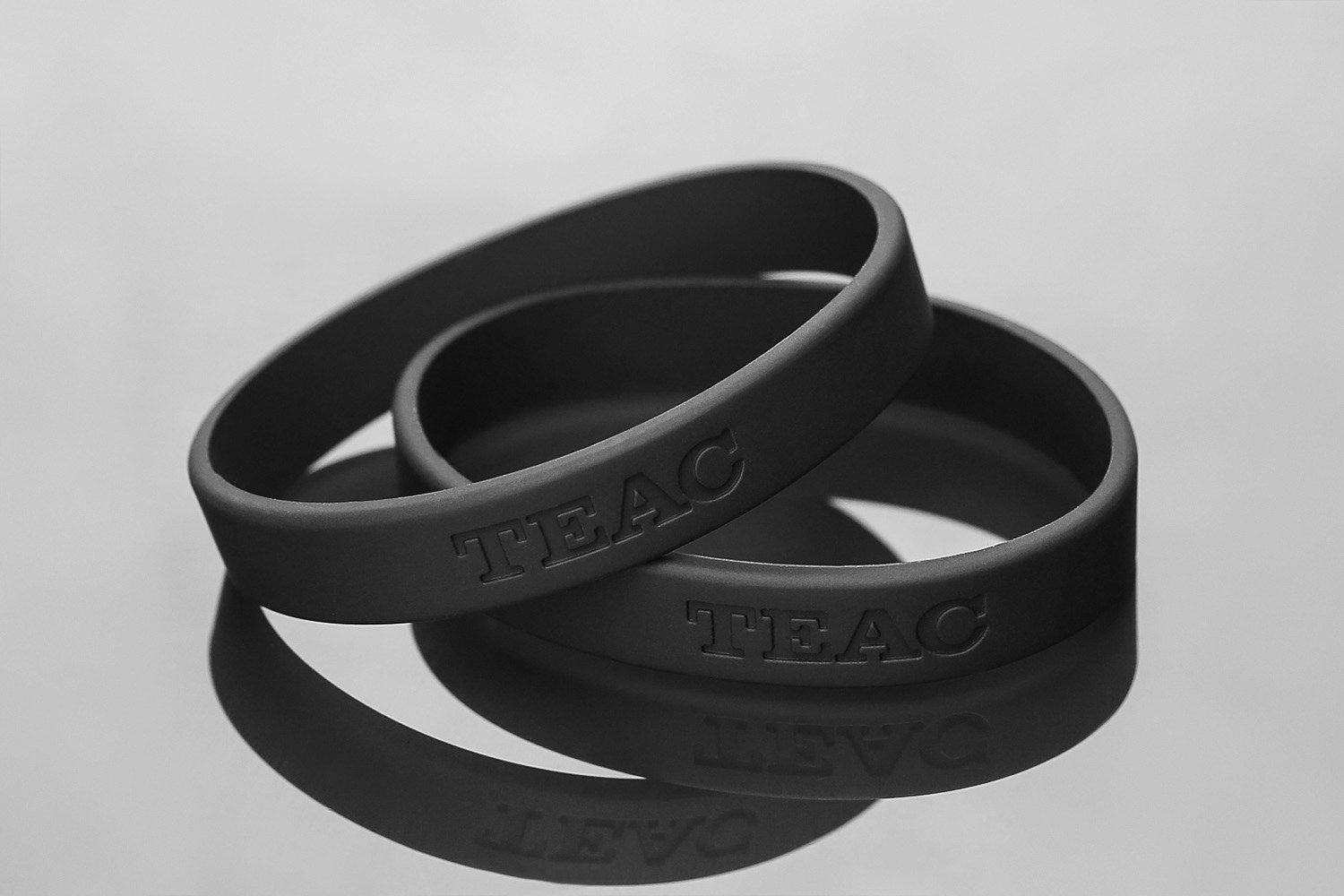

  • 2 rubber fastening straps
Shipping

All orders will be shipped by Drop.

Estimated ship date is Feb 16, 2018 PT.

After this product run ends, payment will be collected and orders will be submitted to the vendor up front, making all orders final. Check the discussion for updates on your order.
