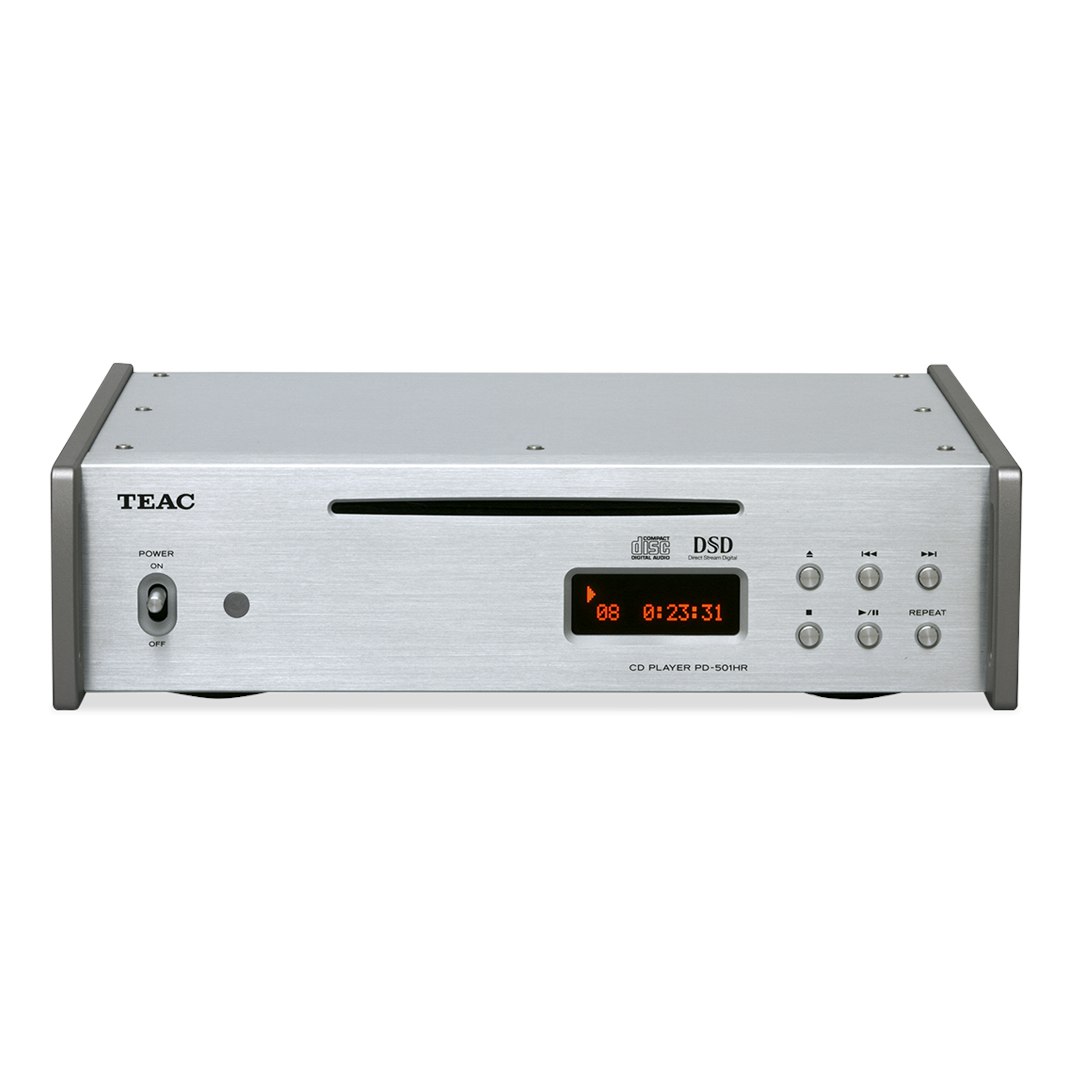

TEAC PD-501 CD Player
Listen to Your CDs in High Resolution
Breathe new life into your CD collection with the PD-501 CD Player from TEAC. Delivering high-resolution CD playback without the need for a PC connection, this player comes equipped with 5.6MHz DSD file native playback and up to 24bit/192kHz PCM on recordable DVD discs. It features a unique VACS (Vibration Acoustic Control Structure) to control vibrations and improve sound quality. Plus, it has separate power supplies for analog and digital sections to help prevent digital noise. At the center of this player is a celebrated Cirrus Logic CS4398 that achieves 120dB of dynamic range and uses un-damped volume control and Mismatch Shaping Technology to eliminate distortion from capacitor mismatching. Made with aluminum paneling, a steel chassis, and simple controls, this space-efficient player is both sturdy and easy to use.
Specs
Supported Media & Audio Formats
- Supported Media: CD-DA, CD-ROM, CD-R, CD-RW (ISO9660 Level 1/2/Joilet) DVD-ROM, DVD-R, DVD-RW, DVD+R, DVD+RW (UDF, DVD-ROM compatible)
- SACD is not supported
- Only 12 cm discs can be used
- CD-DA (Audio CD): 44.1kHz (16 bit)
- PCM (WAV): 44.1kHz, 88.2kHz, 176.4kHz, 48kHz, 96kHz, 192kHz (16/24 bit)
- DSD: 2.8MHz, 5.6MHz
CD-DA (Audio CD)
- Frequency range: 20Hz–20kHz
- S/N ratio: 116dB
- Distortion: 0.0013%
- Dynamic range: 103dB
PCM (WAV, 192kHz/24-bit)
- Frequency range: 20Hz–80kHz
- S/N ratio: 116dB
- Distortion: 0.0004%
- Dynamic range: 118dB
DSD
- Frequency range: 20Hz 80kHz
- S/N ratio: 116dB
- Distortion: 0.0005%
- Dynamic range: 112dB

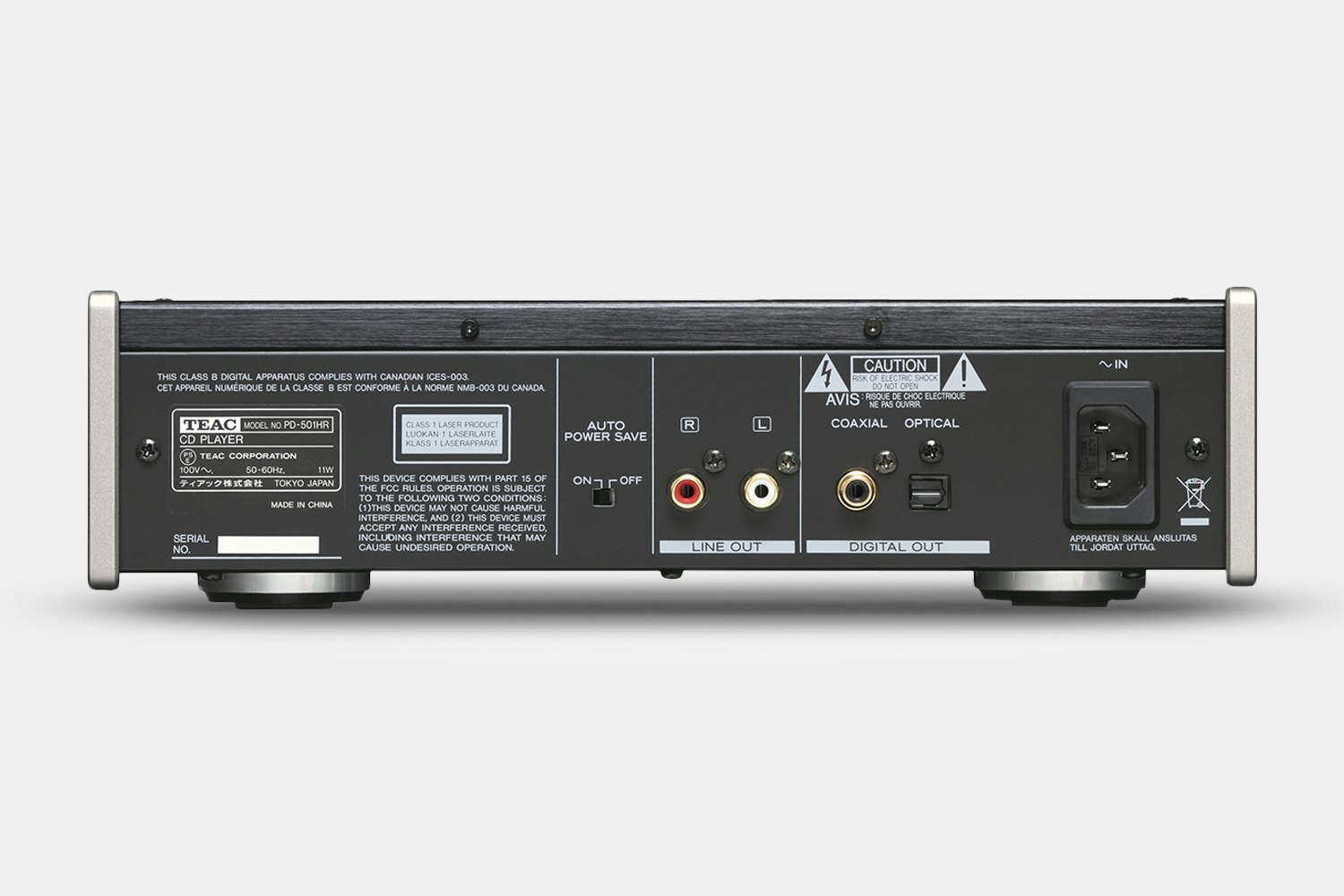

RCA (Analog)
- Connector: RCA Pin Jack
- Output impedance: 100 ohms
- Nominal output voltage level: 0.32Vrms
Coaxial (Digital)
- Connector: RCA Pin Jack
- Output impedance: 75 ohms
- Output level: 0.5Vp-p
Optical (Digital)
- Connector: TOS-link
- Output impedance: -24.0 to -14.5 dBm peak
- Output level: 0.5Vp-p
Physical
- Operation power: 120 V AC, 60Hz
- Power consumption: 11 W (Auto power save standby mode: 0.1 W)
- Operating temperature: 41˚F–95˚F (5˚C–35˚C)
- Operating humidity: 5%–85%
- Storage temperature: -4˚F–131˚F (-20˚C–55˚C)
- Dimensions: 11.4 x 3.2 x 9.6 in (29 x 8.1 x 24.4 cm)
- Net Weight: 9.4 lbs (4.2 kg)
Included

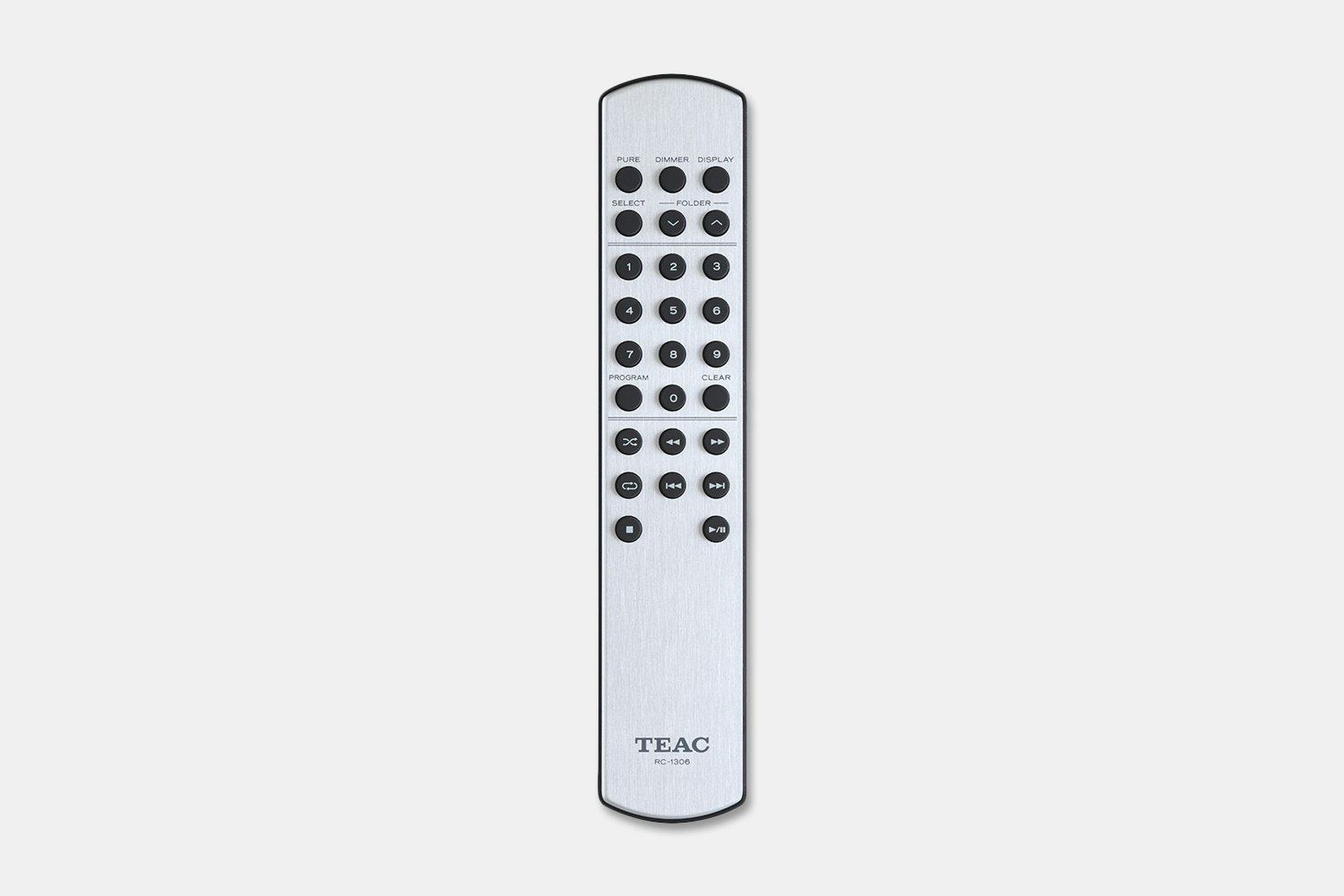

- Remote control
- AC cable with US plug
