TEAC TN-420 Tie-Dye Turntable

TEAC TN-420 Tie-Dye Turntable

bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
219 requests
·
4 Sold
Product Description

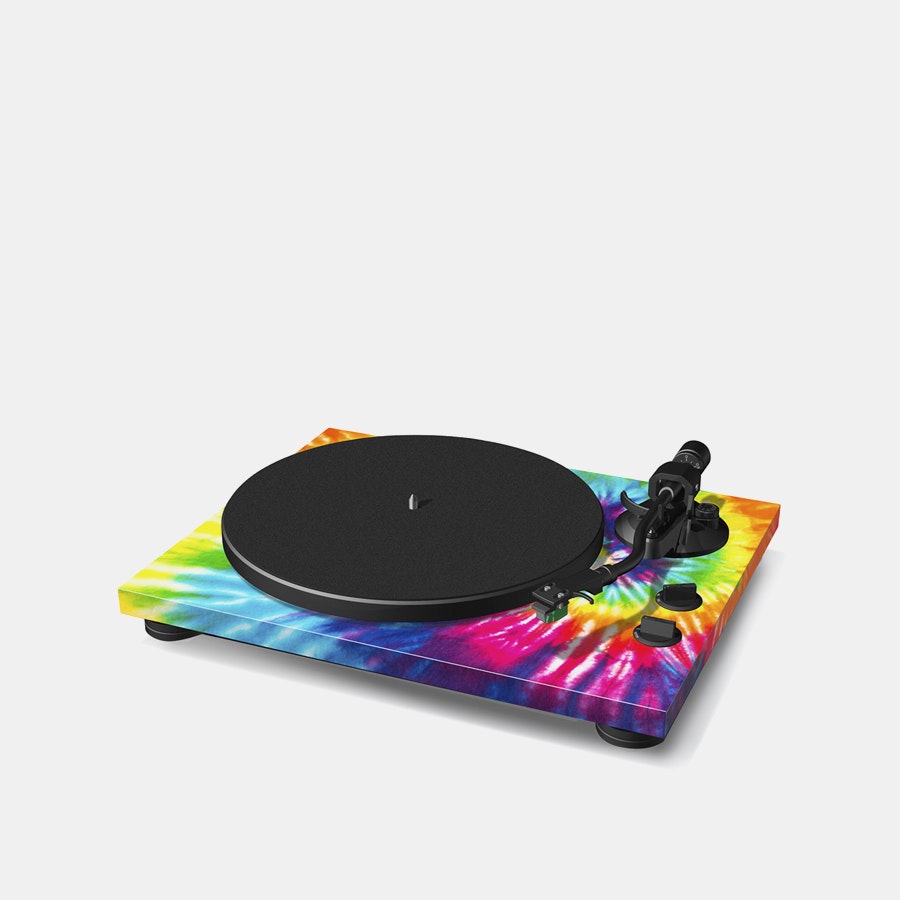

Released on the 50th anniversary of San Francisco’s Summer of Love, the TEAC TN-420 tie-dye turntable has a groovy look that’s sure to be a huge hit in any music room. But don’t be fooled by its colorful, laid-back finish—beneath the tie-dye, this belt-driven two-speed turntable with an S-shaped tonearm has all the great features an audiophile could want Read More

Far Out!

Released on the 50th anniversary of San Francisco’s Summer of Love, the TEAC TN-420 tie-dye turntable has a groovy look that’s sure to be a huge hit in any music room. But don’t be fooled by its colorful, laid-back finish—beneath the tie-dye, this belt-driven two-speed turntable with an S-shaped tonearm has all the great features an audiophile could want. The high-density MDF base and heavyweight aluminum die-cast platter deliver excellent resonance rejection, speed control, and fidelity. Known for its accuracy, clarity, and detail, the Audio-Technica MM-type cartridge has a built-in phono equalizer amplifier. The anti-skating system prevents tracking errors, while the USB digital output makes it easy to archive your vinyl collection. Finally, switchable phono and line-level outputs allow you to connect to virtually any audio system.

Note: This drop is limited to 100 units.

TEAC TN-420 Tie-Dye Turntable
TEAC TN-420 Tie-Dye Turntable
TEAC TN-420 Tie-Dye Turntable
TEAC TN-420 Tie-Dye Turntable

Specs

Turntable

  • Drive system: Belt drive
  • Motor: DC motor
  • Speed: 33 ⅓ RPM, 45 RPM
  • Rotation speed variation: +/- 2%
  • Wow and flutter: 0.2%
  • Signal-to-noise ratio: 67 dB or higher (A-weighted, 20 kHz LPF); 60 dB or higher (unweighted, 20 kHz LPF)
  • Platter: 12 in (30 cm) aluminum die-cast

Tonearm

  • Type: Static balance, S-shaped
  • Effective arm length: 8.8 in (223 cm)
  • Stylus pressure range: 0–5 g
  • Supported cartridge weight: 3.5–6.5 g
  • Anti-skating adjustment: Supported

Cartridge

  • Type: MM type (Audio-Technica AT95E factory installed)
  • Stylus shape: Elliptical
  • Stylus construction: Bonded round shank
  • Mount: Half inch
  • Frequency response: 20 Hz–20 kHz
  • Channel separation: 20 dB at 1 kHz
  • Channel balance: 2 dB
  • Tracking force: 1.5–2.5 g
  • Vertical tracking angle: 20º
  • Supported load impedance: 47 kohms
  • Output voltage: 3.5 mV (1 kHz, 5 cm/sec)
  • Stylus pressure: 2 g +/- 0.5 g
  • Cartridge weight: 5.7 g +/- 0.5 g
  • Headshell weight: 10 g (including screws, nuts, and wires)
  • Replacement stylus: Audio-Technica ATN95E

Analog Output

  • Connector: RCA pin jack (gold-plated)
  • Output voltage: Phono/line switchable
  • Phono output: 4.5 mV +/- 3 dB
  • Line output: 120 mV (-13 dBV)

USB Output

  • Connector: USB B type
  • Output signal: PCM 48 kHz / 16 bit
  • Supported OS: Windows 7, 8, 8.1, and 10; OS X Lion (10.7), Mountain Lion (10.8), Mavericks (10.9), Yosemite (10.10), and El Capitan (10.11); Mac OS Sierra (10.12)

Additional Specs

  • Phono equalizer amplifier type: MM type (on/thru switchable)
  • Power: AC 100–240V, 50/60 Hz
  • Power consumption: 1.5W (less than 0.5W at standby)
  • Overall dimensions (W x H x D): 16.5 x 4.6 x 14 in (420 x 117 x 356 mm)
  • Weight: Approx. 10.8 lbs (4.9 kg)

Included

  • Felt mat
  • EP adapter
  • Counterweight
  • Headshell (Audio-Technica AT95E)
  • Platter
  • Dust cover
  • 2 rubber feet for dust cover
  • 2 hinges
  • RCA audio cable
  • AC adapter (GPE053A-120050-1)
  • Owner’s manual
