Topping DX7 Balanced DAC/Amp

Topping DX7 Balanced DAC/Amp

bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
1.4K requests
·
86 Sold
Product Description

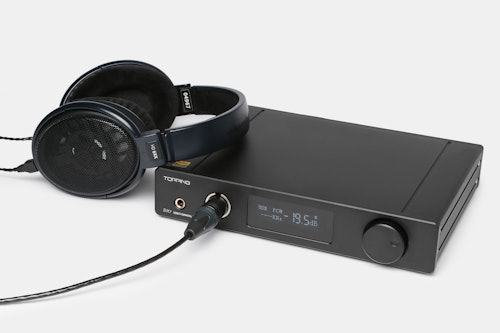

It’s not often that a fully balanced DAC/amp comes along at a price like this. Featuring a four-pin balanced connection on the front, the Topping DX7 is ideal for driving headphones like the Massdrop x Sennheiser HD 6XX with a balanced cable installed Read More

Fully Balanced DAC & Headphone Amplifier

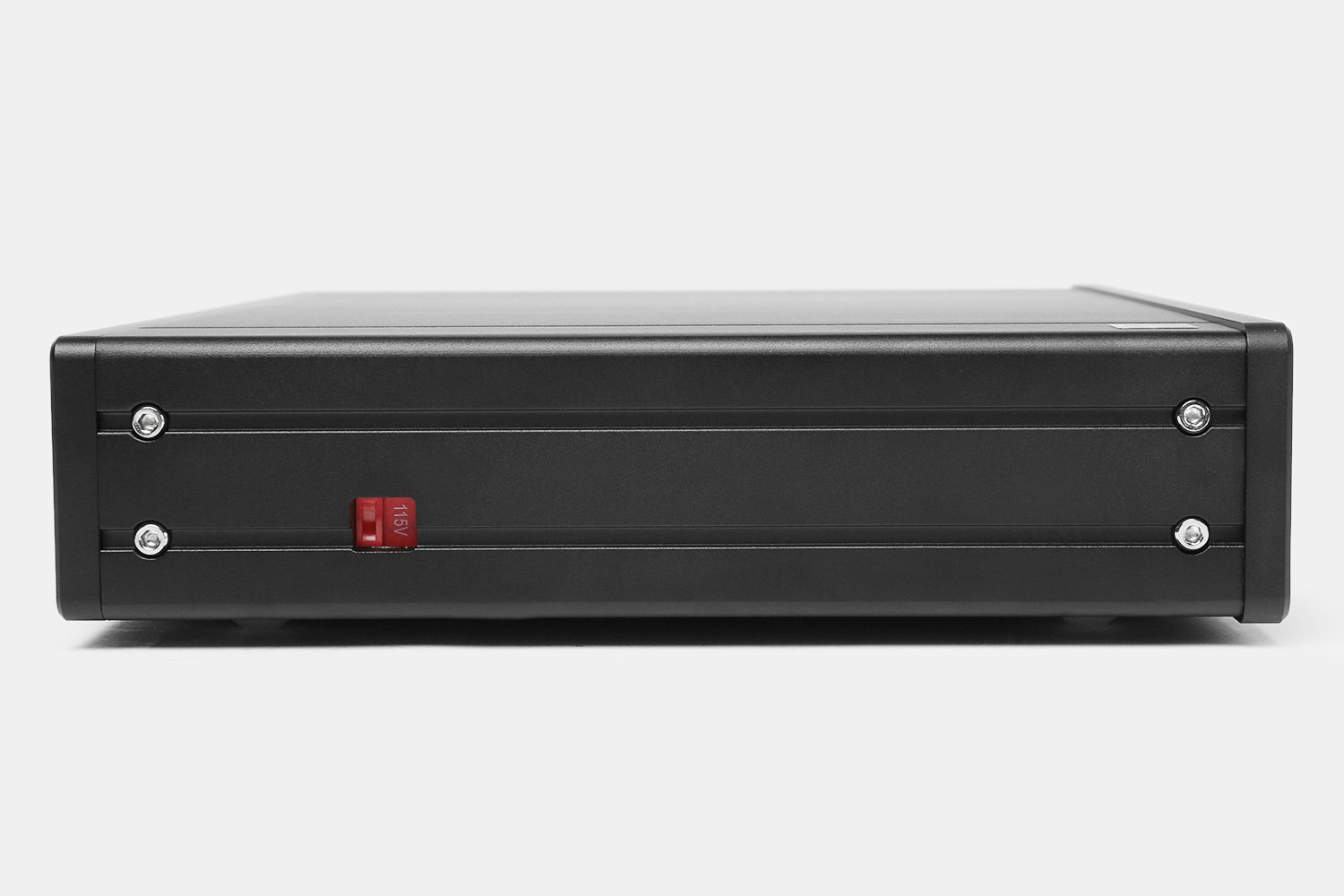

It’s not often that a fully balanced DAC/amp comes along at a price like this. Featuring a four-pin balanced connection on the front, the Topping DX7 is ideal for driving headphones like the Massdrop x Sennheiser HD 6XX with a balanced cable installed. Along with being a great pairing with a computer, it can be used as the center of an audio setup and features two XLR outputs, a coaxial input and output, a USB input, and an included remote control. This all-in-one unit uses XMOS and dual ESS DACs and a four-channel amp program, and supports up to 384kHz/32bit PCM files and DSD128. Complete with an OLED display, it can run either 110V or 220V and has a power mode switch on the left side.

Note: At checkout, you’ll have your choice of color: black or silver. This drop is limited to 200 units.

Topping DX7 Balanced DAC/Amp
Topping DX7 Balanced DAC/Amp
Topping DX7 Balanced DAC/Amp
Topping DX7 Balanced DAC/Amp
Topping DX7 Balanced DAC/Amp

Model Options

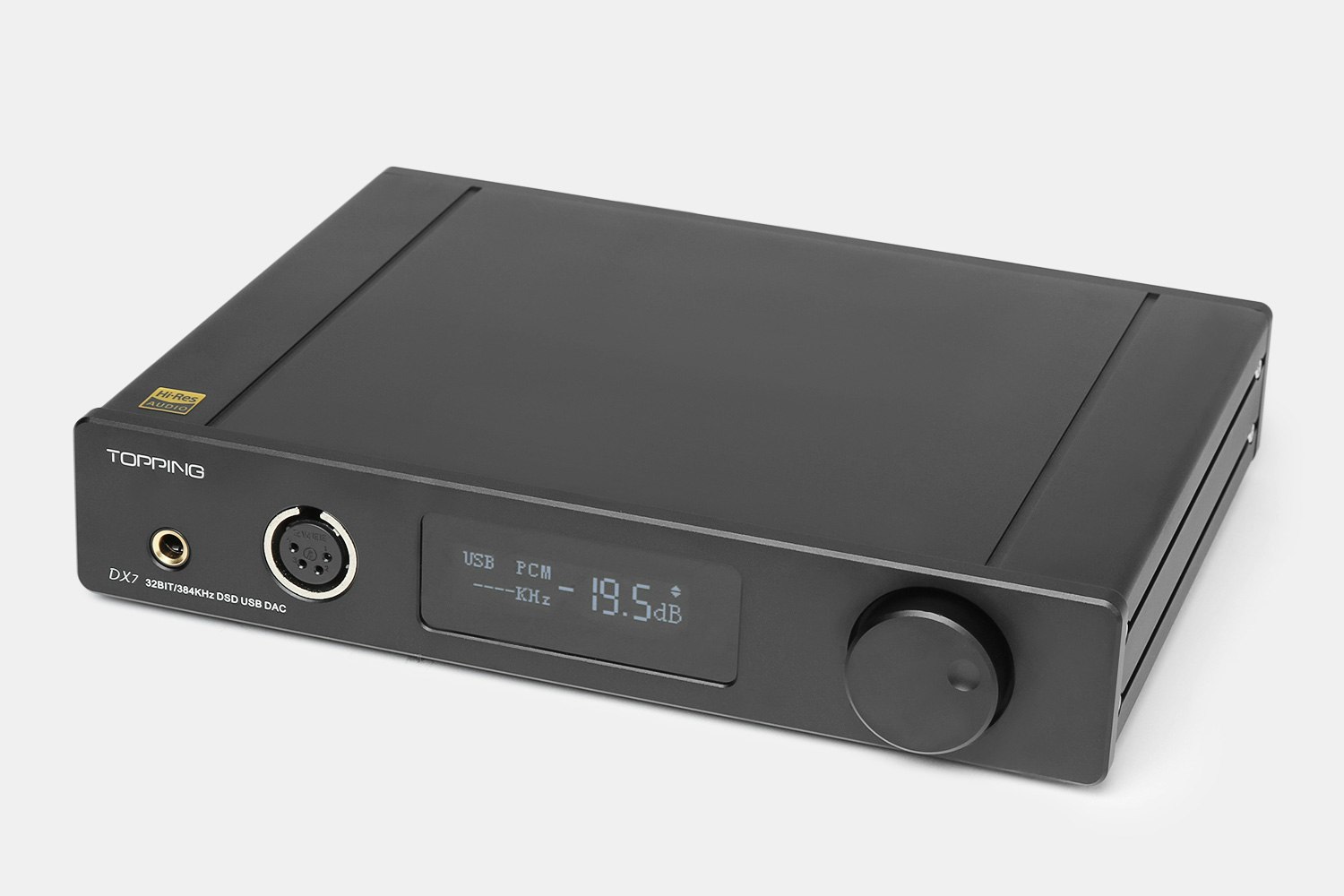

Black
Silver

Specs

Support

  • USB IN: 44.1KHz–384KHz/16Bit–32Bit, DSD64–DSD128
  • OPT/AES/COAX IN: 44.1KHz–192KHz/16Bit–24Bit
  • COAX OUT: 44.1KHz–192KHz/16Bit–24Bit

Analog Output: Line Out RCA

  • Signal to noise ratio: > 114dB A-weighting
  • Total Harmonic Distortion: <0.0005% at 1KHz A-weighting
  • Frequency response: 20Hz–20KHz (± 0.01dB)
  • Output amplitude: 2Vrms at 0dBFS
  • Output impedance: 100ohms
  • Channel crosstalk: -130dB @ 1KHz

Analog Output: Line Out XLR

  • Signal to noise ratio: > 114dB A-weighting
  • Total Harmonic Distortion: <0.0007% at 1KHz A-weighting
  • Frequency response: 20Hz–20KHz (± 0.01dB)
  • Output amplitude: 4Vrms at 0dBFS
  • Output impedance: 200ohms
  • Channel crosstalk: -130dB @ 1KHz

Amp Output

  • 6.35mm headphone jack
  • Signal to noise ratio: > 113dB A-weighting
  • Total Harmonic Distortion: <0.003% at 33ohms 300mW 1kHz A-weighting
  • Frequency response: 20Hz–20KHz (± 0.01dB)
  • Output amplitude: 16Vpp
  • Output impedance: 10ohms
  • Channel crosstalk: -83dB @ 1KHz
  • Output power: 640mW at 32ohms at THD + N = 1%
  • 110mW at 300ohms at THD + N = 1%
  • Adapter headphone impedance: 16–300Ω

Four-Core Balanced Headphone Jack

  • Signal to noise ratio: > 113dB A-weighting
  • Total Harmonic Distortion: <0.0007% at 300ohms 200mW 1kHz A-weighting
  • Frequency response: 20Hz–20KHz (± 0.01dB)
  • Output amplitude: 31Vpp
  • Output impedance: 20ohms
  • Channel crosstalk: -110dB @ 1KHz
  • Output power: 420mW at 300ohms at THD + N = 1%
  • 210mW at 600ohms at THD + N = 1%
  • Adapter headphone impedance: 32–600Ω

Physical/Other

  • XMOS, dual ESS DAC, and four-channel amp program
  • Amp and line out support single-ended and balanced outputs

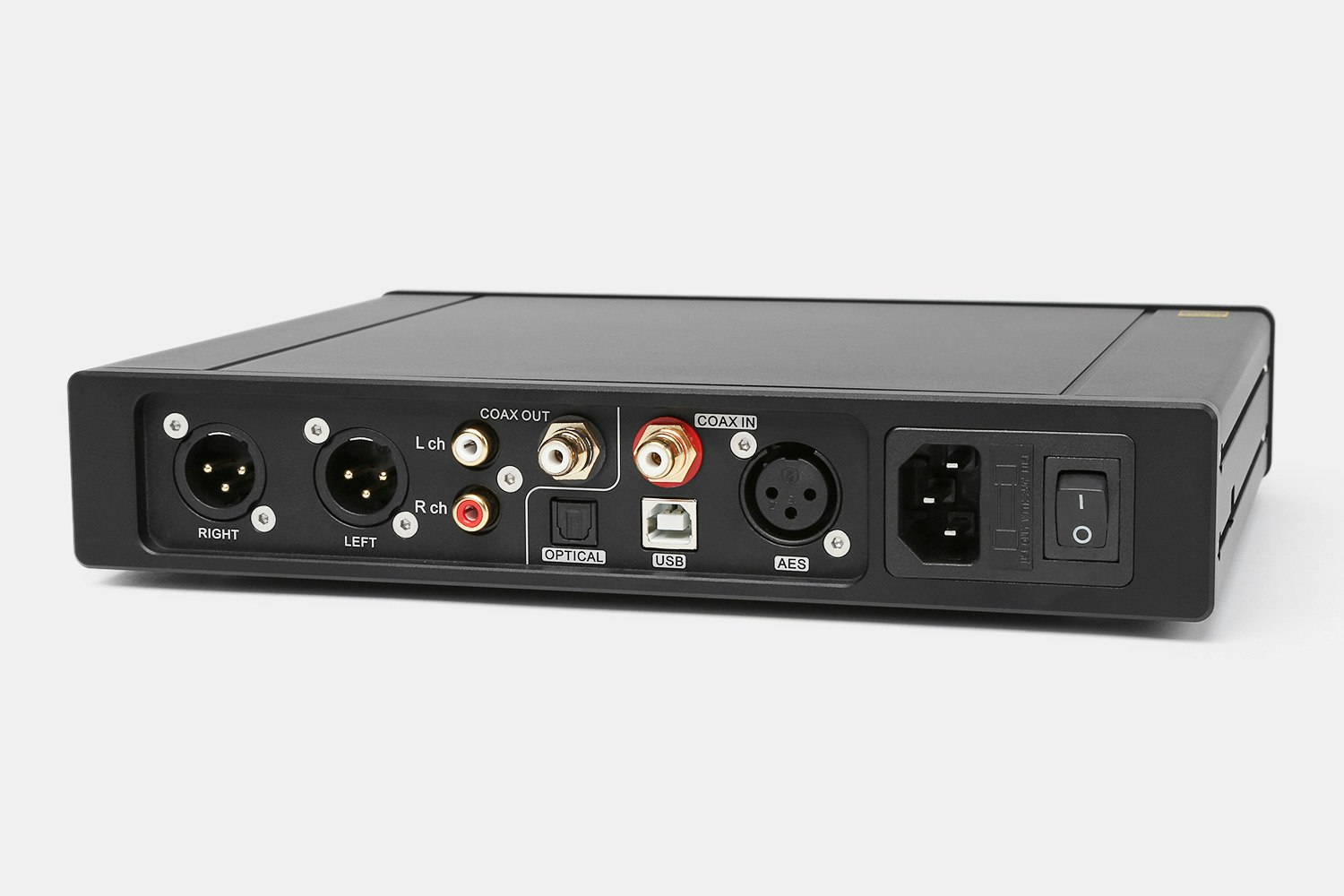

  • Supports USB, OPT, AES, COAX four inputs
  • USB decoding up to support PCM 384kHz / 32bit, DSD128 (native and DoP)
  • Full-view OLED display and aluminum remote control
  • Hi-Res, CE, FCC, and ROHS certifications
  • Power supply: AC110 / AC220 50Hz / 60Hz
  • Input interface: USB / OPT / AES / COAX
  • Digital output interface: COAX
  • Line Out Output Interface: XLR / RCA
  • Amp output interface: 6.35mm headphone jack / four-core balanced headphone jack
  • Size: 9.8 x 8.1 x 2 in (25 cm x 20.5 cm x 5 cm)
  • Standalone weight: 4.3 lbs (1.95 kg) (not including accessories)
  • Total weight: 7.9 lbs (3.6 kg)

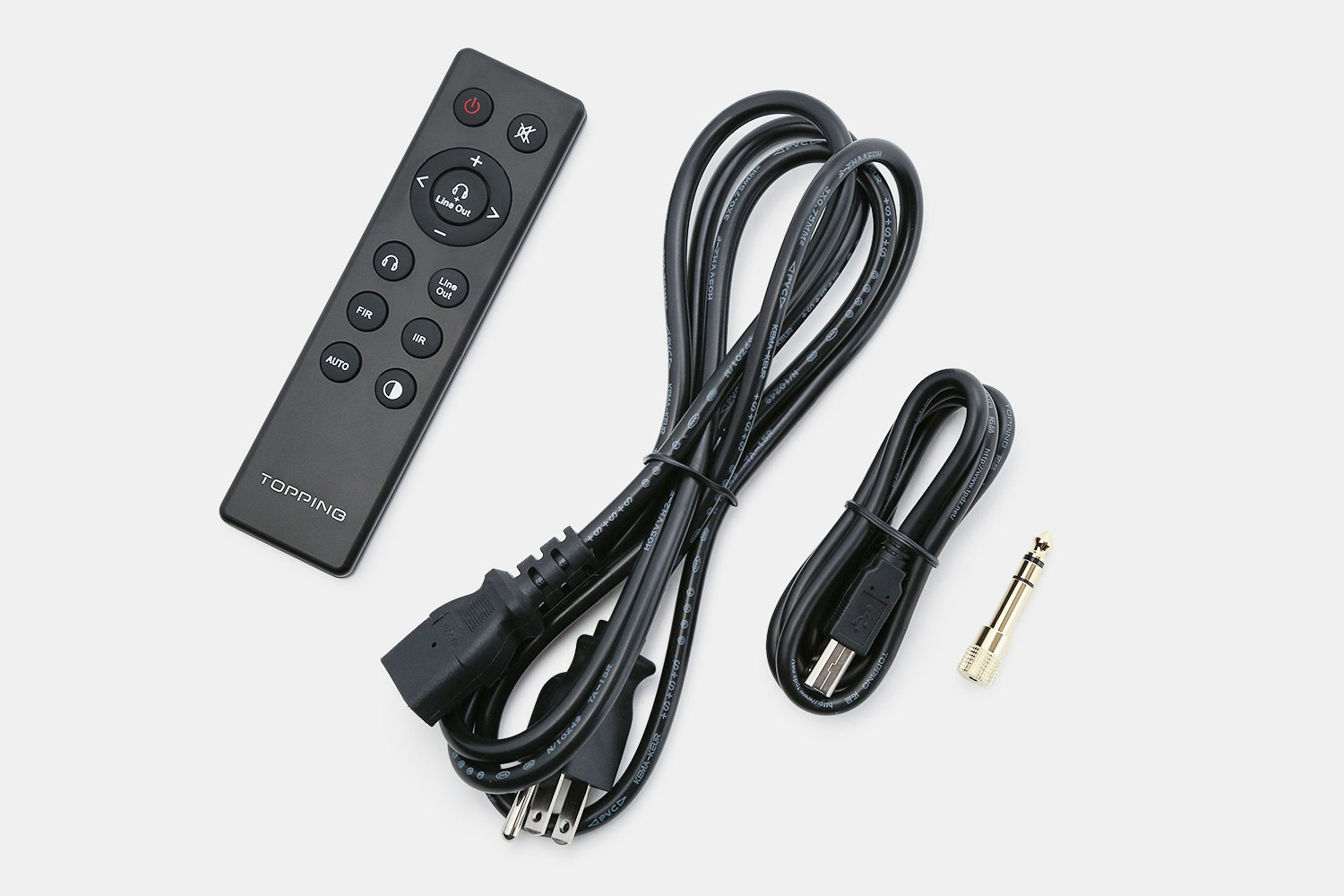

Included

  • Remote control
  • 3.5mm adapter
  • USB cable
