Product Description
New from Topping, a world leader in audio, the DX7 Pro is a DAC/amp designed for the most demanding listener. Following Topping’s highly regarded DX7, the Pro model showcases improved hardware and a sophisticated presentation Read More

Next-Generation Audio for Your Desk

New from Topping, a world leader in audio, the DX7 Pro is a DAC/amp designed for the most demanding listener. Following Topping’s highly regarded DX7, the Pro model showcases improved hardware and a sophisticated presentation. Highlights include an ESS DAC ES9038PRO chip with near-zero distortion and a SCR8675 chipset that supports Bluetooth 5.0 across all protocols for reliable streaming. The DX7 Pro also packs powerful headphone output: 840 milliwatts at 32 ohms via its single-ended connection, or an impressive 1700mW at 32 ohms out of its 4-pin balanced output. An onboard switch allows you to choose between 115 volts or 230 volts to meet your power requirements.

Note: At checkout, choose black or silver. All models ship with a US plug.

Topping DX7 Pro DAC/Amp

Color

Specs

  • Topping
  • Power supply: AC110 / AC220 50Hz / 60Hz
  • Input interface: USB / OPT / AES / COAX
  • Digital output interface: COAX
  • Line Out Output Interface: XLR / RCA
  • Amp output interface: 6.35 mm headphone jack / four-core balanced headphone jack
  • Size: 9.8 x 7.9 x 2 in (25 x 20.5 x 5 cm)
  • Weight: 7.9 lbs (3.6 kg)
  • Standalone weight: 4.3 lbs (1.95 kg) (not including accessories)

Support

  • USB input: 44.1KHz–384KHz/16Bit–32Bit, DSD64–DSD128
  • OPT/AES/COAX input: 44.1KHz–192KHz/16Bit–24Bit
  • COAX output: 44.1KHz–192KHz/16Bit–24Bit

Analog RCA Output

  • Signal to noise ratio: >114dB A-weighting
  • Total harmonic distortion: <0.0005% at 1KHz A-weighting
  • Frequency response: 20Hz-20KHz (± 0.01dB)
  • Output amplitude: 2Vrms at 0dBFS
  • Output impedance: 100ohms
  • Channel crosstalk: -130dB @ 1KHz

Analog XLR Output

  • Signal to noise ratio: >114dB A-weighting
  • Total harmonic distortion: <0.0007% at 1KHz A-weighting
  • Frequency response: 20Hz-20KHz (± 0.01dB)
  • Output amplitude: 4Vrms at 0dBFS
  • Output impedance: 200ohms
  • Channel crosstalk: -130dB @ 1KHz

6.35 mm Headphone Jack Output

  • Signal to noise ratio: >113dB A-weighting
  • Total harmonic distortion: <0.003% at 33ohms 300mW 1kHz A-weighting
  • Frequency response: 20Hz-20KHz (± 0.01dB)
  • Output amplitude: 16Vpp
  • Output impedance: 10ohms
  • Channel crosstalk: -83dB @ 1KHz
  • Output power: 640mW at 32ohms at THD + N = 1%
  • 110mW at 300ohms at THD + N = 1%
  • Adapter headphone impedance: 16–300Ω

Four-Core Balanced Headphone Jack

  • Signal to noise ratio: >113dB A-weighting
  • Total harmonic distortion: <0.0007% at 300ohms 200mW 1kHz A-weighting
  • Frequency response: 20Hz-20KHz (± 0.01dB)
  • Output amplitude: 31Vpp
  • Output impedance: 20ohms
  • Channel crosstalk: -110dB @ 1KHz
  • Output power: 420mW at 300ohms at THD + N = 1%
  • 210mW at 600ohms at THD + N = 1%
  • Adapter headphone impedance: 32–600Ω

Included

  • 6.35-mm to 3.5-mm connector
  • Bluetooth antenna
  • Remote control
  • USB cable
  • AC cable
  • User manual

Shipping

All orders will be shipped by Drop.

Estimated ship date is June 4, 2021 PT.

Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.

Top Customer Questions

Want to know something about this product or how to use it?
Ask the Community!
Get Answers Now
User Photos4
Terco

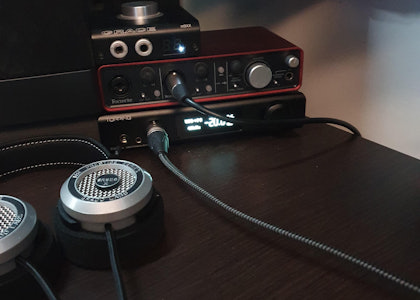

DX7Pro and P20
LeffeTheAudiophile
Great combo!
thirstyears
Love my new Topping DX7 Pro DAC/AMP!
Converge1

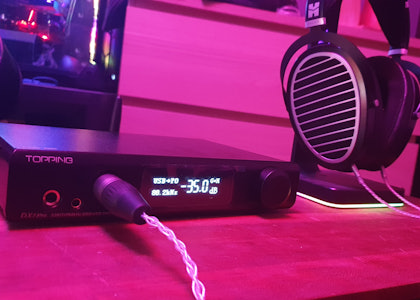

My bedside setup. Perfect companion to my Arya, connected to RPi4 for Roon and Apple TV.
