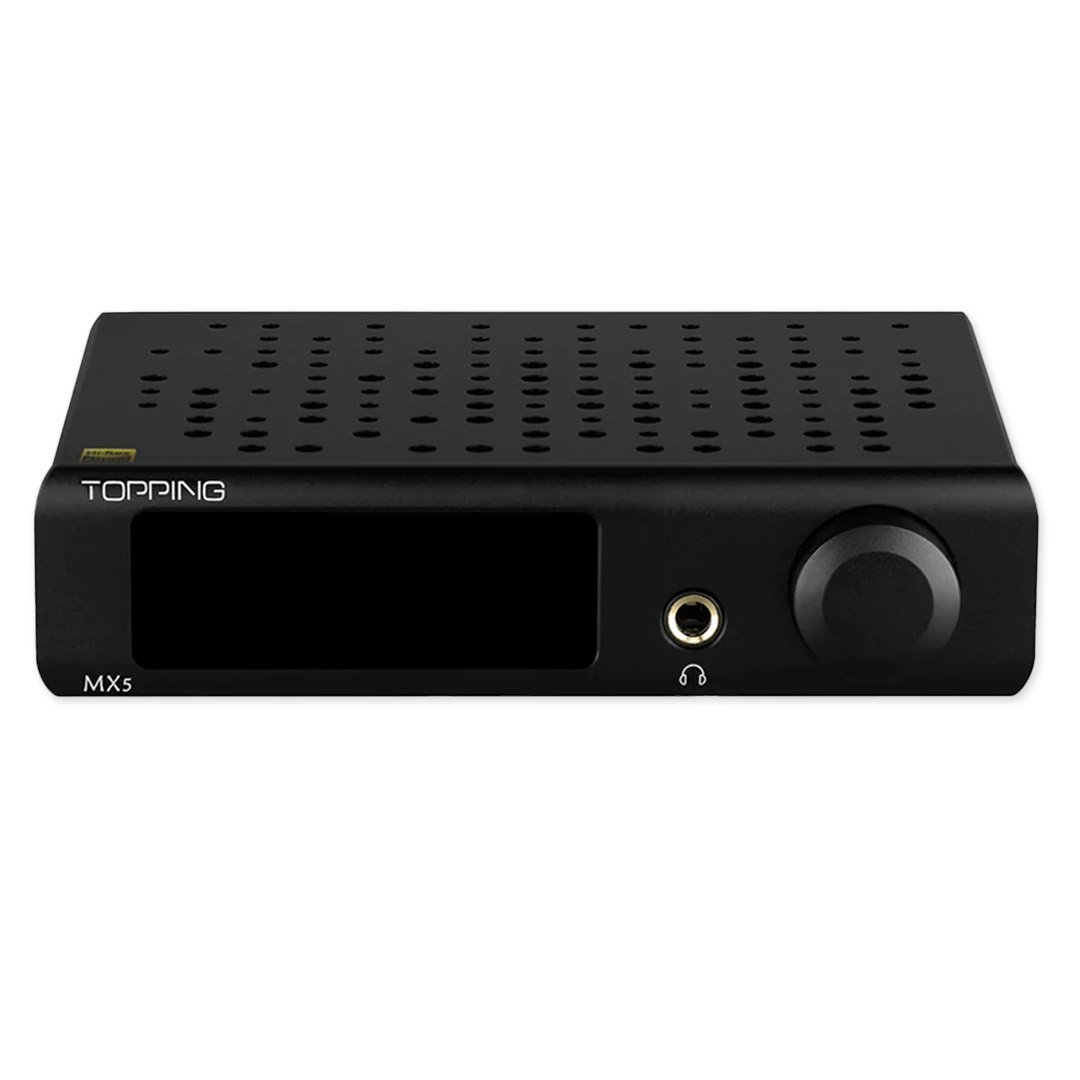

Topping MX5 Headphone and Speaker Amplifier
Drive Your Headphones & Your Speakers
Topping’s reputation precedes it when it comes to headphone amps—and while many of the brand’s desktop units feature outputs designed for some speaker preamp functionality, the MX5 is a true dual-function powerhouse that can drive a full setup. First, the audio operation is run by an ESS Sabre Hi-Fi DAC alongside both an XMOS XU208 and Qualcomm QCC3031 processor for top-tier quality and conversation. There’s NFCA circuitry to provide a wide breadth of headphone capability that’s suitable for even high-impedance IEMs and headphones. It’s the speaker amp side of the equation that really brings the MX5 to new volumes, though. With an Infineon Merus Class D amp infrastructure that’s capable of outputting up to 70 watts per channel under a 4-ohm load, this little desktop box has quite a lot of power under its sleeve. And judging by the visual aesthetics—supported by a classic all-metal Topping design and a bright display that toes the line between retro and modern—you’ll love looking at the MX5, as well.

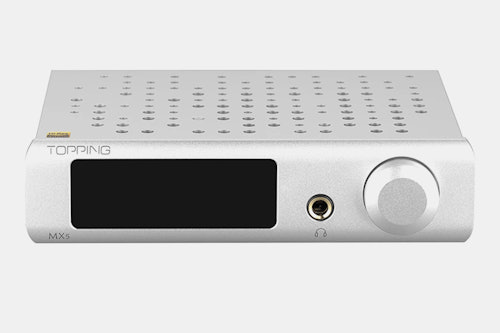

Color
Specs
General
- Topping
- DAC: ESS SABRE Hi-Fi DAC
- Process: XMOS XU208 & Qualcomm QCC3031
- NFCA module architecture
- Hi-Res Audio certified
- Frequency response: 20 Hz – 40 kHz
- DSD64–256 (Native), DSD64–128 (DoP)
- PCM resolution (USB): 44.1 – 384 kHz, 16 – 32 bit
- PCM resolution (Optical/Coax): 44.1 – 192 kHz, 16 – 24 bit
- Inputs: Coax, Bluetooth, USB, optical
- Outputs: Balanced TRS, SE RCA, Dual speaker, headphones
- Bluetooth codecs supported: AAC, SBC, aptX, aptX LL, aptX HD
- Dimensions: 1.8 x 5.7 x 6.9 in (4.5 x 14.4 x 17.4 cm)
Headphone Amplifier
USB Output
- THD+N: As low as 0.0008%
- SNR: 120 dB
- Dynamic range: 120 dB
- Output level: 5.6 – 24.6 Vpp
Single-Ended Output
- THD+N: As low as 0.0020%
- SNR: 128 dB
- Dynamic range: 129 dB
- Output level: 10.6 – 24.6 Vpp
Balanced Output
- THD+N: As low as 0.0020%
- SNR: 127 dB
- Dynamic range: 127 dB
- Output level: 10.6 – 24.6 Vpp
- Output impedance: < 0.2 ohm
- Lout impedance > 8 ohm
- Output power:
- 1600mW x2 @ 32 ohm
- 1000mW x2 @ 64 ohm
- 260 mW x 2 @ 300 ohm
Speaker Amplifier
USB/Optical/Coaxial Output
- THD+N: As low as 0.004%
- SNR: 110 dB
- Dynamic range: 110 dB
- Output level: 42 – 46 Vpp
- Noise: <60–90 uVrms
- Channel crosstalk: -93 dB
- Input sensitivity: As low as -7 dB
- Gain: 25.2–30.7 dB
Single-Ended Output
- THD+N: As low as 0.004%
- SNR: 110 dB
- Dynamic range: 110 dB
- Output level: 42 – 46 Vpp
- Noise: <60–90 uVrms
- Channel crosstalk: -90 dB
- Input sensitivity: As low as 0.9 Vrms
- Gain: 19–24.5 dB
Balanced Output
- THD+N: As low as 0.004%
- SNR: 110 dB
- Dynamic range: 110 dB
- Output level: 42 – 46 Vpp
- Noise: <60–90 uVrms
- Channel crosstalk: -91 dB
- Input sensitivity: As low as 1.8 Vrms
- Gain: 13–18.5 dB
- Output impedance: < 0.2 ohm
- Load impedance 4–8 ohm
- Output power:
- 55–70W x 2 @ 4 ohm
- 35–42W x 2 @ 8 ohm
Included
- Power cable and adapter
- USB cable
- 6.35 mm to 3.5 mm adaptor
- Remote control
- Bluetooth antenna
- Owner’s manual
