Topping PA3 Stereo Amplifier

Topping PA3 Stereo Amplifier

bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
426 requests
·
84 Sold
Product Description

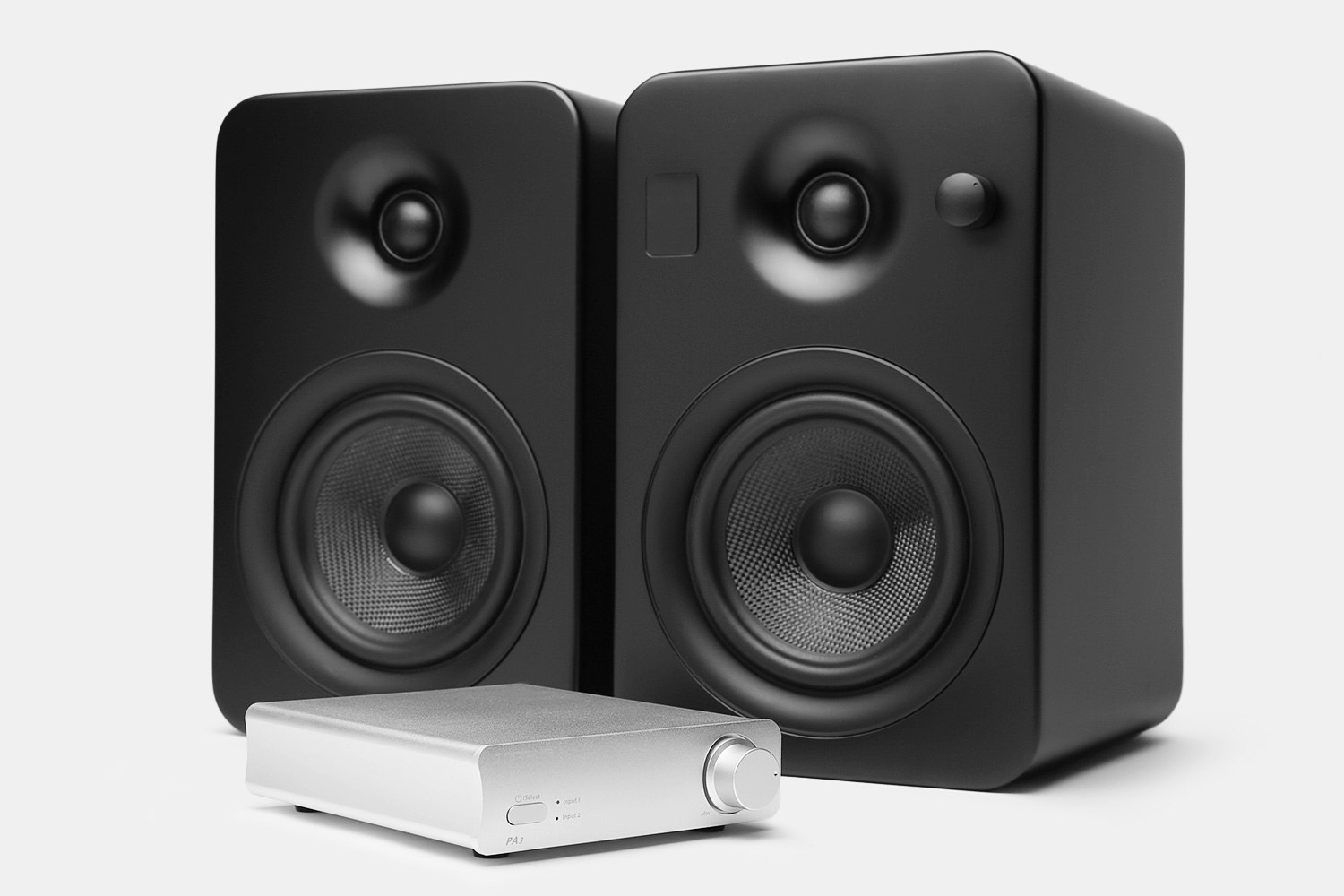

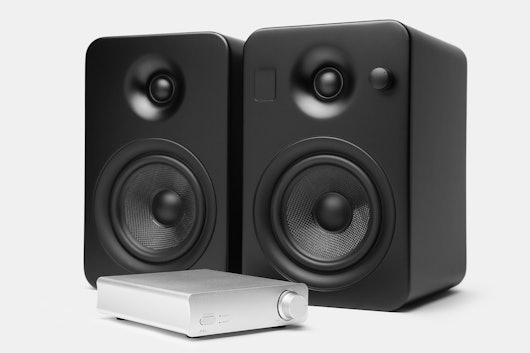

Ideal for driving bookshelf speakers, the Topping PA3 is a compact power amplifier equipped with ST’s class-D TDA7498E amp chip. It delivers 80 watts per channel at a 4-ohm load—enough to drive 10-inch speakers—and has a curved, screwless front panel design that looks sleek in any setup Read More

Small But Mighty Amp With 2 RCA Inputs

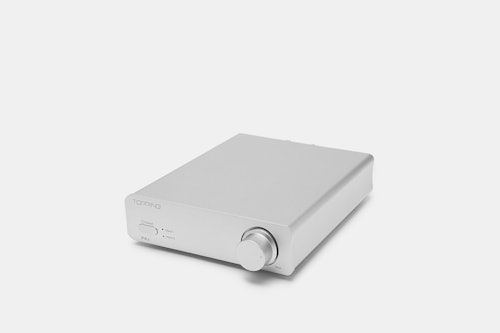

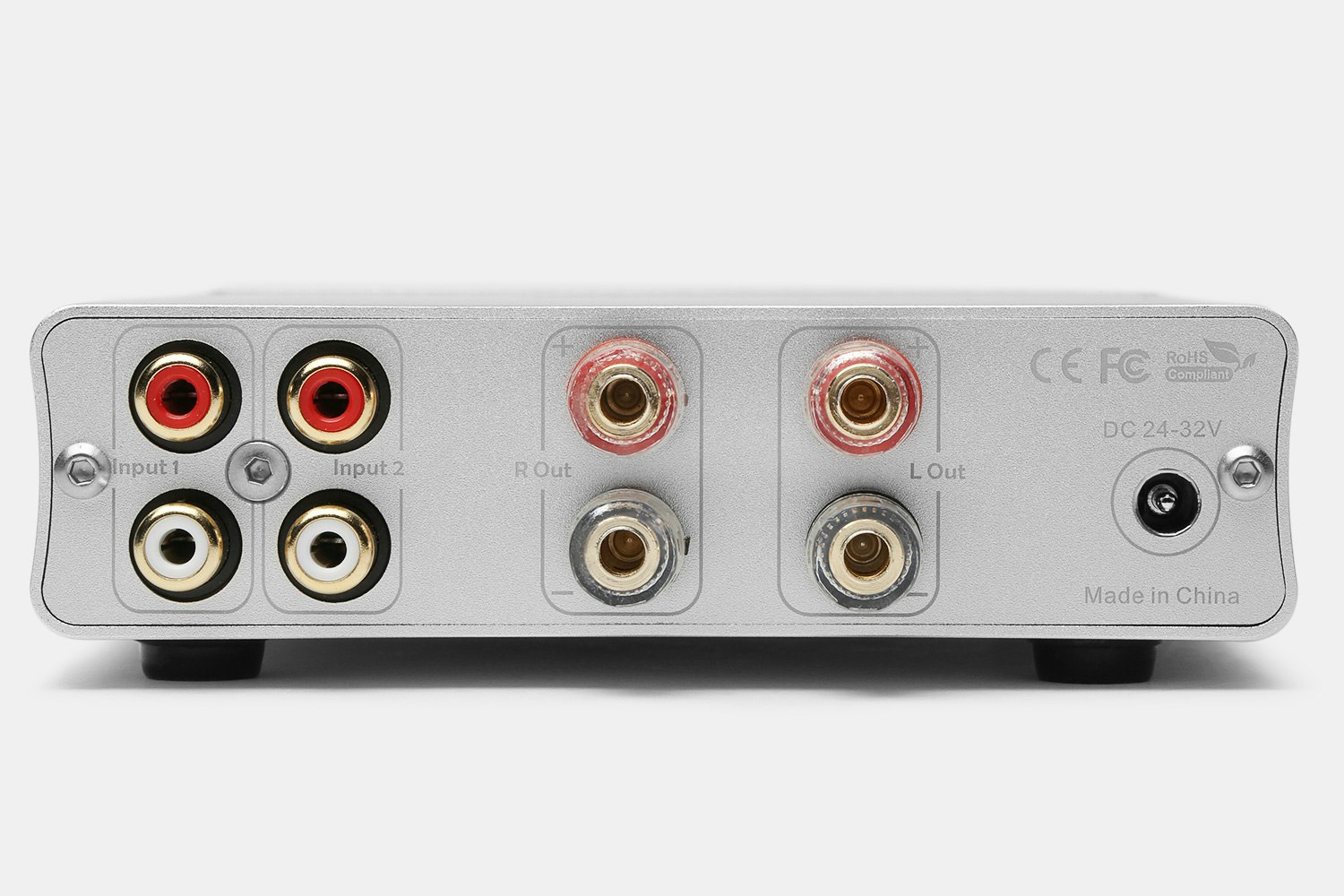

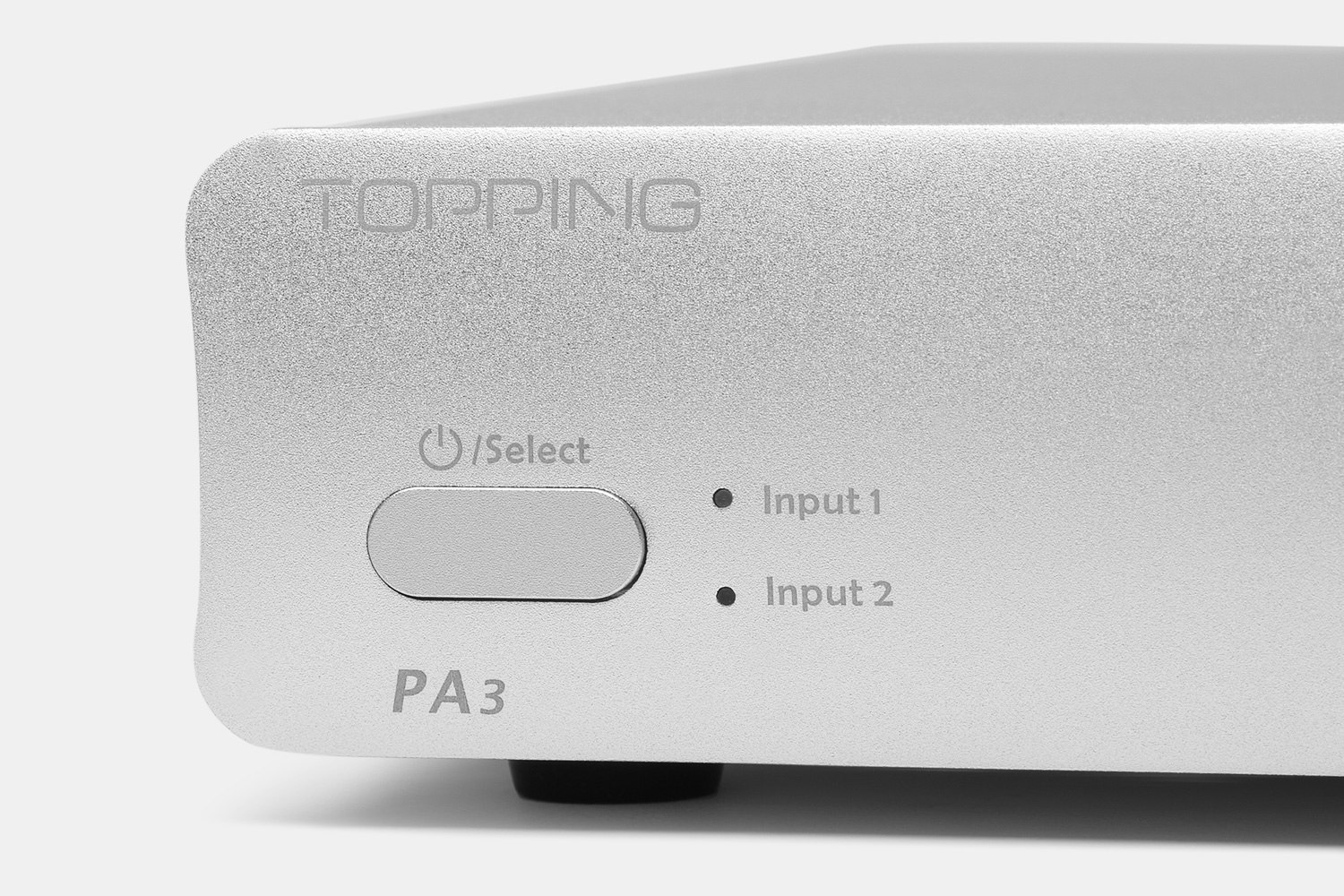

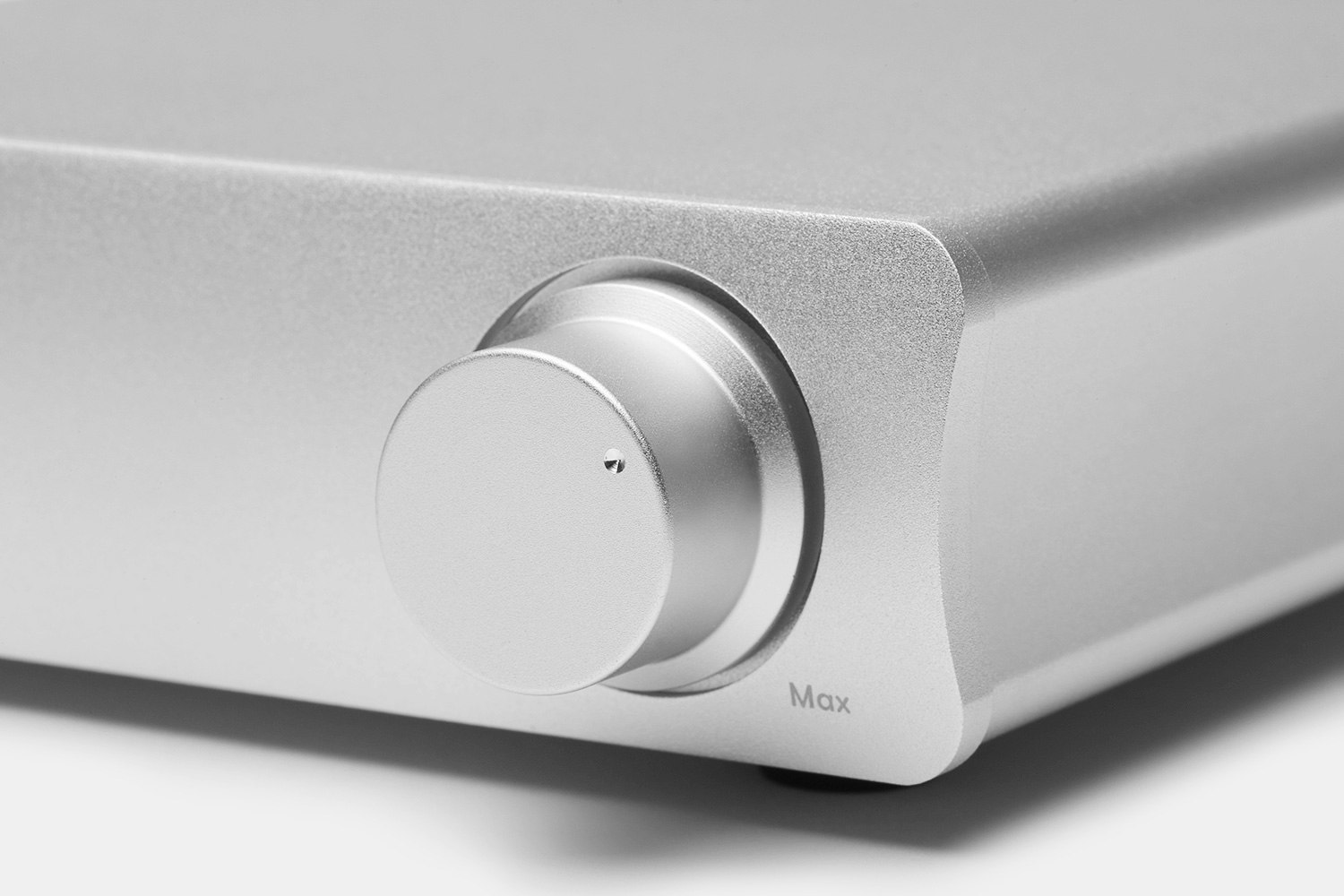

Ideal for driving bookshelf speakers, the Topping PA3 is a compact power amplifier equipped with ST’s class-D TDA7498E amp chip. It delivers 80 watts per channel at a 4-ohm load—enough to drive 10-inch speakers—and has a curved, screwless front panel design that looks sleek in any setup. Two LEDs indicate the input status, while an MCU monitors issues like overload, overheating, overvoltage, and low voltage. On the rear panel, you’ll find two RCA inputs, which allow you to connect two devices at a time and easily switch between them on the front panel. Additional components include an ALPS potentiometer, EPCOS film capacitors, a Nichicon hi-fi capacitor, and an OMRON relay.

Note: At checkout, you’ll have your choice of color: black or silver.

Topping PA3 Stereo Amplifier
Topping PA3 Stereo Amplifier
Topping PA3 Stereo Amplifier
Topping PA3 Stereo Amplifier
Topping PA3 Stereo Amplifier
Topping PA3 Stereo Amplifier

Model Options

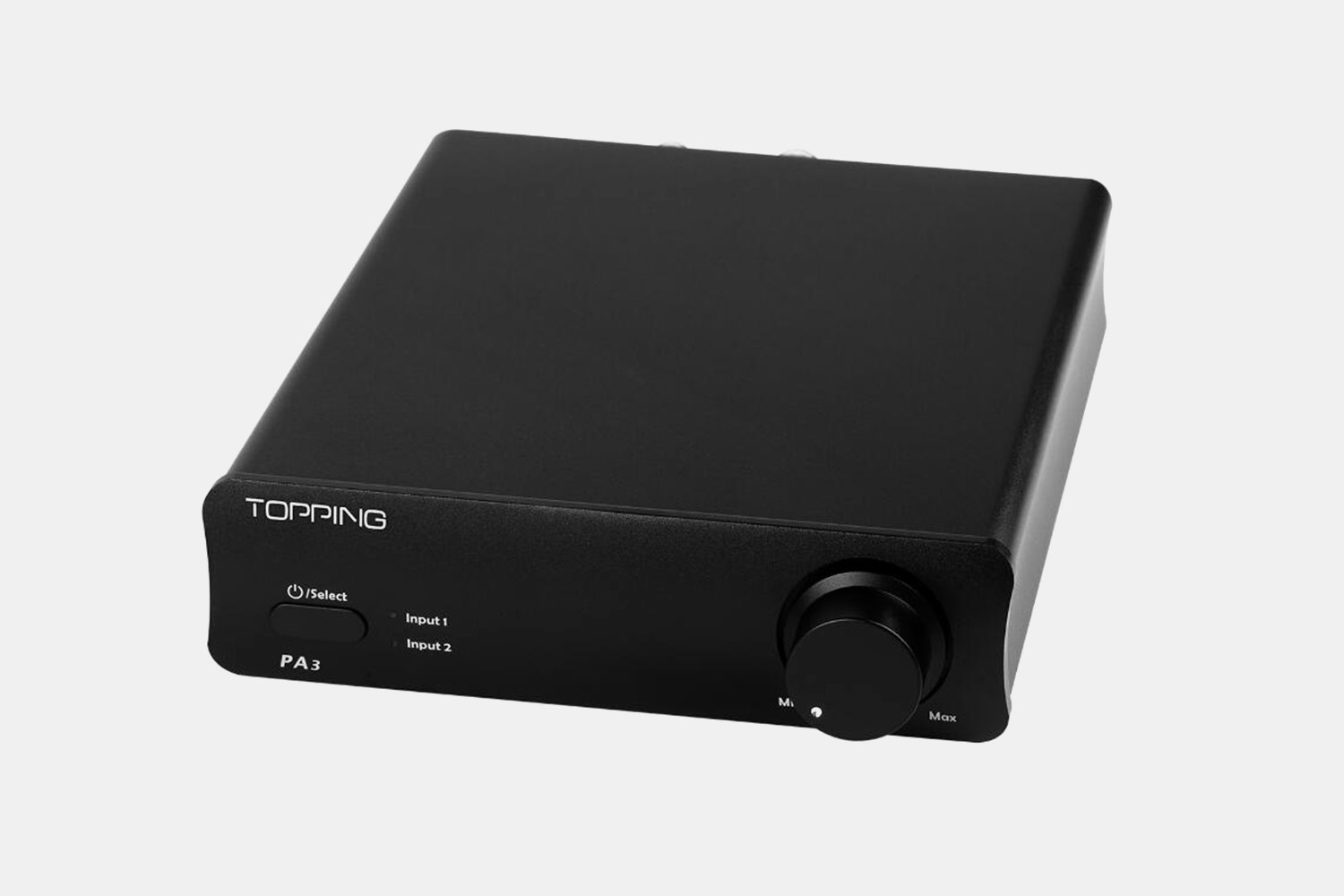

Black

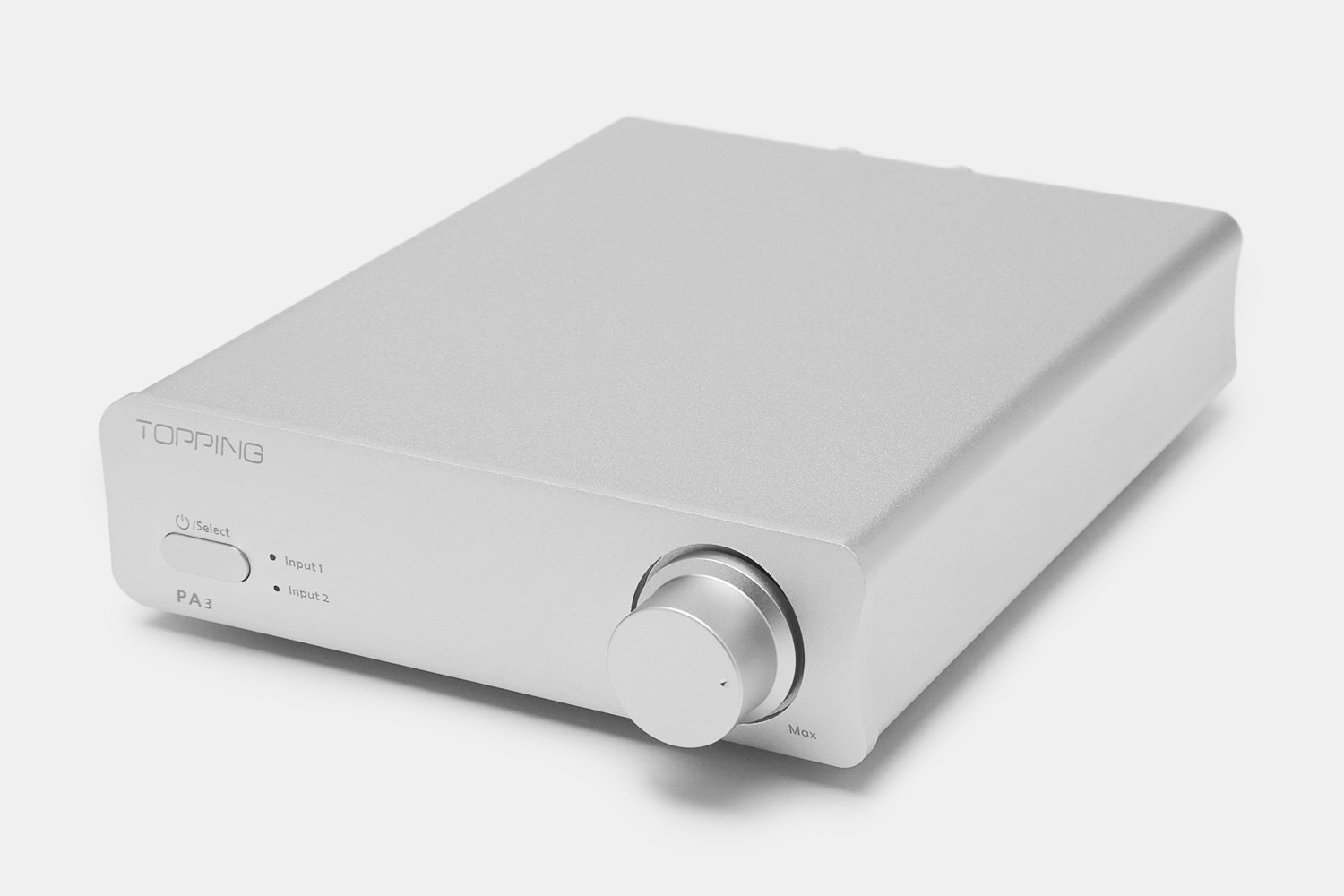

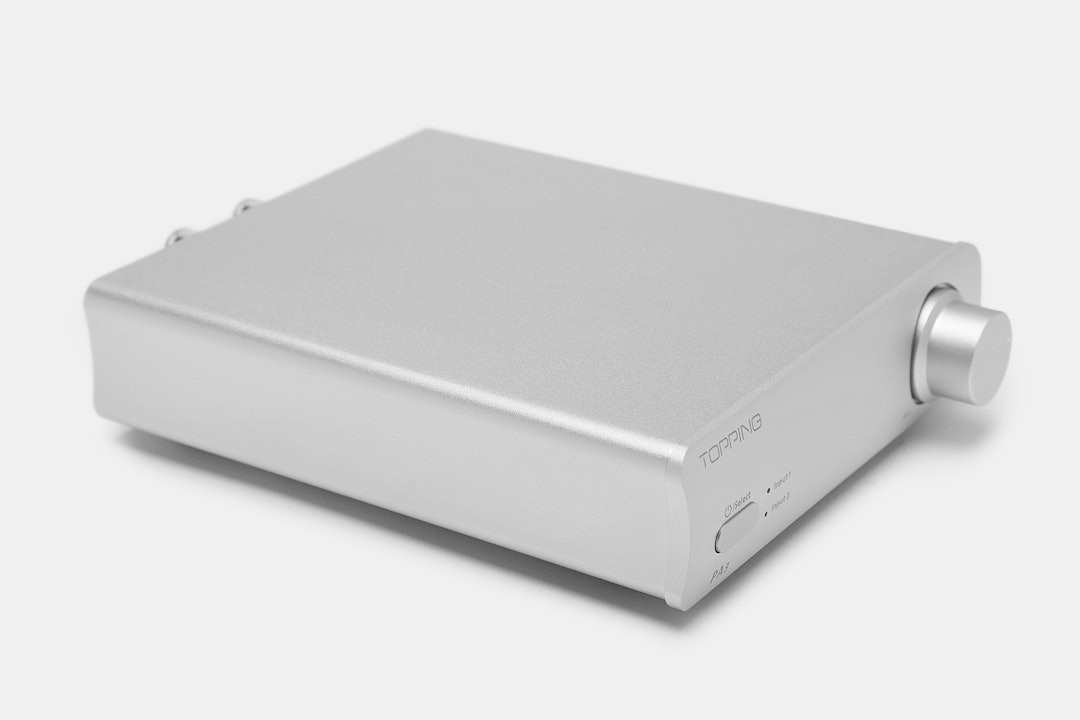

Silver

Specs

  • Topping
  • Aluminum construction
  • Curved, screwless front panel
  • Embedded rear panel
  • TDA7498E amp chip
  • Suitable speaker impedance: 4–8 ohms
  • Maximum output power: 80W x 2 (4 ohms), 70W x 2 (8 ohms)
  • THD+N at 1 kHz): 0.04%
  • Input sensitivity: 0.6 Vrms (4 ohms), 0.9 Vrms (8 ohms)
  • Noise (A-weighting): < 0.5 mW
  • Gain: 29.3 dB
  • SNR: 89 dB (4 ohms), 91 dB (8 ohms)
  • Analog input: 2 x RCA (L+R)
  • Analog output: Banana jack, BTL output
  • Dimensions: 6.6 x 4.7 x 1.5 in (16.8 x 12 x 3.7 cm)
  • Weight: 18.2 oz (515 g)

Included

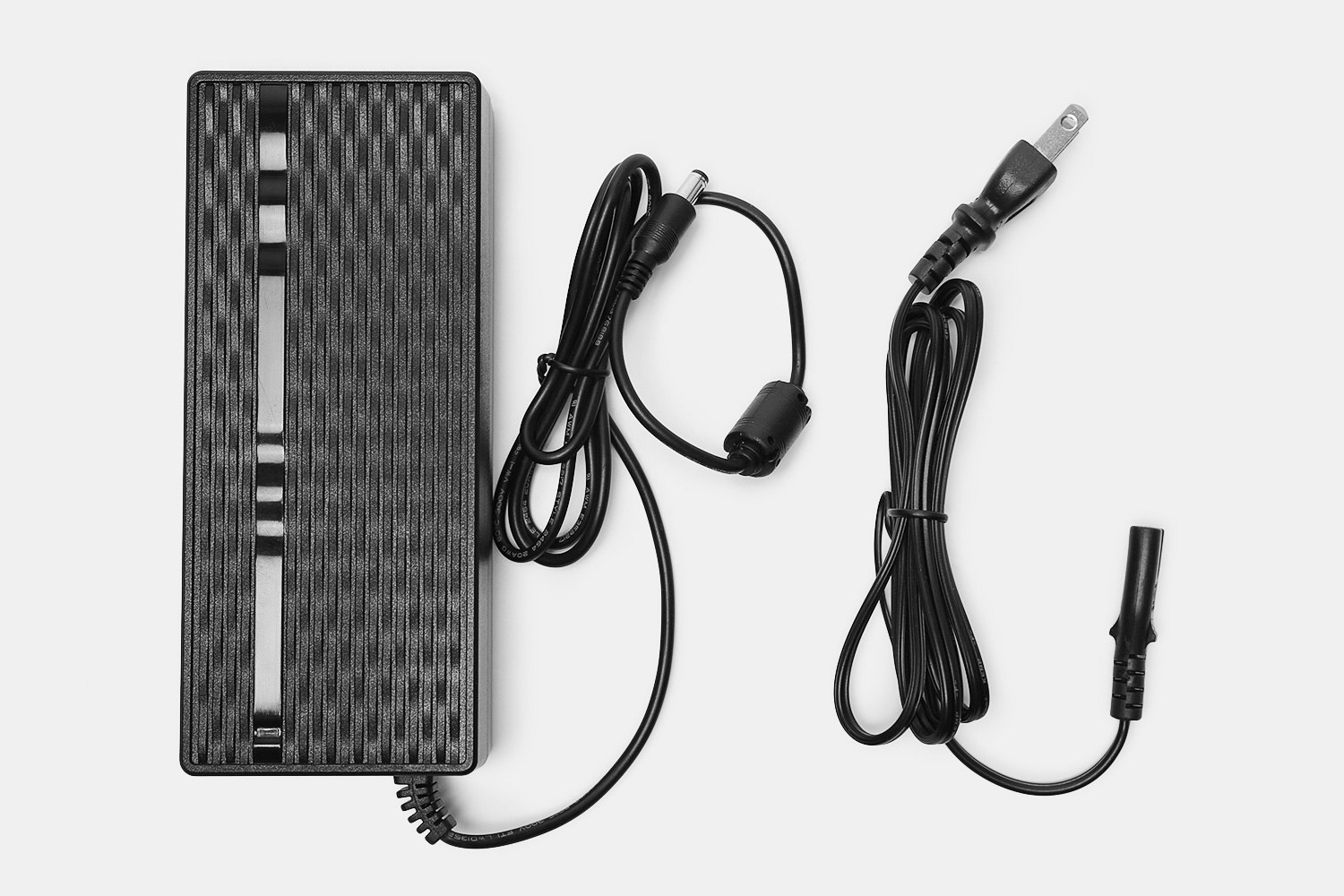

  • Power adapter
  • Power cord
  • User manual

Shipping

Estimated ship date is Aug 23, 2017 PT.

Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.
