Product Description
The Violectric V800 ensures your headphones have what they need to sound their best. Equipped with the highly regarded PCM1792 D/A converter, a SRC4392 chip for resampling, and a Tenor 7702 for the USB receiver chip, this DAC produces a neutral, musical sound with excellent detail, staging, and left-right balance ... Read More
Clear, Transparent Sound

The Violectric V800 ensures your headphones have what they need to sound their best. Equipped with the highly regarded PCM1792 D/A converter, a SRC4392 chip for resampling, and a Tenor 7702 for the USB receiver chip, this DAC produces a neutral, musical sound with excellent detail, staging, and left-right balance. Plus, it’s all packaged in a slick-looking aluminum chassis with laser-engraved labeling.

Note: At checkout, you’ll have your choice of feet colors between Black, Gold, and Silver. You'll also have your choice of models between the 115 V or the 230 V version. A user-installable XMOS option can also be purchased directly from Violectric.

German Engineering

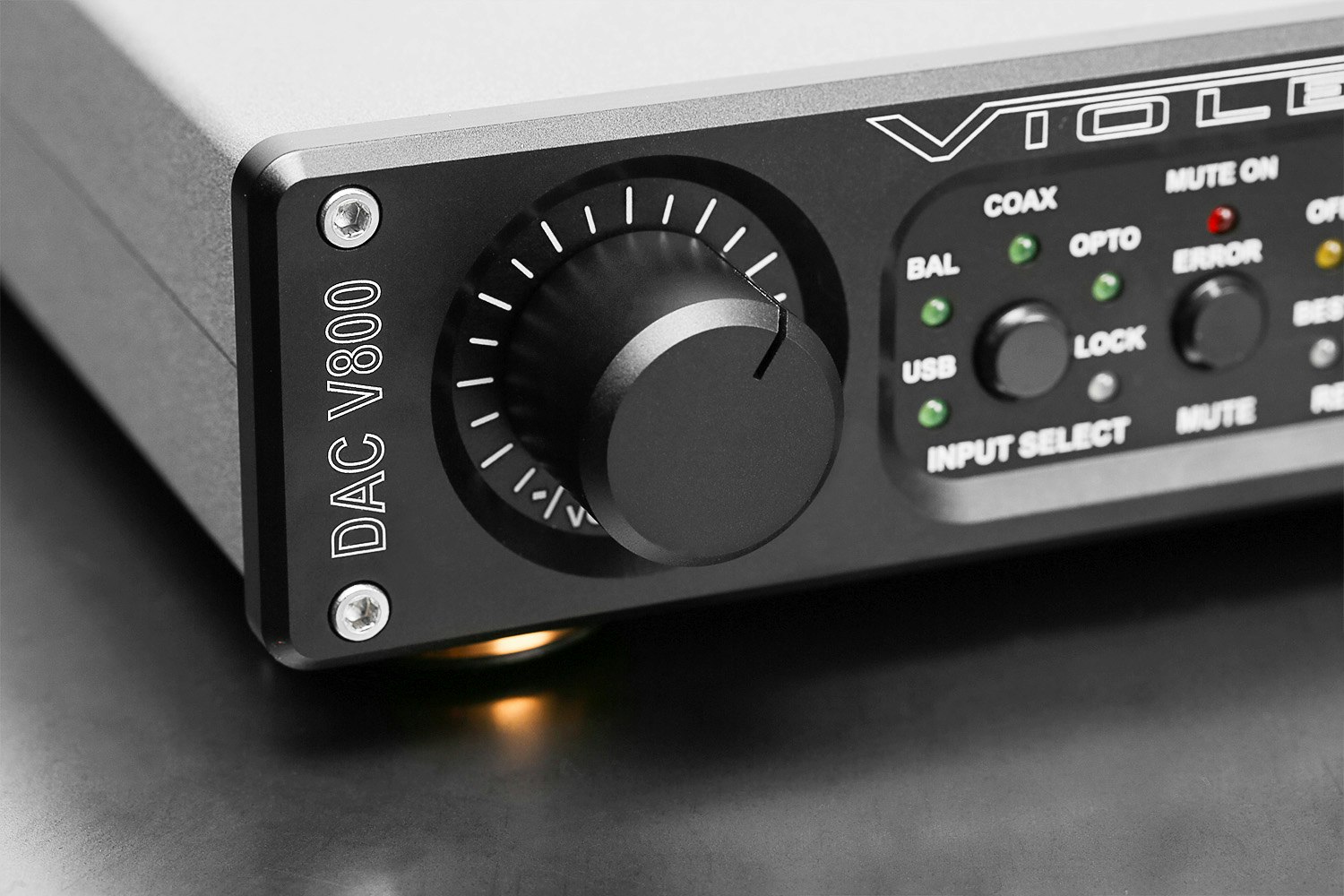

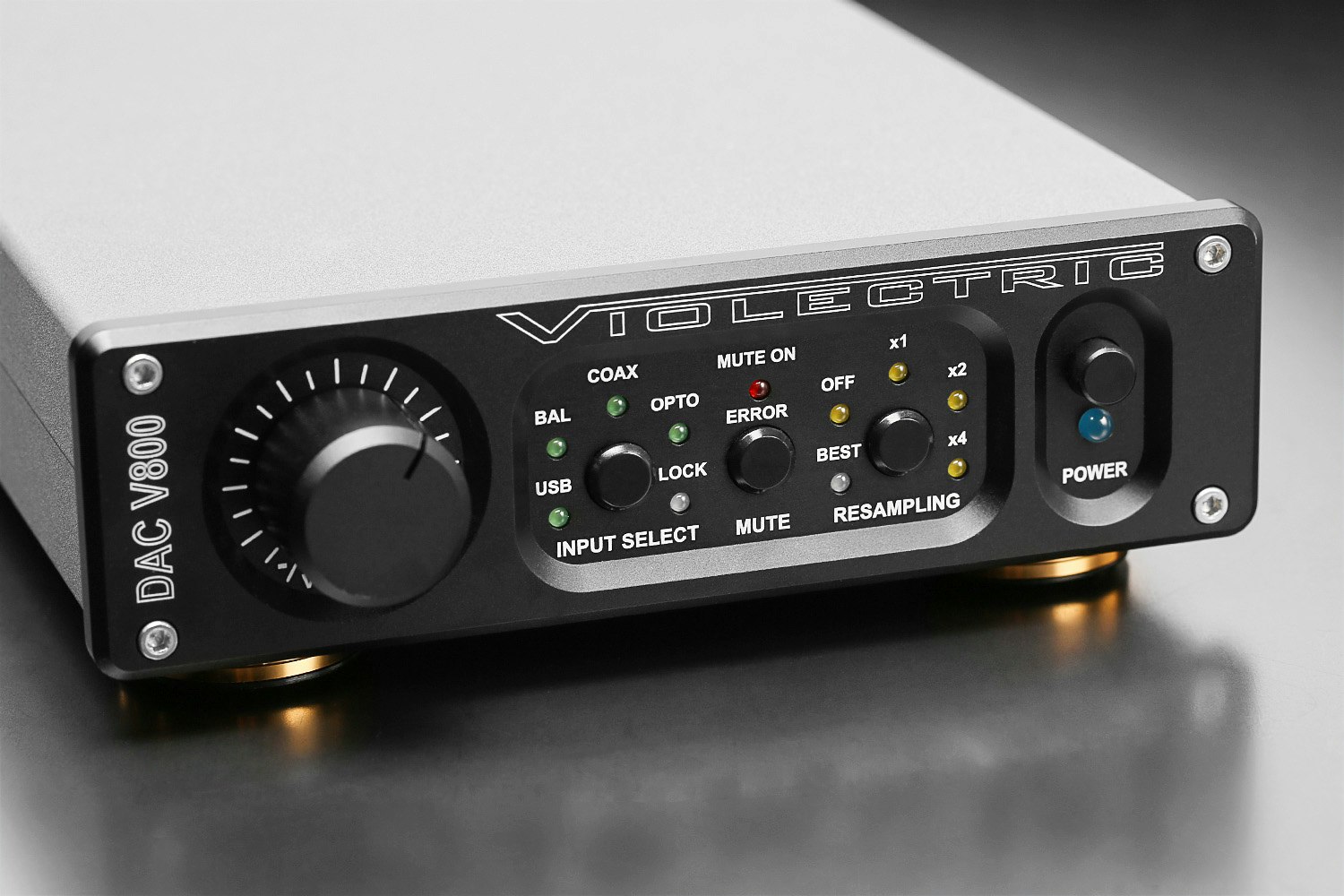

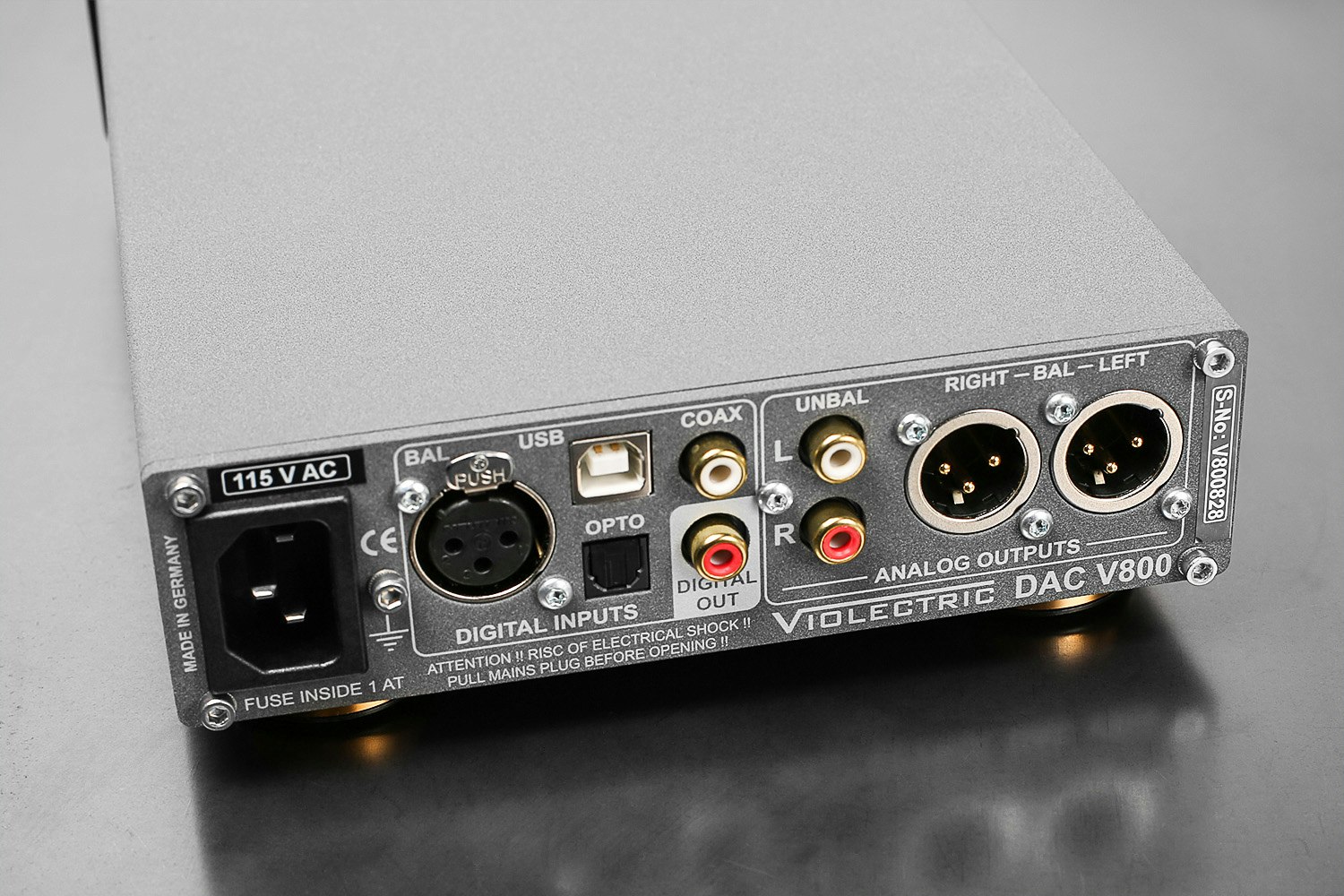

Made of strong, Nextel-coated aluminum, the back panel is equipped with four switchable digital inputs and a coaxial digital output, while the black anodized front panel features LED displays for active input and lock, and a switchable mute button. With an oversized toroidal transformer and extensive internal power conditioning, this DAC offers an outstanding dynamic range of 120 dB and a total harmonic distortion of -112 dB. It performs especially well with the Violectric V200 amp and headphones like the Audeze LCD-3 or Hifiman HE-6.

Specs
  • Violectric by Lake People
  • Materials, case and back panel: Nextel-coated aluminum
  • Materials, front panel: 8 mm aluminum, black anodized, lasered
  • LED displays for active input and lock
  • Mute switchable

Four digital inputs:

  • AES/EBU, XLR, transformer balanced according to AES-3, impedance 110 ohms
  • S/P-DIF, RCA, unbalanced according to IEC 958 / AES-3-id, impedance 75 ohms
  • TOS-Link, Optical, According to EIAJ RC-5720
  • USB, 16 - 24 bit / 44.1 - 192 kHz
  • Input sensitivity: < 200 mV
  • Input data format: AES, S/P-DIF, 24 bit / 192 kHz (USB 96 kHz)
  • Coaxial digital output
  • S/P-DIF, Cinch, unbalanced according to IEC 958 / AES-3-id, impedance 75 ohms
  • Sample rate: 28–210 kHz (USB 44.1, 48, 96 kHz)
  • Stopband rejection: > 100 dB
  • Dynamic range: > 120 dB
  • Frequency range: 10 Hz–20 kHz (-0.05 dB); 10 Hz–40 kHz (-0.2 dB)
  • THD: -112 dB @ -1 dBFs
  • Max output level (5 steps selectable): Balanced, +24 / +18 / +15 / +12 / +6 dB; unbalanced, +15 / +9 / +6 / +3 / -3 dB
  • Variable output adjustable in digital domain
  • Analog outputs: 2 x XLR, electronically balanced; 2 x Cinch, unbalanced
  • Power supply:  230 / 115 V AC, 10 VA
  • Tenor chip compatibility: XP through Windows 10; Apple OS X up to El Capitan (requires driver from Downloads page); all Linux versions supported
  • Dimensions, W x D x H: 6.5 x 9 x 1.7 in (16.5 x 22.9 x 4.3 cm)
  • Weight: 59 oz (3.7 lbs)
  • Made in Germany
