Violectric Audio HPA V90 Headphone Amplifier
Violectric Audio HPA V90 Headphone Amplifier
bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
6 Sold
Product Description
The entry-level Violectric V90 amplifier from German audio manufacturer Lake People is more compact than its brothers, with a low-noise, low-distortion circuit designed to drive a range of headphones. With a 60-volt internal operating voltage, high damping factor, and little or no self-generated noise, it delivers a clean, crisp sound with the flattest possible response Read More
Made in Germany

The entry-level Violectric V90 amplifier from German audio manufacturer Lake People is more compact than its brothers, with a low-noise, low-distortion circuit designed to drive a range of headphones. With a 60-volt internal operating voltage, high damping factor, and little or no self-generated noise, it delivers a clean, crisp sound with the flattest possible response.

Note: This drop is limited to 33 units. Note: At checkout, you’ll have your choice of feet colors between Black, Gold, and Silver. You'll also have your choice of models between the 115 V or the 230 V version.

Small & Mighty

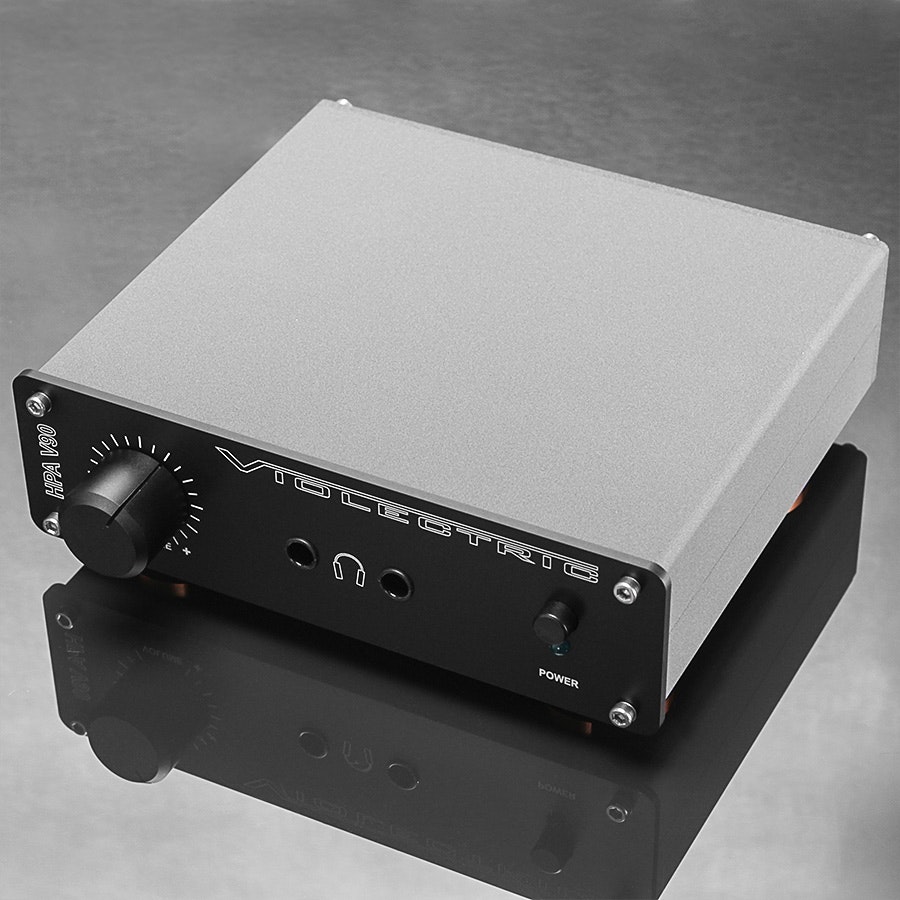

The V90’s Nextel-coated aluminum construction makes it a handsome addition to any desk setup. The solid, laser-engraved front panel features a textured aluminum volume knob, two quarter-inch jacks, and a blue LED beneath the power switch. On the rear panel, you’ll find two gold-plated unbalanced inputs, two gold-plated unbalanced outputs, and a switchable input gain in five steps.

Specs
  • Lake People
  • Material: Nextel-coated black anodized aluminum
  • Unbalanced inputs: 2 gold-plated RCA connectors
  • Unbalanced outputs: 2 gold-plated RCA connectors
  • Impedance: 10 kohms
  • Amplifier channels: 2 (stereo)
  • Nominal input level: +6 dBu
  • Amplifier gain: +8 dB
  • Amplifier gain with pre-gain: -4 / +8 / -14 dB
  • Frequency range: 0 Hz-60 kHz
  • Output impedance: 0.16 ohm
  • Dynamic range: > 126 dB
  • Noise: < -102 dB
  • THD + N: < -108 dB at 10 V in 100 ohm (1 W); < -102 dB at 4 V in 32 ohm (0.5 W)
  • Crosstalk: < -110 / -100 dB (at 1/15 kHz)
  • Maximum output level: > 20.9 V in 600 ohm = 730 mW; > 15.2 V in 100 ohm = 2,300 mW; > 9.4 V in 50 ohm = 1,780 mW; > 6.4 V in 32 ohm = 1,300 mW; > 3 V in 16 ohm = 550 mW
  • Outputs: 2 x 0.25 in headphone jacks
  • Switchable input gain in 5 steps
  • DC coupled (switchable)
  • ALPS RK14 volume control
  • High-quality op-amps in the signal path
  • 1% metal film resistors throughout
  • Toroidal transformer
  • Large filtering capacitors in the power supply
  • Switchable ground lift
  • Power supply: 230 / 115 V AC 7 VA
  • Dimensions: 6.7 x 1.9 x 5 in (17 x 4.9 x 12.6 cm)
  • Made in Germany
Shipping

All orders will be shipped by Drop.

Estimated ship date is Nov 14, 2016 PT.

After this product run ends, payment will be collected and orders will be submitted to the vendor up front, making all orders final. Check the discussion for updates on your order.
