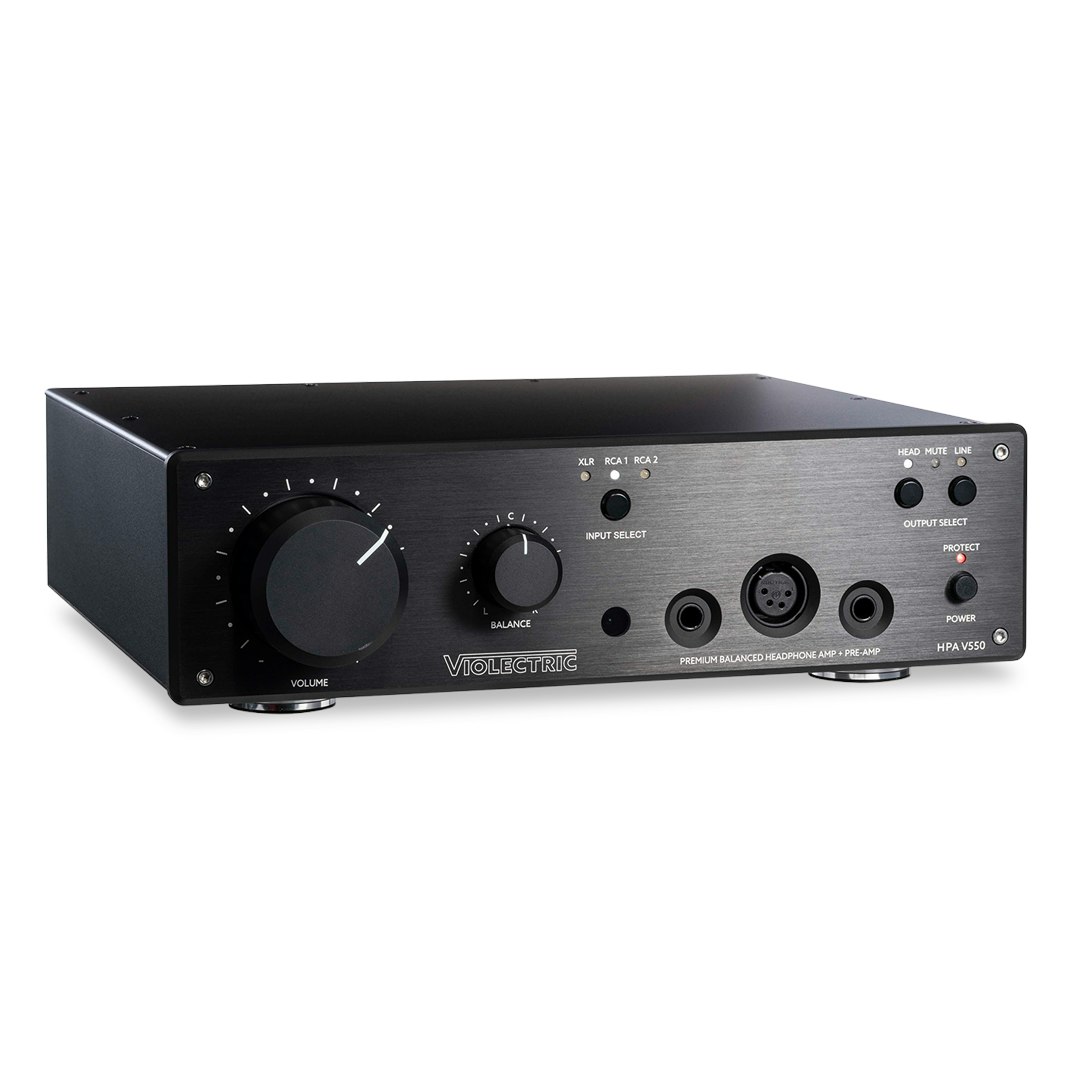

Violectric HPA V550 Headphone Amp

Violectric HPA V550 Headphone Amp

bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
423 requests
·
13 Sold
Product Description
Audiophile favorite Violectric is back with an all-analog amp for headphones and speakers—and it’s launching exclusively on Drop. Introducing the new HPA V550: a low-noise, high-output amp with several selectable gain modes Read More

A Powerful Amp for Any Setup

Audiophile favorite Violectric is back with an all-analog amp for headphones and speakers—and it’s launching exclusively on Drop. Introducing the new HPA V550: a low-noise, high-output amp with several selectable gain modes. A streamlined version of the highly regarded DHA V590 DAC/amp, the HPA V550 does away with the DAC to bring listeners class-leading amplification with ultra-low distortion. High output power and a high damping factor make this amp a great choice for difficult-to-drive headphones, while XLR and RCA outs make it easy to connect a power amp or pair of speakers. Just use the button on the front to select either headphone amp or preamp, and you’re good to go. To help you dial in your setup with optimal comfort, the HPA V550 also comes with a remote control to complement onboard volume and balance knobs.

Violectric HPA V550 Headphone Amp
Violectric HPA V550 Headphone Amp
Violectric HPA V550 Headphone Amp

Specs

General

  • Ekster
  • Supply voltage:  115 V AC
  • Case dimensions: 11.4 x 3.2 x 9.8 in (29 x 8 x 24.8 cm)
  • Overall dimensions: 11.4 x 3.5 x 10.8 in (29 x 9 x 27.5 cm)
  • Headphone outputs (both channels driven: 600 ohms at 740 mW (21, 1 V and 28, 7 dB), 300 ohms at 1,450 mW (20, 9 V and 28, 6 db), 100 ohms at 4,300 mW (20, 7 V and 28, 5 dB), 50 ohms at 6,400 dB (17, 9 V and 27, 3 dB), 32 ohms at 4,700 mW (12, 3 V and 24, 0 dB), 16 ohm at 2,000 mW (5, 7 V and 17, 3 dB)
  • All Data RMS weighted 20 Hz - 20 kHz, pre-gain set to 0 dB

Analog Inputs

  • Analog inputs (stereo): (1) XLR female, balanced, (2) RCA (unbalanced)
  • Maximum input voltage: + 21 dBu (10-kohm input impedance)

Line Outputs

  • Line outputs (stereo, analog): (1) XLR male, balanced, (1) RCA (unbalanced)
  • Line output gain levels: -18, -12, -6, 0, +6, +12, +18 dBr
  • Maximum output voltage: + 21 dBu (1-ohm output impedance)

Headphone Amp

  • Nominal input sensitivity: +6 dBu
  • Feedback gain: 0 dB (unbalanced), +6 dB (balanced)
  • Pre-gain levels: -18 / -12 / -6 / 0 / +6 / +12 / +18 dBr
  • Frequency response range: 5 Hz – 250 kHz
  • Balance: ±6 dB
  • Output impedance: 0, 15 ohms (unbalanced), 0, 3 ohms (balanced)
  • Damping factor (50-ohm load): 320 (unbalanced), 160 (balanced)
  • Dynamic range: > 131 dB (A-weighted)
  • Noise: < -103 dBu (A-weighted)
  • THD+N (1kHz / 2 x 10V / 100R = 1W): < -102 dB, < 0,0008%
  • THD+N (1kHz / 2 x 4V / 32R = 0,5W) : < -100 dB / < 0.001%
  • Crosstalk: -105 dB at 1 kHz, -100 dB at 15 kHz
  • Headphone outputs: (1) 4-pin XLR, (2) ¼-in (6.3 mm) jack
