Product Description
An open-source gateway that enables IoT GPS solutions, the Wio LTE IoT GPS tracker helps you track nearly any moving object and upload the data wirelessly. At half the size of a credit card, the tracker uses 4G LTE to communicate and send data, along with GPS, BeiDou, GLONASS, Galileo, and QZSS satellite systems to provide accurate positioning information Read More
Fast & Accurate Wireless Tracking

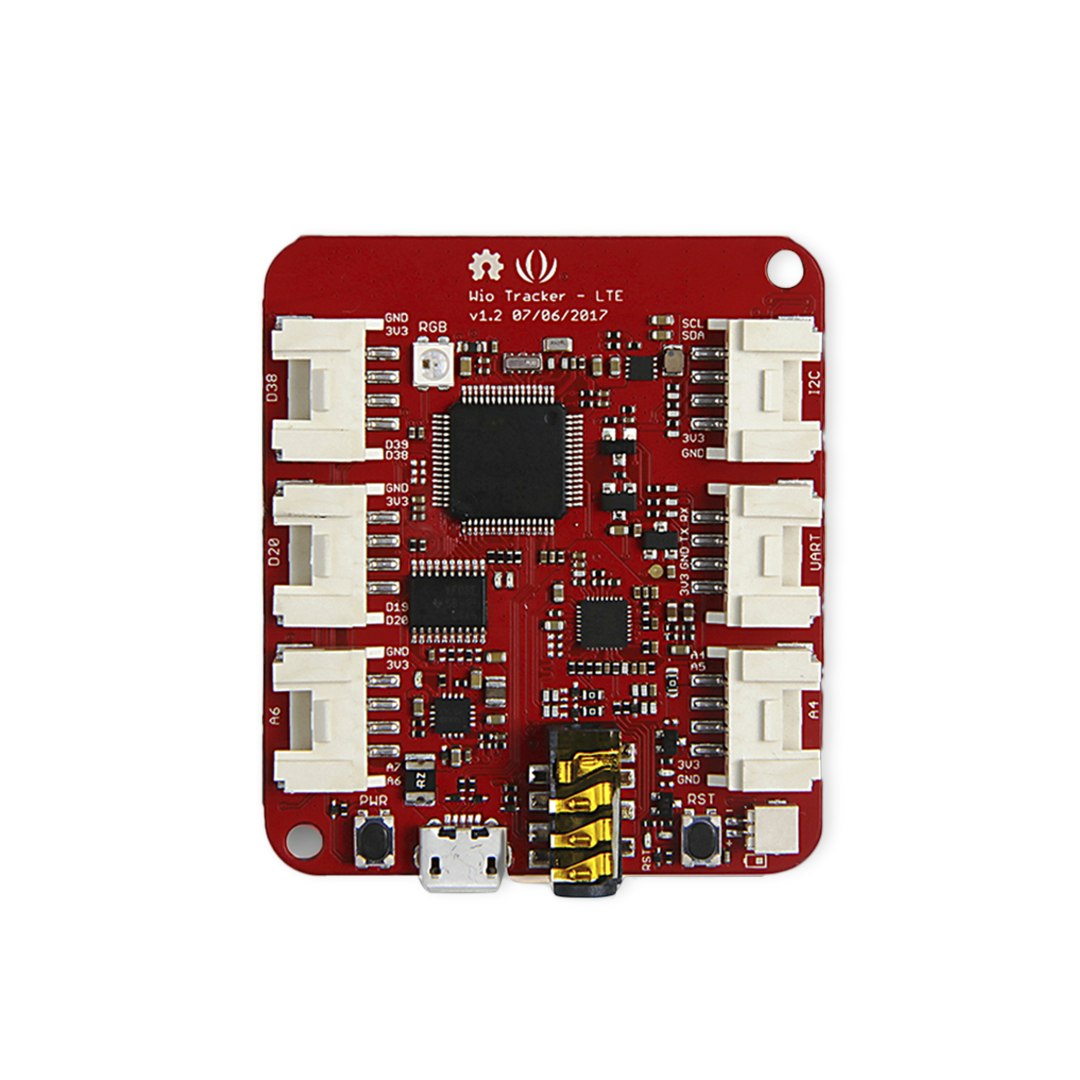

An open-source gateway that enables IoT GPS solutions, the Wio LTE IoT GPS tracker helps you track nearly any moving object and upload the data wirelessly. At half the size of a credit card, the tracker uses 4G LTE to communicate and send data, along with GPS, BeiDou, GLONASS, Galileo, and QZSS satellite systems to provide accurate positioning information. The updated STM32F405RG microcontroller relies on an ARM Cortex-M4 processor and a 1-megabyte flash drive to process and store information. The tracker is compatible with Arduino and Grove devices, which means you can add additional sensors and access large libraries of community-generated commands and programs. Plus, you can program the tracker using C and C++ software for a completely customized experience. Finally, an embedded power-management unit allows the device to operate in an ultra-low deep-sleep mode to better moderate its power consumption while tracking.

Note: At checkout, you’ll have your choice of the US or AU tracker.

Country Version Options
Specs
  • Seeed
  • MCU processor: STM32F405RG, ARM Cortex-M4
  • CPU speed: Up to 168 MHz
  • Flash storage: 1MB
  • RAM: 192+4KB
  • Operating voltage: 3.3V
  • DC Current per I/O pin: 7 mA
  • FDD LTE: B2, B4, B12
  • WCDMA: B2, B4, B5
  • At command: 3GPP, TS27.007, and enhanced AT commands
  • LTE-FDD: (max) 10 Mbps (DL), (max) 5 Mbps (UL)
  • Protocol: TCP, UDP, PPP, FTP, HTTP, SSL
  • SMS: Peer-to-peer message, SMS broadcast, text and PDU modes
  • Audio: Echo cancellation, noise elimination
  • Satellite systems: GPS, GLONASS, BeiDou, Galileo, QZSS
  • Grove ports: x2 Grove digital ports, x2 analog ports, x1 UART, x1 12C
  • Antennas: x2 LTE antenna, x1 GPS antenna
  • USB powered
  • JST 1.0 connector
  • 3.5mm audio jack
  • MCU reset button
  • EC21 power button
  • RGB LED SK6812
  • Nano SIM and TF card 2-in-1 socket
  • Weight: 0.6 oz (18 g)
Included
  • 2 LTE antennas
  • GPS antenna
  • 3.7V 1,050mAh lithium-polymer battery
  • Micro-USB cable
