XD60 / XD64 Custom Mechanical Keyboard Kit
XD60 / XD64 Custom Mechanical Keyboard Kit
bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
249 Sold
Product Description
Build your own compact mechanical keyboard with this kit comprising a case, plate, PCB, screws, and USB cable. The case is made from a block of solid aluminum weighing nearly 3 pounds when fully assembled Read More
Customizable Mini Keyboard with a Shine-Through Aluminum Case

Build your own compact mechanical keyboard with this kit comprising a case, plate, PCB, screws, and USB cable. The case is made from a block of solid aluminum weighing nearly 3 pounds when fully assembled. It’s machined at an angle for an ergonomic typing experience. Once assembled you’ll be able to program and adjust from different vibrant lighting effects.The sandwich case design and acrylic insert help enhance the underglow RGB lighting. Although the kit does not include switches, keycaps and LEDs, we are offering a wide selection at checkout to customize your board even further. The kitty logo on the bottom can light up, too.

Note: At checkout, choose between a silver or titanium gray case and plate. You will also have your choice in layout between Left Shift 2.25U and Left Shift 2U, your choice of 10 different switch options (5 Cherry MX and 5 Gateron), as well as your choice to add white LEDs and PBT keycaps. Pricing will vary for each combination you choose.

Case Color Options

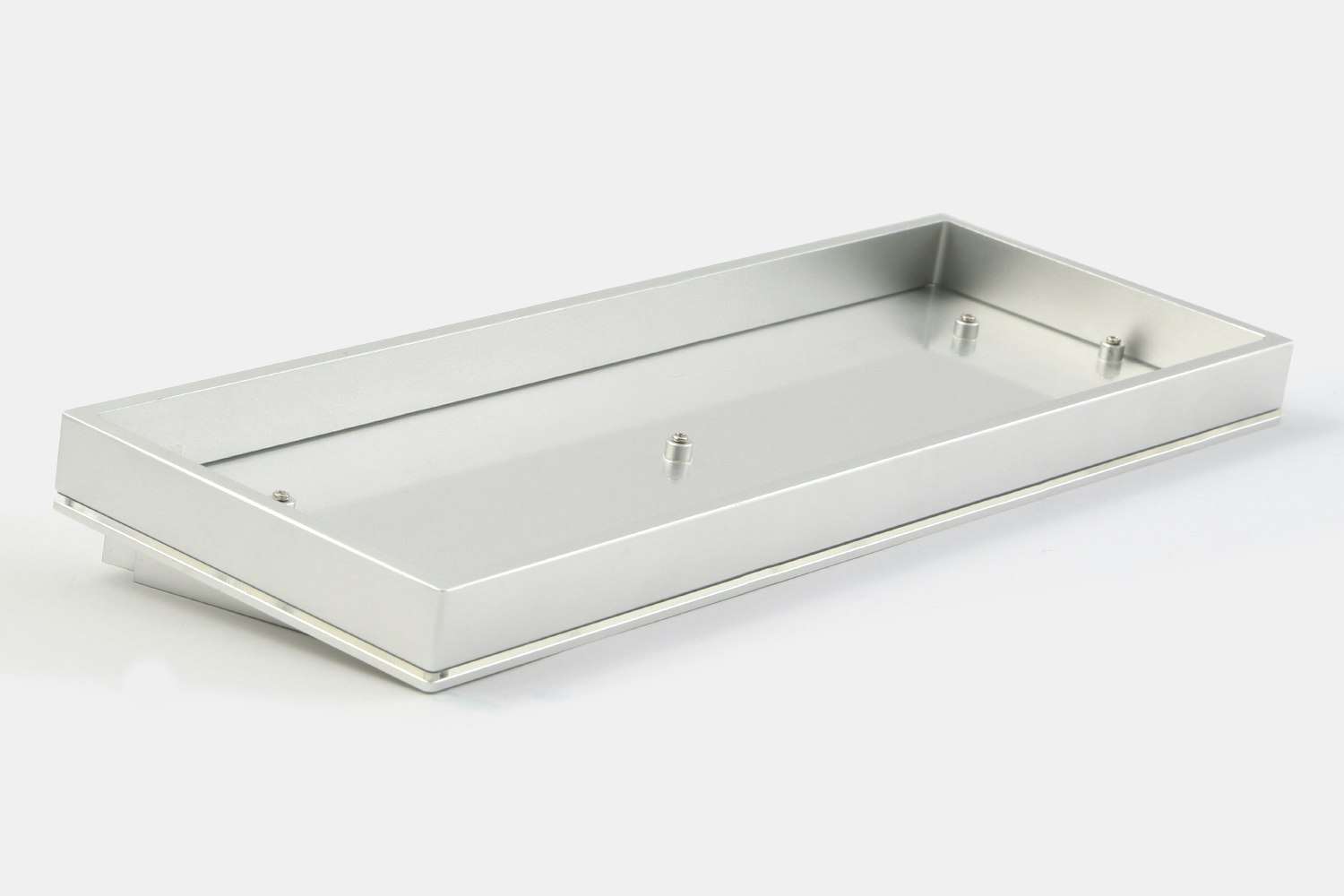

Silver
Titanium Gray
Plate Color Options
Silver
Titanium Gray
Plate Layout Options
Left Shift 2U

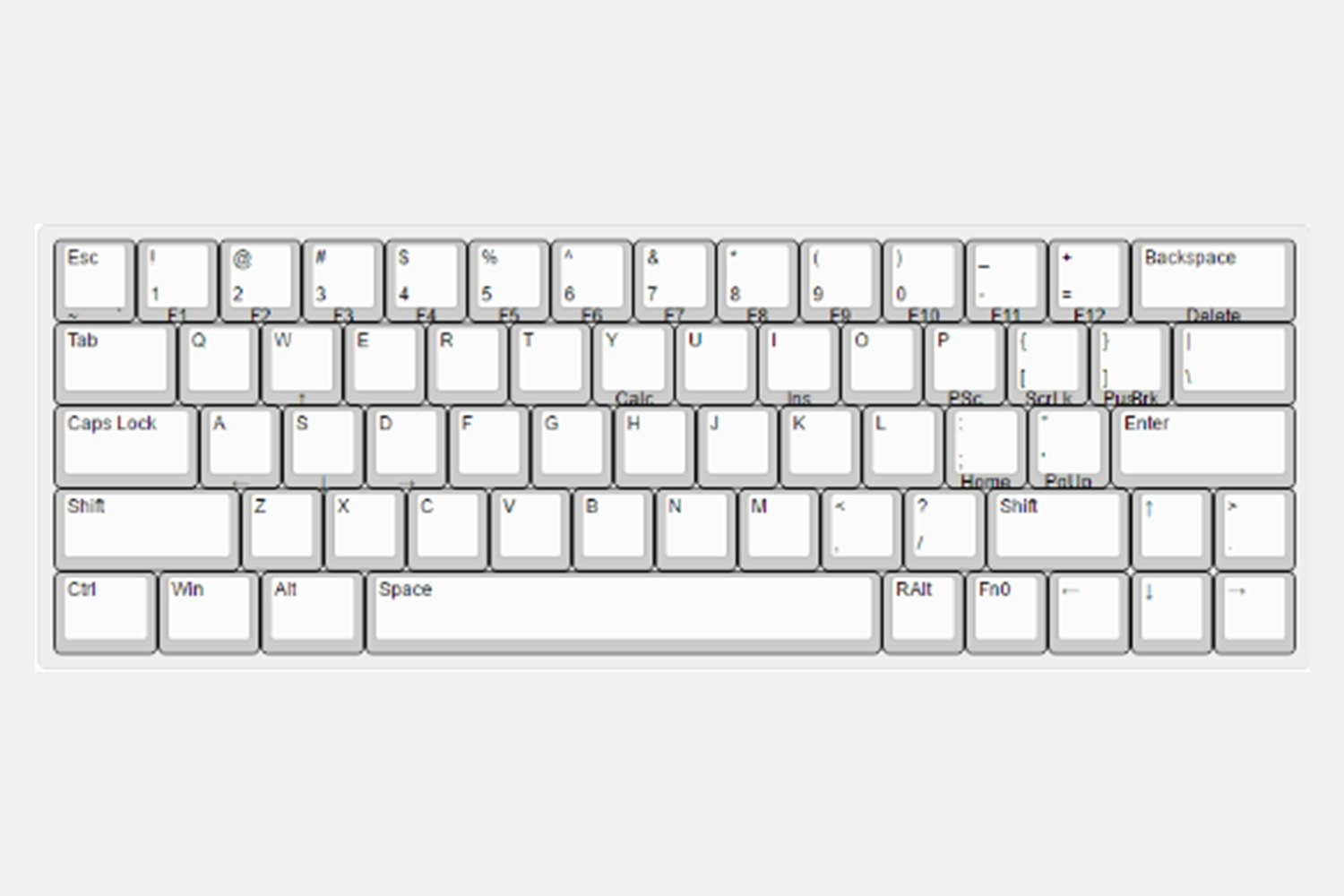

Left Shift 2.25U
Supported Layouts
Left Shift 2U
Left Shift 2.25U
PBT 129-Keycap Set Options
129-Key Top Printed PBT Cherry Keycap Set - Gray (+ $20)
129-Key Top Printed PBTCherry Keycap Set - Gray/White/Red (+ $25)
129-Key Top Printed PBTCherry Keycap Set - Red/Black (+ $25)

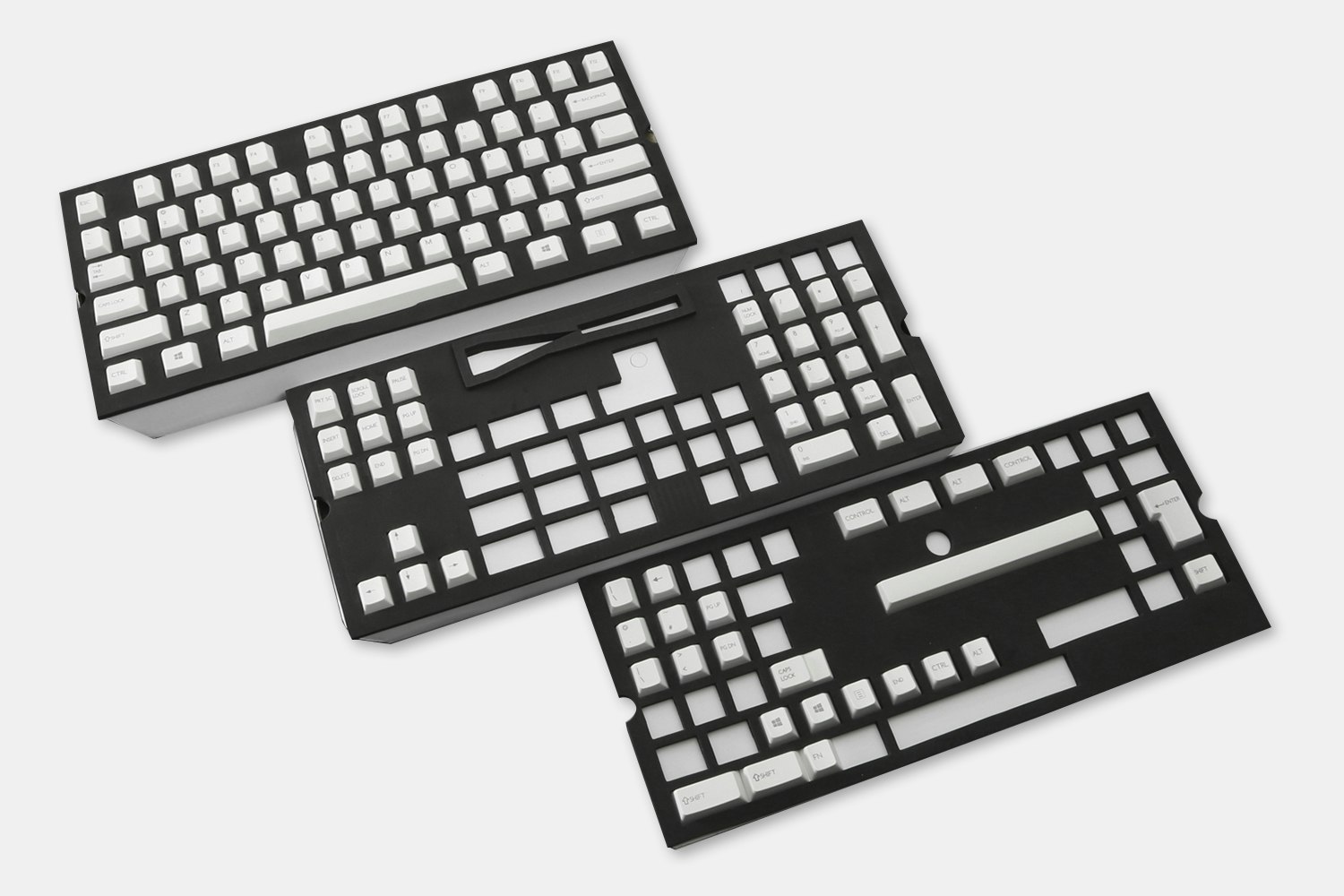

129-Key Top Printed PBTCherry Keycap Set - White (+ $10)
Specs
  • up tp 64 keys
  • Aluminum case with acrylic insert
  • Compatible with KLE custom key
  • Supports TKG-TOOLS offline brush machine and TKG online brush machine
  • Standard ICSP interface
  • Compatible with 99% of GH60 shells
  • REVB and REVQE compatible expansion port
  • Underglow RGB PCB (supports LED installations for further customization)
  • Dimensions: 11.6 x 4.2 x 1.8 in (29.5 x 10.7 x 4.6 cm)
  • Weight: 47 oz (1,332 g)
Included
  • Case
  • Plate
  • PCB
  • Screws
  • USB cable
  • Stabilizers (2u*4 6.25u*1 7u*1)
Shipping

All orders will be shipped by Drop.

Estimated ship date is Feb 5, 2018 PT.

After this product run ends, payment will be collected and orders will be submitted to the vendor up front, making all orders final. Check the discussion for updates on your order.
