xDuoo TA-01 DAC/Amp
01 / 05
xDuoo TA-01 DAC/Amp
bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
1.5K requests
·
553 Sold
Product Description
Equipped with the dual Wolfson WM8470 DAC chips and XMOS USB chip used in much spendier devices, the xDuoo TA-01 DAC/amp delivers impressive sound at an accessible price. Thanks to the dual DAC chips, each channel is processed independently, resulting in lower crosstalk and noise for an overall cleaner performance Read More
You Might Also Like
search
close
Sort by: Newest
keyboard_arrow_down
auzre
0
Jan 21, 2019
I tried many of the different suggestions for getting it to work, then I read one where he said he got it to work without installing anything. so I uninstalled all the drivers and thingys related to it, and restarted. IT works without a problem. ( it may vary please don't take as a sure fix.)
I have window 10, when I brought it I had windows 7 and it worked but then windows updated and it would only work sometimes.(to be clear this was before I uninstalled anything related to ta-01.
Please pardon my bad writing, I hope this helped someone.
(Edited)
damien_chung
74
Aug 12, 2018
Is it okay to plug the rca line out into another amplifier, will this bypass the amp at line level
Timewalker
11
Jul 8, 2018
Has anyone asked xDuoo if a 12ax7 tube can be used with this amp and if there are any hazards, expected sound problems? I've found a Genalex Gold Lion 12ax7 locally at a good price but I'm still not sure if I should take the risks. I've read that "upgrading" a 12au7 (mid gain) circuit to a 12ax7 tube (high gain) can cause circuit overdrive and god knows what else can happen.
Please advise if you have such experience. Thank you!
Please advise if you have such experience. Thank you!
Timewalker
11
Jul 5, 2018

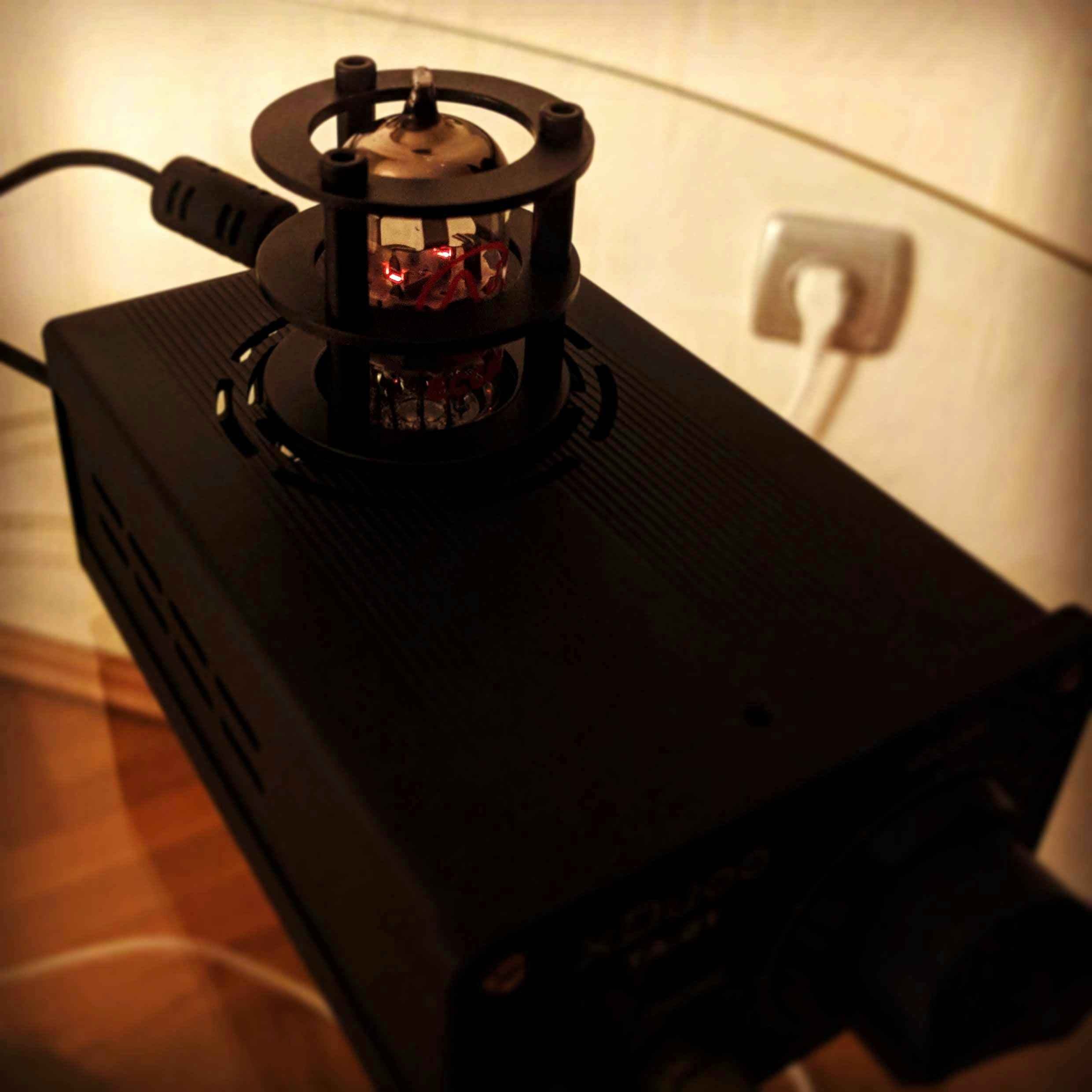

My TA-01 made it to Europe the other day and I already modded it with a Socket Saver Tester + Black Tube Guard. It took some unexpected drilling of larger holes for the tube guard bolts but the result is eye candy.
I'm still waiting on my new headphones to arrive but this thing sounds fabulously warm and tight even with a JJ Electronic standard 12au7 tube. I got rid of the Chinese stock tube on my 2nd listen. Let's see how it sounds after burn-in on my forthcoming Beyerdynamic DT 880 250 ohm.
PS: it was 100% plug'n'play with Windows 10, zero drivers required. They didn't work anyway.
I'm still waiting on my new headphones to arrive but this thing sounds fabulously warm and tight even with a JJ Electronic standard 12au7 tube. I got rid of the Chinese stock tube on my 2nd listen. Let's see how it sounds after burn-in on my forthcoming Beyerdynamic DT 880 250 ohm.
PS: it was 100% plug'n'play with Windows 10, zero drivers required. They didn't work anyway.
Timewalker
11
Jul 8, 2018
yes, I'm using a "12au7 socket saver tester" from ebay - https://www.ebay.co.uk/itm/1PC-Bakelite-9Pin-Tube-Socket-Tester-Saver-for-12AX7-12AU7-6DJ8-EL84-Gold-Plate/191783356390?ssPageName=STRK%3AMEBIDX%3AIT&_trksid=p2057872.m2749.l2649
And the tube guard also from ebay - https://www.ebay.co.uk/itm/1-x-Black-tube-guard-protector-for-12AU7-12AX7-ECC83-solid-aluminum/272578054447?ssPageName=STRK%3AMEBIDX%3AIT&_trksid=p2057872.m2749.l2649
IMPORTANT: You will need to unscrew the top "grey plate" from the original panel. There are 4 tiny screws and mine were covered in red silicone which slowed me down unscrewing them but it is doable. After you unscrew the top grey plate you will have 4 empty holes and 3 of them are exactly matching the design of the Tube Guard, so you don't need to drill new holes on the top panel. The next problem is that the holes are not wide enough to directly screw the tube guard on, so I had to widen the holes just a tiny bit to accommodate the screws for the Tube Guard. To widen the holes you can use a drill or do it manually by hand using a 2.5 hexagonal screwdriver to get in (BE CAREFUL) and then get a 3.0 hexagonal screwdriver to just slightly widen the hole. I did it with the hexagonal screwdrivers but be careful. Everything took me about 1 hour to complete.
And the tube guard also from ebay - https://www.ebay.co.uk/itm/1-x-Black-tube-guard-protector-for-12AU7-12AX7-ECC83-solid-aluminum/272578054447?ssPageName=STRK%3AMEBIDX%3AIT&_trksid=p2057872.m2749.l2649
IMPORTANT: You will need to unscrew the top "grey plate" from the original panel. There are 4 tiny screws and mine were covered in red silicone which slowed me down unscrewing them but it is doable. After you unscrew the top grey plate you will have 4 empty holes and 3 of them are exactly matching the design of the Tube Guard, so you don't need to drill new holes on the top panel. The next problem is that the holes are not wide enough to directly screw the tube guard on, so I had to widen the holes just a tiny bit to accommodate the screws for the Tube Guard. To widen the holes you can use a drill or do it manually by hand using a 2.5 hexagonal screwdriver to get in (BE CAREFUL) and then get a 3.0 hexagonal screwdriver to just slightly widen the hole. I did it with the hexagonal screwdrivers but be careful. Everything took me about 1 hour to complete.
rslatara
287
Jul 8, 2018
TimewalkerHi
See my review and unlock 32-bit. ;-)
Just do the folders 1,2,3 etc. Let me know how it goes?
See my review and unlock 32-bit. ;-)
Just do the folders 1,2,3 etc. Let me know how it goes?
rslatara
287
Jun 20, 2018
Hi All
I realize my folder was incomplete, https://drive.google.com/open?id=1dAPrE9w1vGjcApPwF0p6S_p5l863WJmc it now has instructions the usb driver, xmos update, firmware update and some foobar stuff. I also suggest getting a socket saver. https://www.ebay.com/itm/9Pin-Bakelite-Vacuum-Tube-Socket-Saver-base-For-12AX7-12AU7-ECC82-ECC83-amps-P/113011138261?ssPageName=STRK%3AMEBIDX%3AIT&_trksid=p2060353.m2749.l2649
I realize my folder was incomplete, https://drive.google.com/open?id=1dAPrE9w1vGjcApPwF0p6S_p5l863WJmc it now has instructions the usb driver, xmos update, firmware update and some foobar stuff. I also suggest getting a socket saver. https://www.ebay.com/itm/9Pin-Bakelite-Vacuum-Tube-Socket-Saver-base-For-12AX7-12AU7-ECC82-ECC83-amps-P/113011138261?ssPageName=STRK%3AMEBIDX%3AIT&_trksid=p2060353.m2749.l2649
rslatara
287
May 26, 2018
Install driver and update firmware then enjoy a 32-bit rev.B TA-01.
https://drive.google.com/open?id=1dAPrE9w1vGjcApPwF0p6S_p5l863WJmc
rslatara
287
Jun 1, 2018
Hi yea unzip it and install he xmos driver then follow the document xduoo sent me and apply the firmware. This was annoying me for a long time and I must have sent them about 5 email support requests, They might have worked on it after I emailed them as this updated version (non wolfson) needed the updated firmware.
KC-130
155
May 21, 2018
A quick comment about the TA-01. I purchased one a some time ago and subsequently posted some pics, in this forum, which show the pair of CS-4398 chips inside. I sold that unit and quickly regretted it. So, I've since re-purchased an identical unit.
My primary headphones often get heavy after long sessions so I like to wear the K7XX for casual listening of news-clips, youtube, etc. I keep the very light K7XX's plugged into the TA-01 for an outstanding setup I can wear and enjoy for hours. I plan on keeping the TA-01 to compare against other dac/amp combos I buy & sell.
My overall impression from the TA-01 is indistinguishable, to my tinny ears, from the Fiio E17K/K5 combo and even the Fiio X5iii/K5 combo.
The presence & punch of my Mojo/CTH combo is in a different league than the TA-01 but so is the cost.
The TA-01 is easily worth the $119 you can get it for in this drop or elsewhere.
Ilikedifferentthings
43
May 23, 2018
https://www.massdrop.com/buy/xduoo-ta-01-dac-amp/talk/1996294
The HE-4XX are practically Identical other than looks, So it should work just fine.
Mohannad13
94
May 23, 2018
IlikedifferentthingsI am going to get the magni3 and modi2 as schiit stack to run my beloved 4xx
