Equipped with a number of connections for pairing with all your favorite devices, the xDuoo XD-05 portable DAC and headphone amp is incredibly versatile for its size. Use the auxiliary input to plug in your digital audio player, the auxiliary output to send the signal out to speakers, the USB input to connect your computer, and the micro-USB port to charge up when you need to. The XD-05 supports PCM signals up to 32 bit/384 kHz and native DSD decoding up to DSD256, with seven different DAC filter settings so you never get bored.
Note: At checkout, you’ll have your choice of colors between black and silver.

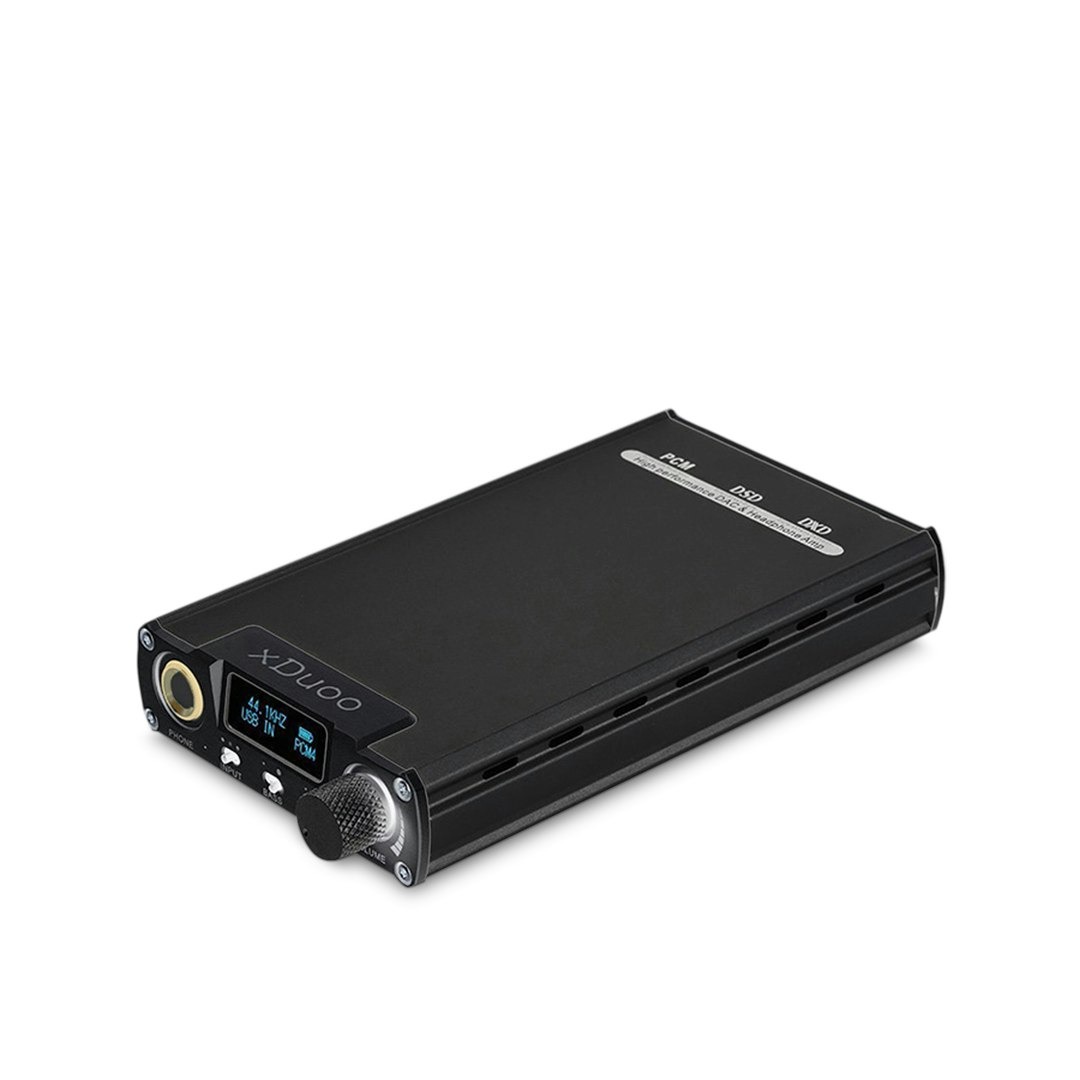

Made from anodized aluminum alloy with a sandblasted surface, the enclosure measures just 5.5 inches long and 3 inches wide. On the front panel, you’ll find an OLED screen that displays product information in real time, along with switches for bass boost, gain, and input selection. And good news for modders: Should you ever want an upgrade, the opamps inside the XD-05 are easy to swap out and replace with your own.
- xDuoo
- Enclosure: Anodized, sandblasted aluminum alloy
- Screen: 0.9 in (2.3 cm) OLED display
- Audio processors: CirrusLogic CS8422, XMOS XS1-U8A-64
- DAC coder: AKM AK4490
- Low-pass filter and OPA voltage amp
- Current amps: Dual BUF634 (left and right)
- Supported sampling rate, USB in, PCM: 16 – 32 bit / 44.1 – 384 kHz
- Supported sampling rate, USB in, DSD: DSD 64 – 256 (1 bit / 2.8 – 11.2 M)
- Supported sampling rate, USB in, DXD: 24 – 32 bit / 352.8 – 384 kHz
- Supported sampling rate, optical/coaxial in, PCM: 16 – 24 bit / 44.1 – 192 kHz
- 4 PCM digital filters: Sharp roll-off, slow roll-of, short delay sharp roll-off, short delay slow roll-off
- 3 DSD digital filters: Reserved cutoff, 50K cutoff, 150K cutoff
- Gain settings: Low, mid, high (+6, +9, +15 dB)
- Bass boost: 0 / +6 dB
- Output power: 500 mW (32 ohm load)
- Suitable headphone impedance: 8 – 300 ohm
- THD + N: 0.0025% (at kHz)
- Signal-to-noise ratio: 112 dB
- Supported OS: Windows 7, 8, Vista, XP; Mac OS X: iOS; Android with OTG
- Battery: Built-in 3.7 V / 4000 mAh rechargeable lithium-polymer battery
- Battery life: > 11 hrs (USB in), > 15 hrs (SPDIF in), > 23 hrs (aux in)
- Charge time: 5 hrs (quick charge with charger), 11 hrs (slow charge with computer)
- Dimensions: 5.5 x 3 x 1 in (14 x 7.5 x 2.3 cm)
- Weight: 9.5 oz (270 g)
- USB charging cable
- USB PC cable
- CD with USB driver
- 4 rubber feet
- Silicone band
- User manual
- Warranty card
All orders will be shipped by Drop.
Estimated ship date is Jan 7, 2021 PT.
Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final. Check the discussion for updates on your order.
