First, I read through LastContinue's post about how the LEDs are defined and identified in the code, here:
https://www.massdrop.com/talk/9382/how-to-configure-your-ctrl-keyboard/2201429
Then I took his LED Insanity spreadsheet and converted it to the ALT. @LastContinue, on the ALT, IDs with a multiple of 32 are in the lower group, not the higher group like you have in your sheet; and the ring LEDs start in the bottom left, and go counter clockwise (as viewed when typing on the keyboard), unlike the ones in your sheet. You may want to take a look to be sure for the CTRL, but I don't have one, so I could be wrong.
https://docs.google.com/spreadsheets/d/1nCuVrHgMlIkESlVAATQ-3C0BNIWUtVabbh4VUSVJ_z4/edit?usp=sharing
In my sheet, I found it easier to create all the groups on one tab, so I broke it down by 32 LED group and by color. Each column corresponds to the value given to an id group in the code for a color. For example, id2 has blue LEDs, pink LEDs, and "Escape" LEDs. The way I coded the escape is to still be able to cycle through the default layouts (and 2 more I added to led_programs.c), and I set all the ring LEDs to this. Here is what my code looks like in keymap.c.
led_instruction_t led_instructions[] = { //Blue keys { .flags = LED_FLAG_MATCH_ID | LED_FLAG_USE_RGB, .id0 = 2415861758, .id1 = 2306860031, .id2 = 7, .r = 0, .g = 166, .b = 180 }, //Pink keys { .flags = LED_FLAG_MATCH_ID | LED_FLAG_USE_RGB, .id0 = 1879105537, .id1 = 4135590912, .r = 211, .g = 123, .b = 162 }, //Test keys //{ .flags = LED_FLAG_MATCH_ID | LED_FLAG_USE_RGB, .id2 = 4294967288, .id3 = 511, .r = 255, .g = 255, .b = 255 }, //escape { .flags = LED_FLAG_MATCH_ID | LED_FLAG_USE_ROTATE_PATTERN, .id2 = 4294967288, .id3 = 511,}, { .end = 1 } };

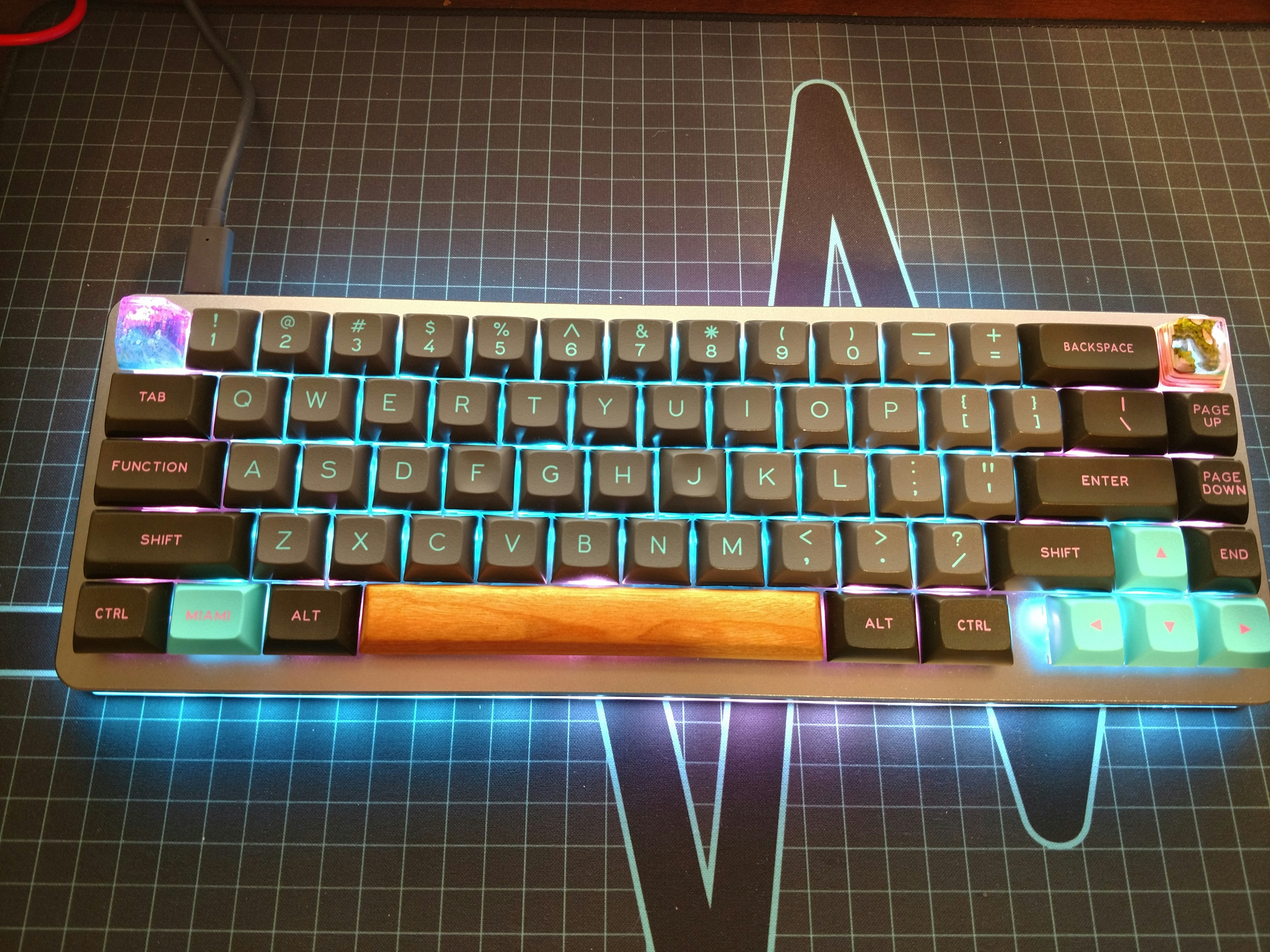

The result is an LED layout for the keys that perfectly matches DSA Miami Dolch, and for the ring, allows me to cycle through the loaded options, where I also added a rolling Miami option. Again, I could not have done this without the help of LastContinue and ButteredToast, so great thanks to both of you.
