ALF x Cary — 65% Modern Classic Dolch.CR

more_vert
The Dolch Pac keyboard has been an iconic keyboard in the history. Now it comes back with a fresh modern look and more features than ever. Meet Dolch.CR.

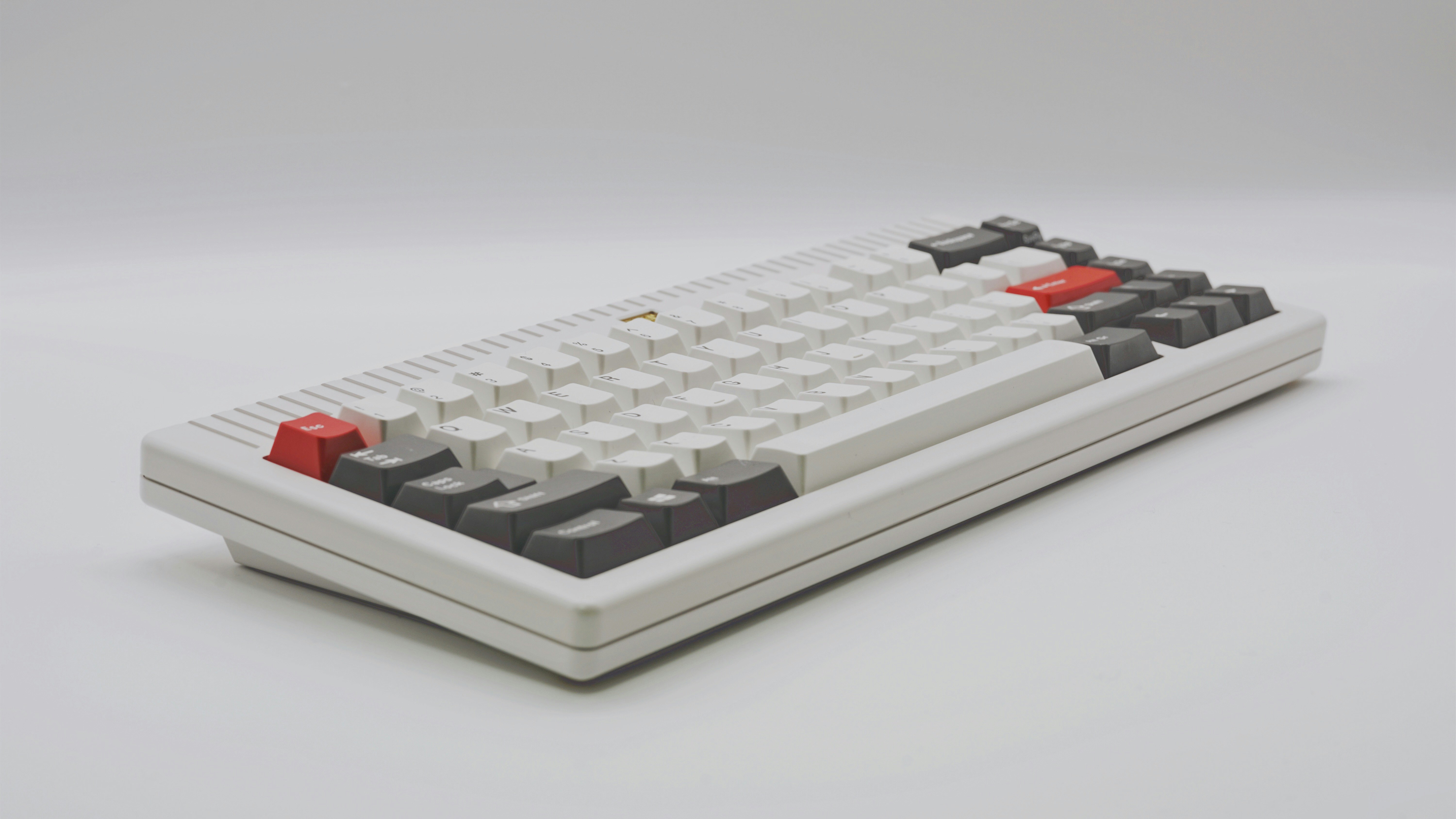

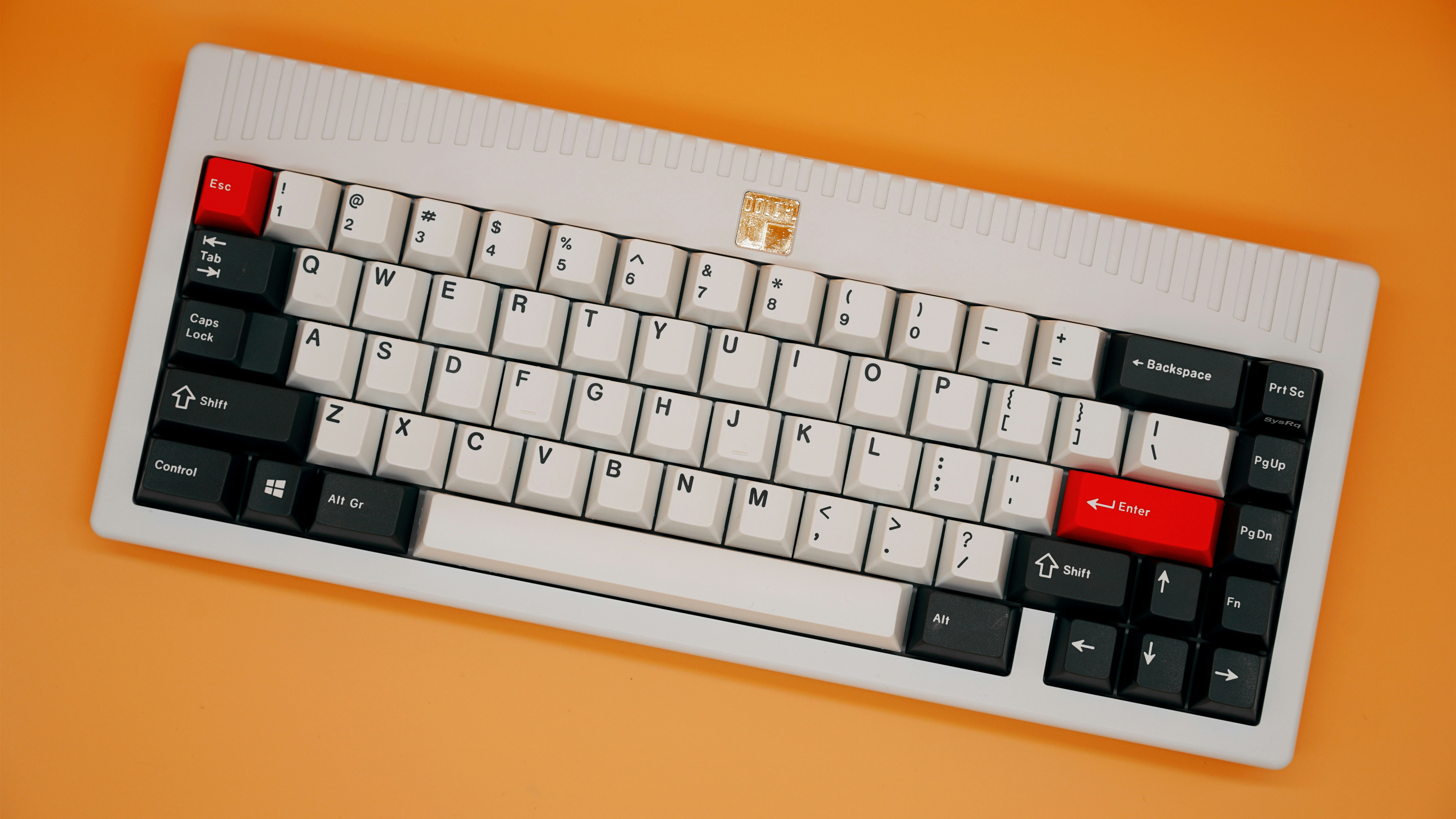

https://vimeo.com/308311653 Designed by Cary (CR), the co-designer of ALF X3 Renova and ALF DC60, the Dolch.CR is a 65% customized mechanical keyboard that perfectly integrates the retro-style of the legendary Dolch Pac keyboard with the modern elements of colors, lights, badges, weights, and others.  [Pictures all based on actual prototypes, 5th iteration]
search

search
search
search

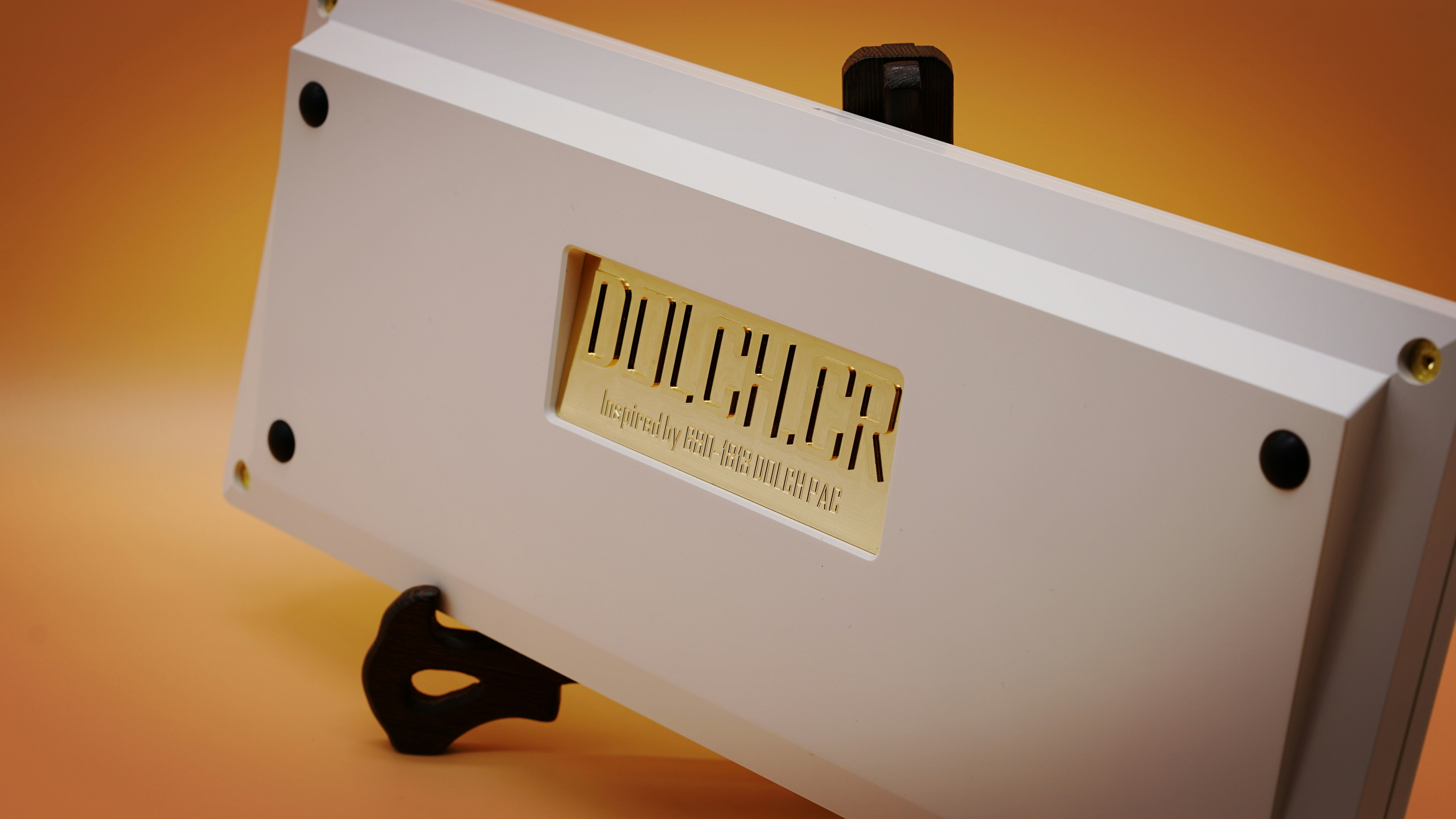

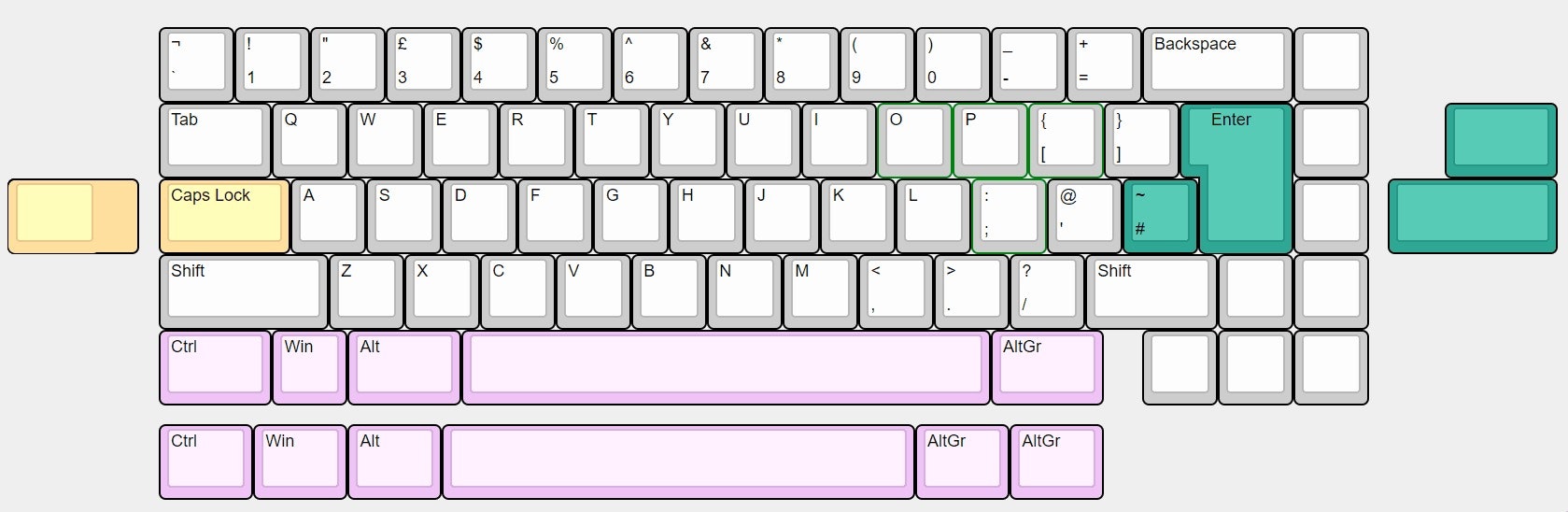

Key Features: 1. Customizable badge (front, in place of the Dolch Badge), underglow 4 LEDs for visual effects with PC badge 2. All surface edges rounded. 3. 7-degree slope 4. Options for PC weight and Brass Weight 5. Integrated 4mm plate with perfectly cut for MX switches 6. No switch leakage views from any angle 7. Default highly-compatible QMK PCB with USB-C, option for hotswap PCB 8. Aluminum 6061 9. Classic Black, Gunpowder Grey or Pearl White 10. Manufactured by ALF Layout Options: Regular PCB (compatible):
search
Hotswap PCB (choose either WK or WKL shown below):
search

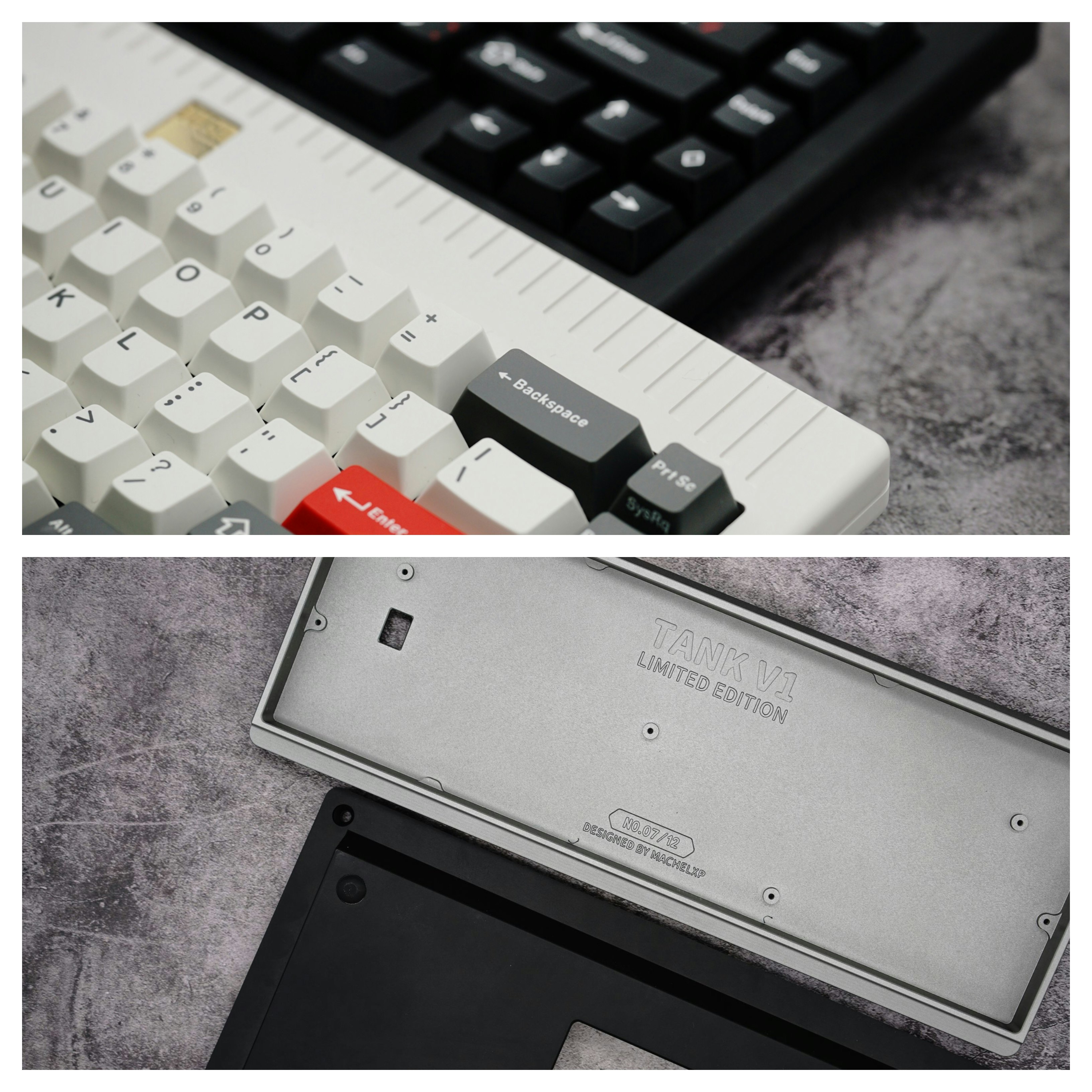

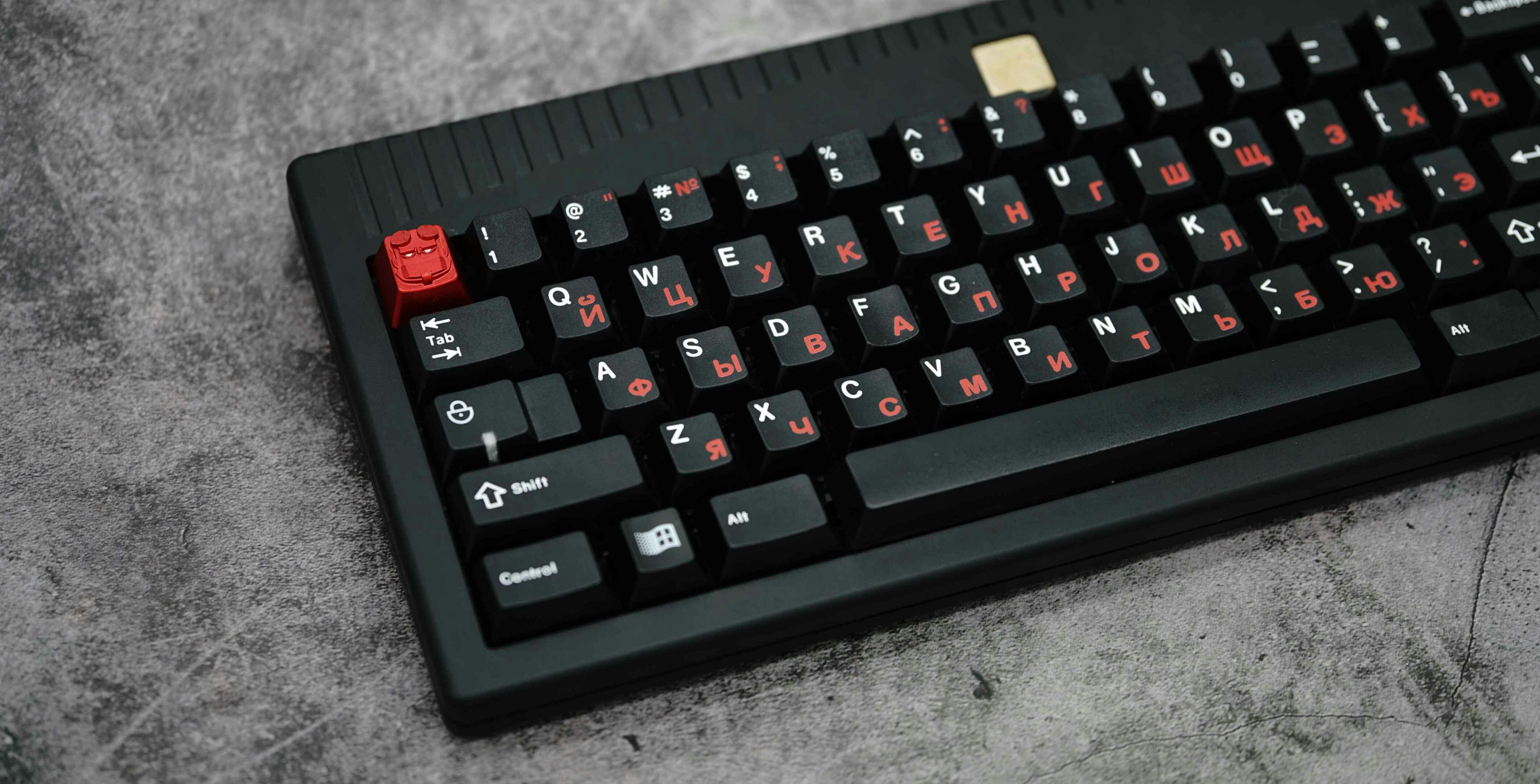

Color Options: Black, Grey, Pearl White
search

Technical Details 1.with PC weight ~1600g 2. with brass weight ~1800g 3. Front end height is 18mm, 7-degree slope Additional notes: The final production of the gold-plated brass badge will be further improved to be free of machine marks or fingerprints. Join the Group Buy: GB is currently ongoing, please check Geekhack as we are not allowed to post external links to Massdrop.
