Meet the PecanPi Streamer and DAC
search

search

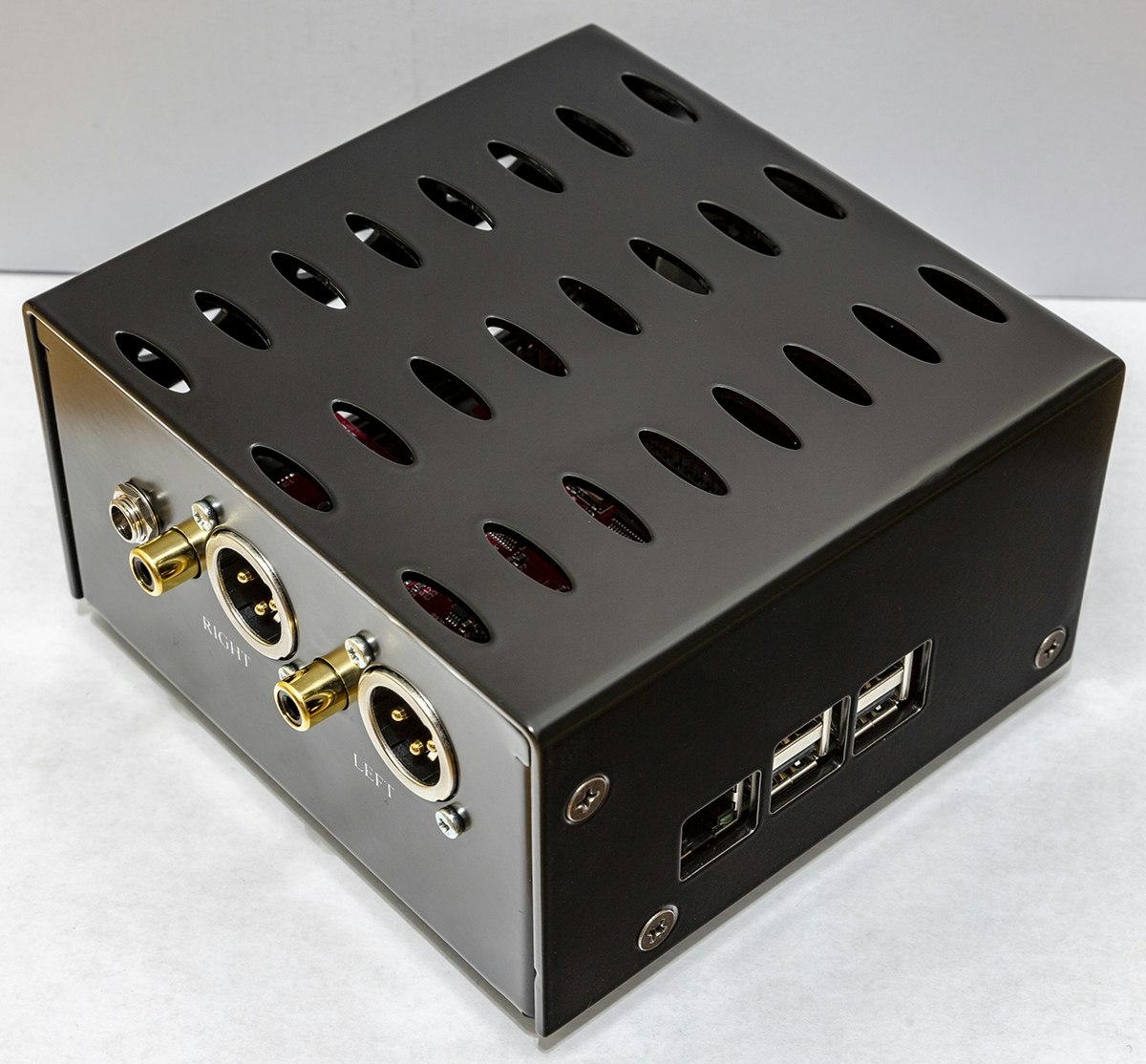

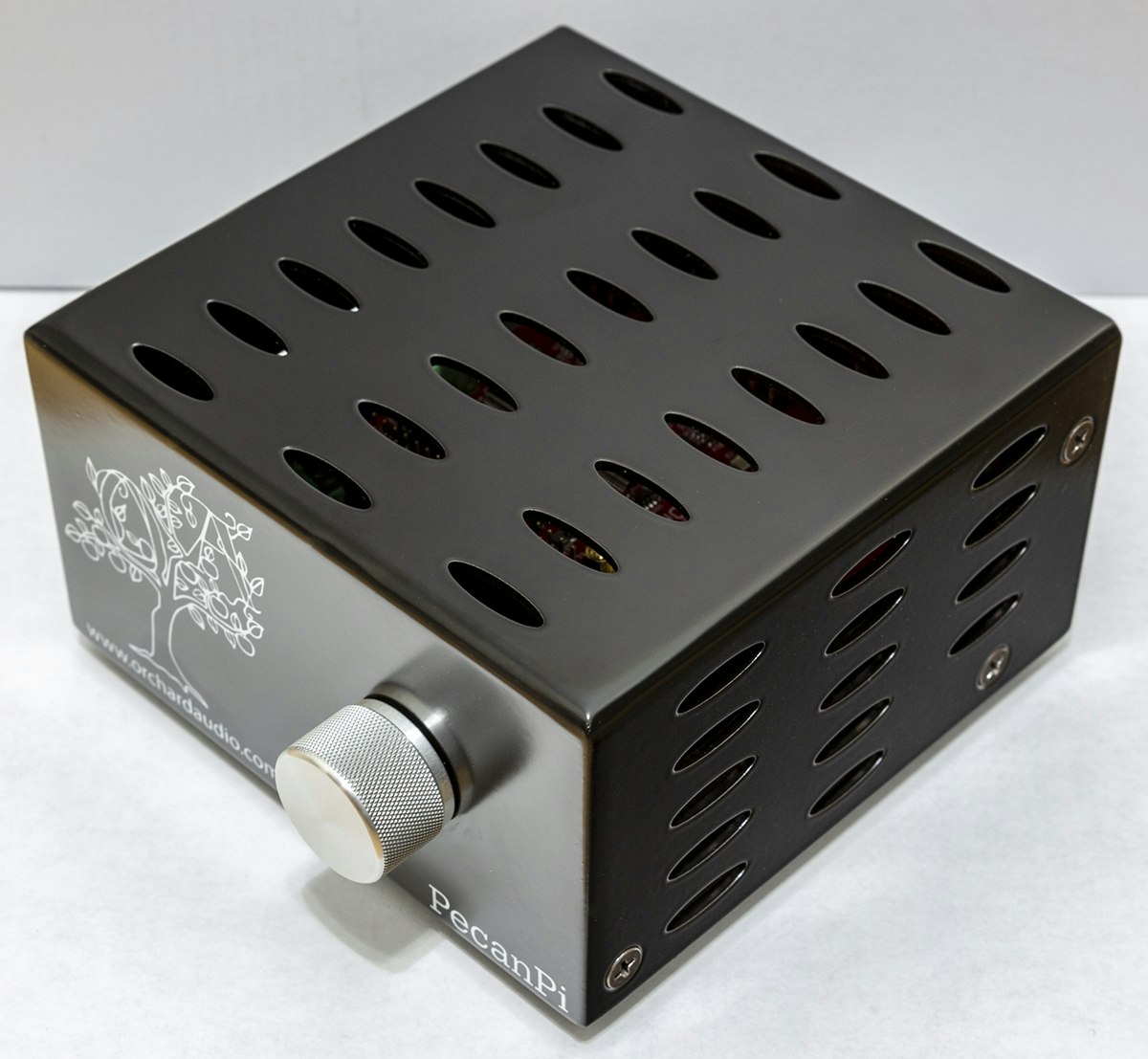

The PecanPi Streamer is a ready to go plug and play streamer, that uses the PecanPi DAC, and will be available with the following software options:
Specifications for XLR Output:
  • Signal to Noise Ratio (SNR): 130dB (A-weighted)
  • Dynamic Range (DNR): 125dB
  • Total Harmonic Distortion + Noise (THD+N): -110dB or 0.0003%
  • Output Voltage: 5Vrms
Specifications for RCA Output:
  • Signal to Noise Ratio (SNR): 127dB (A-weighted)
  • Dynamic Range (DNR): 121dB
  • Total Harmonic Distortion + Noise (THD+N): -110dB or 0.0003%
  • Output Voltage: 2.5Vrms
Specifications for Headphone Amplifier:
  • 390mW peak power into 32 ohms
  • 780mW peak power into 16 ohms
General Specifications:
  • Sampling Rates: Up to 192kHz
  • Bit Rates: Up to 24-bit

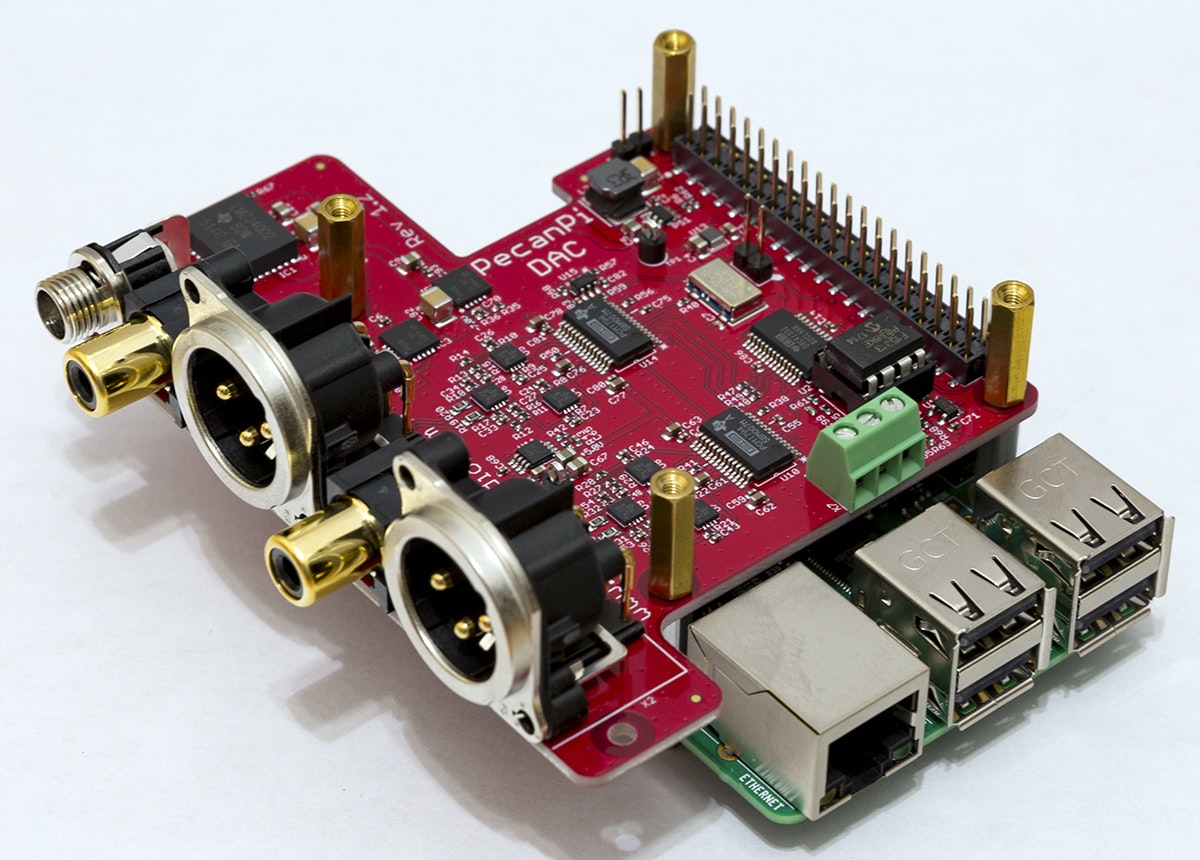

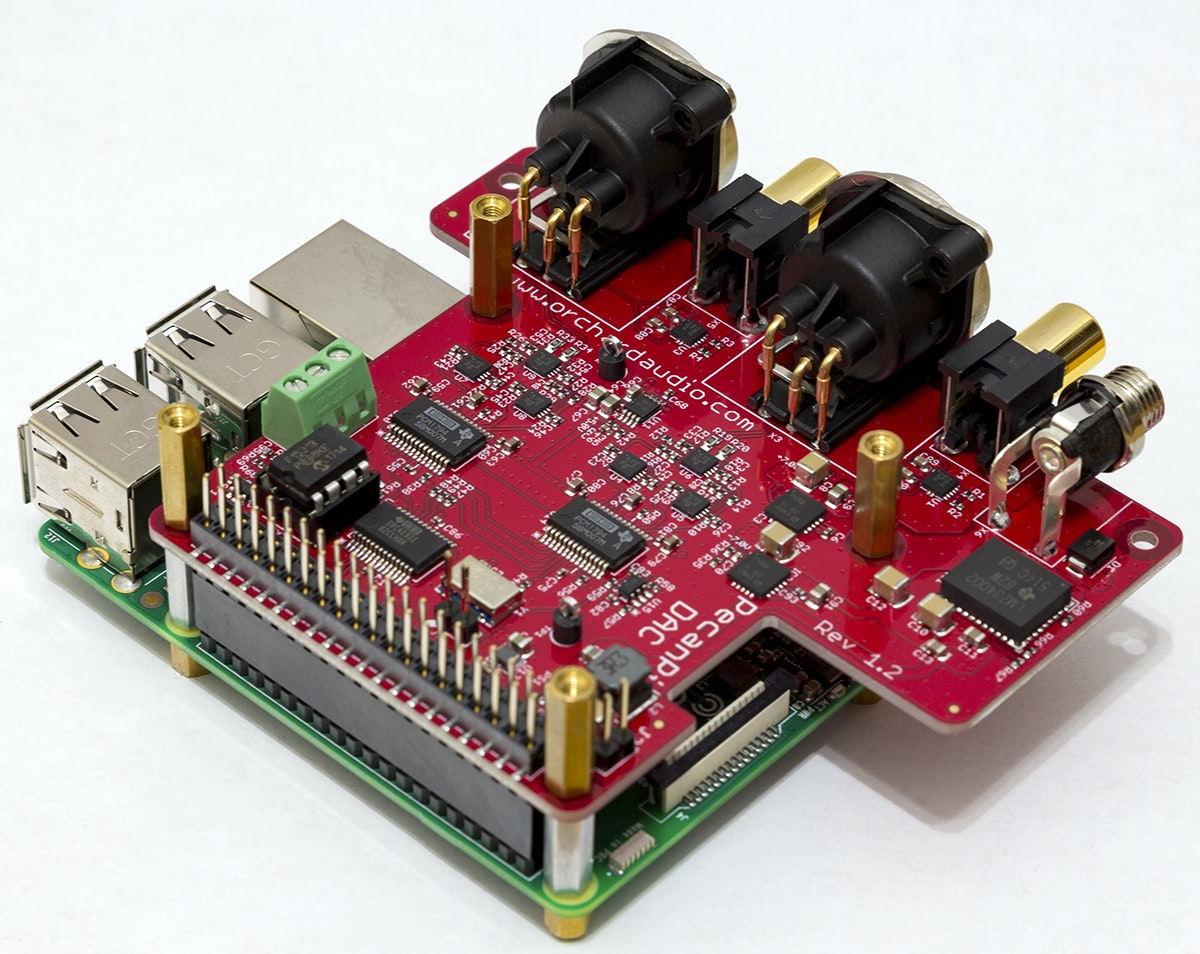

Discounted preorders avaialble: PecanPi DAC -- 224.99 -- 25% off https://orchardaudio.com/shop?olsPage=products/pcnp-dac  PecanPi Streamer -- 399.99 -- 20% off https://orchardaudio.com/shop?olsPage=products/pcnp-strmr With every preorder you will be entered into a raffle to receive our next product for free. It will be a 100W Class-D amplifier. Will be shipping in 3 to 6 months. PecanPi DAC images (attached to Rpi):
