My clear 60% keyboard !
more_vert

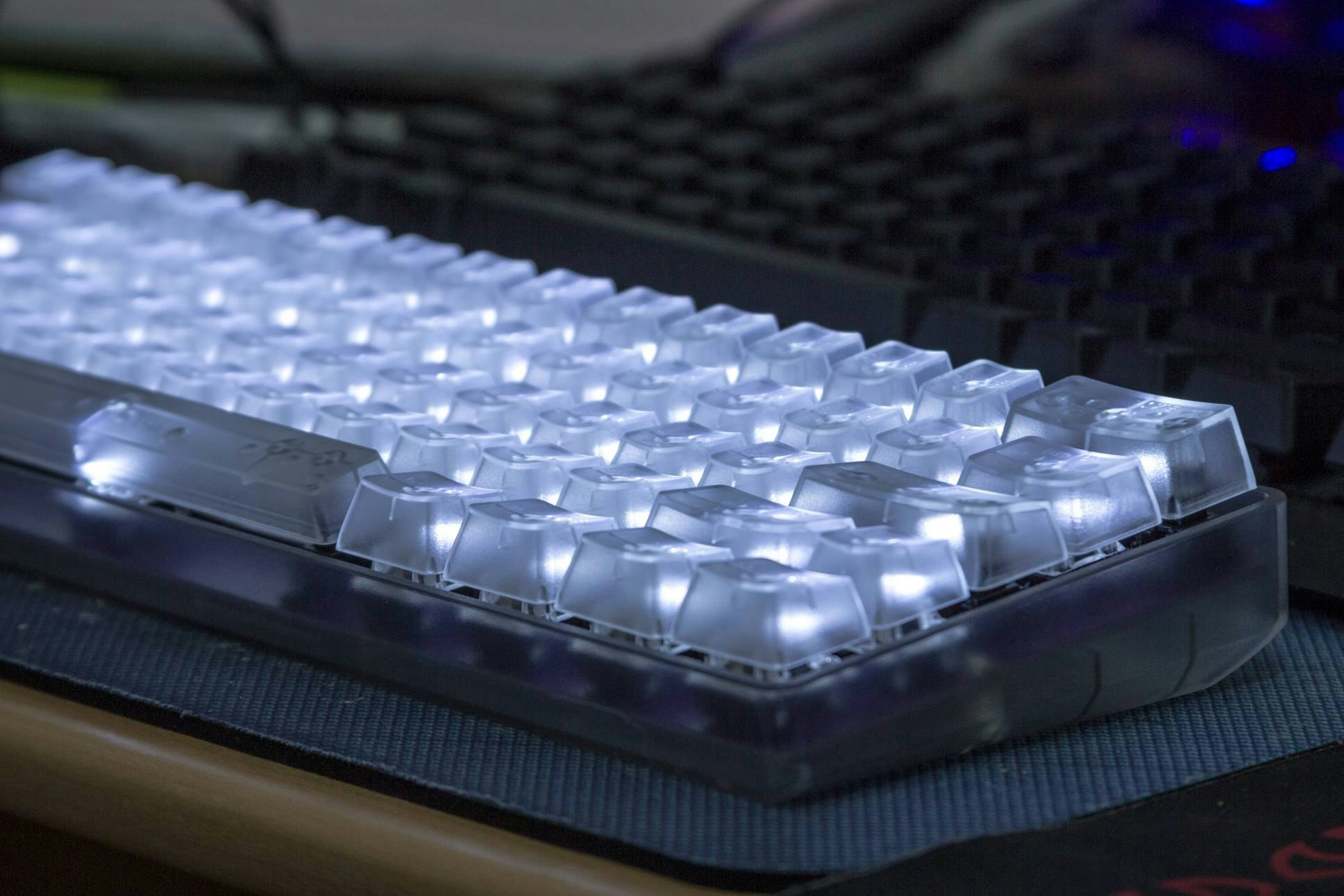

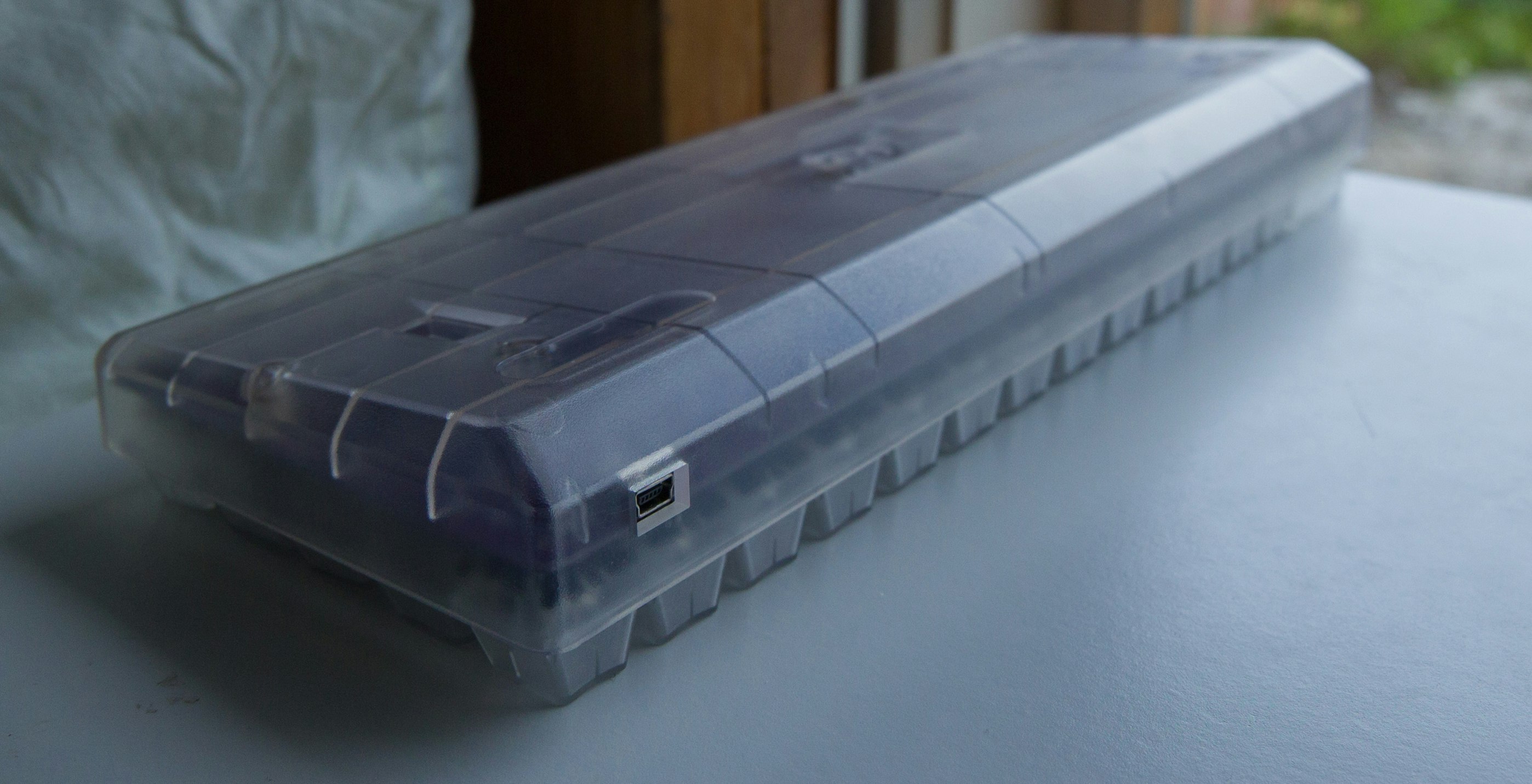

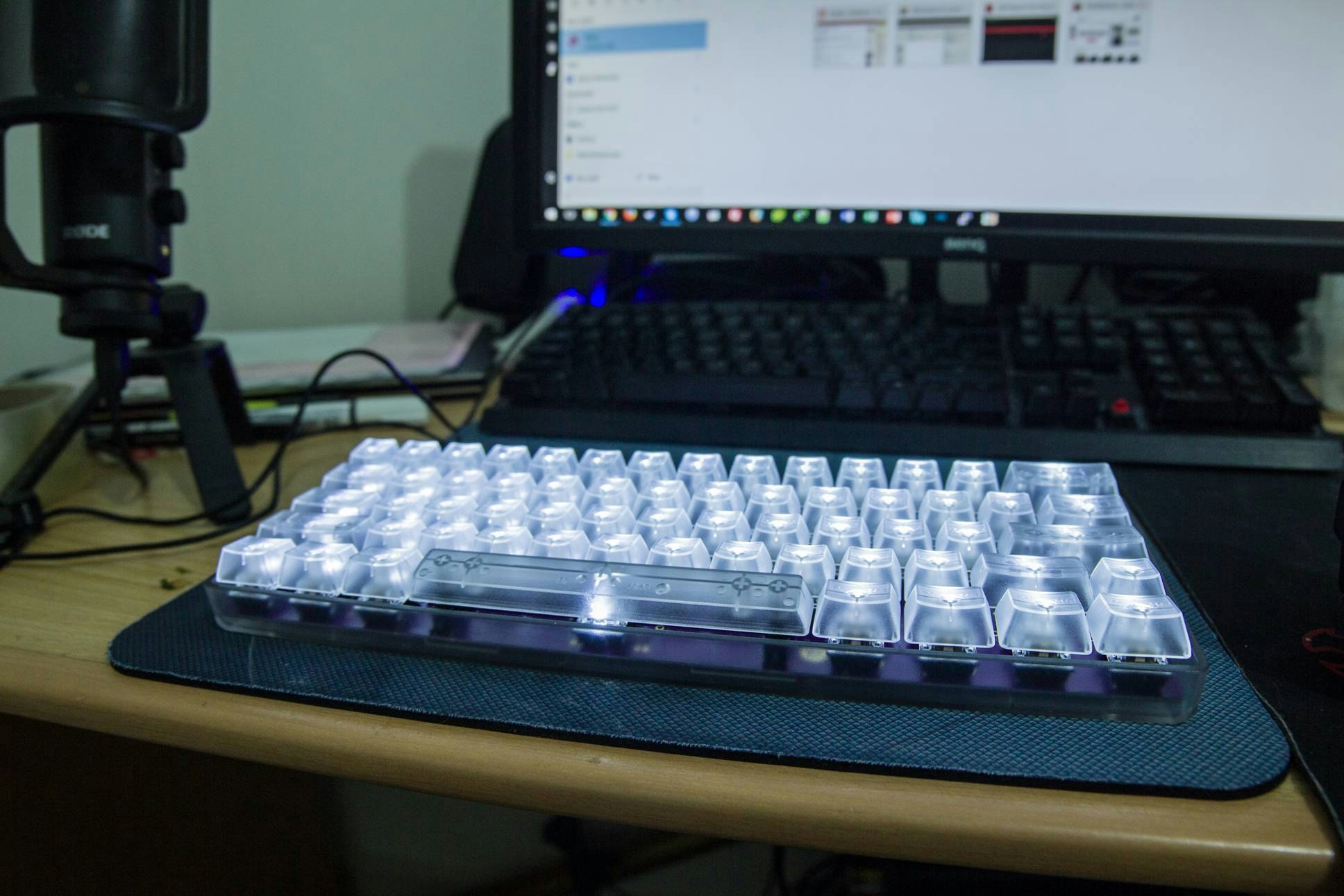

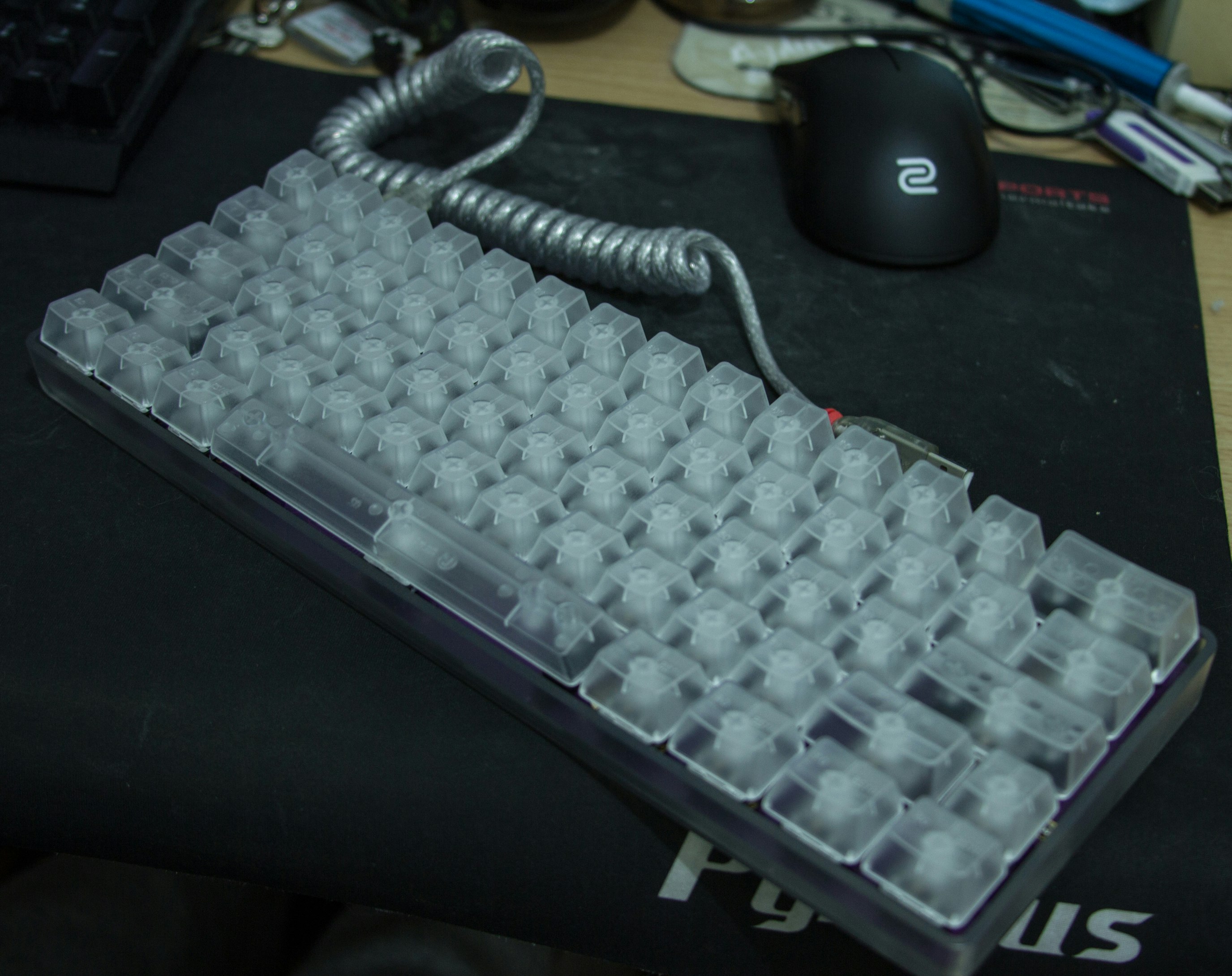

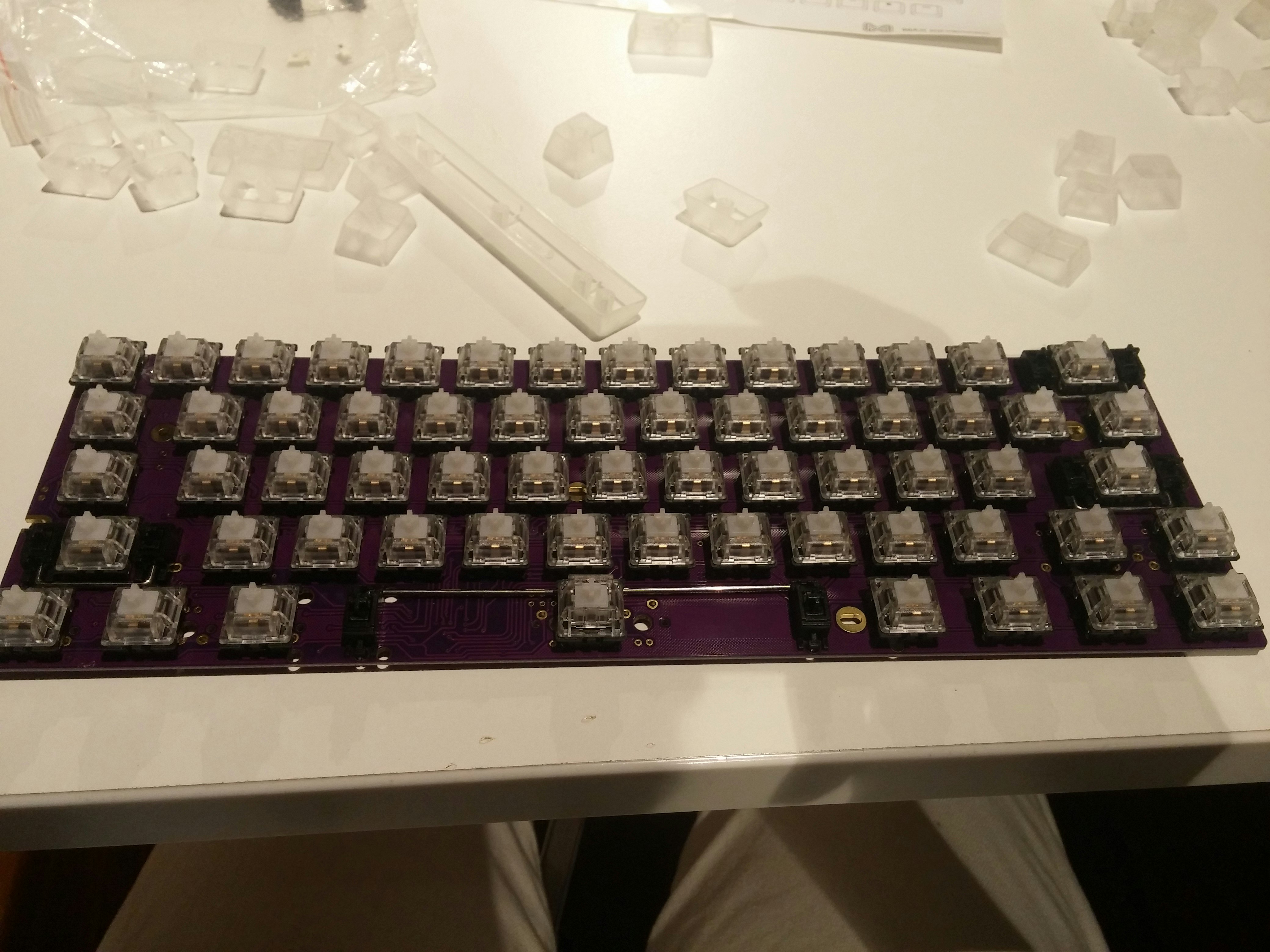

This was my first time building a DIY mechanical keyboard. Thanks to this little project, I got to experience soldering for the very first time. This project was intentionally designed to be light and small sized as possible, simply put this is my portable/travel buddy ! :D Trust me, it was fun building this thing... Until I had problems here and there, specifically when one of the LEDs didn't turn on after soldering and re-soldering and changing the LED... I then had to jump the power pins of the LED instead. Apparently there was a design error and a missing diode for that point of the LED.

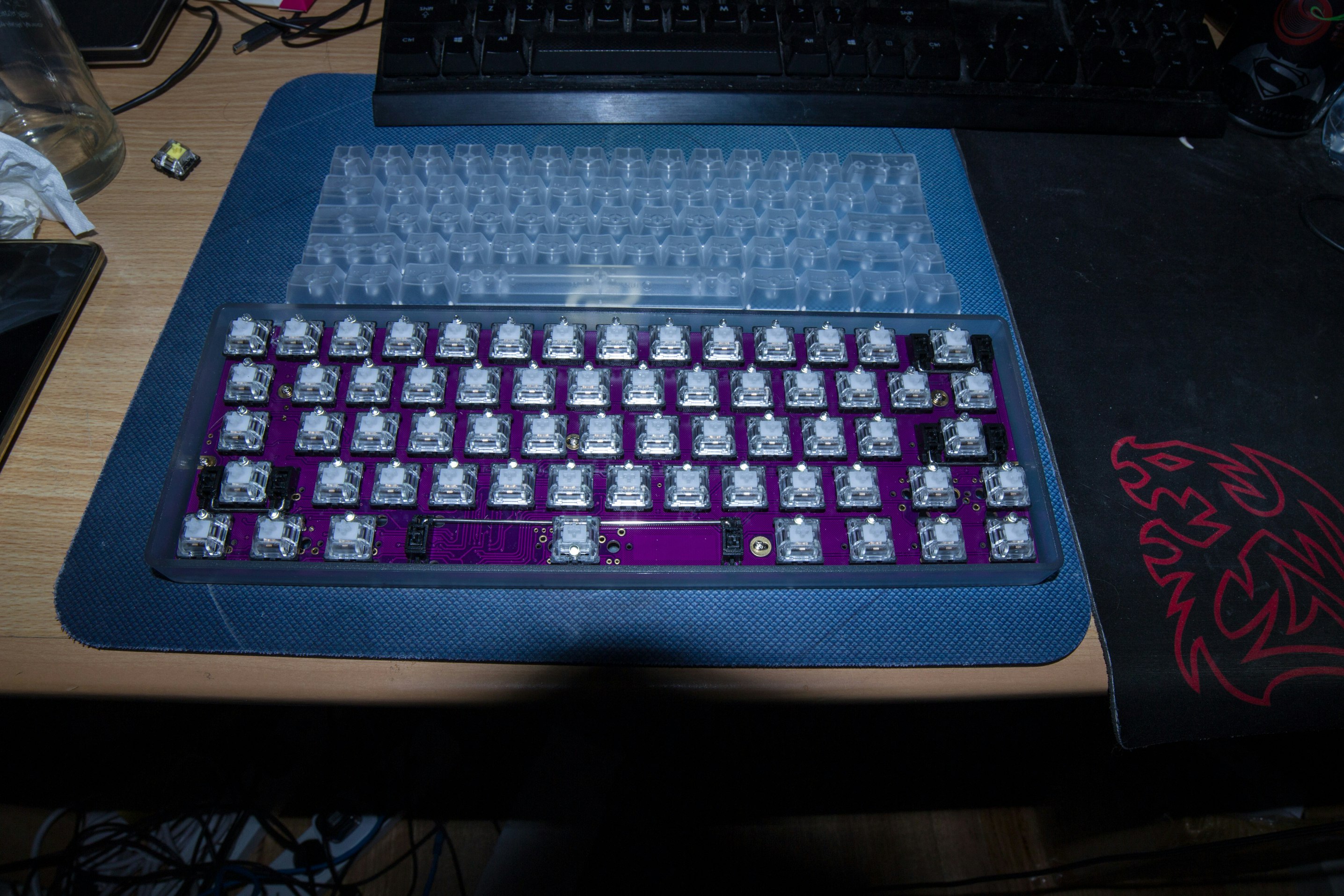

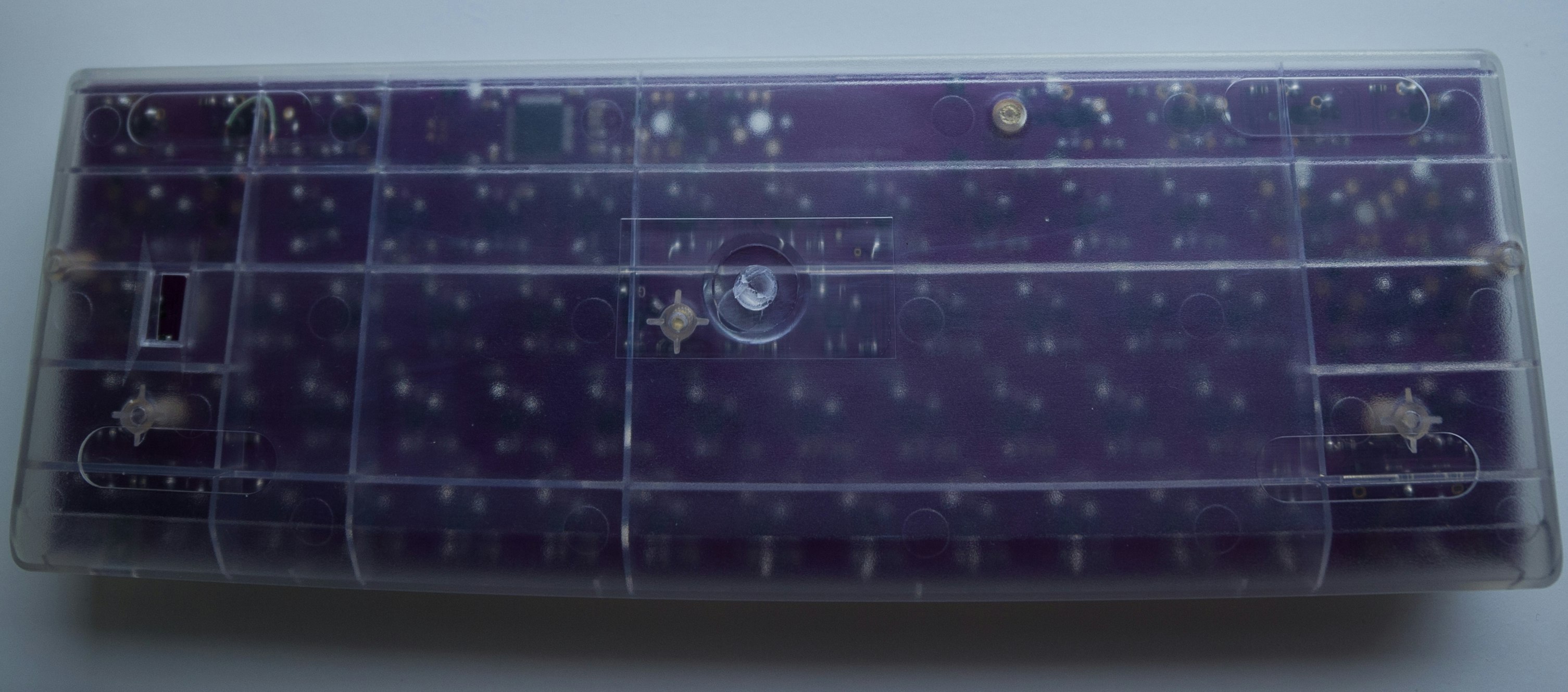

  • KC60 60% purple PCB
  • Gateron Clear switches (35g spring)
  • Polycarbonate Translucent Keycaps (no legends, flipped spacebar)

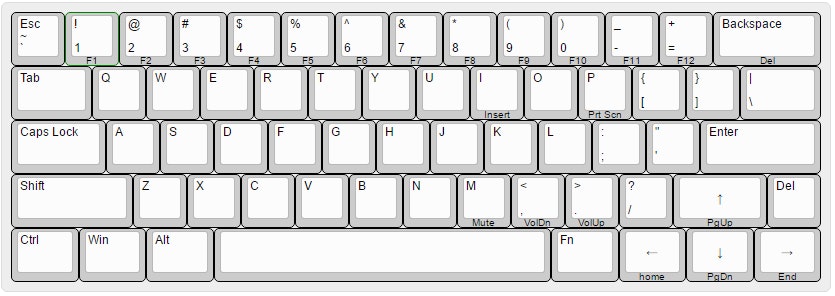

  • Custom keyboard layout (with arrows by default)

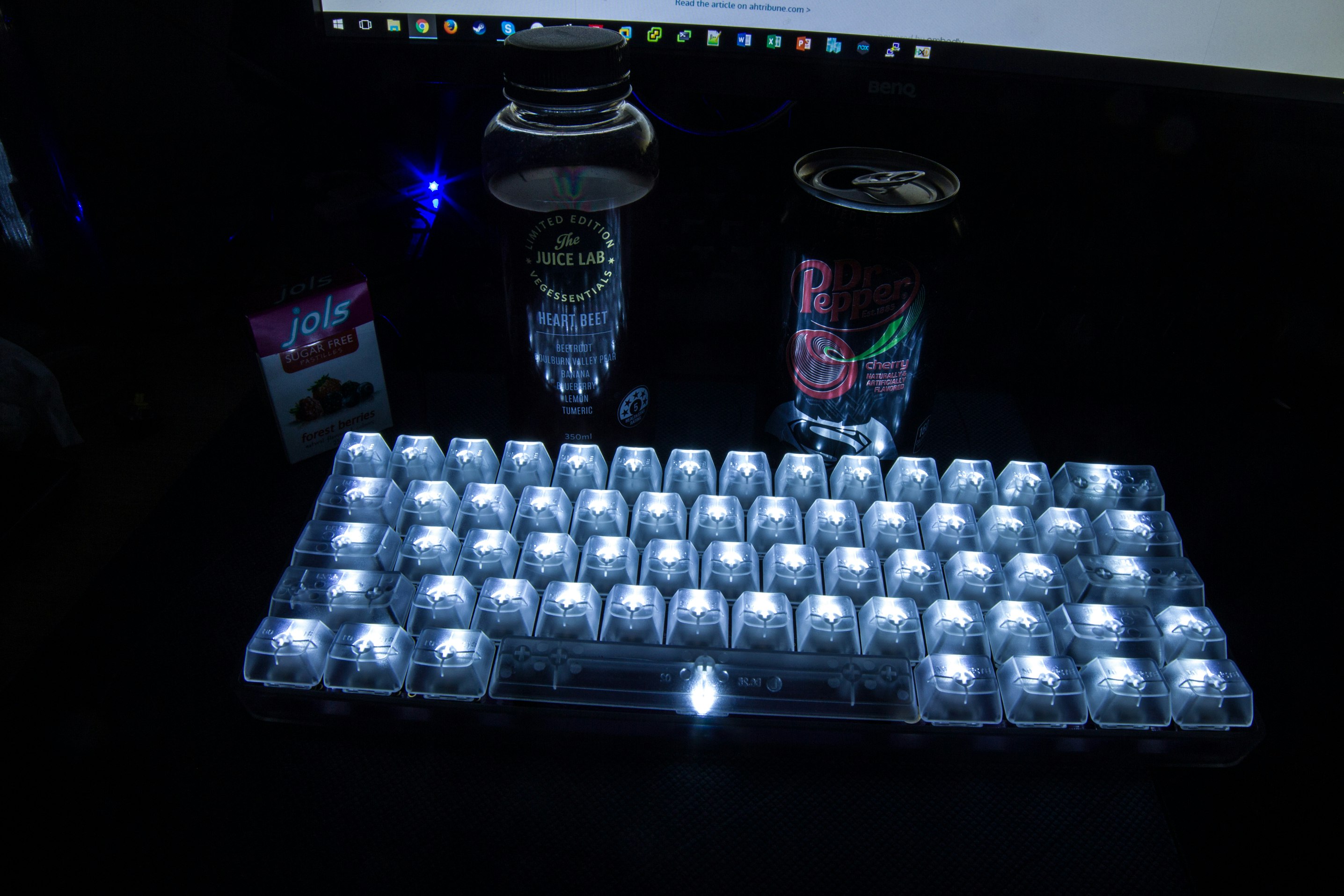

  • LEDs have the options to: Dim, Bright, Breathe
  • I'm /u/cryptix- @reddit
