Guide to build a 68% Keyboard

more_vert
Over the last weeks I built a 68% Mechanical Keyboard, based on the layout of the Magicforce68 and Varmilo VA68M. I documented all steps and wrapped everything in a tutorial website available at https://68keys.io. With the SA Grade keycaps it has a nice industrial look and feel, what do you think?
search
With the content on 68Keys.io, you can build your own custom 68% Keyboard! Sounds great, right? You will find all information about the needed Circuit Board, Aluminium Case, and modified TMK firmware on the site. With the detailed shopping list, you can start ordering parts and dive into building your mechanical keyboard right away.
search

search

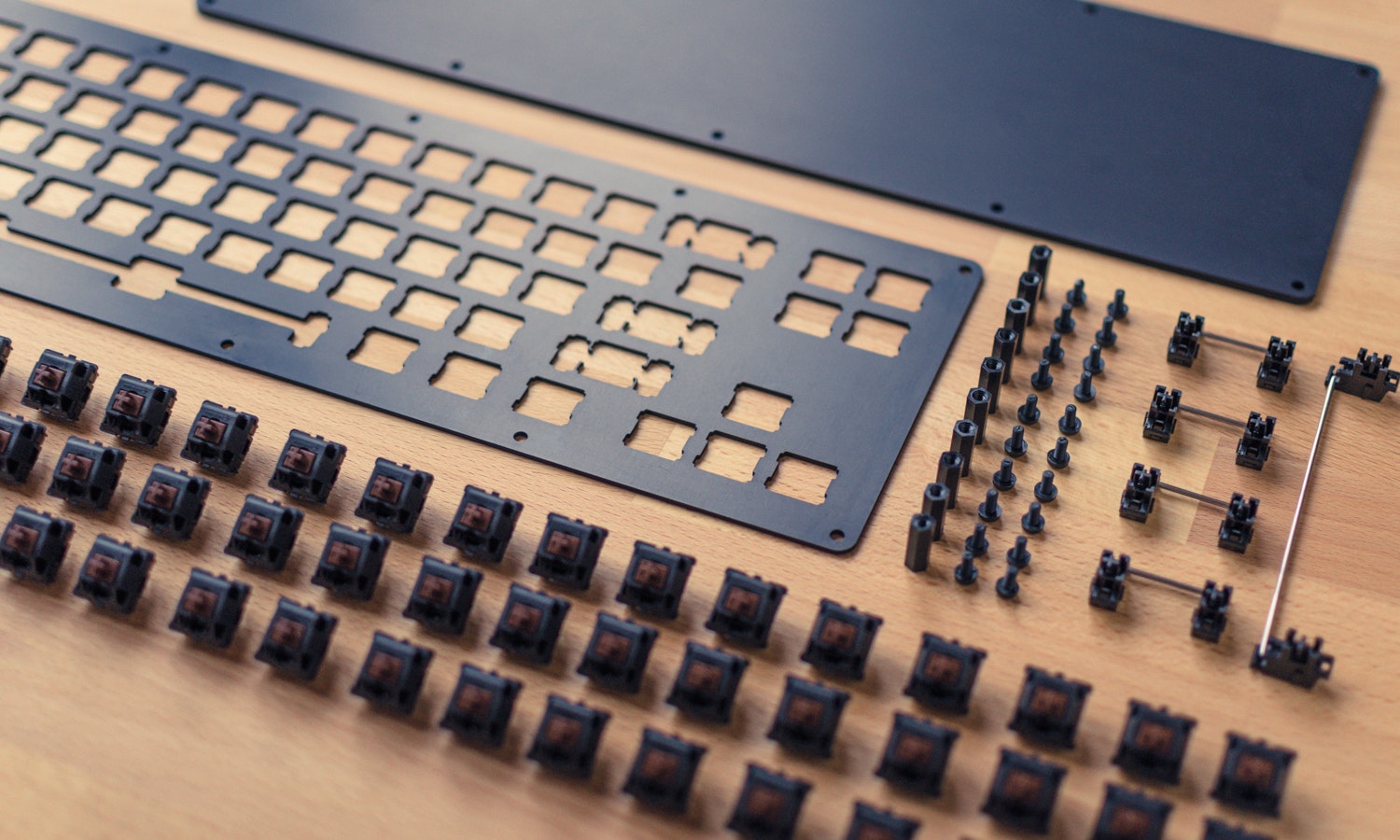

As you can see on the images, I use a simple Sandwich Case right know, do you know of any companies that offer custom Aluminium cases? I know this will be expensive compared to the current case, but it's the last missing piece in the puzzle ;)
