Here are some sizes to consider when creating a set:

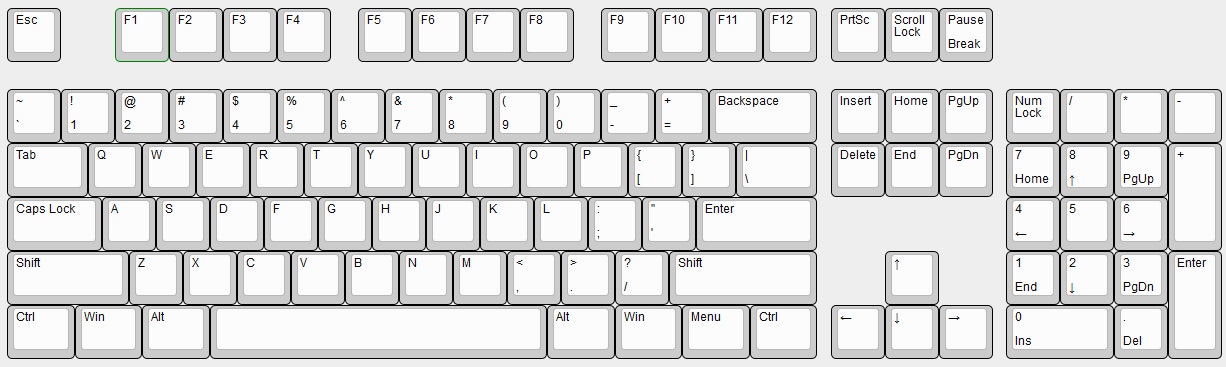

Fullsize
search

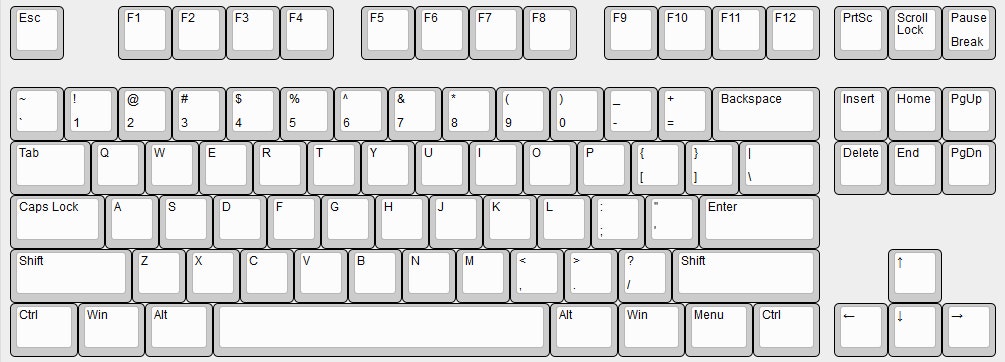

TKL
search

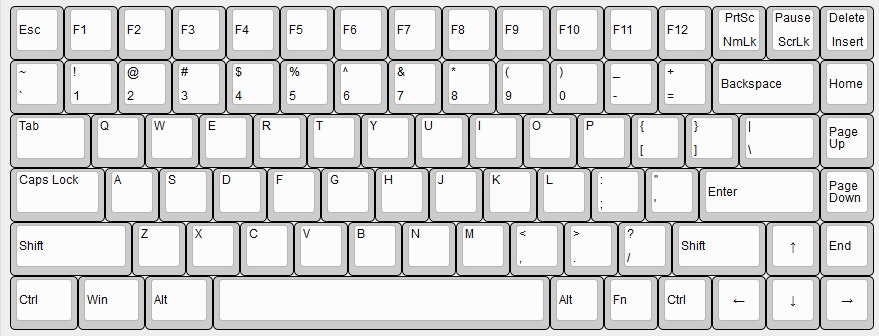

75%
search

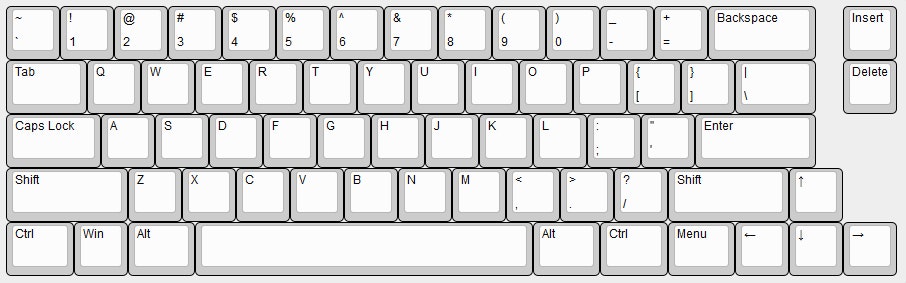

65%
search
60%
search

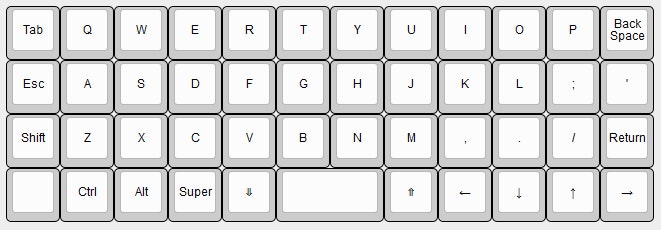

40% (Planck)
search

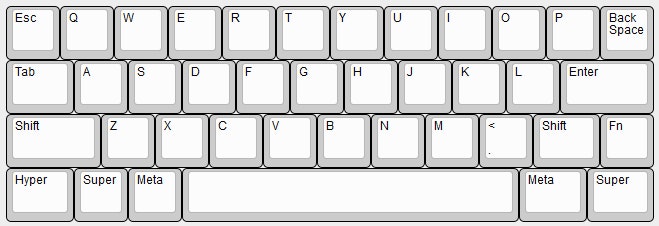

40% (JD40 Style)
search

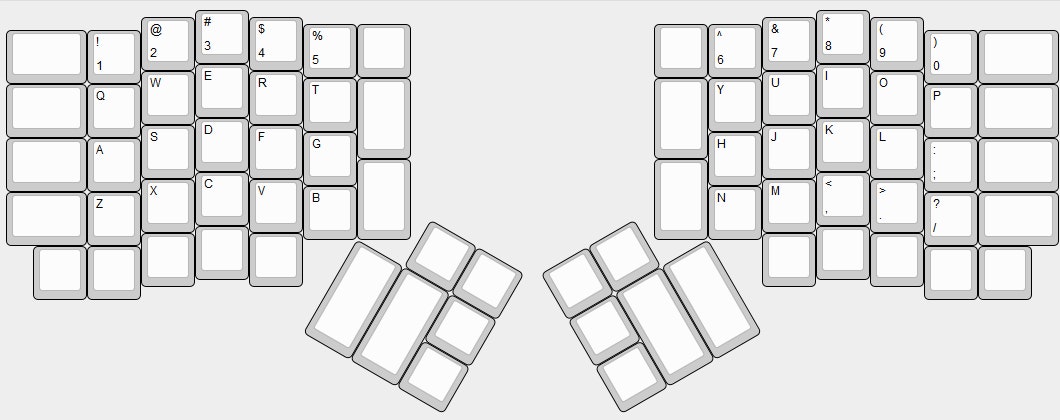

ErgoDox
search
Obviously these are just scratching the surface. There are other layouts like ISO to consider, along with multiple layouts of some sizes such as 65% which can also include the numerous WhiteFox layouts, the Varmilo layout with the 4 key cluster on the top right, etc. 40% keyboards are the new 60%, with many more layouts showing up like the Golbat and the Mini Van. 60% layouts are numerous as well, including HHKB styles, the Infinity Hacker layout, and the nearly infinite layouts on community made keyboards.
Sep 4, 2016
mintlodica
76
Sep 10, 2019
bookmark_border
Coming in belated with thanks. Thank you! Your posts, all of them, were invaluable when I embarked on the keyset design journey this past year.
Sep 10, 2019
