My Take on the Jailhouse Blues Switch Mod
more_vert
I have been interested in the Jailhouse Blues mod for quite a while now, but didn't have a really good way to implement it so it just sat on the back burner. If you don't know what the Jailhouse Blues mod is, check out this thread on geekhack - https://geekhack.org/index.php?topic=38091.0
search

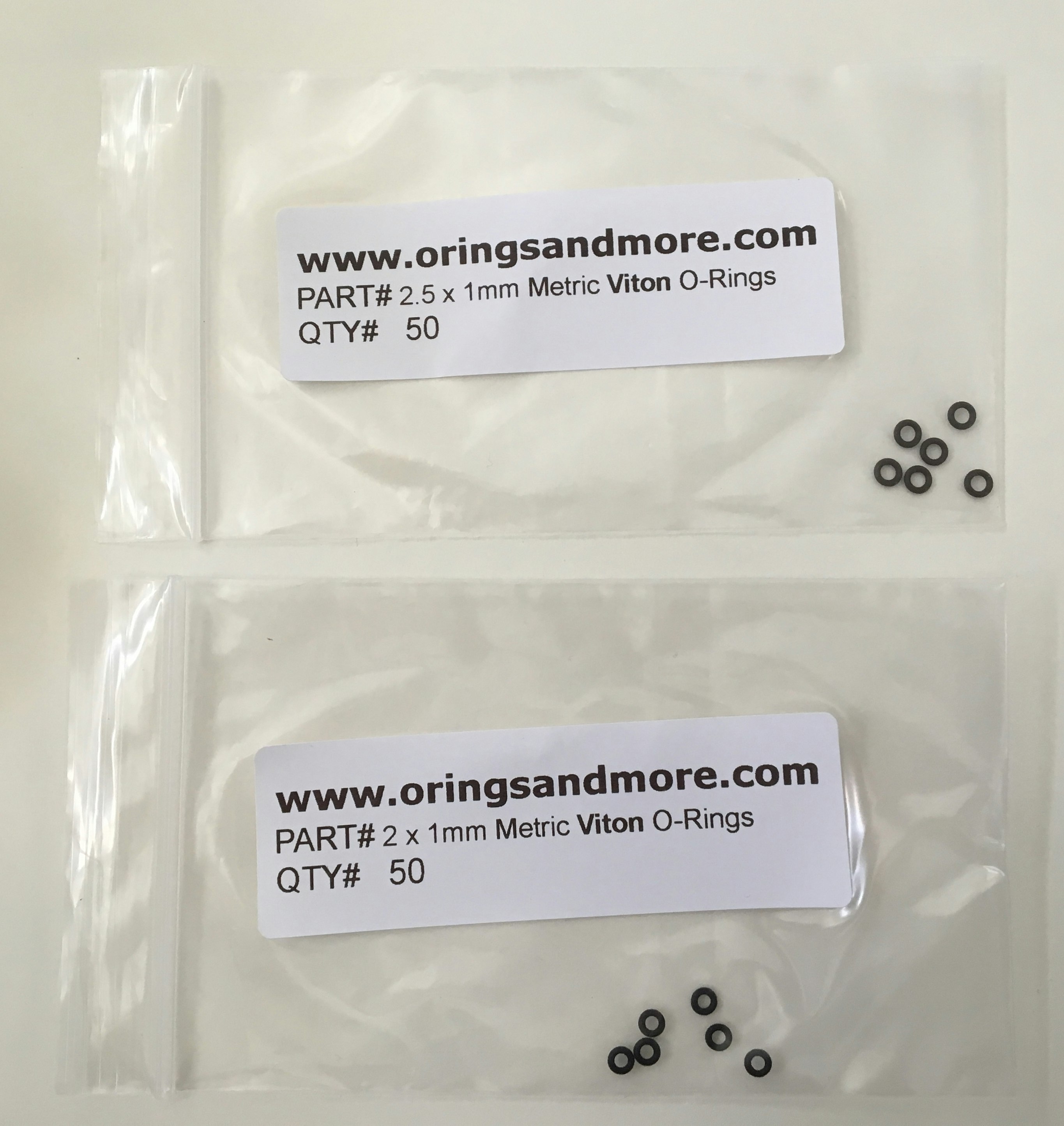

My biggest issue was that to do the mod you had to wrap wire around or cut o-rings and I was worried about inconsistent feel between switches. Don't ask me why it took so long, but I finally got the idea to look for smaller o-rings that didn't require cutting. I did some searching on eBay and found a couple that looked like they might work. I got both sizes thinking one would work and the other wouldn't. I ended up using them together.
search

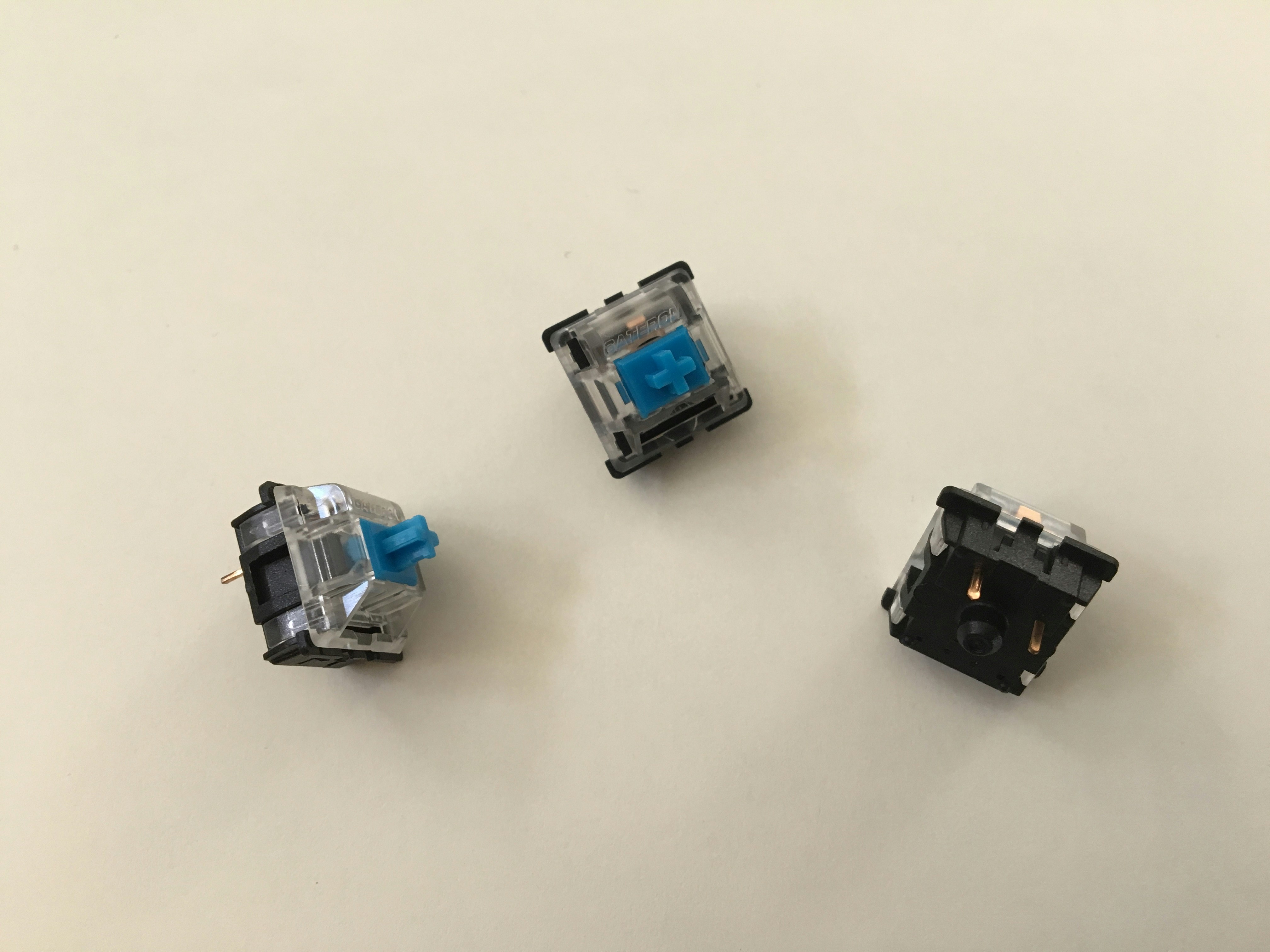

Step 1: Disassemble the keyswitch. We need an o-ring of each size to do the mod the way I did it.
search

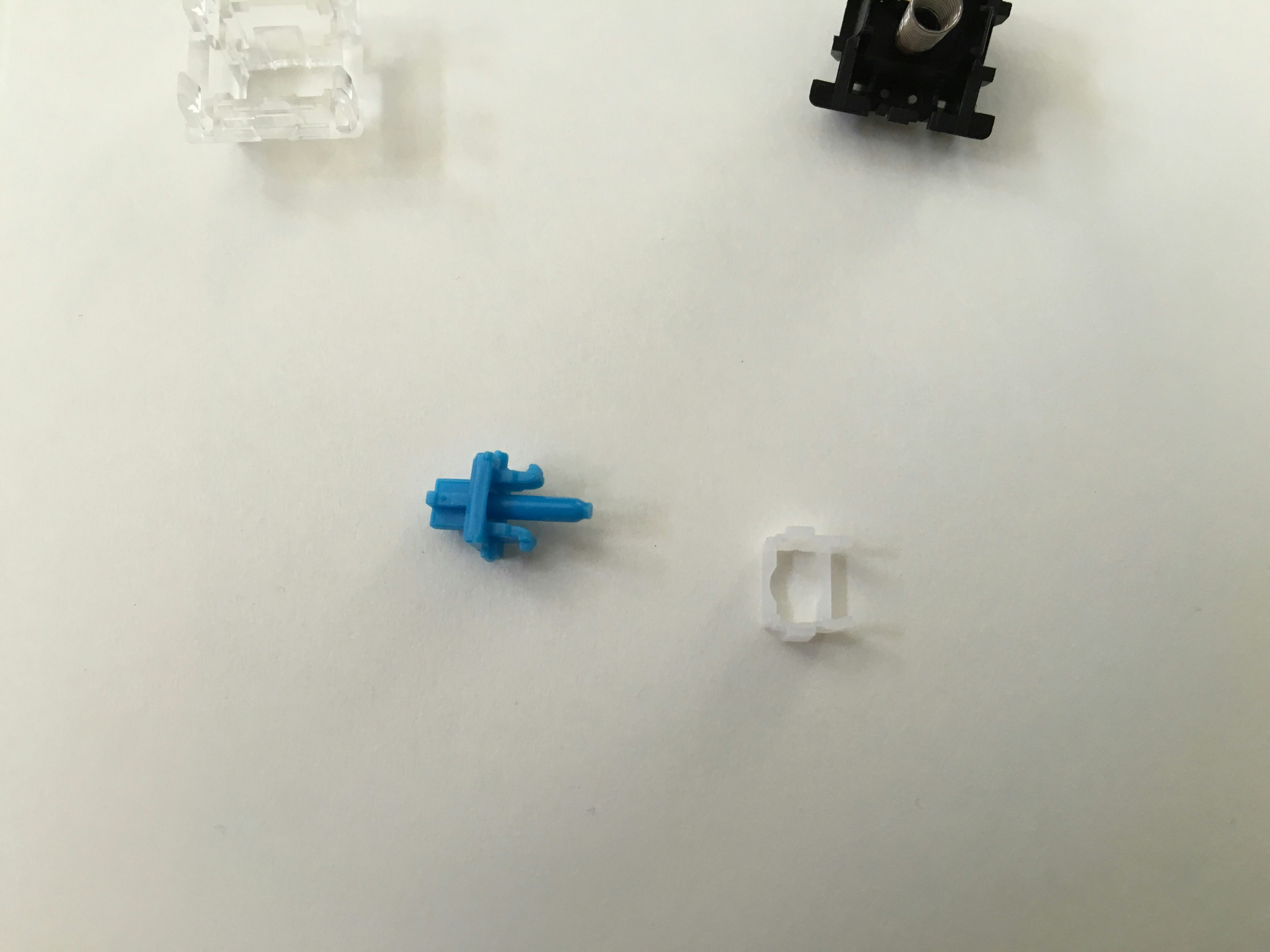

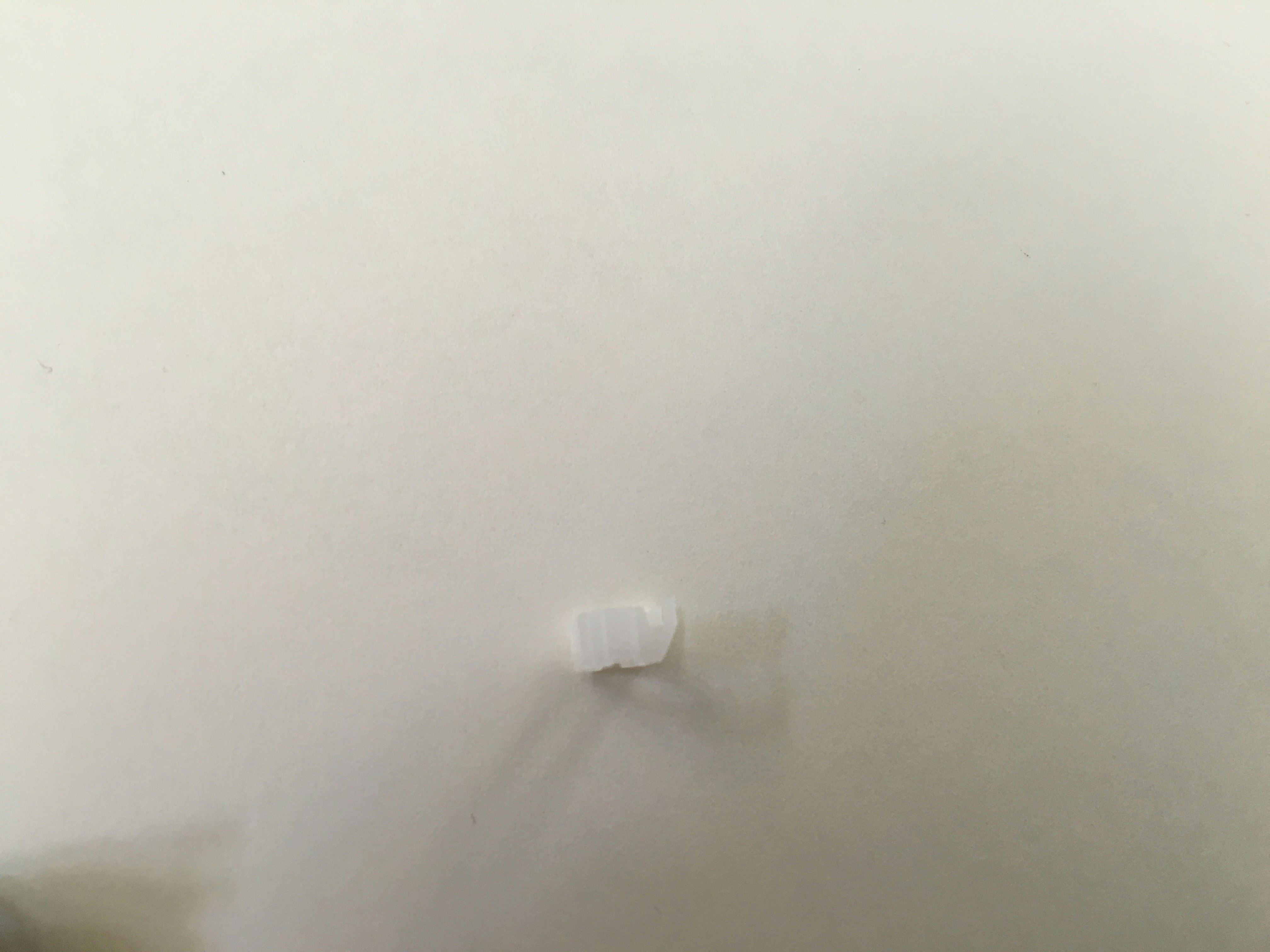

Step 2: Separate the white clicker piece from the stem.
search

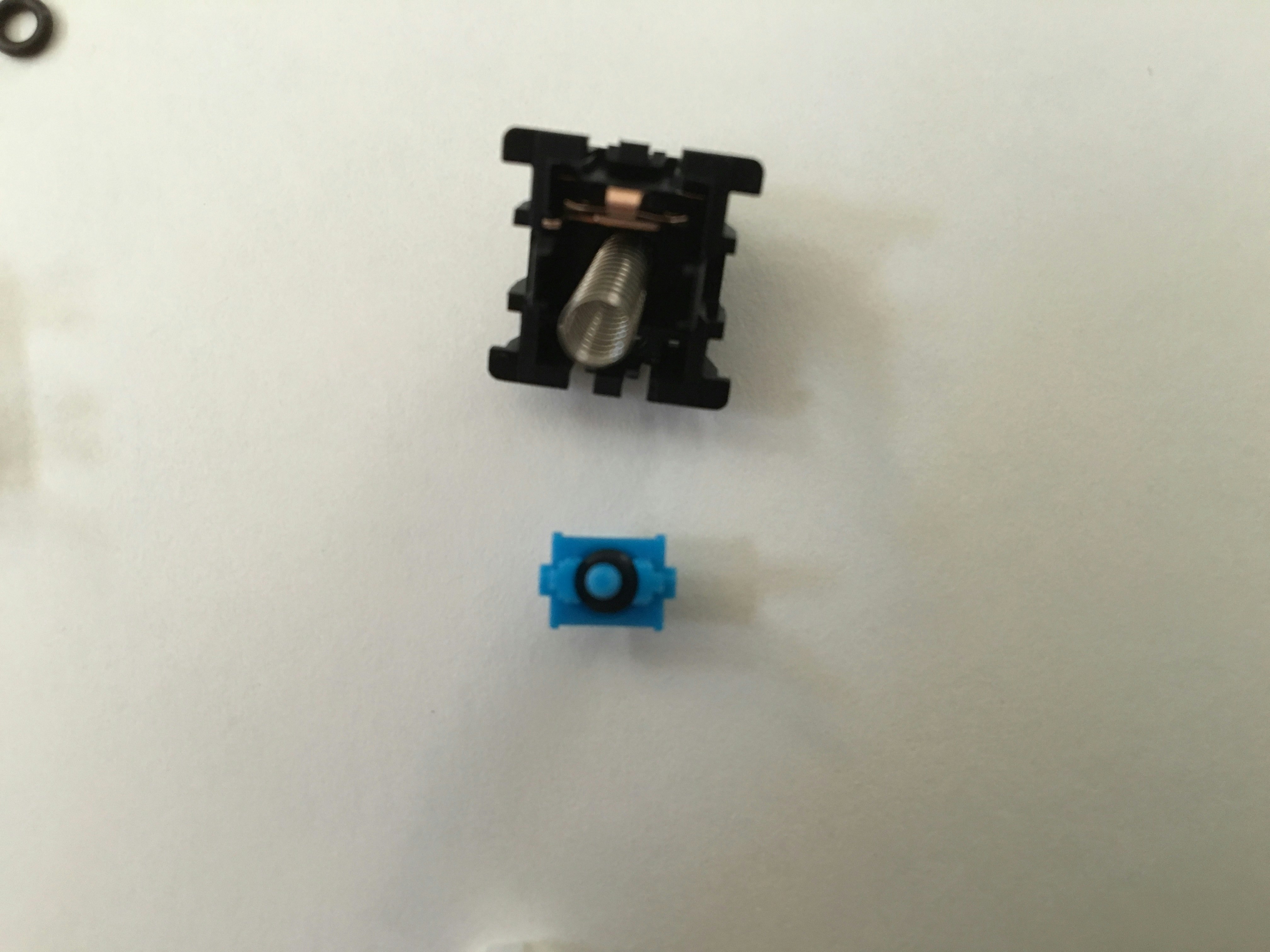

Step 3: Place the smaller o-ring onto the stem and push it all they way down.
search
Step 4: Push the larger o-ring onto the stem and pull the excess to one side.
search
Now we need to push the clicker piece back onto the stem. I like to put the side of the clicker piece with the little hooks (right hand side in picture below) over the part of the o-ring sticking out.
search

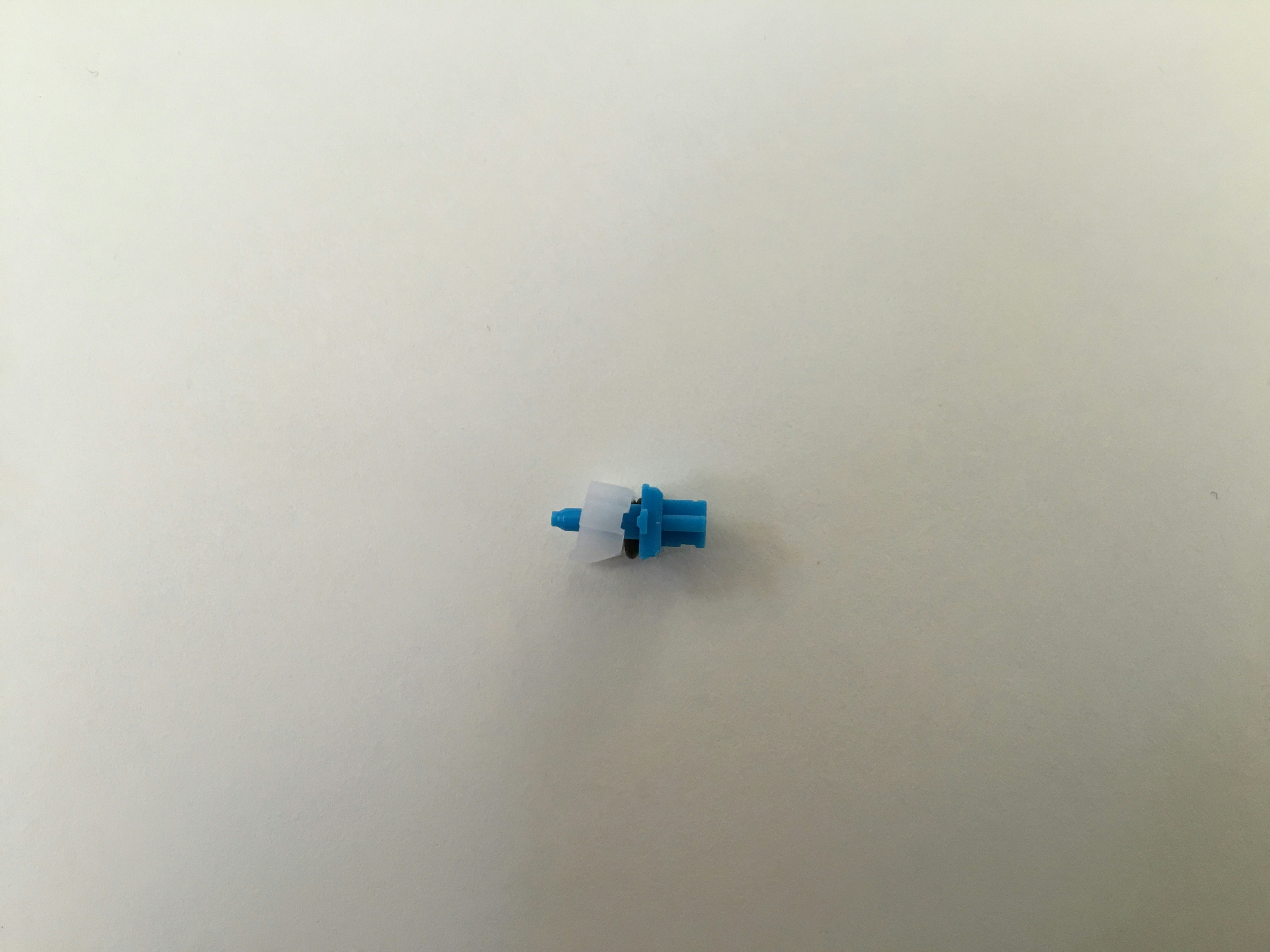

Step 5: Push the white clicker piece onto the stem.
search
The stem laying down with the o-ring bulging upwards in-between the clicker and the stem. This is what keeps the switch from clicking. It also reduced travel slightly and makes the switch feel slightly heavier.
search
Step 6: Put the stem in the switch top.
search
Step 7: Push the switch halves back together.
search
Here is a sound comparison between a stock switch and a modded switch.
I'm really happy with how this mod turned out and how easy it was to do and get a consistent result. I've been typing on these modded switches for the last day and a half and I really like them.
