How To Design A GMK Keycap Set: An Introduction

more_vert
GMK_Andy
149
Dec 13, 20226638 VIEWS
search

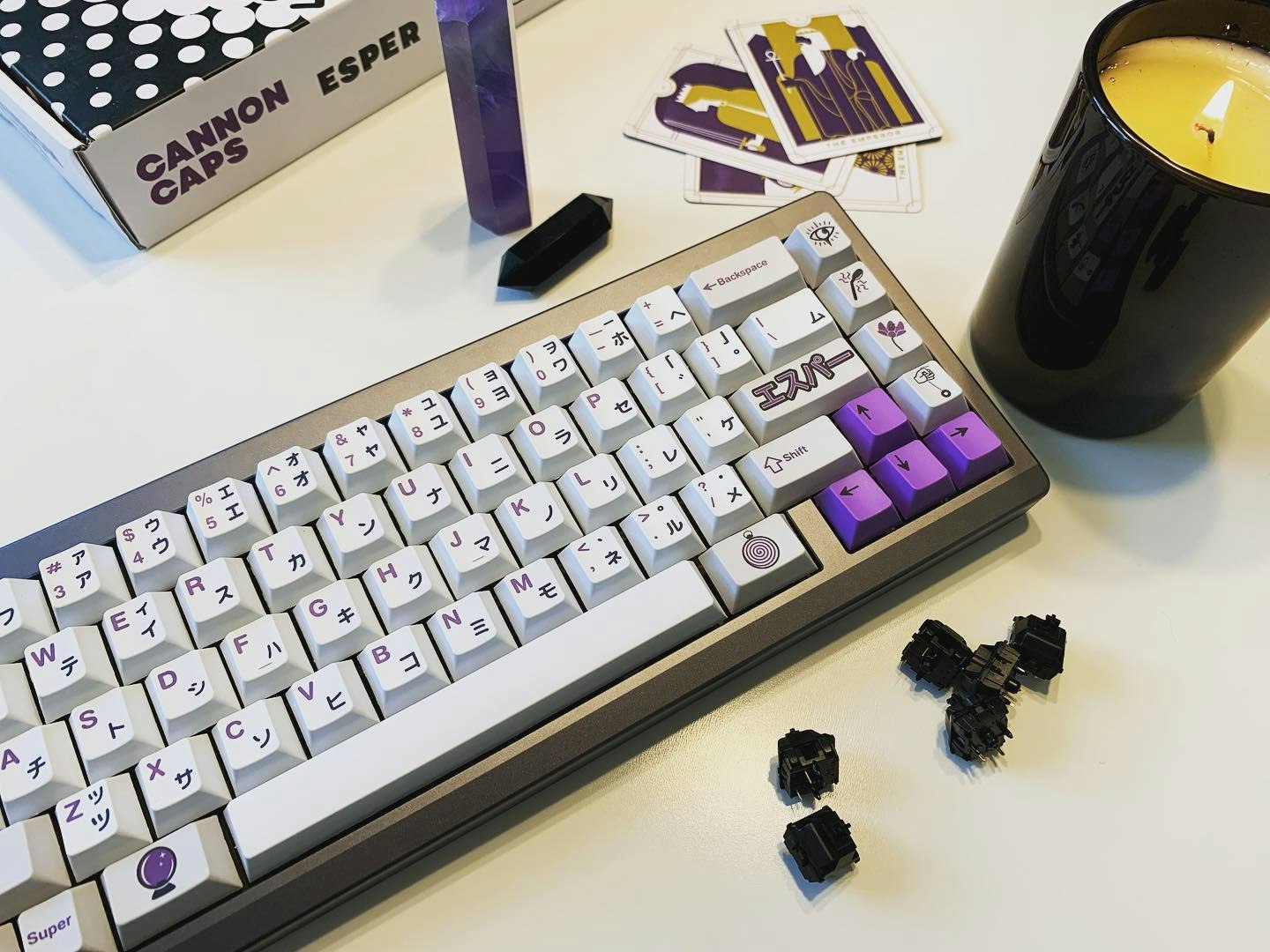

One of the most exciting aspects of the mechanical keyboard hobby is how anyone can become more than just a consumer – anyone can give designing a keycap set a shot and become a contributor as well!   I’ve been involved with designing keycap sets long before I worked for GMK – in fact my set Jukebox SA was the very first SA set to run on Massdrop years ago. Since then I’ve designed a few other kits (GMK Honeywell, GMK Mint Dolch) but have concentrated my efforts on helping other designers find good homes for their sets, and I’ve had the absolute pleasure of working directly with many of the designers in the community.    If you want to learn how to design a GMK keycap set (or any other profile – much of what I will go over will be universally helpful for any profile) I’ll be providing multiple articles here to walk you through every step of the process and best practices to use when designing a set.  The steps I will go over in detail are as follows:   ▪️ Basic overview / considerations when beginning to design a keycap set and where to start ▪️ Creating an Interest Check thread ▪️ Designing novelties ▪️ Creating keycap kitting ▪️ Selecting colors ▪️ Creating packaging artwork
Basic Overview: Designing a keycap set from start to finish  Creating a keycap set may sem deceptively simple, but there is actually quite a bit of nuance that goes into creating a successful set. To kick things off I want to provide a basic overview of the entire process, and I’ll be going further into detail on each aspect in subsequent posts. In these subsequent posts I will be concentrating exclusively on the requirements for creating a GMK keycap set, but in this introductory post I will speak in broader terms. I think it is important to understand all the choices you have when designing a keycap set.
search
The first step is simply coming up with a basic idea of what kind of set you want to create. Do you want to create a set that pays homage to favorite movie or TV show? Perhaps you want to make a set where you have a very specific colorway in mind, or want to use colors that clearly represent a very specific concept (synthwave, 80’s/90’s, etc).   The next step is to start drafting out how you want your set to look. Personally, I recommend using Keyboard Layout Editor (KLE), an online tool that allows you to easily experiment with colorways and kitting. During this stage I spend a lot of time experimenting with different color layouts – trying different colors for modifiers, alphas, legends, and even possible accent keys. There is a “standard” way to arrange colors on a keycap set, but there are no rules – you can arrange the colors as you see fit!  Finally, during this initial stage you want to figure out what kind of keycaps you want to use. Do you want to create a set for GMK’s Cherry profile, or perhaps Signature Plastics SA profile, or even Drops MT3 profile. Each different manufacturer and profile have very specific limitations and requirements, so you want to know what profile you will be designing for as soon as possible in the process. In some cases, like with MT3, it will also be important to decide if you want to use doubleshot legends, or dye sub legends. Alternatively if you want to design a GMK Cherry, or SP SA set, there is no choice – these profiles only use the doubleshot process.   Interest Check After you have a very basic concept of your keycap set, I’d recommend starting an Interest Check to get feedback on your set. The community aspect of this hobby is still incredibly important to the success of just about any keycap set, and getting feedback is an equally important step. I personally use geekhack as the forum style posting is excellent for keeping up with a post over time. During the interest check stage it’s important to keep an open mind and really listen to feedback from the community. Personally, when I was designing my first set Jukebox, the community feedback was invaluable. They really helped make the set what it became, a set that was far better than anything I ever could have done on my own.  The community feedback is also very useful for kitting, because it’s almost impossible to keep track of all the new layouts and keyboards that the community is working on.  Keycap Kitting Speaking of creating kits, kit selection is a really delicate part of the process. Personally I find this stage to be the most difficult part of the entire process. Kitting is where you decide what keycaps you want your set to include, and how/if you want to split the caps up into different kits. For some sets you may want to have multiple kits, and for others you may want a single base set to be the only set you offer. There are many things to consider when selecting how you want to split up kits – and I’ll go over these in detail in a later post.
search

Novelty Keys  At the same time the IC ins happening, you should also be working on any novelty keys, new fonts, or special keys you want to add to the set. Not every set will need special keys (my old set GMK Honeywell was awarded the Deskthority “Set of the Year” for example, and it included no special keys or novelties). When designing novelties, be aware of any protected materials, especially if you are designing a set based off of an existing work (like a movie, book, show, etc). When designing new legends you need to keep in mind a few important details – most important what the specific manufacturing tolerances are for the caps you are using. For example, if you are creating a doubleshot keycap set, you can’t have novelties with more than 2 colors, or shading.     Colors The final consideration for this stage is selecting the colors that will be used. This is often a deceptively hard part of the process. When selecting colors it is best practice to use either RAL or Pantone, with RAL being preferred as it is intended to be used for plastic manufacturing. When working with colors there are a few things you should be aware of. First – make sure you calibrate your monitor, and always check your work on as many different screens as possible. If you are using a “gaming mode” or some high contrast mode, turn it off. Colors on the screen never translate perfectly to how colors will look in real life, which is why I always suggest getting sample plastic chips if possible. Anytime I use pantone colors I always get the samples. These allow me to look at the colors and contrast between the colors in a variety of lighting. Buyers will always want to know the specific colors used in any set – so having this information readily available is quite important.
search

Packaging Now that the design process is wrapping up all that is left to do is design the packaging and get the required files to the vendor so that they can place the order. Different manufacturers each have their own packaging, but templates should be readily available.   Mod Edit: Formatting
(Edited by moderator HoffmanMyster)
HoffmanMyster, sietai, and 43 others
100% upvoted
45
27
remove_red_eye
6.6K
GMK_Andy
149

search
close
Sort by: Newest
keyboard_arrow_down
TheAshenBlade
3
Sep 14, 2023
Sorry I'm a little late, great article! How much does it typically cost to create your own keycap set? And where do you typically get the keycaps manufactured at or submit the designs to..?
1
Reply
bookmark_border
more_vert
Lexxed
29
Dec 29, 2022
Nice article. Another part on font selection would be good. I still want a decent set with comic sans
1
Reply
bookmark_border
more_vert
sietai
154
Keyboard Club Member
Dec 15, 2022
@GMK_Andy I’ve own 3 sets of Jukebox keycaps lol (and it’s the only color scheme I have multiples of). Not sure how ownership of the color schemes work or if you had involvement is Tao-Hao and Mt3 jukebox, just wanted to say I’m a fan!
1
Reply
bookmark_border
more_vert
GMK_Andy
149
Dec 17, 2022
sietaiHey!! Yeah, I've been involved in all of them :) thanks so much!!
2
Reply
bookmark_border
more_vert
Ryan_V
12
Dec 15, 2022
Fantastic article, I'm already looking forward to the remaining pieces of the series. I'd say if there was one element to the hobby that I'd want to wear my Contributor Hat on, it'd be making a keycap set. This is highly informative. Thanks.
(Edited)
•
Reply
bookmark_border
more_vert
GMK_Andy
149
Dec 17, 2022
Ryan_VPlease let me know if you have any stuff you want to specifically hear about!
1
Reply
bookmark_border
more_vert
M0les
11
Dec 15, 2022
This is very interesting. I can see a new time-sink in my future.
1
Reply
bookmark_border
more_vert
SIMOROBO
86
Dec 14, 2022
It would be interesting to know the implications of making a set such as the header image wob katakana where every alpha key was, I'm assuming, a custom mold. Do you need to run a group buy with 2x, 10x, 100x more sales than a conventional set?
5
Reply
bookmark_border
more_vert
SIMOROBO
86
Dec 14, 2022
Are there colors that are known to be more problematic or even impossible to achieve?
2
Reply
bookmark_border
more_vert
View 1 More Reply
bcusynot
1
Jan 17, 2023
Specifically, what is a hyper-neon color you are unable to produce? And, is a not fully mixed plastic effect achievable on a GMK set?
Vote
Reply
bookmark_border
more_vert
GMK_Andy
149
Jan 17, 2023

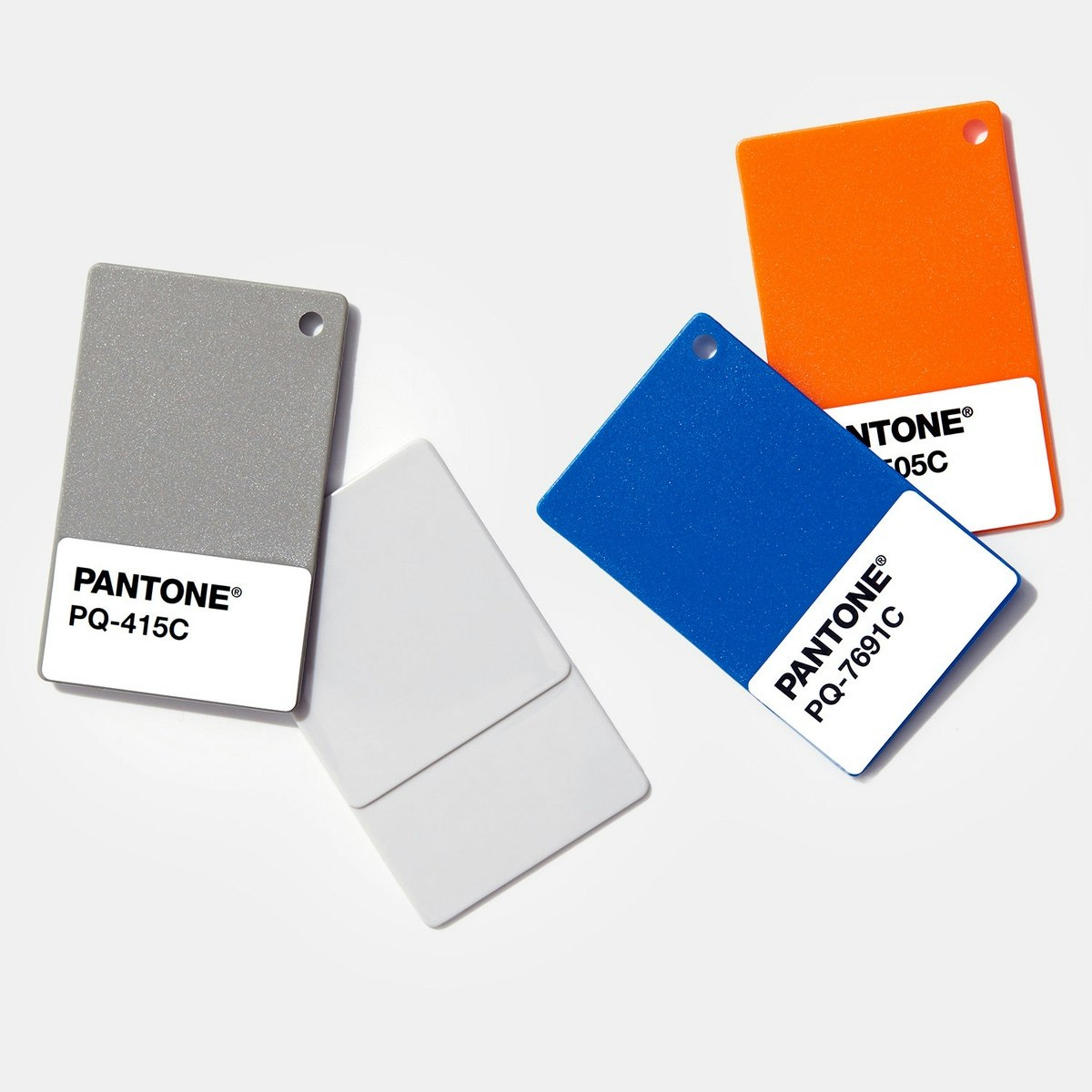

bcusynotWhat do you mean? If you're selecting RAl or Pantone generally we can do it all, the neons being the exception due to materials in them. No, we get our raw materials from a supplier in Germany that specializes in making and color matching the material. It comes mixed.
Vote
Reply
bookmark_border
more_vert
KLage
1
Dec 14, 2022
Hi @GMK_Andy, great article. I look forward to reading the subsequent ones! I'd like to know if there are any productions in queue that will include the Mac modifiers.
•
Reply
bookmark_border
more_vert
lfchawkeye
35
Dec 14, 2022
What is the expected production lead time on a GMK keyset these days? Is there a list of sets currently in production queue, by chance?
3
Reply
bookmark_border
more_vert
View 2 More Replies
GMK_Andy
149
Dec 18, 2022
Yup! I will have actual numbers in a post after the holidays but we are producing ~2x the number of caps per month, as compared to last year at this time (~4-5 million caps compared to ~2.5 million) along with just adding a new sorting machine that will greatly improve the accuracy and speed at which sets can be sorted (this was a bottleneck). As I mentioned, I will provide real data here in a large post I'll share across communities after the holidays when the team has time to pull the real numbers for me.
1
Reply
bookmark_border
more_vert
TyPo.mk
1
May 9, 2023
GMK_AndySo uh 98 sets to go! I believe in you!!!
Vote
Reply
bookmark_border
more_vert
rfmarves
3
Dec 14, 2022
What is that disk-like thing shown in the main picture, right above the keyboard?
1
Reply
bookmark_border
more_vert
GMK_Andy
149
Dec 17, 2022
rfmarvesProbably a metal tin that an artisan shipped in? Honestly, not sure though!
2
Reply
bookmark_border
more_vert
Showing 20 of 27
