A Quick Guide On Desoldering

Sep 4, 201717705 VIEWS

A topic that is considered something that most people stay away from and something that scares almost all keeb enthusiasts is desoldering. But if you ever really wanted to change the switches you have on a keyboard or one of your switches breaks then its a necessary thing to know how to do.
I very much needed to do a jailhouse mod to my mx greens so I could have a good school keyboard. So today ill be showing you how to desolder a plank pcb although they will all be done the same just with varying sizes.
Before you start make sure you are careful while doing this its very easy to burn yourself and it is possible to fry your pcb while doing this so make sure you have a good heat and are really careful :)
To start you will need a few things
1. a soldering iron
2. a desoldering pump
3. something to clean the iron

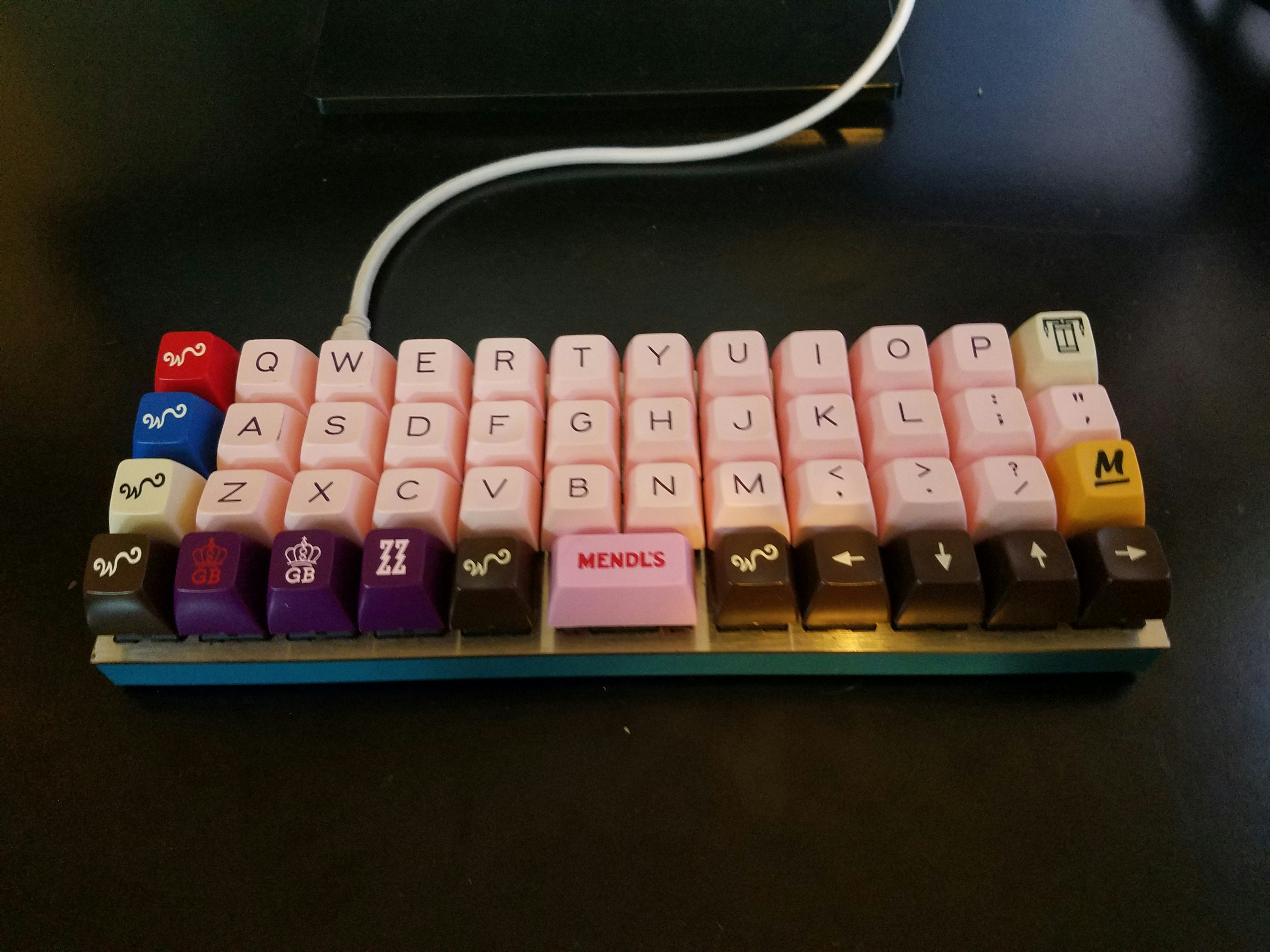

This is what my keeb looks like :3

First you will have to start by taking off the keycaps

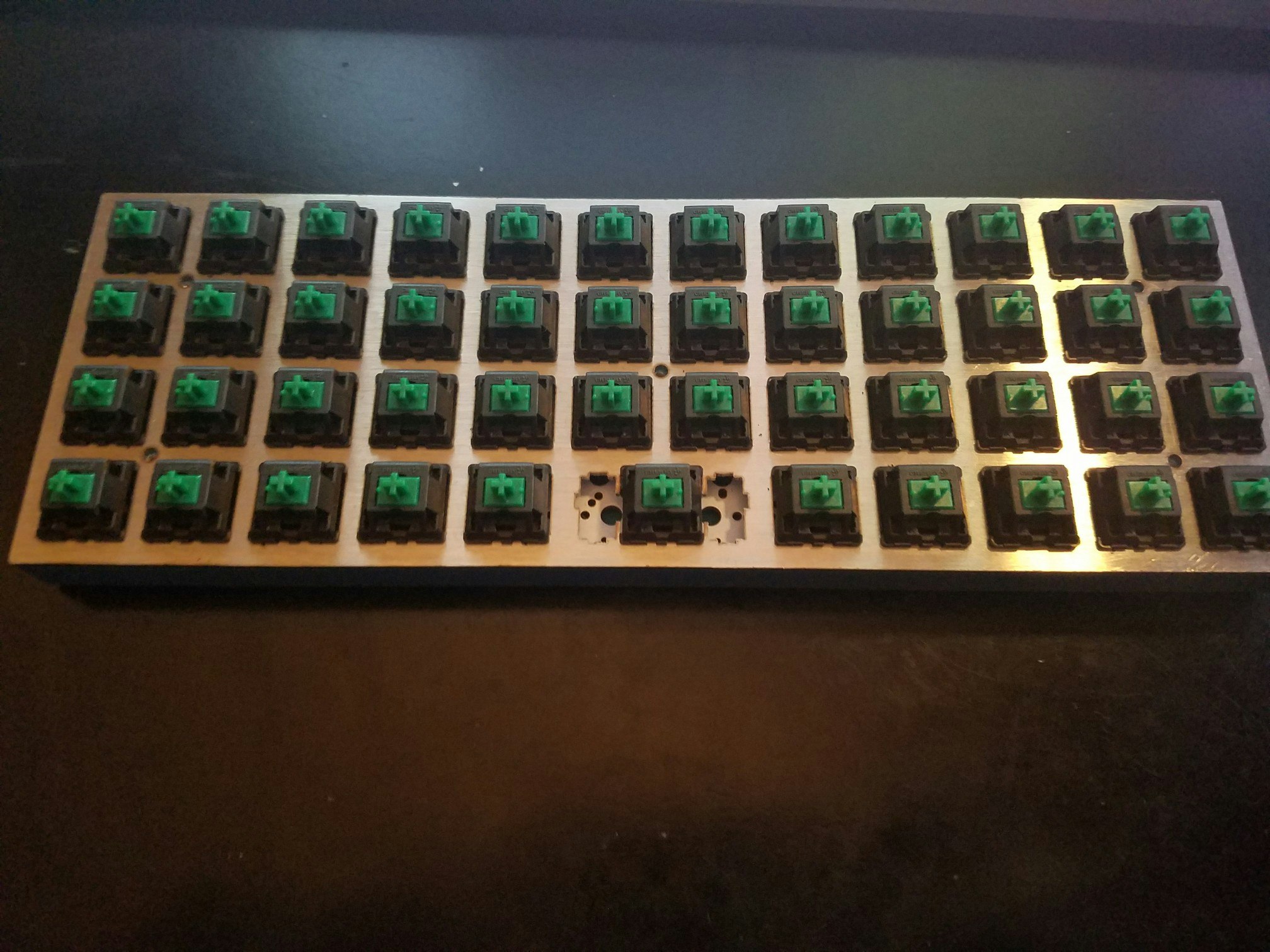

then remove the top plate from the case (this may be much harder for large brand keyboards as opposed to DIYs)

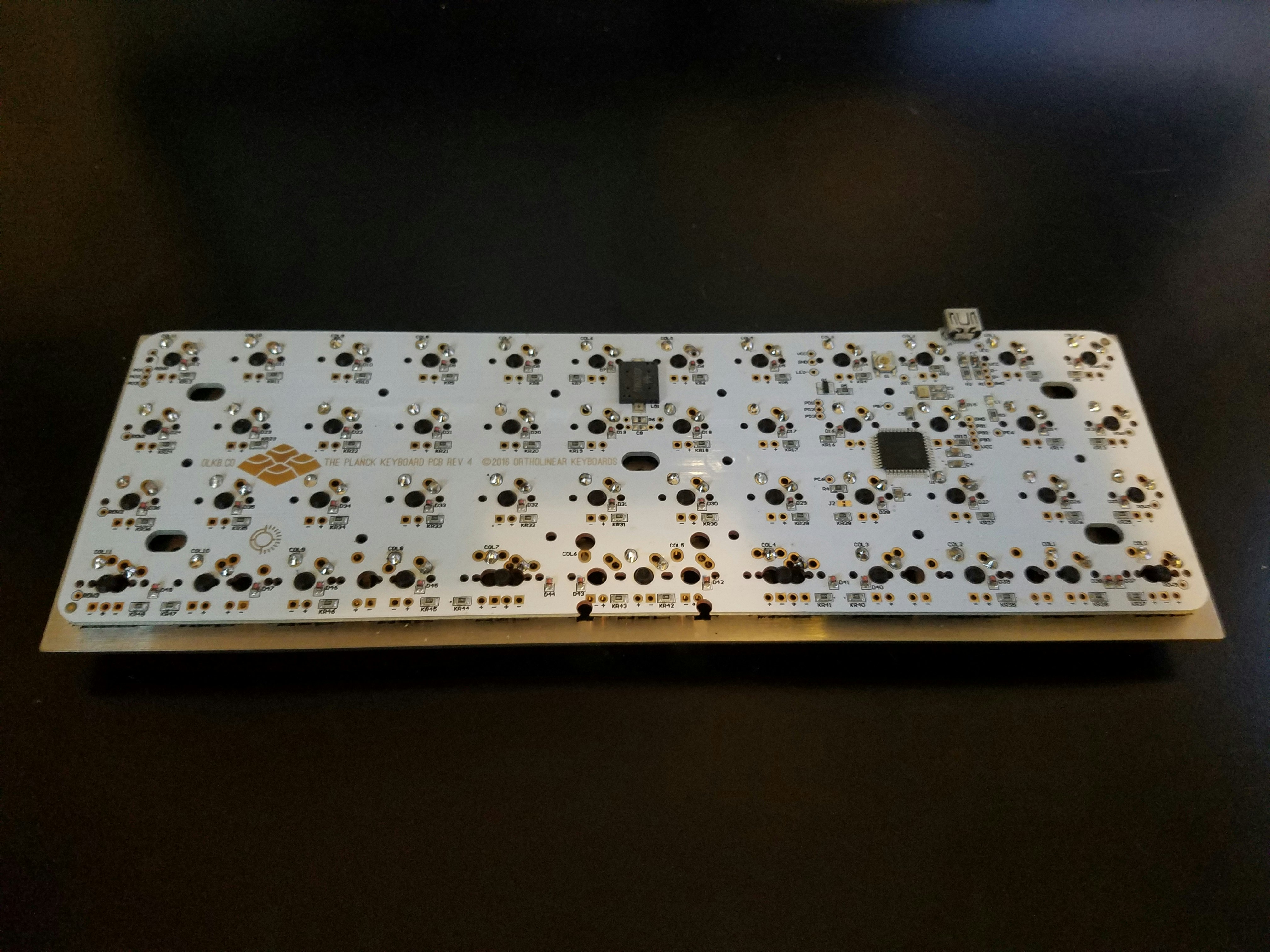

Then you can start to desolder the switches, this wont be the easiest task and will be extremely tedious. To do so you will apply your soldering iron to the metal then as quick as you can use the desoldering pump on the metal

then just repeat for every. single. solder point... (I had my heat too high here so try to find the right heat for you)

hope this was helpful ^^ ill probably be putting up some more guides in the future so if there is anything you need help with just tell me and ill probably do a guide for it.

also I damaged my desk to make this so I hope you guys enjoyed this
