Seeed AlphaBot Robot Building Kits
Versatile DIY Roaming Robot

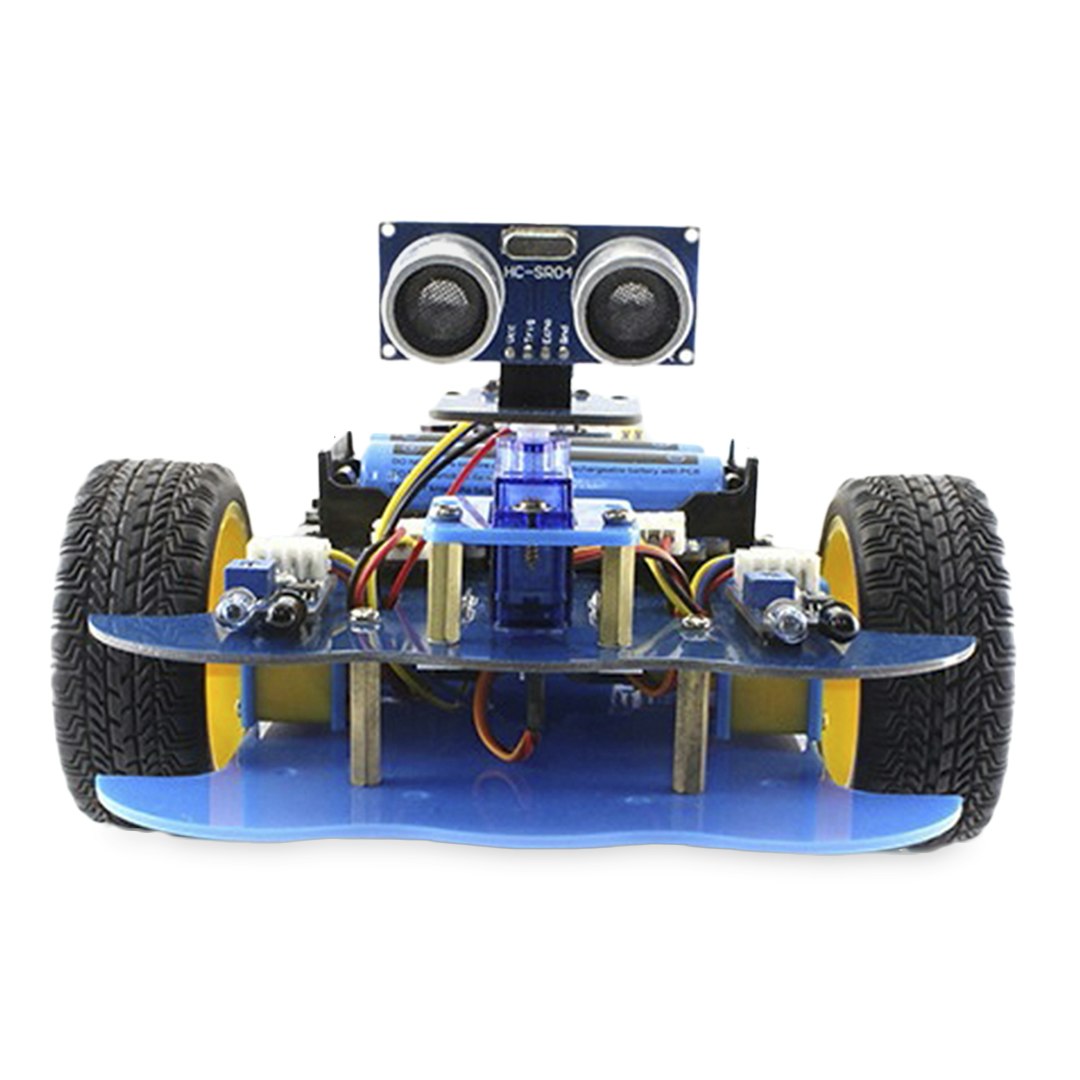

The Seeed AlphaBot is a remote-controlled DIY vehicle that can be assembled, controlled, and manipulated with the Arduino or Raspberry Pi. Once assembled, you’ll be able to move it this way and that with ease. It’s got built-in infrared obstacle avoidance and line tracking, meaning you can put it on a set route or watch it move while keeping out of harm's way. Attach a camera to the body (included in some models) to take video footage as you command the bot to roam around. Each kit comes with the AlphaBot main board and all the parts needed to assemble the vehicle. For Bluetooth control, opt for the Bluetooth version. One model even comes with a Raspberry Pi to get you started. See the specs for more details on each kit.
Note: At checkout you will have five different kit options: AlphaBot Basic Robot Building Kit, AlphaBot Bluetooth Robot Building Kit (+ $30), Alphabot Raspberry Pi Robot Building Kit with no Pi (+ $9), Alphabot Raspberry Pi Robot Building Kit with Pi 3 model B (+ $50), and the AlphaBot Mobile Robot Development Platform (- $10).
Model Options
AlphaBot Basic Robot Building Kit
AlphaBot Mobile Robot Development Platform (- $10)
Alphabot Raspberry Pi Robot Building Kit with no Pi (+ $10)
AlphaBot Bluetooth Robot Building Kit (+ $30)
Alphabot Raspberry Pi Robot Building Kit with Pi 3 model B (+ $50)
Specs
AlphaBot Main Board (Included in All Models)
- Raspberry Pi interface: for connecting Raspberry Pi
- Arduino interface: for connecting Arduino
- Motor interface
- Ultrasonic module interface
- Servo module interface
- Obstacle avoidance module interface
- Speed measuring interface
- Battery holder: supports 18650 batteries
- Reserved power input (not soldered): for connecting other external power supply
- Arduino expansion header: for connecting Arduino shields
- UART interface: for connecting Bluetooth module, to control the robot remotely via Bluetooth
- SPI interface: for connecting NRF24L01 wireless module
- Line tracking module interface
- TLC1543: 10-bit AD acquisition chip, allows the Pi to use analog sensors
- LM298P: dual H bridge motor driver chip, up to 2A current
- Anti-reverse diode
- Power switch
- LM2596: 5V regulator
- Power indicator
- UART switch: turn on to enable serial communication between Raspberry Pi and Arduino
- IR receiver: control the robot remotely via infrared
AlphaBot, Basic Robot Building Kit for Arduino (Checkout Option 1 Base Price)
- UNO PLUS Controller Board:
- ATMEGA328P-AU
- AMS1117-3.3: 3.3V voltage regulator
- NCP1117ST50T3G: 5V voltage regulator
- FT232RL: USB to UART convertor
- Arduino interface
- compatible with standard Arduino interface with two additional analog inputs A6 (config the CFG), A7
- Solder pads provided, supports prototype breadboard
- ICSP interface
- MICRO USB connector: for uploading program OR serial port debugging
- Power output header: 3.3V OR 5V, voltage level configured by the onboard power configuration switch, used as power output OR common-grounding with other boards
- FT232 pins: for burning Bootloader into the microcontroller
- DC input: 7V ~ 12V
- Reset button
- Power indicator
- Serial port Rx/Tx indicator
- User LED
- Power configuration switch: for configuring the operating voltage
- Bootloader selection switch
Included (Checkout Option 1)
- UNO PLUS
- AlphaBot mainboard x1
- Tracker Sensor x1
- Photo Interrupter Sensor x2
- Infrared Proximity Sensor x2
- Motor with gearbox 2PCS x1
- AlphaBot wheel 2PCS x1
- AlphaBot acrylic chassis x1
- Motor mounting plate 4PCS x1
- Omni-direction wheel x1
- 20-slots encoder disk 2PCS x1
- IR remote controller x1
- XH2.54 4cm 4Pin 2PCS x1
- XH2.54 4cm 3Pin 2PCS x1
- XH2.54 4cm 7Pin x1
- AlphaBot screws x1
AlphaBot, Bluetooth Robot Building Kit for Arduino (Checkout Option 2 +$30)
UNO PLUS Controller Board:
- ATMEGA328P-AU
- AMS1117-3.3: 3.3V voltage regulator
- NCP1117ST50T3G: 5V voltage regulator
- FT232RL: USB to UART convertor
- Arduino interface
- compatible with standard Arduino interface with two additional analog inputs A6 (config the CFG), A7
- Solder pads provided, supports prototype breadboard
- ICSP interface
- MICRO USB connector: for uploading program OR serial port debugging
- Power output header: 3.3V OR 5V, voltage level configured by the onboard power configuration switch, used as power output OR common-grounding with other boards
- FT232 pins: for burning Bootloader into the microcontroller
- DC input: 7V ~ 12V
- Reset button
- Power indicator
- Serial port Rx/Tx indicator
- User LED
- Power configuration switch: for configuring the operating voltage
- Bootloader selection switch
Included (Checkout Option 2)
- Bluetooth module
- Arduino accessory shield
- UNO PLUS
- AlphaBot mainboard x1
- Tracker Sensor x1
- Photo Interrupter Sensor x2
- Infrared Proximity Sensor x2
- Motor with gearbox 2PCS x1
- AlphaBot wheel 2PCS x1
- AlphaBot acrylic chassis x1
- Motor mounting plate 4PCS x1
- Omni-direction wheel x1
- 20-slots encoder disk 2PCS x1
- IR remote controller x1
- XH2.54 4cm 4Pin 2PCS x1
- XH2.54 4cm 3Pin 2PCS x1
- XH2.54 4cm 7Pin x1
- AlphaBot screws x1
AlphaBot, Raspberry Pi Robot Building Kit with no Pi (Checkout Option 3 +$9)
Included (Checkout Option 3)
- Camera with servo and 2 DOF pan head
- AlphaBot mainboard x1
- Tracker Sensor x1
- Photo Interrupter Sensor x2
- Infrared Proximity Sensor x2
- Motor with gearbox 2PCS x1
- AlphaBot wheel 2PCS x1
- AlphaBot acrylic chassis x1
- Motor mounting plate 4PCS x1
- Omni-direction wheel x1
- 20-slots encoder disk 2PCS x1
- IR remote controller x1
- XH2.54 4cm 4Pin 2PCS x1
- XH2.54 4cm 3Pin 2PCS x1
- XH2.54 4cm 7Pin x1
- AlphaBot screws x1
AlphaBot, Raspberry Pi Robot Building Kit with Pi 3 model B (Checkout Option 4 +$50)
Included (Checkout Option 4)
- Raspberry Pi 3 Model B
- Camera with servo and 2 DOF pan head
- AlphaBot mainboard x1
- Tracker Sensor x1
- Photo Interrupter Sensor x2
- Infrared Proximity Sensor x2
- Motor with gearbox 2PCS x1
- AlphaBot wheel 2PCS x1
- AlphaBot acrylic chassis x1
- Motor mounting plate 4PCS x1
- Omni-direction wheel x1
- 20-slots encoder disk 2PCS x1
- IR remote controller x1
- XH2.54 4cm 4Pin 2PCS x1
- XH2.54 4cm 3Pin 2PCS x1
- XH2.54 4cm 7Pin x1
- AlphaBot screws x1
AlphaBot, Mobile Robot Development Platform (Checkout option 5 -$10)
Included (Checkout Option 5)
- AlphaBot mainboard x1
- Tracker Sensor x1
- Photo Interrupter Sensor x2
- Infrared Proximity Sensor x2
- Motor with gearbox 2PCS x1
- AlphaBot wheel 2PCS x1
- AlphaBot acrylic chassis x1
- Motor mounting plate 4PCS x1
- Omni-direction wheel x1
- 20-slots encoder disk 2PCS x1
- IR remote controller x1
- XH2.54 4cm 4Pin 2PCS x1
- XH2.54 4cm 3Pin 2PCS x1
- XH2.54 4cm 7Pin x1
- AlphaBot screws x1
Shipping
Estimated ship date is Mar 12, 2019 PT.
Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.
