Mechanical vs Membrane

Nov 11, 2022836 VIEWS

Having already discussed some of the early things to consider in the world of mechanical keyboards, it seems appropriate to take a step back and answer the obvious question - why should I even care about mechanical keyboards in the first place? This might be a solved problem to some of us, but if you’re stumbling across this early in your discovery of the mech keys hobby, you’ve come to the right place. Why should I care so much about my keyboard? Back when I first joined the hobby, the prevailing sales pitch for mechanical keyboards was “why would you spend $1,000 on a custom PC build only to use a $10 cheapo keyboard as your main physical interface with the computer?” While this argument has become a bit of a cliche and fallen out of favor, there is still some truth to the argument. And once you’ve decided to upgrade your keyboard from the pack-in/freebie model, you’re faced with a decision about what to move to. Do you get a nicer (probably ‘gamer’) membrane keyboard? Or do you make the leap to the world of mechanical keyboards? Membrane Dominating the keyboard market by the early-to-mid-90s, membrane keyboards (specifically ‘rubber dome over membrane’ keyboards) supplanted older mechanical keyboard designs due to their significantly lower cost to manufacture. Consumers came to expect keyboards and mice as free add-ons to their computer purchase, meaning manufacturers needed to cut costs and deliver a minimum viable product.

Image Credit: Daniel Beardsmore on deskthority These membrane keyboards use a rubber sheet filled with a grid of domes with hard pads on the bottom as their “switch” mechanism. Below the rubber sheet is a sandwich of “membrane” layers (hard plastic sheets - hence ‘rubber dome over membrane’). When a key is pressed down, the pad pushes the top membrane layer into the bottom layer at that key position, bridging a path between membrane layers. This bridging completes a circuit that the keyboard controller detects, subsequently sending a key press signal to the computer. Cheap materials and the membrane design result in an incredibly mushy and terrible typing experience. It gets the job done, but we can do better. Mechanical Keyboards

Image Credit: @holdingback

Mechanical keyboards used to just be called ‘keyboards’. They are the original keyboard category, replaced by membrane keyboards as described above. Of course, over the years the variety of what is called a ‘mechanical keyboard’ has grown, so there are a few different types. From the old IBM buckling spring keyboards to modern Cherry MX keyboards, you’ll find all sorts of niches in between to satiate your every fantasy. We’re not going to dive into the deep end today though. Instead we’ll focus on the main reasons to go mechanical - broadly speaking. Spoiler alert: most of them revolve around customization. Benefits of mechanical keyboards

Repairability
Feel
Sound
Layout
Programmability
Aesthetics

Repairability

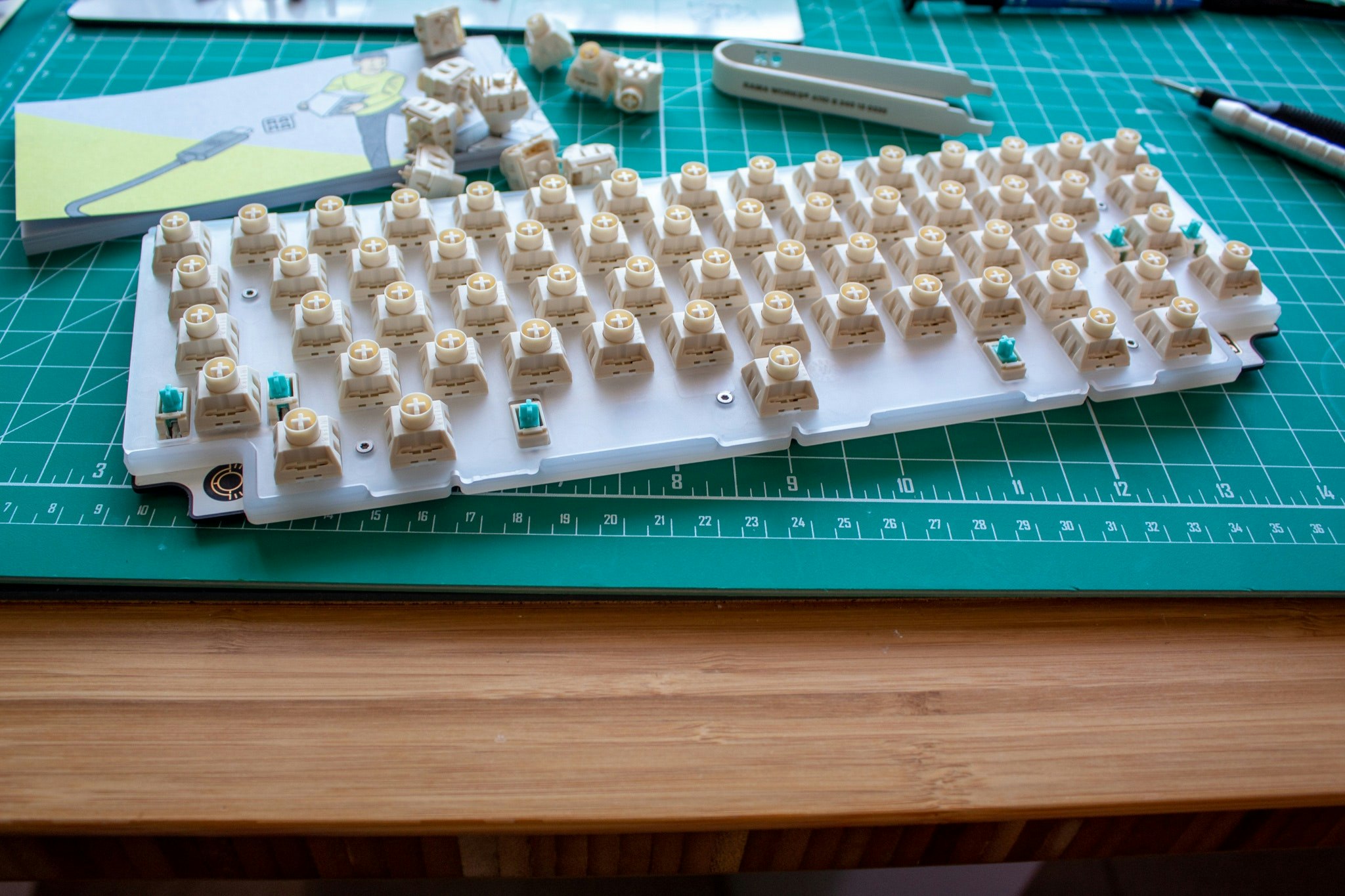

Image Credit: @lolcatz270 If something goes wrong with your membrane keyboard, you’re probably going to toss it out and get a new one. But wouldn’t it be nice if you could instead take it apart and replace a faulty component to return it to its full working glory? Nearly every type of mechanical keyboard has some sort of discrete component to it - be it discrete key switches used in Cherry MX, Alps, hall effect, and even Space Invader keyboards; or the barrels, springs, and hammers used in buckling spring keyboards. Regardless of what goes wrong or needs to be replaced, chances are you can find parts or disassemble far enough to clean a dirty component. Feel

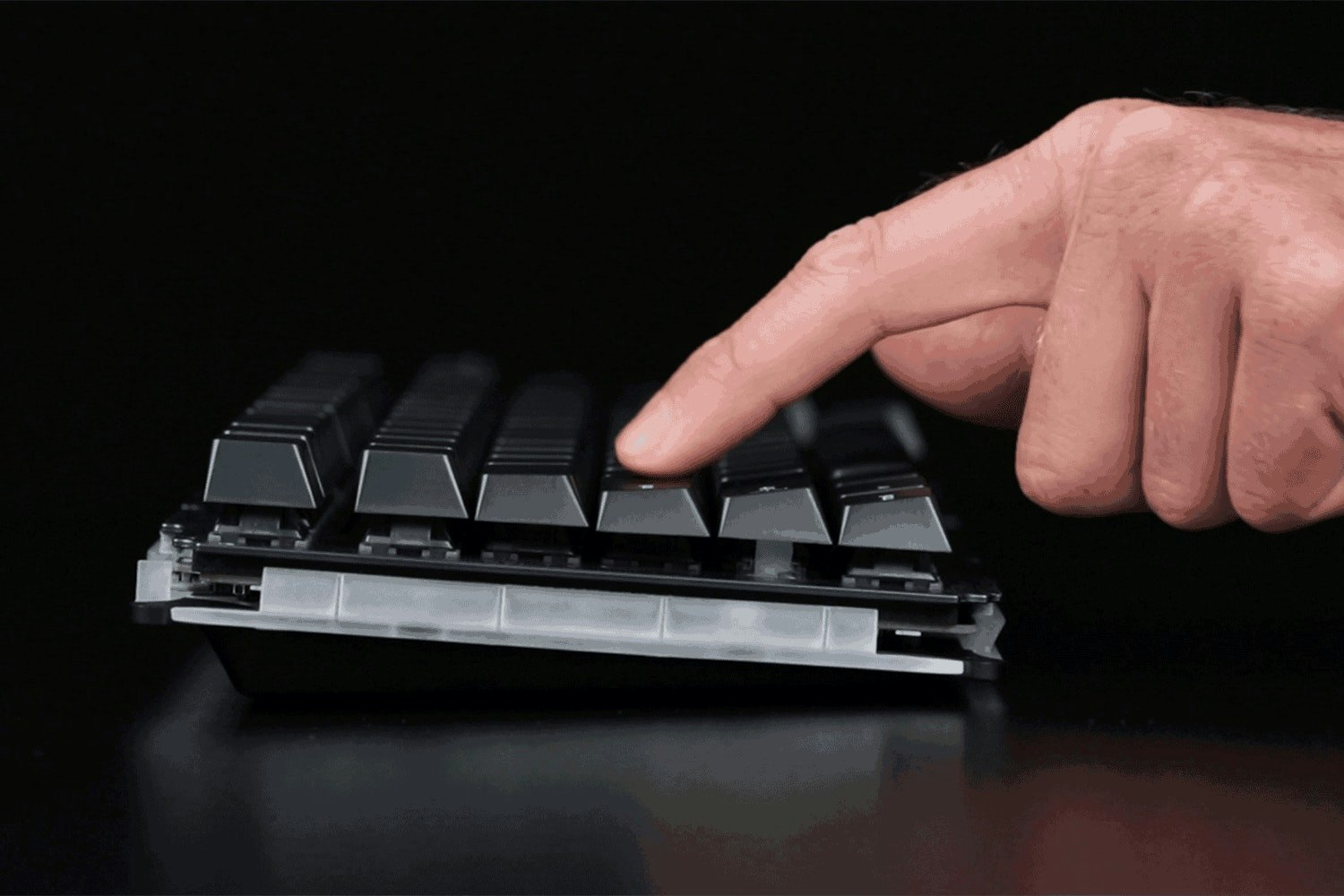

Image Credit: Drop.com The possibilities for modifying the feel of a mechanical keyboard are nearly endless. At the most basic, you have the three different types of MX switches to consider. Beyond that, however, are near-infinite variations on these tried-and-true designs that tweak spring weight, slider geometry and material, degrees of lubrication, and so on. In addition to switches, there are case design considerations as well; you can use a keyboard implementing a unique mounting method or materials to impact how it feels as well. And this isn’t even considering everything non-MX (yeah, I need to mention buckling spring again - or even its big brother, beamspring). Sound Sound is very similar to feel in that there is a lot of focus on customizing it in this hobby. Most of the things that are changed to impact feel will also impact sound in some way, and on top of that the materials will affect sound to a further degree. So while you can get a pretty good idea of how a keyboard will feel by combining various components together, the way that all those pieces affect the sound of the keyboard can be a little more difficult to predict. Metal cases are well known to add a “ping” characteristic to the sound profile, and dampening materials can make everything sound lower pitched and more “thock”y. Suffice to say that there are loads of opinions on sound out there and it’s not exactly a standardized vocabulary, so reading about sound can be quite tricky. Sound test videos are a good starting point but keep in mind the effect that room acoustics and recording setup will have on those. Layout

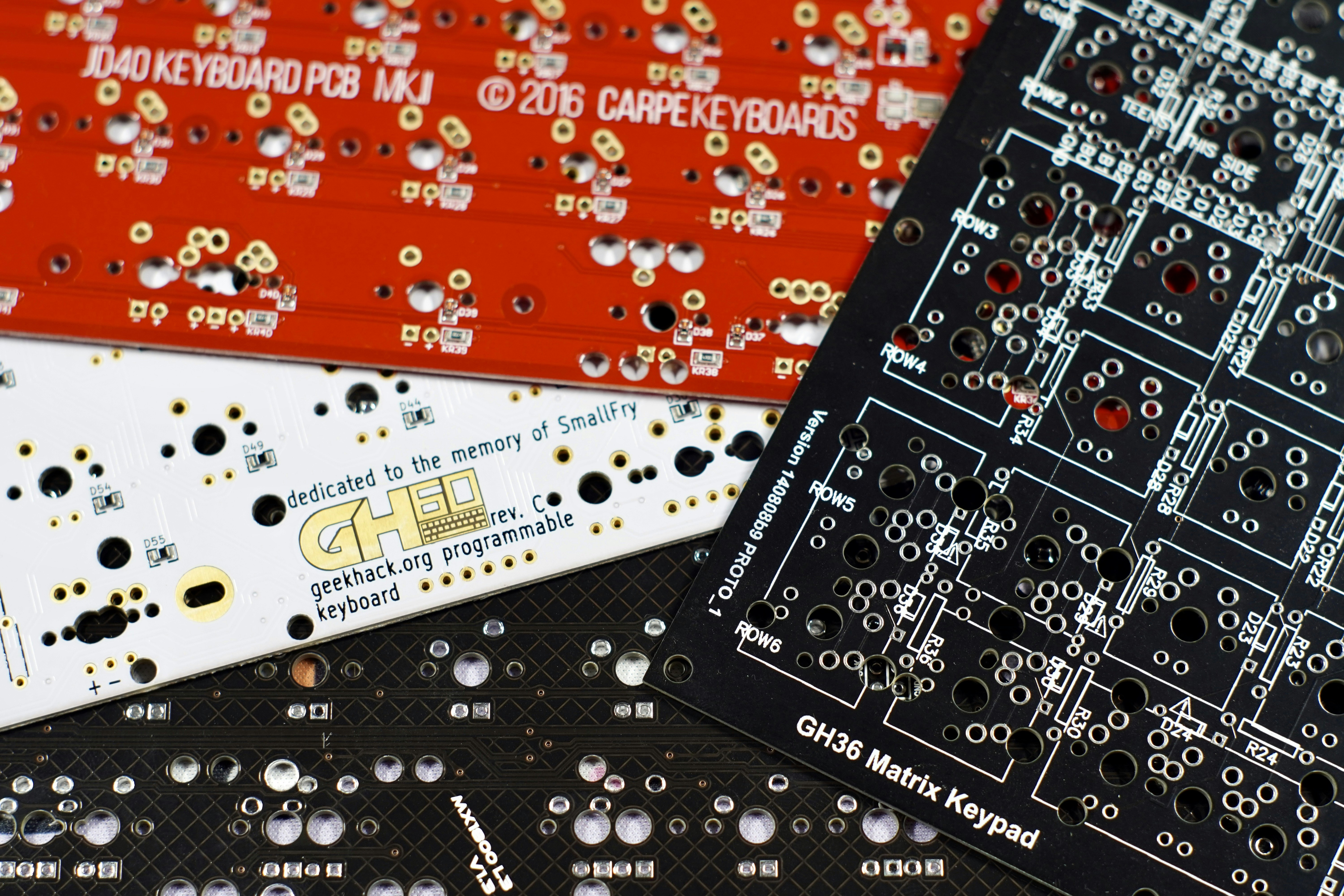

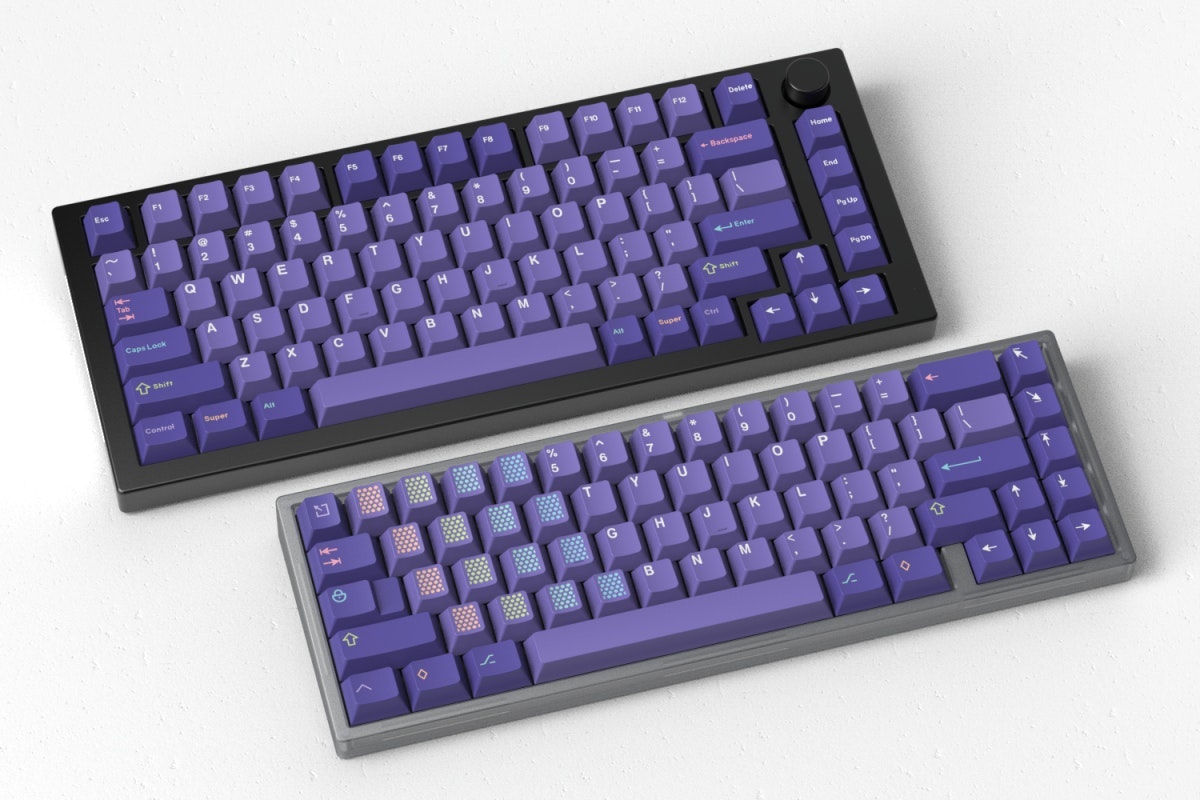

Image Credit: @HoffmanMyster Layout can take one of three directions: physical keyboard layout (size), physical key layout (within a given size/shape), and specific key position layout (what I would consider to fall under “Programmability”, below). Simply put, there are (again) tons more options for all of these factors with mechanical keyboards. Do you want a tenkeyless layout omitting the numberpad, do you want only the bare minimum required to type in order to maximize desk space and hope to improve your ergonomics, or do you just want to try something crazy and wacky (insert keyboard in the shape of a butcher knife)? You can do all of these and more with mechanical keyboards. And once you’ve got your shape and size determined, you can move the position of switches within that shape to tweak things to your liking; make the alpha cluster ortholinear, split larger keys into smaller sized keys to add more functionality, or even add rotary encoder knobs. See the swiss cheese PCBs above for an example of how many different layouts these keyboards can support in a single design. Programmability

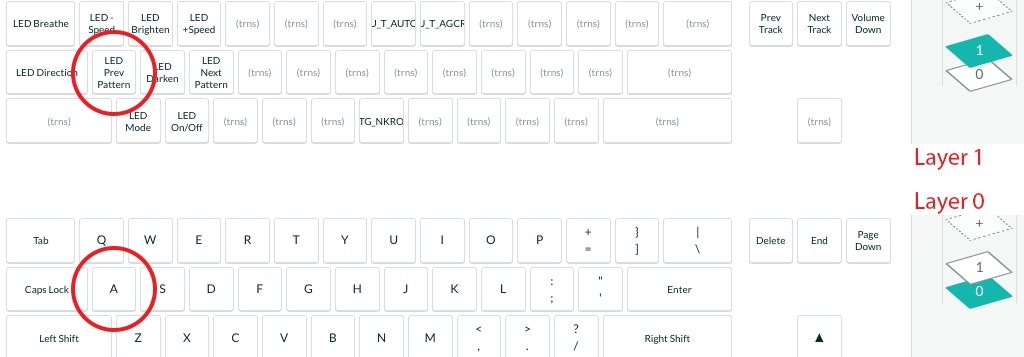

Image Credit: Drop.com While you can do some level of reprogramming the functionality of a given key with a non-mechanical keyboard, these solutions are usually limited and dependent on running an application on the computer you’re using. Those programming changes wouldn’t carry over to another computer, and certainly wouldn’t make a difference if you used the keyboard with an iPad, for example. This is where on-board reprogramming comes in. Most non-introductory mechanical keyboards will allow you to customize the specific key layout using software like QMK, VIA, or Vial (among others). These changes to the layout are then flashed to the keyboard itself, effectively hardcoding those modifications to travel with the keyboard. Such changes can include alternate layouts (Dvorak, Colemak, or international), moving left Ctrl to the Caps Lock position, changing \| to Backspace and making better use of the backspace position with a split-backspace configuration (see layout customization above ;) ), and Function layers to switch between various setups or temporarily give access to an assortment of custom macros or other keys. Again - nearly endless possibilities. Aesthetics

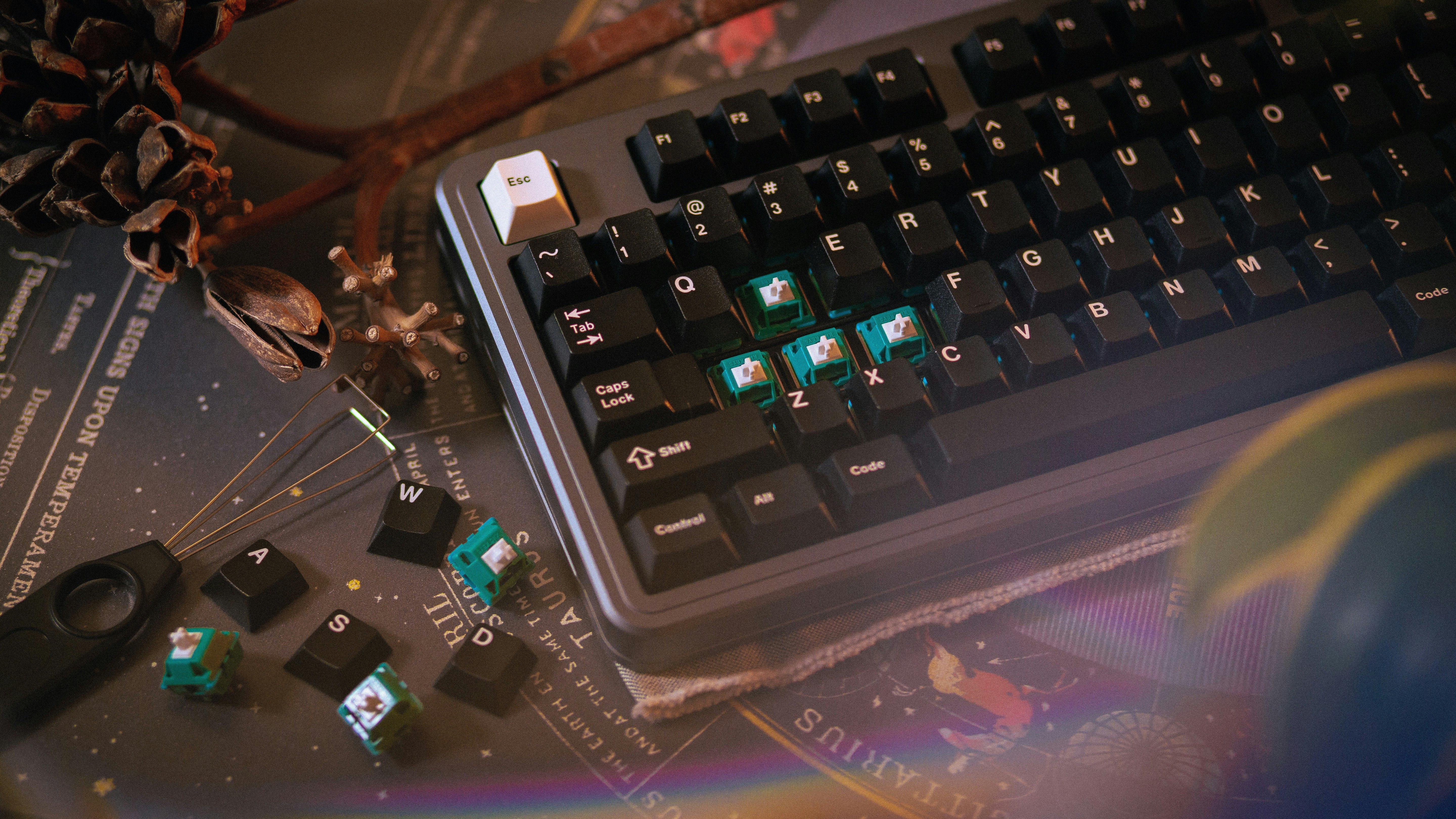

Image Credit: @alexku85 The customization theme continues… mechanical keyboards allow for - you guessed it - near endless aesthetic customizations. From the material and color of the keyboard itself to the switches (visible if using a low-profile case) and keycaps on top, the world is your oyster. As the hobby has exploded in the last few years, so have the options available to us. You can surely find a keycap set themed around something you’re interested in, or featuring a colorway (set of colors) that piques your interest. There’s really so much to aesthetics that I can’t possibly do it justice in this short article, so please do yourself a favor and browse the mech keys subreddit or instagram to see what people have already put together. What grabbed your interest in mechanical keyboards?
