PCB for HHKB-like board with detailed bottom row

Oct 14, 20161318 VIEWS

Hello!
I wonder if HHKB users (actually I should use"boards with Ctrl at Capslock position users" instead) want a more detailed bottom row.
Here is what I come up with:

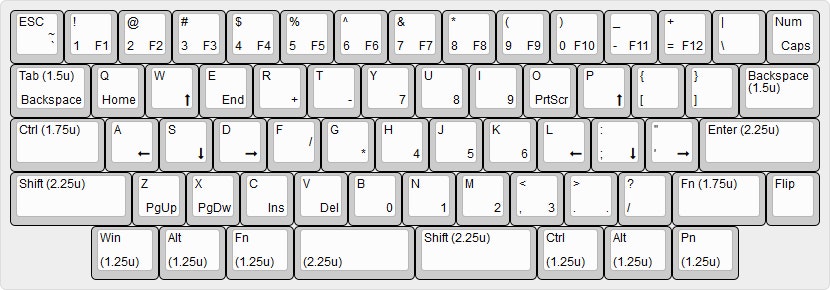

Layout A: this is what I prefer

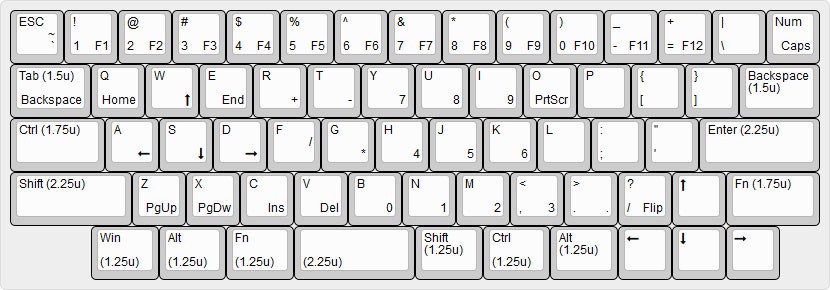

Layout B: for those who want dedicated arrow keys.

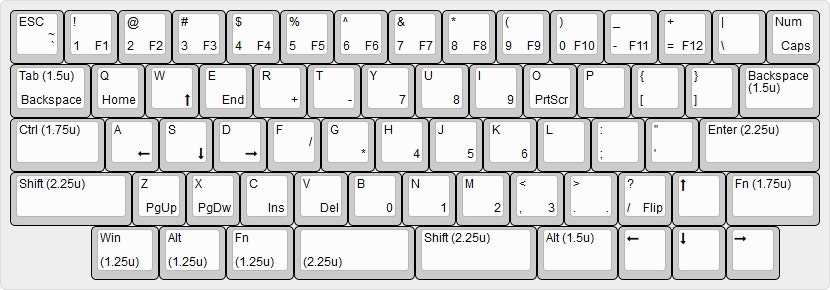

Layout AB: dedicated arrow keys for those who use right hand to smash spacebar (swap spacebar and right shift)

you may ask:
+ why HHKB? some of you may know about the Ctrl at Capslock position (at home row), I tried this and I can't go back. I also found out that if Capslock at position of Ctrl, sometimes I will accidentally press it while pressing Ctrl + Shift (with the pinky finger) though I'm not in favor of the Backspace right on top of Enter, sometimes I press Enter instead of Backspace, maybe I'm not that used to it (I don't have a HHKB)
+ why Home, End, Page Up,... everything is on the left side, are you a lefty? I'm not, though I'm trying to use two hands equally. Also when you're playing game, your right hand will operate the mouse, yeah?
+ there are two arrow clusters? Yes, another thing related to gaming: the cluster on the left is to move/pan the camera, you don't want to move your left hand to the arrows on the right, right? your right hand is with the mouse.
+ your right shift... yes, I feel that the current right shift is not that useful, you will have to move your hand away from the home keys. I do have a prototype board with shift at that position, though it's not as effective as I thought, my right thumb is useless
+ there are numpad keys? yes, I figured that someone would want to use them, for input numbers or use "key strokes" (ex. in Window: Alt + Num 0174 = ®) though I put the numpad 5 at the same position as "J" key, but it's not as effective as I thought, maybe these numpad keys need to be printed :(
+ what is "flip" key? It should "flip" layer of ESC key: - off: ESC, ` ~ (I think you will want dedicated ESC when gaming) - on: ` ~, ESC (for typing, you will want dedicated ` ~, right?)
and Fn + Flip: flip layer of "numpad keys" (this should be Fn + Shift + / on layout B & AB) - off: r t y u i, - + 7 8 9 - on: - + 7 8 9, r t y u i
----
Please tell me what you think.
Thank you for reading.

100% upvoted

1.3K

TomKazansky

206

Sort by: Newest

VinceTang

Oct 14, 2016

I've always wanted the HHKB, but it's so damn expensive. This layout with cherry/gateron switches would be amazing...

Vote

TomKazansky

206

Oct 28, 2016

VinceTangcertainly! I just found someone who would help me with this, hope we can make this happen. :D

Vote

AlexPk

7198

Community

Oct 14, 2016

love split spacebar. glad people are designing more boards with them now

Vote

Makami

4255

Oct 14, 2016

AlexPkTotally agree, going to join for the Ultimate Hacking Keyboard this weekend. https://www.crowdsupply.com/ugl/ultimate-hacking-keyboard?utm_source=Ultimate+Hacking+Keyboard+Announcements&utm_campaign=ff020c0bc4-update_2016_10&utm_medium=email&utm_term=0_08e27db3a6-ff020c0bc4-214777497
I had a very pleasing talk yesterday, nice guys, helpfull and very fast in answering questions. The moment i heard about the possibility to get a DIY-Kit without switches or with switches unsoldered i had been lost.

patrickhener

Oct 14, 2016

AlexPkWould totally love to buy one of the AB . And yes I would swap space and shift ;) add 4 PIN LEDs, Purple zelios with thick pbt dyesubs and a nice low Profile aluminium case and Viola. Best Keyboard ever.

Vote
