Adventures in cable cutting

more_vert
I've recently went through the process of removing the attached cables on my Sony MDR-V6/7506 headphones and replacing them with female audio jack. Once I got the hang of what to solder, the process was fairly straight forward. I needed to use a Dremel tool to widen the hole for the audio jack. I got some minor scratching around the area but I think it came out looking pretty good.
search

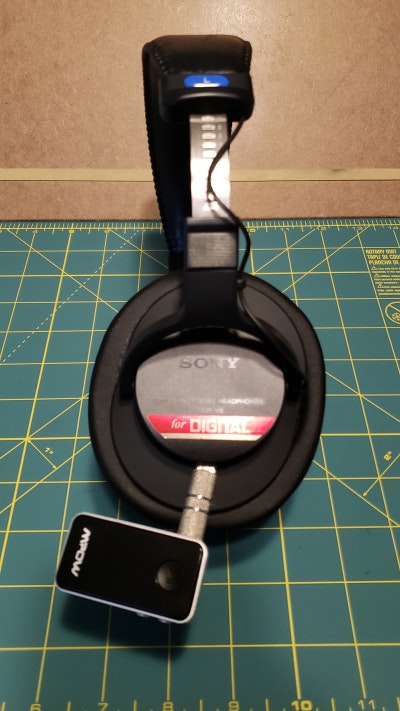

In addition to being able to use any audio aux cable to attach the headphones, I found that a Bluetooth transceiver works just as well. Once synced up to my phone, the transceiver effectively makes the headphones wireless. The transceiver even has a microphone so I can answer calls on my phone.
search
I was wondering if anyone else out there has worked on a similar type project. I'd be curious to know what headphones you detached the cable from and how much effort was involved. I'd be interested in hearing both successes and failures alike.
The next pair of headphones I plan on attempting this type of project with are the Beyerdynamic DT770. I'm a huge fan of these cans but the cable can be a bit of a pain. I'd love to hear from anyone who has removed the cable from a pair of DT770s
3
11
remove_red_eye
949

search
close
DesirousYeti345
0
May 14, 2022
hey, if I sent you mine as well as some money. could you mod mine? I've been trying to find someone to do this as, I dont think my headphones would survive if I tried. I have mdr 7506s
willie9091
0
Feb 23, 2020
Is there any possibility of you selling a pair of 7506's with this mod done?
Samuelexmachina
24
Feb 25, 2020
willie9091Hello. Apologies for the delay in response. Yes, there is a possibility that I can sell you a pair of modified 7506's. I don't think I'd be able to offer a warranty. (The pairs that I've modified haven't shown any issues, though). Did you want to provide an email for further discussion?
Samuelexmachina
24
Jul 20, 2018

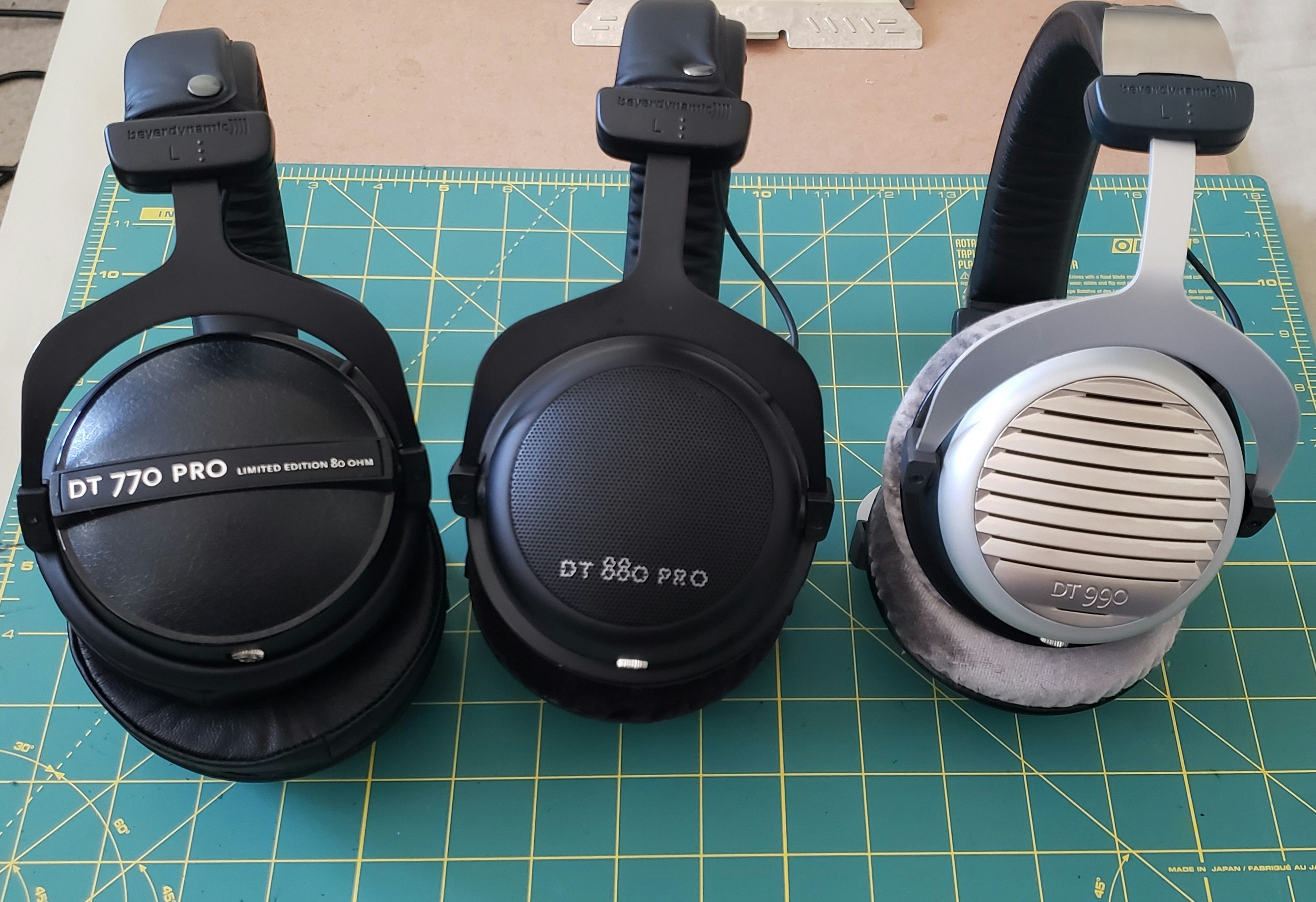

Just a follow up post. I've gotten pretty good at removing the cable from the Beyerdynamic DT series of headphones. Next project will be mini XLR (based on the suggesting of previous commentor)
search
tom.benedict
86
Jul 9, 2018
The one caution I'd have doing this is that I'd want a locking connector. A nice set to use would be TA3:
https://www.redco.com/Redco-TA3FB.html https://www.redco.com/Redco-TB3M.html
I've used these on some other projects and they're quite solid. Not that much bigger than a 3.5mm TRS, but I'd still want to check the available space to make sure it would fit.
Samuelexmachina
24
Jul 20, 2018
tom.benedictThanks for the links. I'm going to give this a try.
Regards
Dr.McCoy
345
Jun 29, 2018
I'm really interested in replacing my MDR-7506 cable. Are there any tutorials for this operation you would recommend?
Samuelexmachina
24
Jun 29, 2018
Dr.McCoyI used the tutorial I found on the Head-Fi forum: https://www.head-fi.org/threads/sony-mdr-v6-detachable-cable-mod.606937/
The example used is for the MDR-V6s but they have the same build as the 7506s so the wire layout is the same.
Good luck with your cable replacement
Dr.McCoy
345
Jun 29, 2018
SamuelexmachinaAwesome! Thanks.
jxliu
1261
Engineer
Jun 28, 2018
There was a recent in-depth post from another user about modding the TH-X00s to convert to removable cables: https://www.massdrop.com/talk/8056/how-to-fostex-th-x-00-detachable-cable
Samuelexmachina
24
Jun 29, 2018
jxliuThank you for the post link. I'll definitely check it out.
Regards
