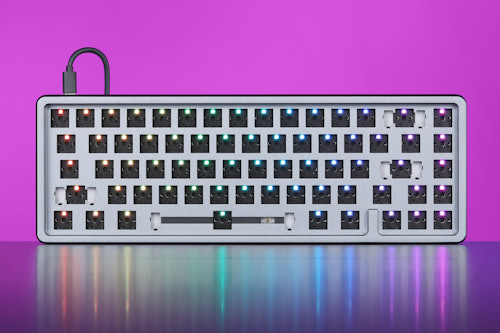

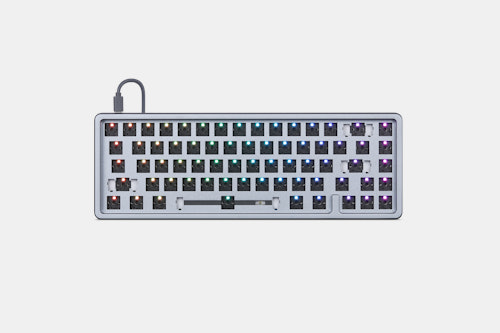

Drop ALT V2 High-Profile Barebones Mechanical Keyboard
$99
01 / 14
Drop ALT V2 High-Profile Barebones Mechanical Keyboard
bookmark_border
$99
Ready to Ship
·
Free Returns in USA
●
Members who purchase earn
297
Drop Rewards
Frequently bought together:
Want to know something about this product or how to use it?
Ask the community!
Ask the community!
View this comment
LukasM
1757
Studio Team
Sep 14, 2023
Yes, all V1 and V2 parts are interchangeable. You can upgrade a V1 to V2 by purchasing a PCB and foam kit.
View this thread
xxxsoulcollectorxxx
2
Sep 9, 2023
Is the PCB/Plate designed to work with screw in stabilizers? The plate mount stabs were a pain point on the original Drop Alts so i'm hoping this new version allows some modularity.
View this comment
HoffmanMyster
3434
Community
Sep 12, 2023
The plates are still plate-mount stabilizer compatible only (the PCBs can technically accommodate screw-in PCB-mount stabs, if anyone wanted to modify the case or use the PCB in a different application).
View this thread
audreyality
0
Dec 13, 2024
What are the specifications of the STM32 chipset and EEPROM? The F3 chip indicated in the QMK firmware says it's an F3, but that comes with varying amounts of ram and flash. I don't know where to start to find the EEPROM stats, since there's no PCB reference and I have no idea how to find it on the board.
View this comment
audreyality
0
Dec 14, 2024
After a bit of digging I was able to find the EEPROM stats. It uses a 24LC256 2-wire eprom if I read the code correctly. The chip has 32k memory and supports 1 million self-timed write cycles.
It's still unclear what the chip proper supports, but self-compiling the firmware reveals the binary is ~80kb. Cross referencing that with the ST spec page for STM32F303, it's clear the chip must have at least 128kb of internal flash and, therefore, at least 40kb SRAM.
View this thread
RangerZone
0
Sep 23, 2023
Are the USB-C ports passthrough? For example using an external numpad
View this comment
