IDOBAO ID75 V3 Hot-Swappable Ortholinear Aluminum Keyboard Kit
01 / 15
IDOBAO ID75 V3 Hot-Swappable Ortholinear Aluminum Keyboard Kit
bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
672 requests
Product Description
The IDOBAO ID75 V3 Keyboard Kit is an incredibly versatile keyboard kit with a high degree of durability and ortholinear layout options to customize your feel. The nearly two-and-a-half-pound, all-aluminum case provides both resilience against wear and a rigid, substantial canvas on which to build your board Read More
Want to know something about this product or how to use it?
Ask the community!
Ask the community!
Sort by: Newest
keyboard_arrow_downelffyb
11
Apr 4, 2022
Given the picture of the plate it probably wouldn't support a standard 2u spacebar with stabilizers. You'd probably have to get a 2u POS style keycap(s). Signature plastics (pimpmykeyboard) sells them.
I say probably because we can't see the PCB ... it is possible the PCB has space for the stabilizers ...

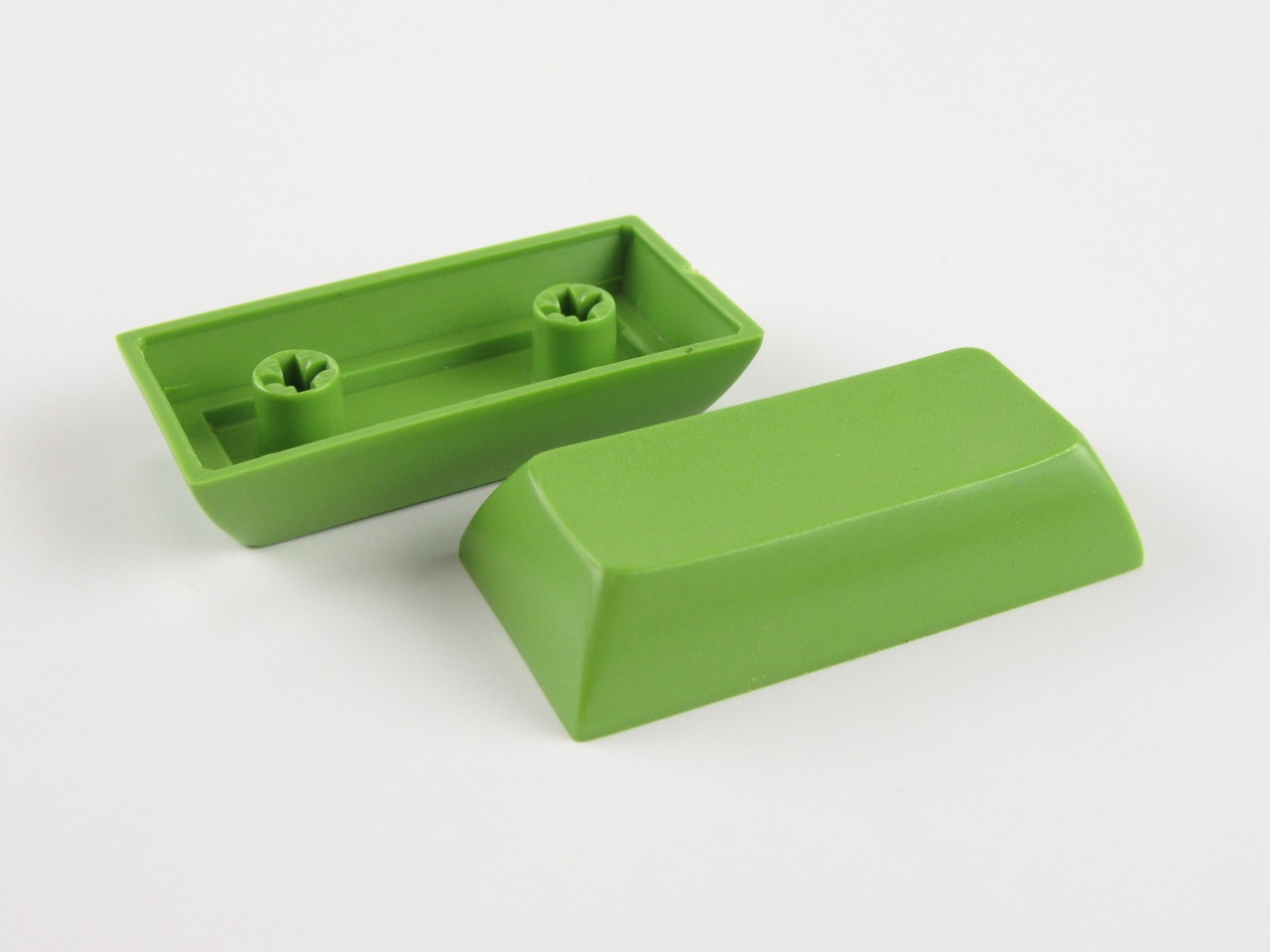

Below is a picture of the 2u POS keycaps ... I use these on my ID75 (v2). I also took the spring out of one of the switches so it isn't so stiff, and disabled the key in QMK.
The hardest part is finding a matching color, and the DSA profile won't match every keycap profile. So there's that.
JwuImage
0
Sep 28, 2022
but on their website it says south facing but with a north facing photo, confusing as F...
https://idobao.net/collections/65-layout/products/idobao-id75-crystal-hot-swap-keyboard-kit?variant=39593074688131
https://idobao.net/collections/65-layout/products/idobao-id75-crystal-hot-swap-keyboard-kit?variant=39593074688131
jkrkvld
31
Sep 28, 2022
Can I buy the 3u spacebar (from the dev/tty custom set) and use it on this keyboard?
A community member
Sep 28, 2022
I don't think it will fit; it looks like the 3u bar is meant to mount onto one switch with a pair of 2u stabilizers, and wouldn't line up correctly stradding three switches like you have here.
You would need something like a 3u point-of-sale (POS) keycap (if those exist) - POS caps are designed to straddle multiple switches without any stabilizers.
(Edited)
KamikazeSmurf
48
Aug 28, 2022

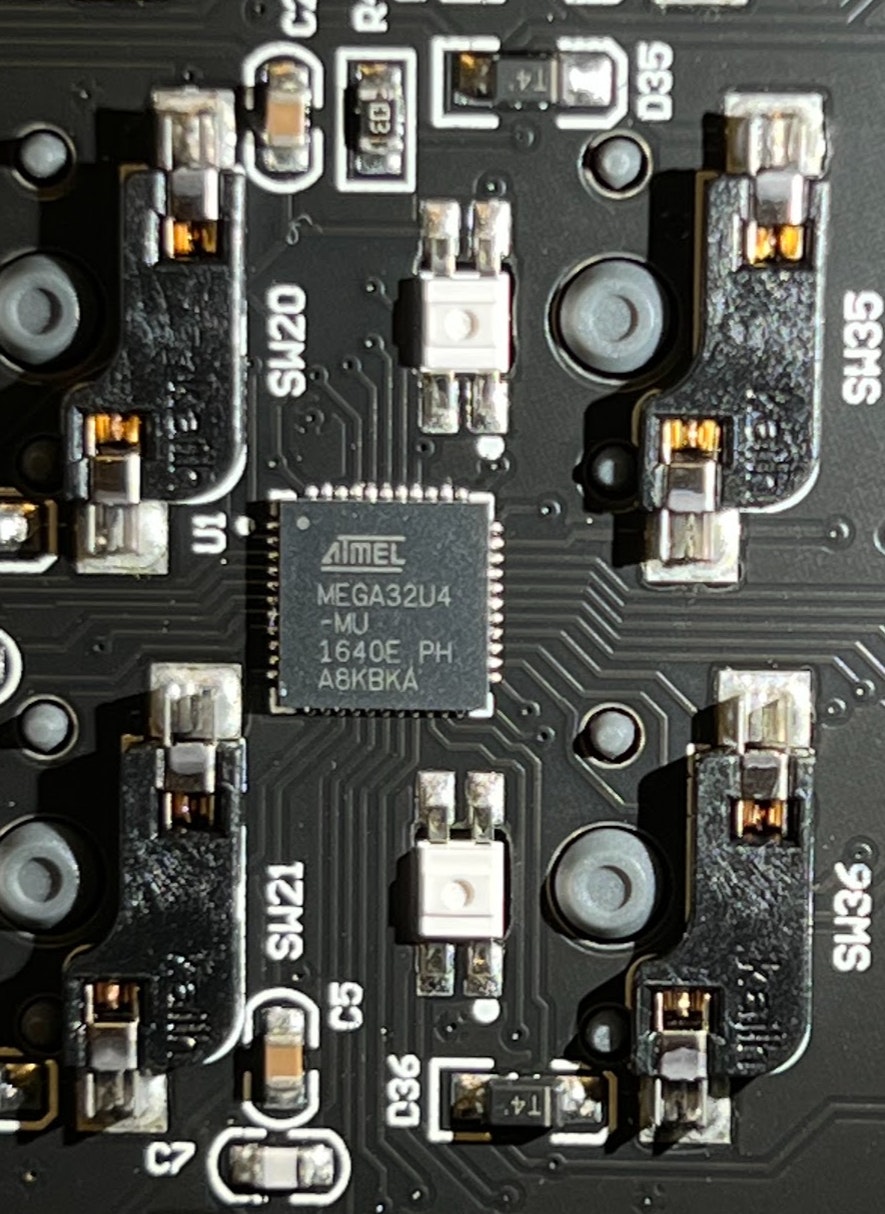

I just got mine and it's an ATMEGA32U4-MU which from a quick search has 32k of flash
KamikazeSmurf
48
Aug 28, 2022
I just got mine and successfully flashed it with QMK.
I've had no issues flashing using idobao/id75/v2 in QMK.
(When I used idobao/id75/v1 the keymap worked, but the RGB didn't)
(Edited)
