LattePanda Windows 10 Mini PC 4GB/64GB
Say Goodbye to Your PC

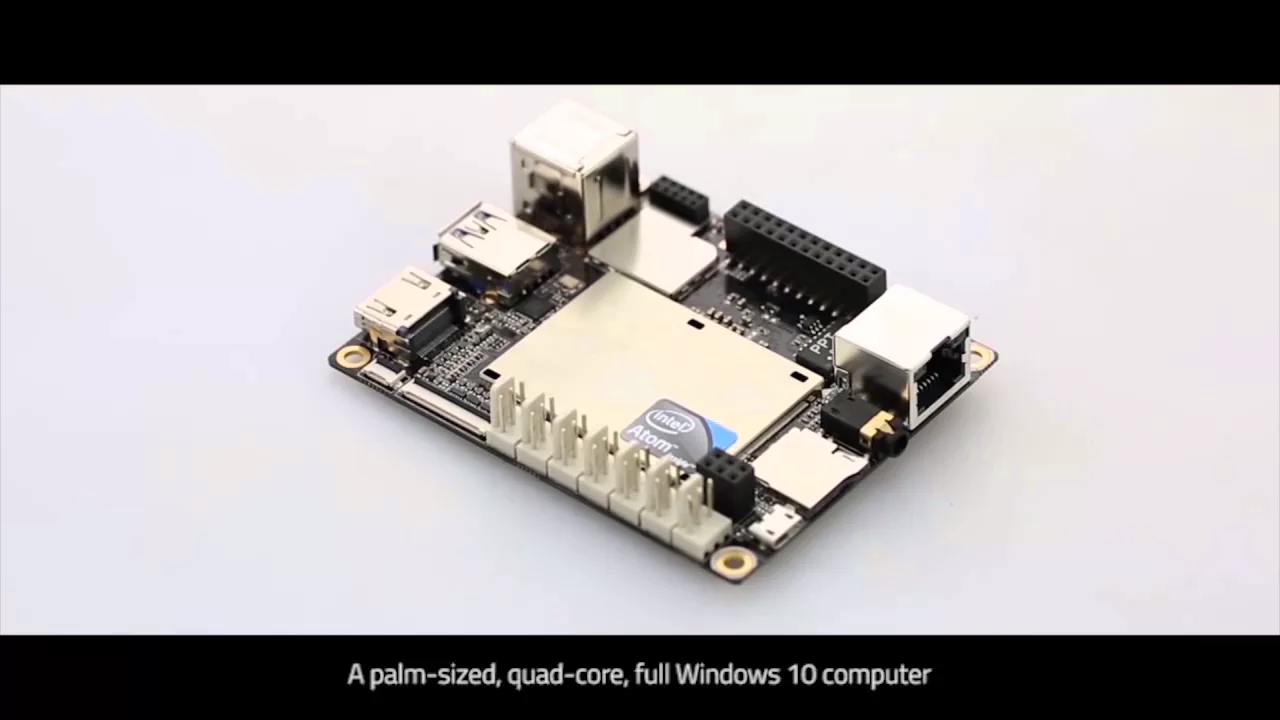

Compatible with almost every gadget you can think of—like printers, joysticks, cameras, and more—the quad-core LattePanda works just like a regular PC does, but it’s only the size of your palm. It comes pre-installed with Windows 10 Home and allows you to develop your own software and hardware projects with existing APIs. Built into the mini computer is an integrated Arduino-compatible co-processor so you can plug into the expansive world of Arduino, too. This micro-PC can be enhanced with a starter set of sensors, a case, cooling fans, and a 2.4GHz 6dBi Antenna with an IPEX connector—virtually everything you need to start computing and prototyping. See the video below for more details on the LattePanda.
Note: This drop includes the LattePanda with the option to add the Gravity Starter Sensor Set (+ $55), LattePanda Starter Kit (+ $27), 7" IPS Display (+ $30), 2.4GHz 6dBi Antenna with IPEX Connector (+ $5), SainSmart ES120 rechargeable screwdriver (+ $89.99), and the SainSmart Pro 32-piece soldering tool set (+ $59.99).
A Revolutionary Compact PC
Optional Add-Ons
Specs

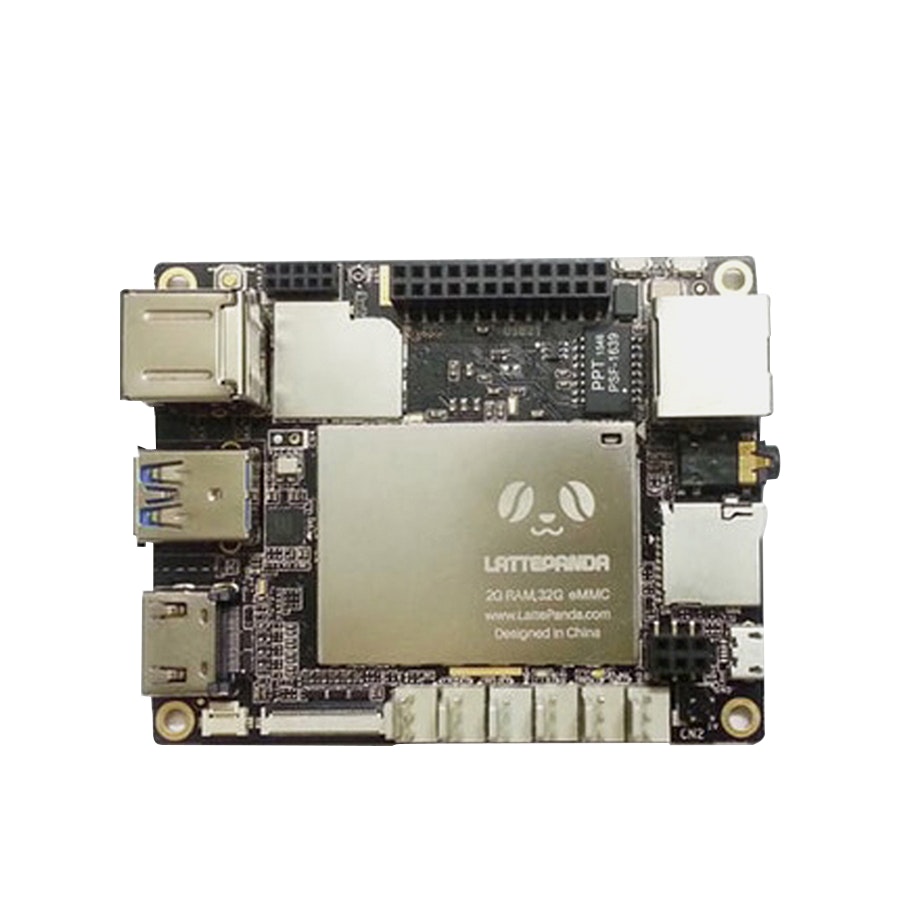

LattePanda
- Intel Cherry Trail Z8350 quad-core processor
- Base frequency: 1.44GHz (1.92GHz burst frequency)
- Operating system: Windows 10 Home Edition (unactivated)
- RAM: 4GB DDR3L
- Storage capacity: 64GB
- GPU: Intel HD graphics, 12 EUs at 200-500Mhz, single-channel memory
- USB 3.0 x 1, USB 2.0 x 2
- Wi-Fi 802.11n 2.4G
- Bluetooth 4.0
- Integrated Arduino co-processor: ATmega32u4 (Arduino Leonardo)
- Video output: HDMI and MIPI-DSI
- Onboard touch panel overlay connector
- Supports 100Mbps ethernet
- Intel processor GPIO x 6
- ATmega processor GPIO x 20
- Gravity interface connectors x 6
- Voltage: 5V at 2A
- RoHS, FCC and CE Compliant
- Dimensions: 3.5 x 2.8 in (8.8 x 7 cm)
- Weight: 1.9 oz (55 g)
Gravity Starter Sensor Set (+$55)
- PIR motion sensor x 1
- Analog gas sensor(MQ2) x 1
- Analog flame sensor x 1
- Gravity: Analog LM35 temperature sensor for Arduino x 1
- Analog ambient light sensor x 1
- Crash sensor (left) x 1
- Crash sensor (right) x 1
- Digital push button (white) x 1
- Digital push button (blue) x 1
- Analog rotation sensor V2 x 1
- Digital blue LED light module x 1
- Digital red LED light module x 1
- Digital white LED light module x 1
- Relay module V3.1 (Arduino compatible) x 1
- Gravity sensor cable x 14
LattePanda Starter Kit (+$27)
- NILLKIN AC/DC adapter 5V at 2A (US standard) (FIT0318) x 1
- 2-sided micro USB cable (FIT0479) x 1
- Pure copper heatsink (FIT0367) x 5
- 3.5 cm cooling fan (FIT0504) x 1
- 3 ft HDMI cable (FIT0480) x 1
- Acrylic case (FIT0474) x 1
7-Inch IPS Display (+$30)
- 1024 x 600 high resolution
- Supports LattePanda
- 10cm FPC connector
- Dimensions: 6.5 x 3.8 x 0.1 in (16.4 x 9.6 x 0.26 cm)
2.4GHz 6dBi Antenna with IPEX Connector (+$5)
- Frequency: 2.4 GHz
- Gain: 6dBi
- Cable length: 5.9 in (15 cm)
- Interface: IPEX MHF1
- Supports LattePanda
- Height: 6.7 in (17 cm)
- Weight: 0.6 oz (18 g)
SainSmart ES120 Rechargeable Screwdriver (+$89.99)
- Work voltage: DC3-5V
- Material: 304 stainless steel
- No-load speed: About 270 rpm
- Electronic torque: 2.8 kgf.cm
- Maximum torque: 30 kgf.cm (manual mode)
- Screwdriver bit: 4M hexagon
- Charging time: 45 minutes
- Running time: 30 minutes (full power)
- Charging mode: Micro USB 5V input
- OLED screen
- Battery: 10440 lithium-ion
- Rotor: Bi-directional overrunning clutch
- Gearbox: 1:144 integrated planetary gearbox
- Motor: 25,000 rpm brush motor
- Main chip: STM32
- Sensor: Angular velocity sensor
SainSmart Pro 32-Piece Soldering Tool Set (+$59.99)
- Operating voltage: 12V to 24V
- Power: 17W to 65W
- Screen: OLED
- USB port: Micro USB
- Power port: DC5525
- Temperature stability: ± 2%
- Soldering tip resistance to ground: < 2Ω
- Temperature range: 212–752°F (100–400°C)
- Dimensions, control part: 3.8 x 0.6 in (9.6 x 1.65 cm)
- Dimensions, heating part: 2.8 x 0.2 in (7.2 x 0.55 cm)
- Compliant with EU certification: CE FCC
Shipping
Estimated ship date is Oct 23, 2018 PT.
Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.
