Product Description
A microcontroller board based on the Atmel SAM3X8E ARM Cortex-M3 CPU, this SainSmart board is powerful and fast. It’s based on a 32-bit ARM core microcontroller and has 54 digital input/output pins, 12 of which can be used as PWM outputs ... Read More
Powerful & Versatile

A microcontroller board based on the Atmel SAM3X8E ARM Cortex-M3 CPU, this SainSmart board is powerful and fast. It’s based on a 32-bit ARM core microcontroller and has 54 digital input/output pins, 12 of which can be used as PWM outputs. It also comes with 12 analog inputs, 4 UARTs (hardware serial ports), an 84 MHz clock, a USB OTG-capable connection, two DACs (digital to analog), two TWI, a power jack, an SPI header, a JTAG header, a reset button, and an erase button. Plus, the information is displayed on the included 3.2-inch touch-screen LCD display. This board runs at 3.3 volts, so providing higher voltages could cause damage. It’s compatible with SainSmart shields (one of which is included) that run at 3.3 volts and compliant with 1.0 Arduino pinout.

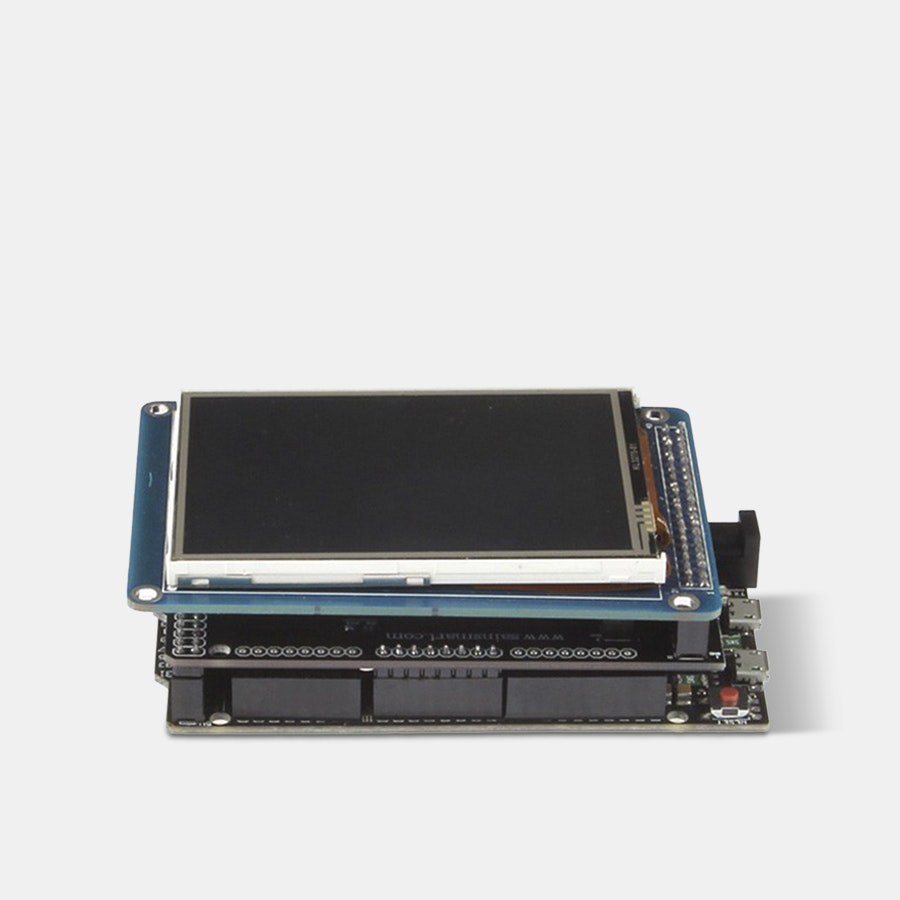

Note: This drop includes the SainSmart DUE board, SainSmart 3.2-in LCD display, and SainSmart TFT LCD Extend Shield for Arduino DUE.

Specs
  • Microcontroller: AT91SAM3X8E
  • Operating voltage: 3.3V
  • Input voltage (recommended): 7-12V
  • Input voltage (limits): 6-20V
  • Digital I/O pins: 54 (of which 12 provide PWM output)
  • Analog input pins: 12
  • Analog outputs pins: 2 (DAC)
  • Total DC output current on all I/O lines: 130 mA
  • DC current for 3.3V pin: 800 mA
  • DC current for 5V pin: 800 mA
  • Flash memory: 512 KB all available for the user applications
  • SRAM: 96 KB (two banks: 64KB and 32KB)
  • Clock speed: 84 MHz
  • 32-bit core allows operations on 4 bytes wide data within a single CPU clock
  • DMA controller can relieve the CPU from doing memory-intensive tasks
Included
  • SainSmart DUE Board SAM3X8E
  • SainSmart 3.2-inch LCD display with touch screen for Arduino Due MEGA2560 R3
  • SainSmart TFT LCD Extend Shield for Arduino Due
  • USB cable
