Rhamnetin
177
Oct 21, 2018
Right now my favorite sounding DACs are single ended (Chord) while my favorite headphone amps are balanced ones that convert SE signal to balanced (balanced Dynalos, KGSSHV Carbon). On paper this isn't even ideal. Makes me want a balanced Chord-type FPGA+pulse array DAC.
Rhamnetin
177
May 10, 2019
Yeah that has always been their approach. I've since left Chord behind; sufficient for headphone use but don't really cut it for high end loudspeaker use (not compared to what else is out there at least). I've since replaced my Hugo 2 with the Bricasti M1 SE.
carliber
29
Mar 28, 2021
As of early 2020(?), there is also E1DA PowerDAC v2 - FPGA based and balanced too.
mikeonline
104
Oct 21, 2018
Don't mean to argue with anyone, but I find it odd when I read about people not being able to hear the difference between balanced and single ended. To my ears it's such an obvious difference in the placement of sounds that I can't see how anyone wouldn't be able to immediately tell the difference after listening to single ended for a while and then switching to balanced. It's not even a question of whether your ears are good enough to hear certain frequencies or anything like that. The main difference is in, as I said earlier, how sound is positioned. The main difference I hear when switching to balanced input is greater or "exaggerated" separation, and and overall wider soundstage/headstage. Again, this difference is so jarring to me that I don't understand this talk about not being able to tell the difference.
I'm not saying that this change is necessarily better though. I've heard a few headphones via balanced and single ended connection on a few different balanced amps (Questyle CM400i, Acro L1000, Opus #2 DAP (2.5mm balanced). The headphones were: Ether C (non flow), Ether Flow, HD600, Audioquest Nightowl Carbon, Audeze LCD-i4 (not mine, my cousins), and finally the Hifiman Edition X v2. Out of all of those I can honestly say that I only prefer(d) the sound of balanced over single ended on the Ether C, HD600, and Nightowl carbon. The reason relates to why I used "exaggerated" to describe separation and soundstage/headstage via balanced. On headphones with an already respectable amount of headstage, the increased separation sounds "off". It's almost sounds too wide or too separated and I don't like it. This is why I've come to the conclusion that balanced really only benefits headphones with a more intimate/congested presentation, i.e. closed backs, hd600/650/6xx, etc. After I heard the HD600 balanced, and going back and forth A/Bing, I never went back to single ended.
Again, I'm not trying to argue. I can understand a number of posts about not seeing the benefit of balanced, but I just read a few posts here about not even being able to tell the difference in sound and only seeing the benefits balanced gives in driving power or better components. Sorry if my ears are just really weird and no one is hearing what I'm hearing, but I just wanted to add to this thread in hopes that someone wont cast aside the possibility of trying balanced out.
I'm not saying that this change is necessarily better though. I've heard a few headphones via balanced and single ended connection on a few different balanced amps (Questyle CM400i, Acro L1000, Opus #2 DAP (2.5mm balanced). The headphones were: Ether C (non flow), Ether Flow, HD600, Audioquest Nightowl Carbon, Audeze LCD-i4 (not mine, my cousins), and finally the Hifiman Edition X v2. Out of all of those I can honestly say that I only prefer(d) the sound of balanced over single ended on the Ether C, HD600, and Nightowl carbon. The reason relates to why I used "exaggerated" to describe separation and soundstage/headstage via balanced. On headphones with an already respectable amount of headstage, the increased separation sounds "off". It's almost sounds too wide or too separated and I don't like it. This is why I've come to the conclusion that balanced really only benefits headphones with a more intimate/congested presentation, i.e. closed backs, hd600/650/6xx, etc. After I heard the HD600 balanced, and going back and forth A/Bing, I never went back to single ended.
Again, I'm not trying to argue. I can understand a number of posts about not seeing the benefit of balanced, but I just read a few posts here about not even being able to tell the difference in sound and only seeing the benefits balanced gives in driving power or better components. Sorry if my ears are just really weird and no one is hearing what I'm hearing, but I just wanted to add to this thread in hopes that someone wont cast aside the possibility of trying balanced out.
Kotomine
25
Apr 30, 2019
I know this is 27 weeks old but your post made me want to try out balanced audio and I thought I should mention that as it didn't seem to get much attention. That type of detailed opinion on the matter was just what I was looking for.
Dr.JamesWilson
11
Aug 11, 2020
I too hear a pretty large difference between balanced and single ended... About a year ago I was listening to my buddy's HD598s and was tripping about how they sounded so different than mine. After about an hour of trying to understand why... they were balanced.
I feel like thats the best kind of A/B test... when you have no clue you're doing one.
ElectronicVices
2769
Jun 2, 2018
I'm going to offer up my own personal view on the situation as well as my experience. I personally don't believe a balanced connection is inherently better in and of itself over singled-ended. I do however think that gear that includes a balanced topology has certain advantages given ones situation.
My signal chain(s): Laptop>Teac UD-501>Denon 2808>Emotiva XPA-100's>Emotiva ERT 8.3 (Single-ended) Laptop>Teac UD-501>Cayin IHA-6>Elex/HE500 (Fully Balanced) Laptop>Teac UD-501>Gustard H10>more headphones than I would care to list (Partially Balanced)
My DAC sits in the rack with the rest of my AV gear for the stereo/HT, I use the singled ended outputs into the receiver's 5.1 analog inputs and it acts as a pre-amp to my amps (1 each for L/R) again via RCA cables. The cables are all 2 meters or less for this chain. My headphone amps sit on a table at the end of my couch, around 15 ft 'as the cable runs' from the DAC and past power outlets. I use the balanced XLR output in this instance. The UD-501 & Cayin are both fully balanced designs and the UD offers a dual-mono configuration down to the transformers. The Cayin has some apparent advantages when being run balanced. It's OI drops from 10ohms to .3, and it goes from 2ish watts to 7 watts. I have tried the single ended output into the Cayin as I wanted to try various SE only headphones with it (no splitting/summing circuit).
SE vs Balanced effects with my headphone gear:
1) Balanced is more flexible with the .3 ohm output. I have a lot of pairs I would like to use with this thing (Cayin). That 10 ohm OI of SE out (120ohm on the 2nd SE output) will impact the frequency response of several of them.
2) The balanced run has a blacker background and greater soundstage size by a shade on the Cayin, more than likely a byproduct of reduced noise and crosstalk. On the Gustard it just gives it a slightly blacker ground.
3) Knowing my HE500's are getting more than enough wattage and should I ever decide to pickup a used HE-6, will not have to resort to re-purposing a speaker amp.
Additional Comments:
My prior DAC included a pre-amp, although not the best digital implementation it still sounded decent controlling the volume. That DAC was a balanced differential design and my XPA-100's accept XLR and/or RCA. I couldn't tell a difference on the monoblock/tower chain as the run is short and each amp only handles one channel from separate cables. I am personally a big fan of dual-mono configurations as you can see from my choice of gear. To me they give benefits to soundstage, imaging and low-level listening enjoyment. Since many of the balanced gear designs are dual-mono I think the benefits from that design philosophy get lumped in with "Balanced is great man!!"
My signal chain(s): Laptop>Teac UD-501>Denon 2808>Emotiva XPA-100's>Emotiva ERT 8.3 (Single-ended) Laptop>Teac UD-501>Cayin IHA-6>Elex/HE500 (Fully Balanced) Laptop>Teac UD-501>Gustard H10>more headphones than I would care to list (Partially Balanced)
My DAC sits in the rack with the rest of my AV gear for the stereo/HT, I use the singled ended outputs into the receiver's 5.1 analog inputs and it acts as a pre-amp to my amps (1 each for L/R) again via RCA cables. The cables are all 2 meters or less for this chain. My headphone amps sit on a table at the end of my couch, around 15 ft 'as the cable runs' from the DAC and past power outlets. I use the balanced XLR output in this instance. The UD-501 & Cayin are both fully balanced designs and the UD offers a dual-mono configuration down to the transformers. The Cayin has some apparent advantages when being run balanced. It's OI drops from 10ohms to .3, and it goes from 2ish watts to 7 watts. I have tried the single ended output into the Cayin as I wanted to try various SE only headphones with it (no splitting/summing circuit).
SE vs Balanced effects with my headphone gear:
1) Balanced is more flexible with the .3 ohm output. I have a lot of pairs I would like to use with this thing (Cayin). That 10 ohm OI of SE out (120ohm on the 2nd SE output) will impact the frequency response of several of them.
2) The balanced run has a blacker background and greater soundstage size by a shade on the Cayin, more than likely a byproduct of reduced noise and crosstalk. On the Gustard it just gives it a slightly blacker ground.
3) Knowing my HE500's are getting more than enough wattage and should I ever decide to pickup a used HE-6, will not have to resort to re-purposing a speaker amp.
Additional Comments:
My prior DAC included a pre-amp, although not the best digital implementation it still sounded decent controlling the volume. That DAC was a balanced differential design and my XPA-100's accept XLR and/or RCA. I couldn't tell a difference on the monoblock/tower chain as the run is short and each amp only handles one channel from separate cables. I am personally a big fan of dual-mono configurations as you can see from my choice of gear. To me they give benefits to soundstage, imaging and low-level listening enjoyment. Since many of the balanced gear designs are dual-mono I think the benefits from that design philosophy get lumped in with "Balanced is great man!!"
SimonPac
2
Jun 1, 2018
Balanced audio connections do not use the signal/power ground as one of the two wires required to convey a single (say left channel or right channel) audio signal. Instead each of the two balanced wires for a channel carries the same waveform but 180 degrees out of phase (phase inverted) with respect to the other, each waveform being of nominally equal amplitude. The main potential advantage is that the ground (0V) connection of the equipment is not carrying an audio input (or output) signal.
There is no inherent reason for balanced inputs to work better other than superior common mode interference rejection and the avoidance of ground loops. Neither possible problem is normally a major factor for domestic audio at line levels. If the amplifier is truly balanced throughout it is possible that signal current in the ground path will be reduced slightly, to the benefit of distortion but again this should not be an issue in well-designed equipment. A truly balanced throughout amplifier may generate a more complex distortion characteristic because it essentially contains two separate amplifier circuits, one handling the in-phase signal and the other the out-of-phase signal. Again, hopefully not a real issue.
A true balanced output stage will be able, potentially, to deliver twice the voltage swing and four times the power into a given load, for the same DC voltage used to supply the amplifier. A balanced headphone amplifier with a balanced headphone lead will reduce ground wire intermodulation of the channels, though only very slightly unless the lead, whether within the amp or the external lead, is of very poor quality, and carries the left and right channel grounds for a significant length.
The number of AC power transformers in a piece of equipment is entirely unrelated to whether the equipment is balanced in signal operation. Some equipment uses audio balancing input transformers to convert from balanced to unbalanced or vice-versa. These are normally very small and shielded magnetically and electrically.
A stereo DAC requires a minimum of 2 DAC circuits. A balanced stereo DAC requires a minimum of 4 DAC circuits. Many DAC chips contain more than one actual DAC circuit. The number of DAC chips is not a direct indicator of balanced or unbalanced operation.
GUTB
242
May 4, 2018
Balanced is better not because of common mode noise rejection (the reason often given) but because a truly balanced topology driving a balanced signal has better performance. Voltage amplification swings between - and +, and in balanced topology each amp circuit only needs to push - and + for one channel; this also means component matching is more critical but assuming its engineered right balanced will always be better.
Truly balanced means the amp topology is balanced, not that a single-ended signal gets split. One amp circuit for each channel. The downside is that single-ended outputs are degraded because the balanced signal has to be combined in some manner.
Balanced in DACs means something a little different -- still one line-level amp circuit for each channel but also one DAC chip for each channel (full differential balanced). DAC chips have better performance and noise specs when used in a balanced configuration.
The best: full differential / true balanced DAC -> XLR -> true balanced amp -> balanced headphones.
Quick visual guide: If an amp has more than one AC transformer it will be true balanced. If it has one transformer but the literature says its balanced, try to find assurance that it is true balanced (ie, there are secondary wingdings used off the single transformer which is a substitute for having two of them). DACs will often have two transformers but the second one is normally not used for balanced operation you'll have to find assurances in literature but if you can see more than one DAC chip than it's probably balanced.
Truly balanced means the amp topology is balanced, not that a single-ended signal gets split. One amp circuit for each channel. The downside is that single-ended outputs are degraded because the balanced signal has to be combined in some manner.
Balanced in DACs means something a little different -- still one line-level amp circuit for each channel but also one DAC chip for each channel (full differential balanced). DAC chips have better performance and noise specs when used in a balanced configuration.
The best: full differential / true balanced DAC -> XLR -> true balanced amp -> balanced headphones.
Quick visual guide: If an amp has more than one AC transformer it will be true balanced. If it has one transformer but the literature says its balanced, try to find assurance that it is true balanced (ie, there are secondary wingdings used off the single transformer which is a substitute for having two of them). DACs will often have two transformers but the second one is normally not used for balanced operation you'll have to find assurances in literature but if you can see more than one DAC chip than it's probably balanced.
jgp1212
276
Apr 30, 2018
Rumor has it that massdrop has a matching balanced dac in the works for the thx aaa amplifier?
Is there any truth to this?
Is there any truth to this?
Ageless
96
Apr 26, 2018
Are the Questsyle lineup of dac/amps fully balanced? I'm very interested in the CMA400i
alexandros
93
Apr 24, 2018

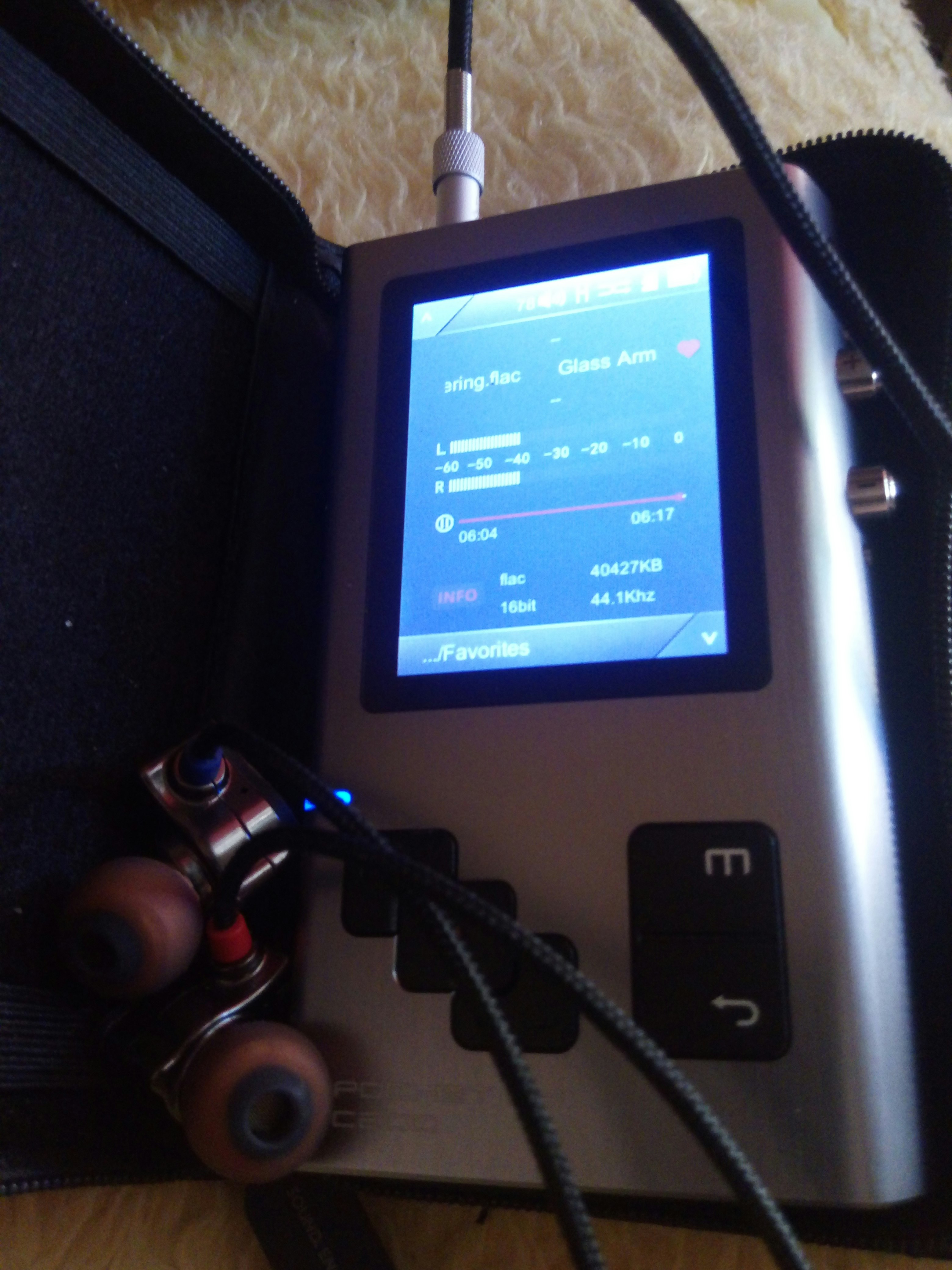

I mainly use iems and portable dac/dap with a portable amp
Several months ago i bought ibasso PB3 amp with 2.5 balanced out along with the usual 3.5 single ended...
Till now using several hybrid or exclusively balanced armature iems i cannot detect any audible difference between balanced out and single end out..
That is using PB3s 2.5 balanced out with expensive iems above the 300$ price range...
DoctorX
301
Apr 23, 2018
I'm not fully convinced the benefit of going balanced isn't just because the balanced gear is better built and costs more.
All of those comparisons I see are not comparing the same gear or the same circuit. Has anyone ever done a comparison using the same balanced output using a single ended adapter for the single ended test?
But then again, even if the only benefit of going balanced is because manufacturers puts better circuit behind the balanced output, does that really matter in practice?
At the end of the day, it just costs too damn much going balanced so count me out.
All of those comparisons I see are not comparing the same gear or the same circuit. Has anyone ever done a comparison using the same balanced output using a single ended adapter for the single ended test?
But then again, even if the only benefit of going balanced is because manufacturers puts better circuit behind the balanced output, does that really matter in practice?
At the end of the day, it just costs too damn much going balanced so count me out.
jerlad
75
Jun 18, 2018
What do you consider to be the less-obvious benefits of balanced output?
My first contribution to this thread offered some things to listen for in order to determine whether the gear you are using is delivering everything to your likeing.
I completely agree with you that there are many fine single ended devices. I think there are many whose component list and build quality are state-of-the-art. I am most often listening through SE because of where I am and what I may have with me at the time. I listen to music at work and the setup there is SE. When I come home, I listen through a balanced connection.
My first contribution to this thread offered some things to listen for in order to determine whether the gear you are using is delivering everything to your likeing.
I completely agree with you that there are many fine single ended devices. I think there are many whose component list and build quality are state-of-the-art. I am most often listening through SE because of where I am and what I may have with me at the time. I listen to music at work and the setup there is SE. When I come home, I listen through a balanced connection.
Rhamnetin
177
Jun 20, 2018
Like you, I listen to music at work with a single ended setup, and balanced at home. I can speak for two headphones like this, the ZMF Blackwood and ZMF Ori.
The SE setup is just a Chord Hugo 2 (though I've tried this with a Schiit Lyr 3 with excellent NOS tubes, zero improvement), the balanced setup is Chord Hugo 2 + Mjolnir Audio Pure BiPolar (this amp converts SE signal into balanced using Nelson Pass's "Super Symmetry" input). I have also used the Audeze LCD-4 with a Hugo 2 + Schiit Lyr 3, and Hugo 2 + Pure BiPolar but that's just unfair considering the Pure BiPolar is in a completely different class than the Lyr 3.
So the audible improvements with the ZMF headphones are: fuller bass, harder hitting bass, considerably better layering/instrument separation, far more transparent and overall cleaner treble but this isn't just because it's balanced.
A really interesting test though would be if I were to compare the Pure BiPolar amp to a really good single ended amp like a Bottlehead Mainline or an excellent SET speaker amp repurposed for headphones. But that's not gonna happen.
The SE setup is just a Chord Hugo 2 (though I've tried this with a Schiit Lyr 3 with excellent NOS tubes, zero improvement), the balanced setup is Chord Hugo 2 + Mjolnir Audio Pure BiPolar (this amp converts SE signal into balanced using Nelson Pass's "Super Symmetry" input). I have also used the Audeze LCD-4 with a Hugo 2 + Schiit Lyr 3, and Hugo 2 + Pure BiPolar but that's just unfair considering the Pure BiPolar is in a completely different class than the Lyr 3.
So the audible improvements with the ZMF headphones are: fuller bass, harder hitting bass, considerably better layering/instrument separation, far more transparent and overall cleaner treble but this isn't just because it's balanced.
A really interesting test though would be if I were to compare the Pure BiPolar amp to a really good single ended amp like a Bottlehead Mainline or an excellent SET speaker amp repurposed for headphones. But that's not gonna happen.
Duncan
3698
Apr 16, 2018
Hey folks. We have a winner of the Massdrop x HIFIMAN HE4XX Planar Magnetic Headphones. Congrats to @rantng! The giveaway has concluded, but if you have any questions (or answers), keep them coming. Thanks y'all.
