Everglide Aqua King Mechanical Switches
Transparent Linear Switches in 3 Weights
The ocean may be deep, but it's a smooth ride all the way down. Take a dive, and chances are, you’ll see everything in front of you. The same holds true for Everglide’s new Aqua King switches. With a total travel of 4 millimeters, these linear switches have a longer round trip than most other linear options—but with the same consistent resistance from start to finish. Where they standout is in their fully transparent housings, which elegantly reflect light—much like ocean water. Other components include a stainless steel spring with a gold plate, as well as gold alloy contacts for extra durability. Choose from three switch weights to fine-tune your feel, and select from three pack sizes to fit any board.
Note: At checkout, choose 55-gram, 62-gram, or 67-gram switches in 70-pack (base price), 90-pack (+ $15), or 110-pack (+ $25).
.jpg?auto=format&fm=jpg&fit=crop&w=1080&bg=f0f0f0&dpr=3&q=24)

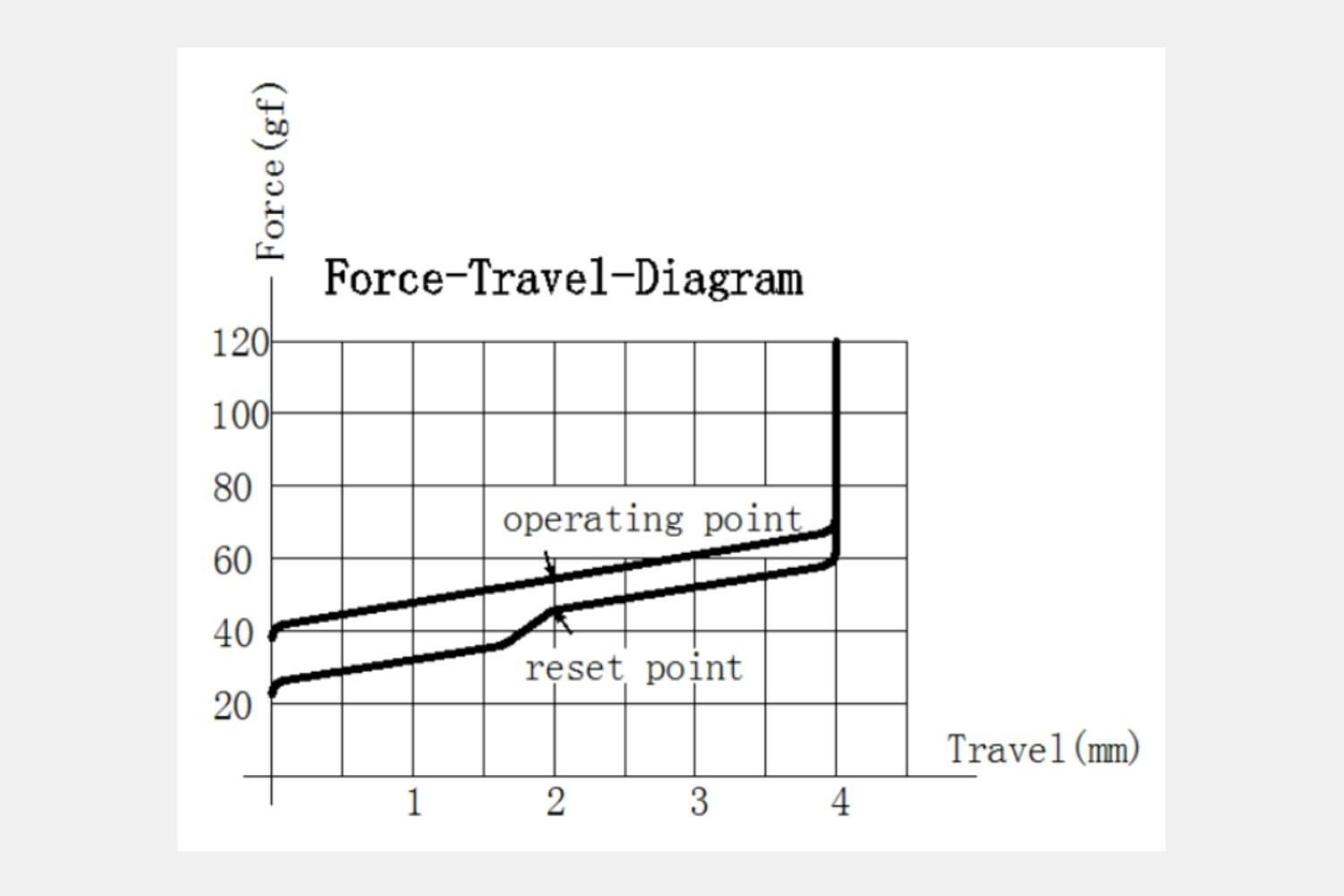

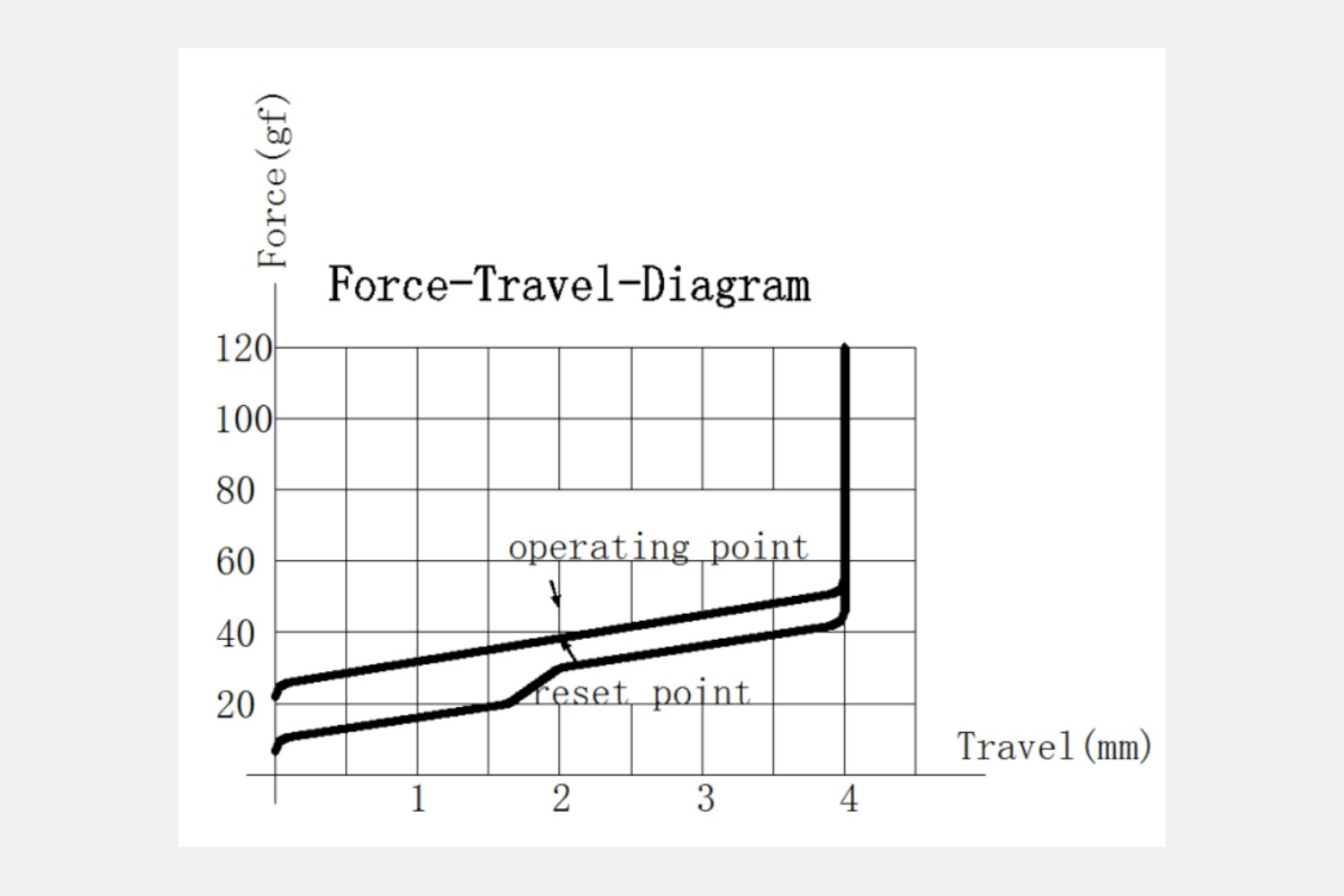

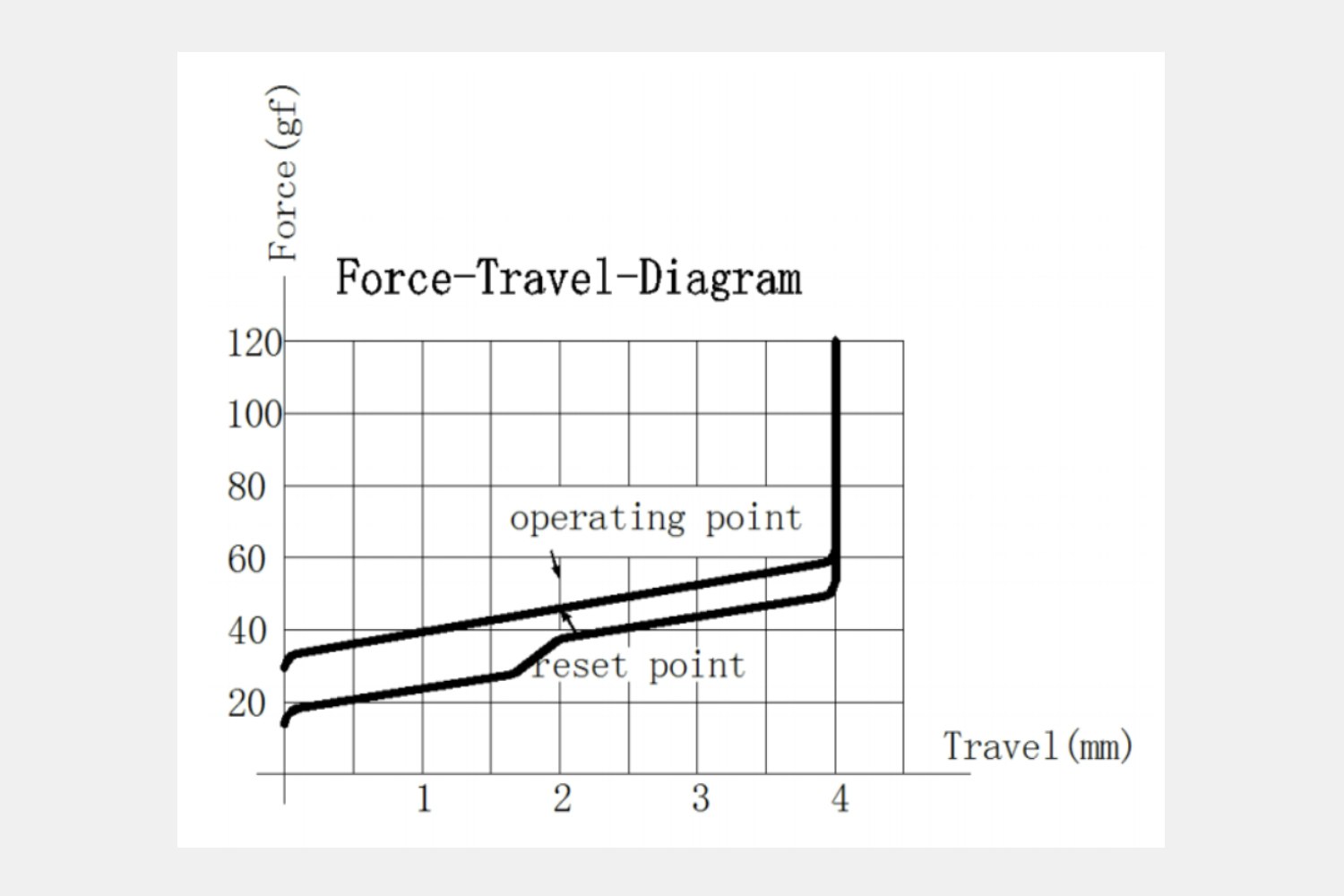

Force Curve Diagrams
Specs
- Everglide
- Switch housing material: Polycarbonate
- Stem material: Polycarbonate
- Maximum switching voltage: 12 V AC/DC
- Maximum switching current: 10 mA AC/DC
- Dielectric strength: 500 V / 50Hz
- Lifespan: > 50 million actuations
- Contact configuration: Single-pole contact
- Pretravel: 2.0 (± 0.6 mm)
- Total travel: 4 mm (± 0.3 mm)
- Actuation force: 55 gf, 62 gf, or 67 gf (± 10 gf)
- Operating force: 15 gf
- Bounce time: < 5 ms (during actuation with 0.4 m/s)
- Spring: Stainless steel (with a gold-plate）
- Contacts: Gold alloy
- Storage Temperature: 41°F – 104°F (5°C – 40°C)
- Operating Temperature: -40°F – 158°F (-40°C – 70°C)
Shipping
All orders will be shipped by Drop.
Estimated ship date is May 14, 2021 PT.
Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final. Check the discussion for updates on your order.
